Diagnosis System

DIAGNOSIS SYSTEM

DIAGNOSIS

CAUTION: When releasing the parking brake lever, set the chocks to hold the vehicle for safety.







a. Release the parking brake lever.

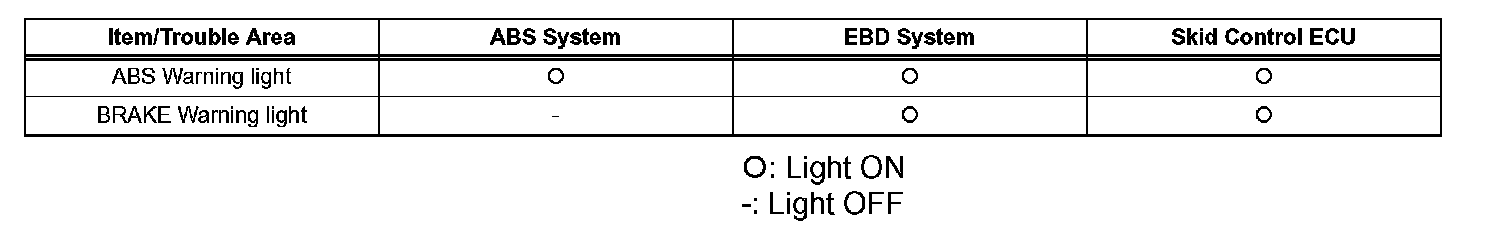

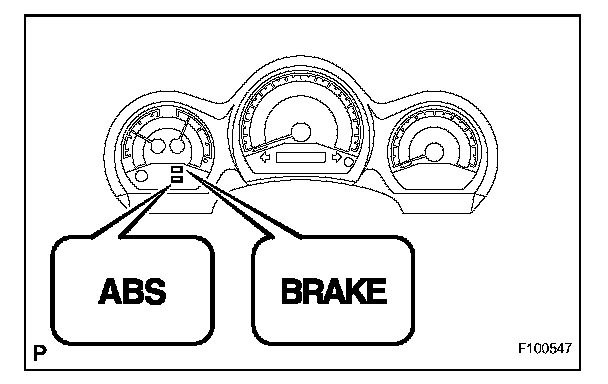

b. If the skid control ECU detects a malfunction, the ABS and BRAKE warning lights will come on to warn the driver. The table given indicates which lights come on when there is a malfunction in a particular function.
c. The DTCs are simultaneously stored in memory. The DTCs can be read by connecting the SST between terminals TC and CG of the DLC3 and observing the blinking of the ABS warning light, or by connecting the intelligent tester.

SST 09843-18040
