Sunroof / Moonroof Switch: Testing and Inspection

INSPECTION




1. INSPECT MAP LIGHT ASSEMBLY

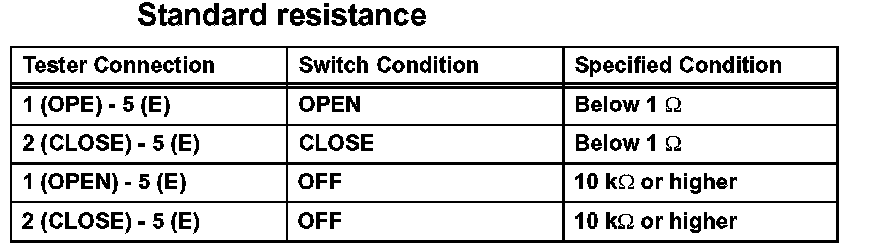

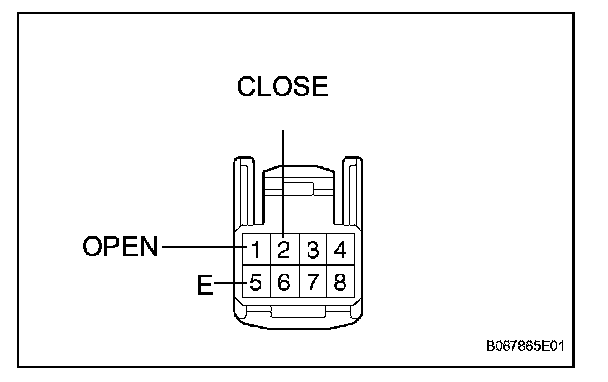

a. Measure the resistance of the switch.
If the result is not as specified, replace the map light assembly.
