Sunroof / Moonroof Switch: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.




2. REMOVE MAP LIGHT ASSEMBLY

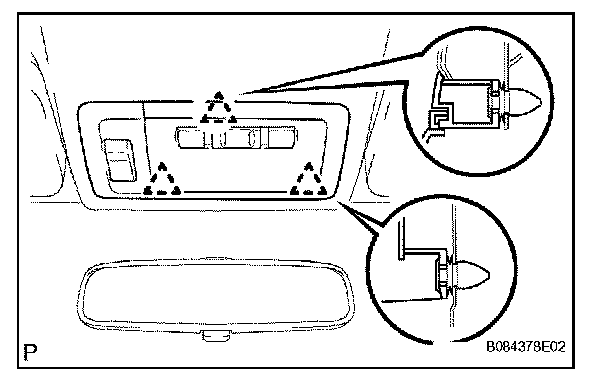

a. Using a clip remover, detach the 3 clips and remove the light.
b. Disconnect the map light connector.

INSTALLATION




1. INSTALL MAP LIGHT ASSEMBLY
a. Connect the map light connector.

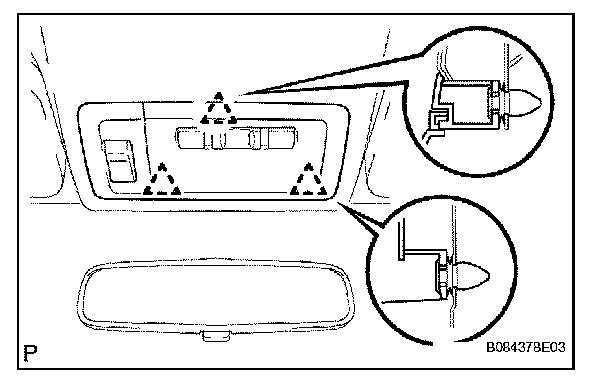

b. Attach the 3 clips to install the light.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

4. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
