Removal and Installation
REMOVAL1. REMOVE TONNEAU COVER ASSEMBLY
2. REMOVE DECK BOARD SUB-ASSEMBLY
3. REMOVE REAR SEAT CUSHION ASSEMBLY
a. Detach the seat cushion's 2 front hooks from the vehicle body.
NOTE: Follow the instructions carefully as the cushion frame deforms easily.

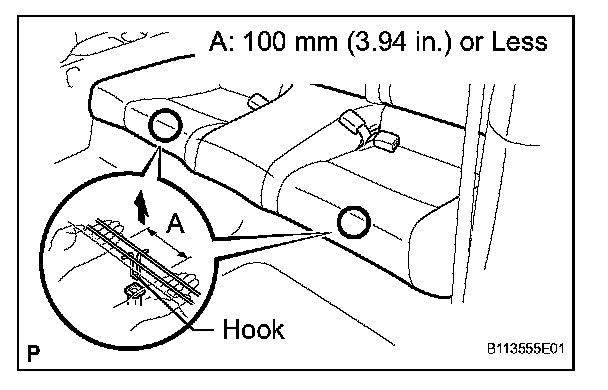

1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
2. Repeat for the other hook.

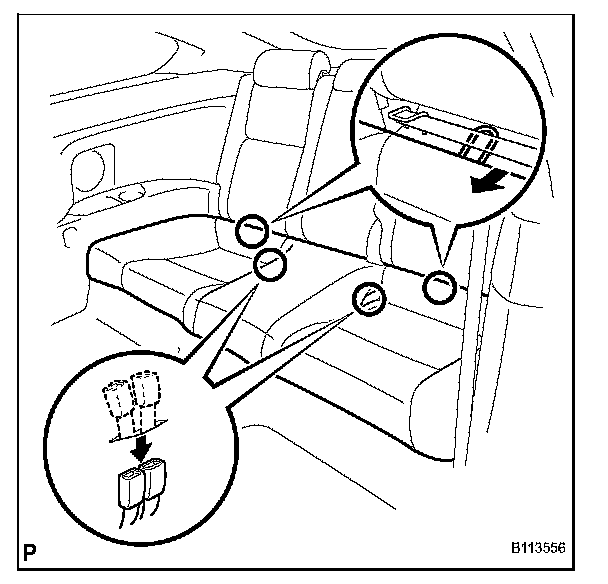

b. Remove the inner belts through the slits on the seat cushion.
c. Detach the seat cushion's 2 rear hooks from the seatback. Then remove the seat cushion.
4. REMOVE NO.1 DECK BOARD
5. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
a. Detach the 12 claws and remove the 3 anchor covers as shown in the illustration.
6. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
a. Remove the 3 bolts and 3 anchor brackets.
7. REMOVE REAR NO.1 FLOOR BOARD

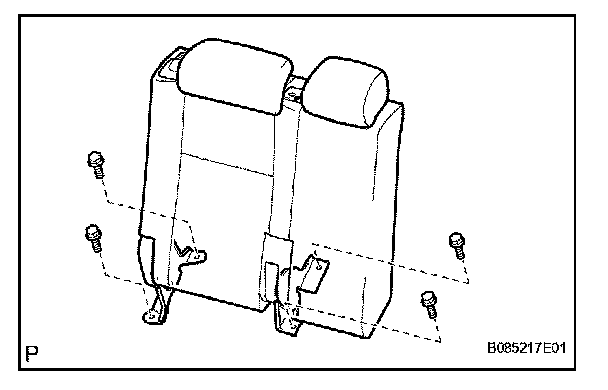

8. REMOVE REAR SEATBACK ASSEMBLY LH
a. Fully fold the seatback forward.
b. Remove the 2 bolts on the rear side of the seatback.
c. Return the seatback to the upright position.
d. Remove the 2 bolts on the front side of the seatback. Then remove the seatback.
NOTE: Be careful not to damage the vehicle body.
9. REMOVE REAR SEATBACK ASSEMBLY RH
a. Remove the bolt and rear seat outer belt floor anchor.
b. Fully fold the seatback forward.
c. Remove the 2 bolts on the rear side of the seatback.
d. Return the seatback to the upright position.
e. Remove the 2 bolts on the front side of the seatback. Then remove the seatback.
NOTE: Be careful not to damage the vehicle body.
10. REMOVE REAR SEAT CUSHION LOCK HOOK

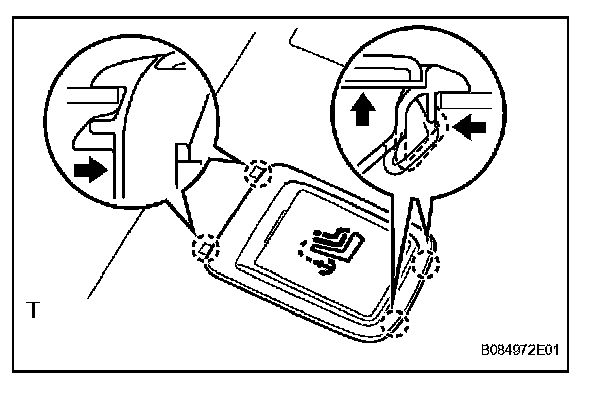

a. Using a screwdriver, detach the claws and remove the 2 lock hooks.
HINT: Tape the screwdriver tip before use.
11. REMOVE NO.3 SEAT LEG SUB-ASSEMBLY
a. Using a clip remover, remove the 2 clips.
b. Partially remove the floor carpet, and remove the 4 bolts and seat leg.
INSTALLATION
1. INSTALL NO. 3 SEAT LEG SUB-ASSEMBLY
a. Install the seat leg with the 4 bolts.
Torque:40 N.m (408 kgf.cm, 30 ft.lbf)
b. Install the floor carpet with the 2 clips.
2. INSTALL REAR SEAT CUSHION LOCK HOOK

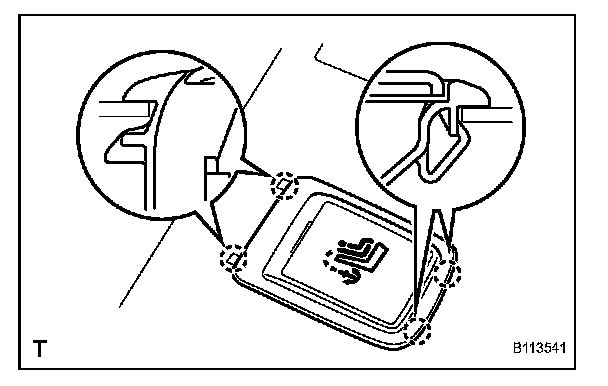

a. Attach the claws to install the 2 lock hooks.
3. INSTALL REAR SEATBACK ASSEMBLY LH
a. Place the seat in the cabin.
NOTE: Be careful not to damage the vehicle body.

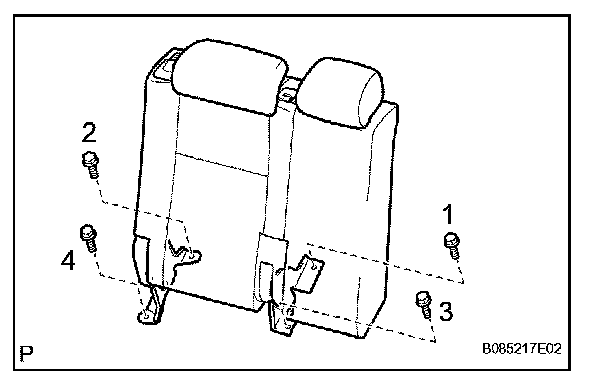

b. Tighten the 4 bolts in the order indicated in the illustration.
Torque:40 N.m (408 kgf.cm, 30 ft.lbf)
4. INSTALL REAR SEATBACK ASSEMBLY RH
a. Place the seat in the cabin.
NOTE: Be careful not to damage the vehicle body.

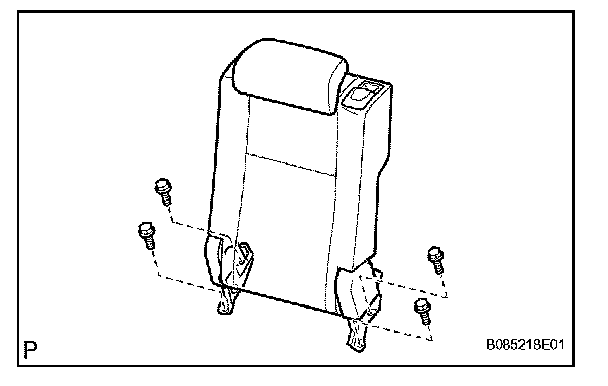

b. Tighten the 4 bolts in the order indicated in the illustration.
Torque:40 N.m (408 kgf.cm, 30 ft.lbf)
c. Install the rear seat outer belt floor anchor with the bolt.
Torque:42 N.m (428 kgf.cm, 31 ft.lbf)
5. INSTALL REAR NO. 1 FLOOR BOARD
6. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
a. Install the 3 brackets with the 3 bolts.
Torque:19.6 N.m (200 kgf.cm, 14 ft.lbf)
7. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER
a. Attach the 12 claws to install the 3 anchor covers.
8. INSTALL NO.1 DECK BOARD
9. INSTALL REAR SEAT CUSHION ASSEMBLY

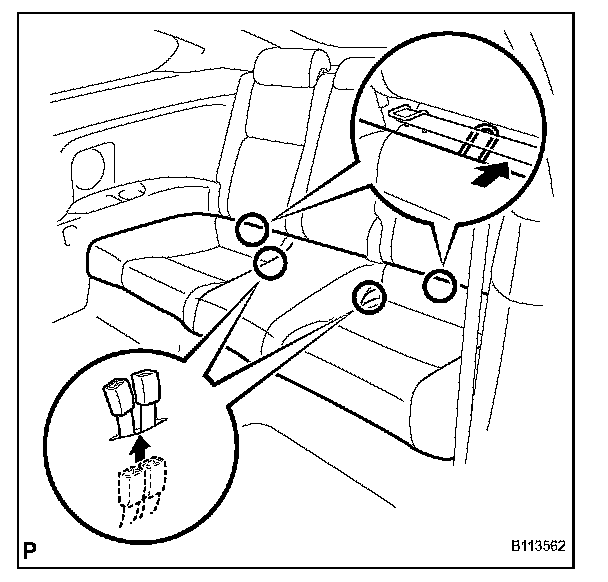

a. Attach the 2 seat cushion's rear hooks to the seatback frame.
b. Insert the inner belts through the slits on the seat cushion.

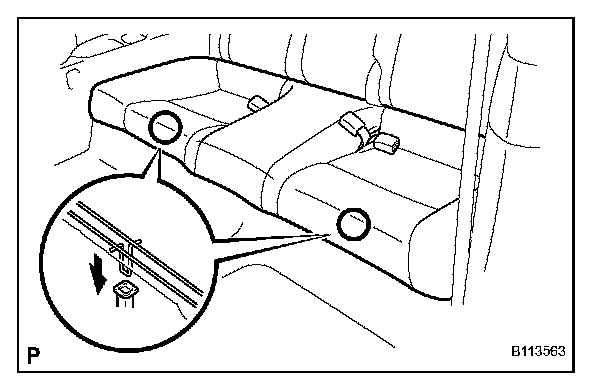

c. Attach the 2 seat cushion's front hooks to the rear seat cushion lock hooks.
d. Confirm that the seat cushion is firmly installed.
10. INSTALL DECK BOARD SUB-ASSEMBLY
11. INSTALL TONNEAU COVER ASSEMBLY
