Roof Window Fix Glass

ROOF WINDOW FIX GLASS

Roof Window Fix Glass:

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL

NOTICE: Wait for 90 seconds after disconnecting the terminal to prevent the airbag from deploying.

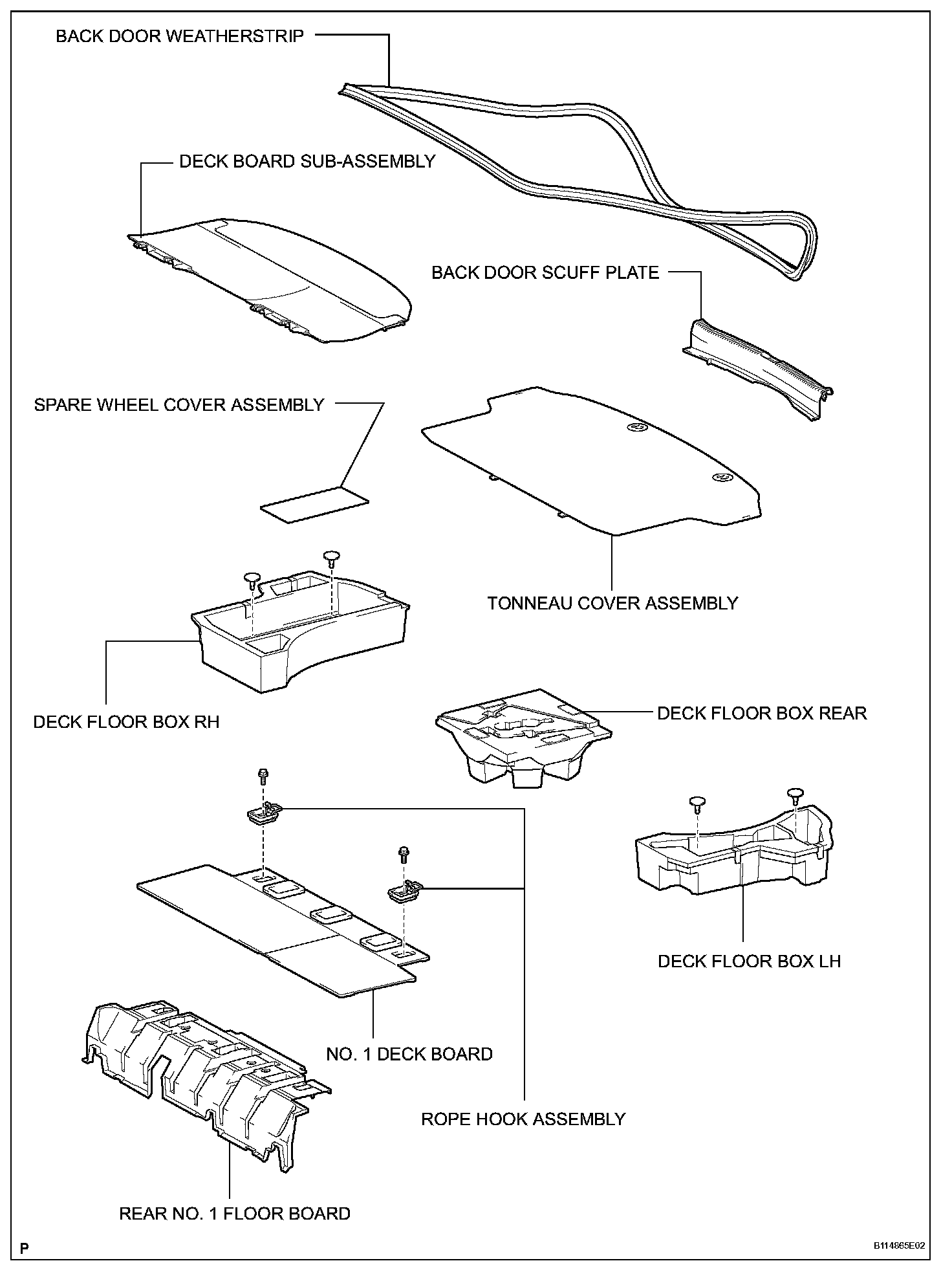

2. REMOVE TONNEAU COVER ASSEMBLY
3. REMOVE DECK BOARD SUB-ASSEMBLY
4. REMOVE BACK DOOR SCUFF PLATE
5. REMOVE BACK DOOR WEATHERSTRIP
6. REMOVE SPARE WHEEL COVER ASSEMBLY
7. REMOVE DECK FLOOR BOX LH
8. REMOVE DECK FLOOR BOX RH
9. REMOVE DECK FLOOR BOX REAR
10. REMOVE NO. 1 DECK BOARD
11. REMOVE REAR NO. 1 FLOOR BOARD
12. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
13. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH
14. REMOVE FRONT DOOR SCUFF PLATE LH
15. REMOVE FRONT DOOR SCUFF PLATE RH
16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

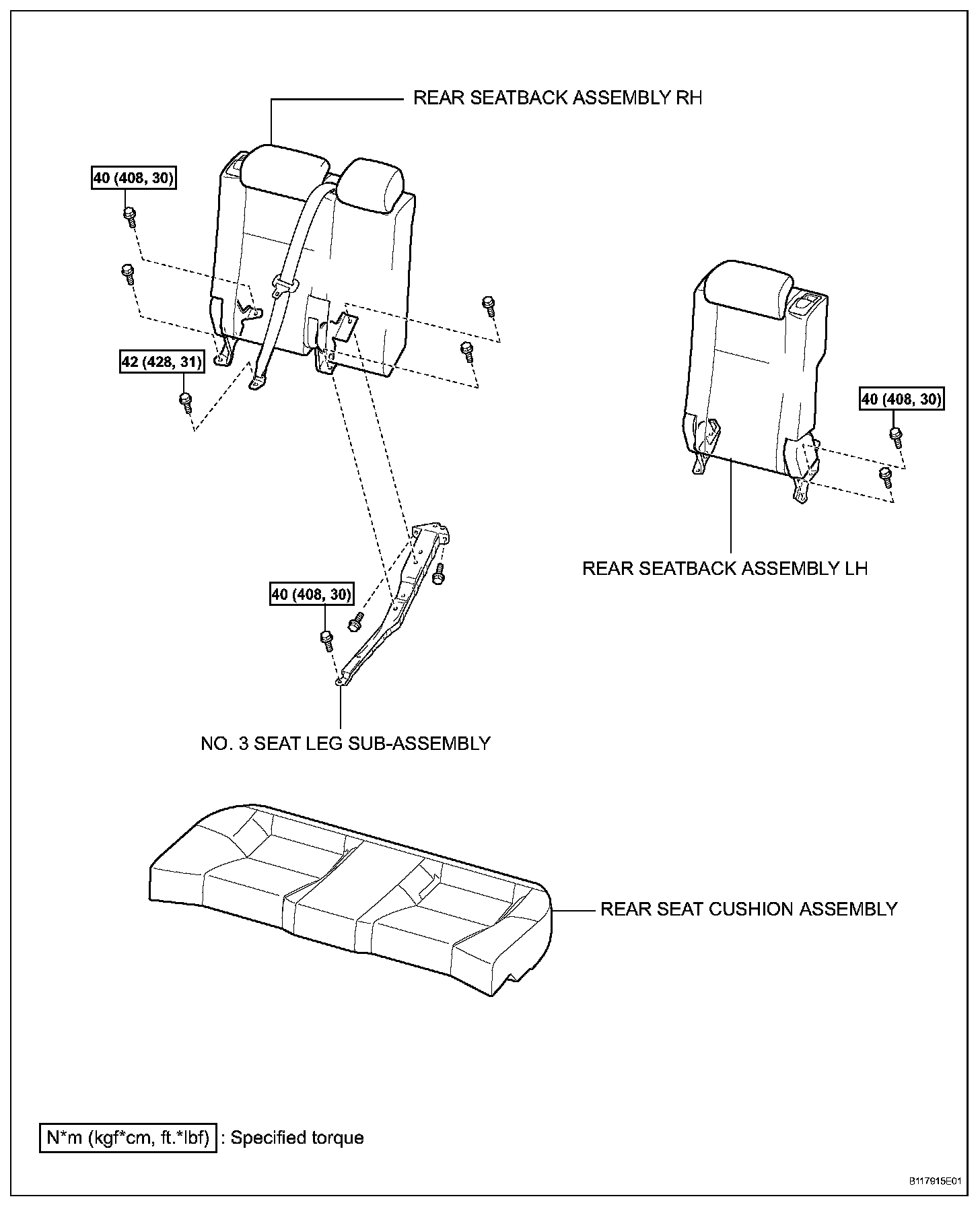

18. REMOVE REAR SEAT CUSHION ASSEMBLY
19. REMOVE REAR SEATBACK ASSEMBLY LH
20. REMOVE REAR SEATBACK ASSEMBLY RH

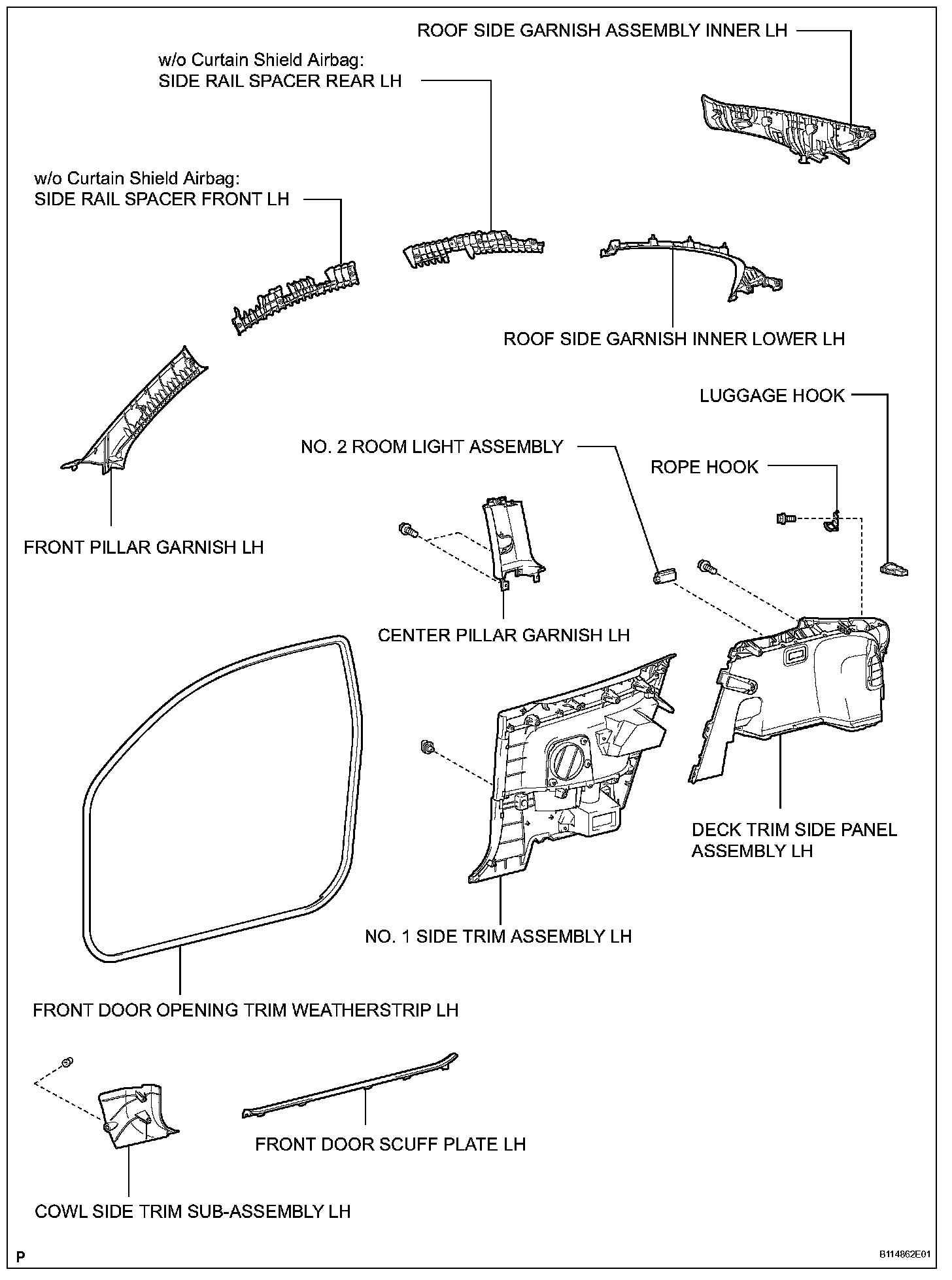

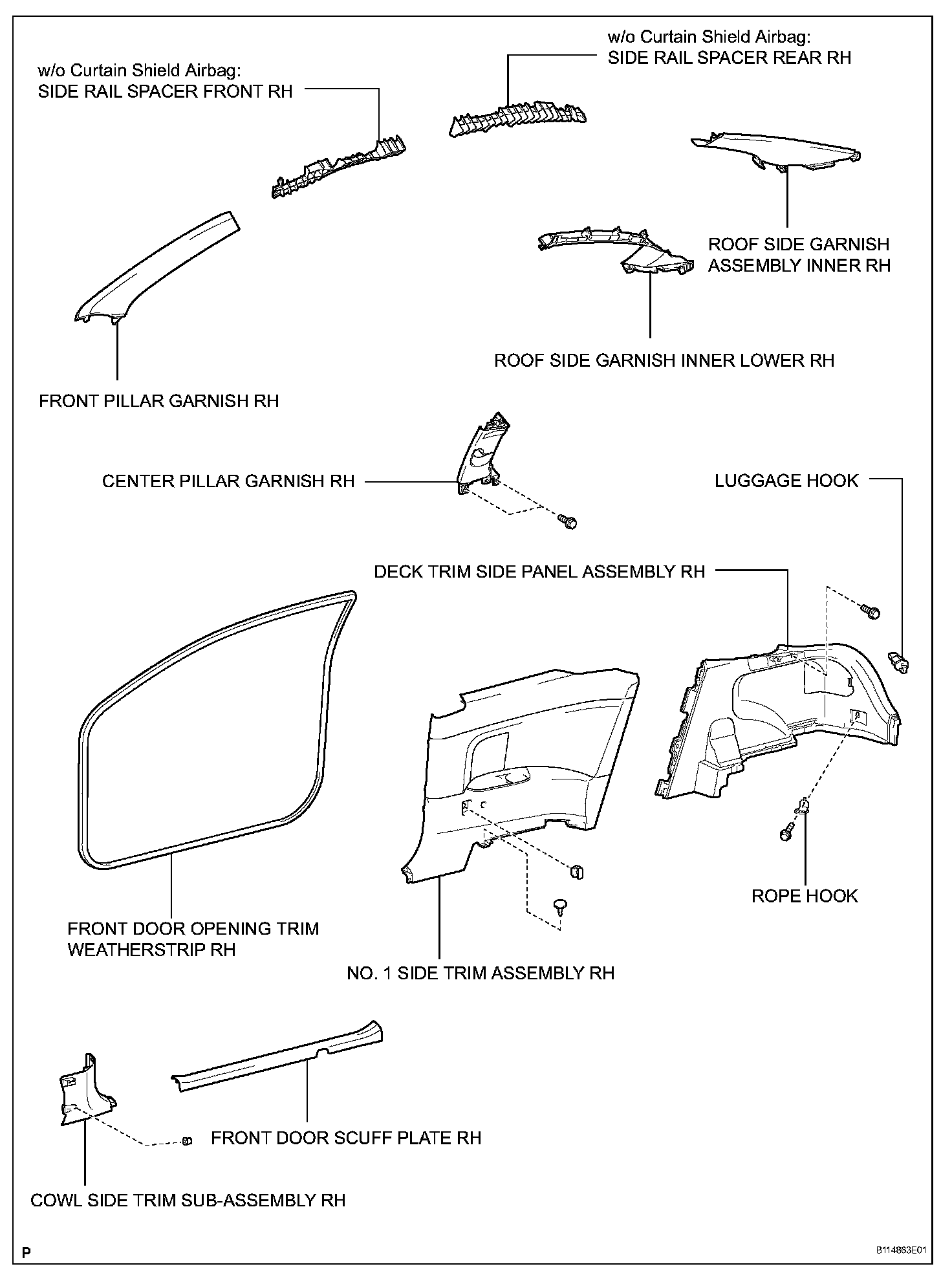

21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
22. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
23. REMOVE NO. 1 SIDE TRIM ASSEMBLY LH
24. REMOVE NO. 1 SIDE TRIM ASSEMBLY RH
25. REMOVE CENTER PILLAR GARNISH LH
26. REMOVE CENTER PILLAR GARNISH RH
27. REMOVE ROOF SIDE GARNISH INNER LOWER LH
28. REMOVE ROOF SIDE GARNISH INNER LOWER RH
29. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
30. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
31. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
32. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH
33. REMOVE FRONT PILLAR GARNISH LH
34. REMOVE FRONT PILLAR GARNISH RH

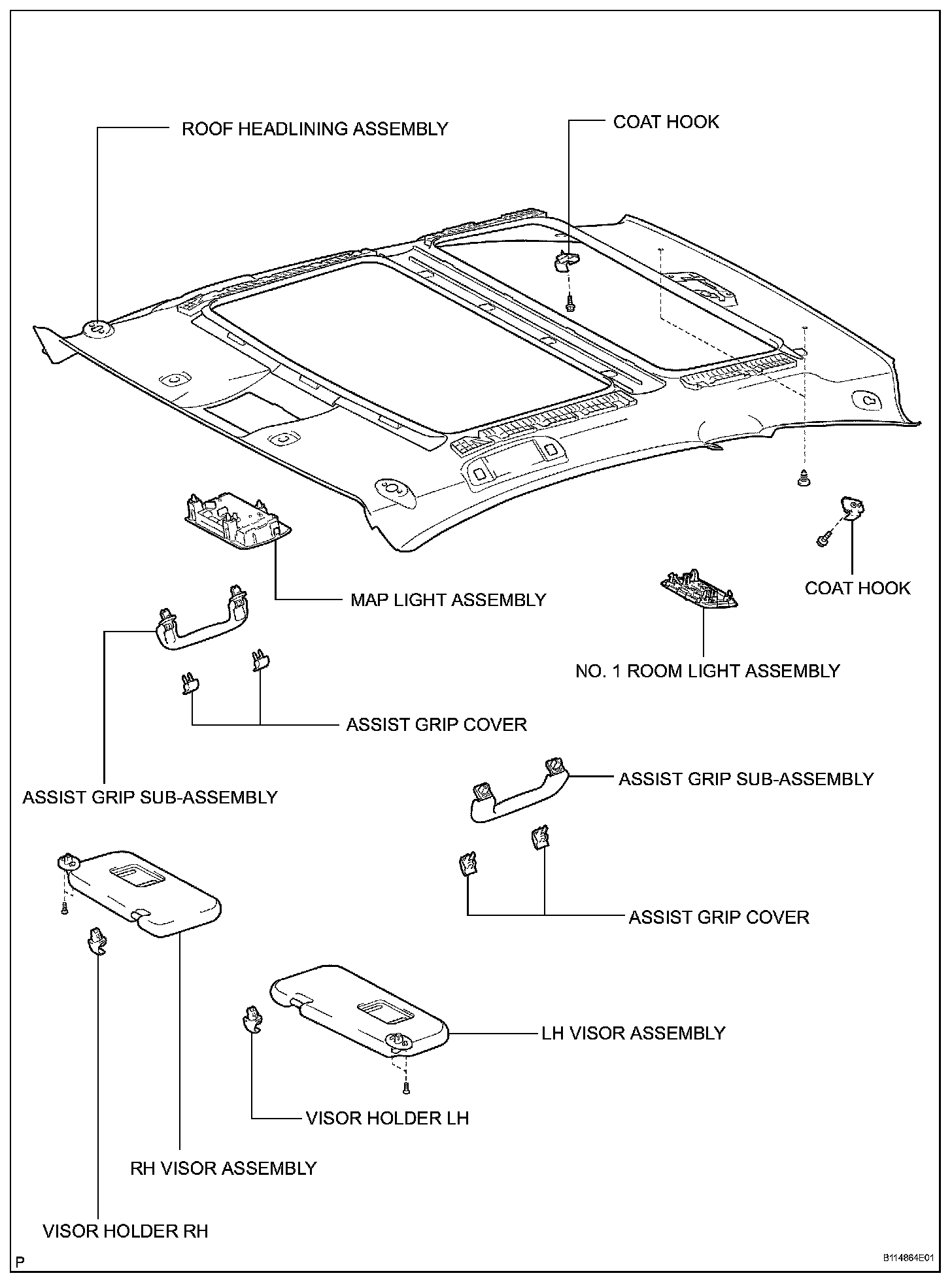

35. REMOVE MAP LIGHT ASSEMBLY
36. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
37. REMOVE NO. 2 ROOM LIGHT ASSEMBLY
38. REMOVE LH VISOR ASSEMBLY
39. REMOVE RH VISOR ASSEMBLY
40. REMOVE VISOR HOLDER LH
41. REMOVE VISOR HOLDER RH
42. REMOVE ASSIST GRIP COVER
43. REMOVE ASSIST GRIP SUB-ASSEMBLY
44. REMOVE COAT HOOK
45. REMOVE ROOF HEADLINING ASSEMBLY

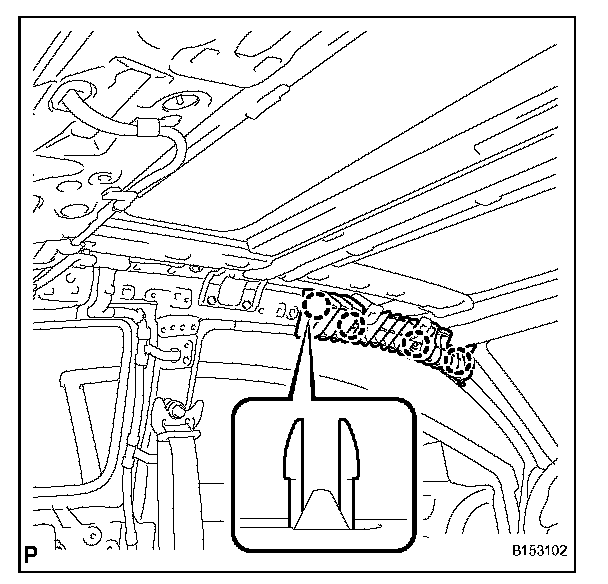

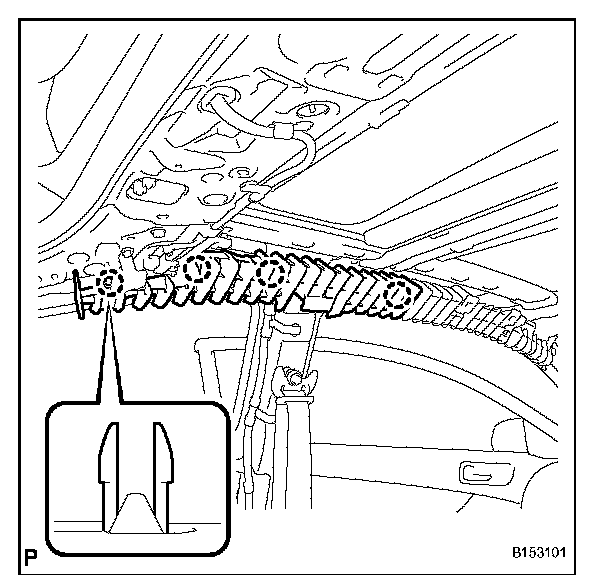

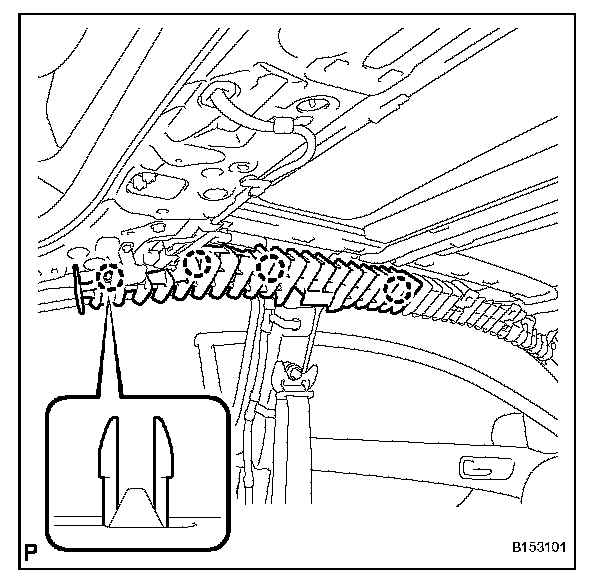

46. REMOVE SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)

a. Disengage the 4 claws and remove the rear side rail spacer LH.

47. REMOVE SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)

HINT: Use the same procedure for the RH side and the LH side.

48. REMOVE SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)

a. Disengage the 4 claws and remove the side rail spacer front LH

49. REMOVE SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)

HINT: Use the same procedure for the RH side and the LH side.

50. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Curtain Shield Airbag)
51. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH (w/ Curtain Shield Airbag)

HINT: Use the same procedure for the RH side and the LH side.

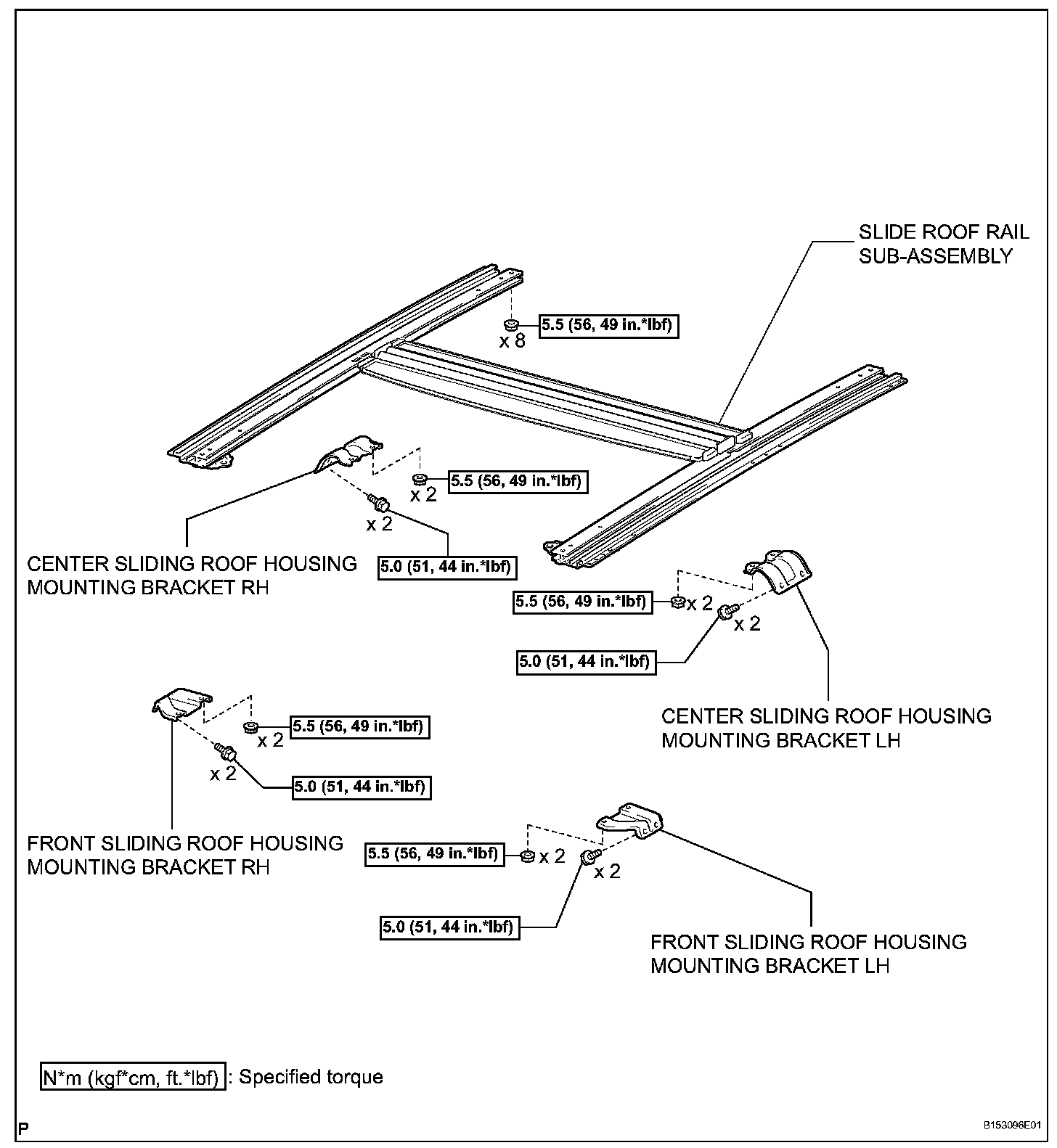

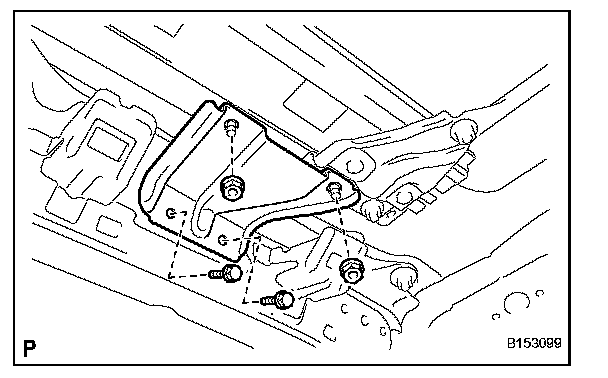

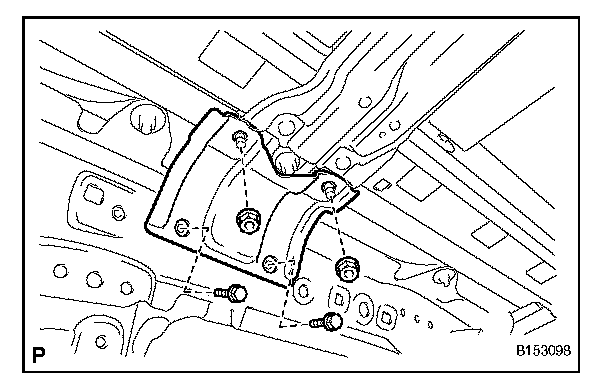

52. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH

a. Remove the 2 bolts, 2 nuts, and front sliding roof housing mounting bracket LH.

53. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT: Use the same procedure for the RH side and the LH side.

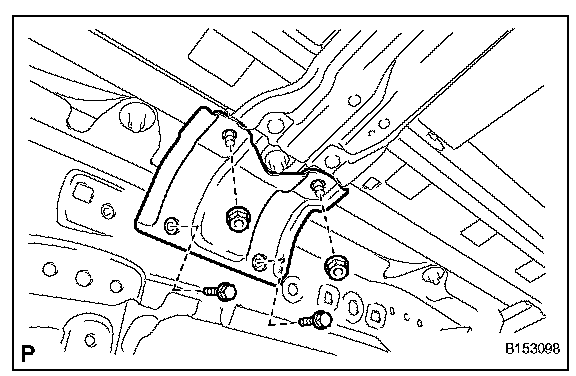

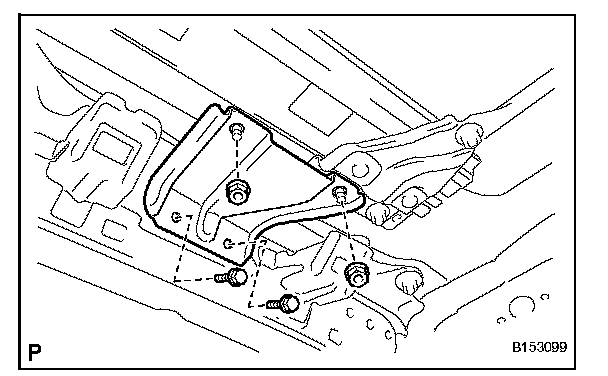

54. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH

a. Remove the 2 bolts, 2 nuts, and center sliding roof housing mounting bracket LH.

55. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT: Use the same procedure for the RH side and the LH side.

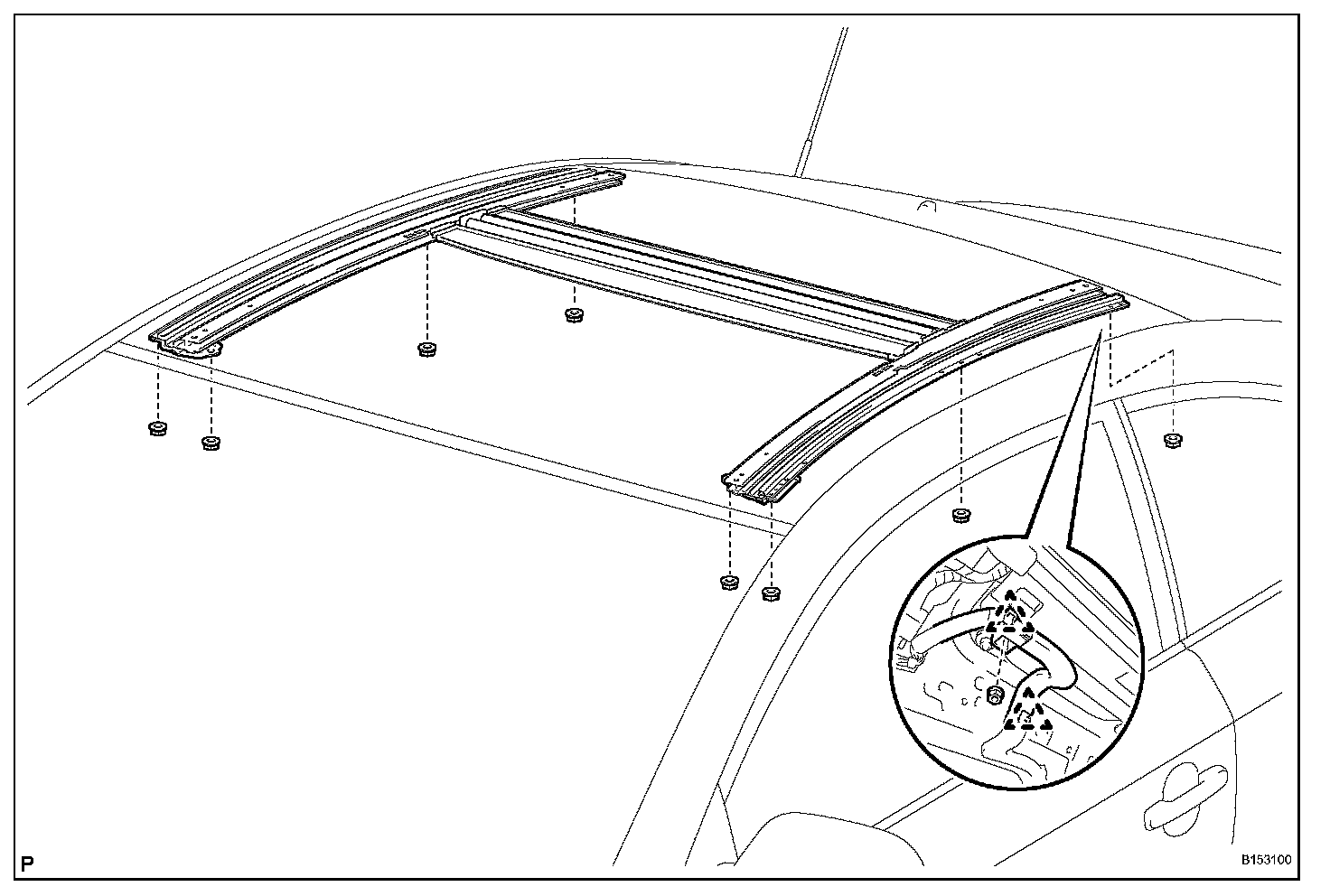

56. REMOVE SLIDE ROOF RAIL SUB-ASSEMBLY
a. Remove the 2 clamps.

b. Remove the 8 nuts and slide roof rail sub-assembly.

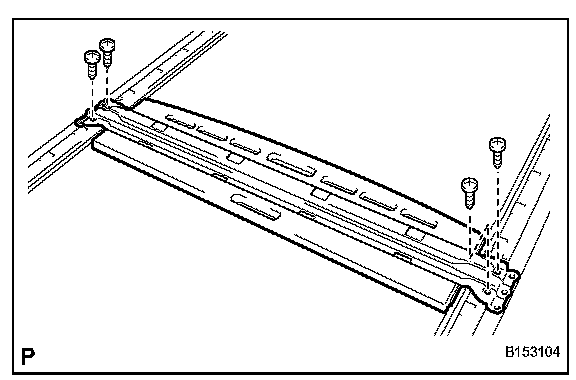

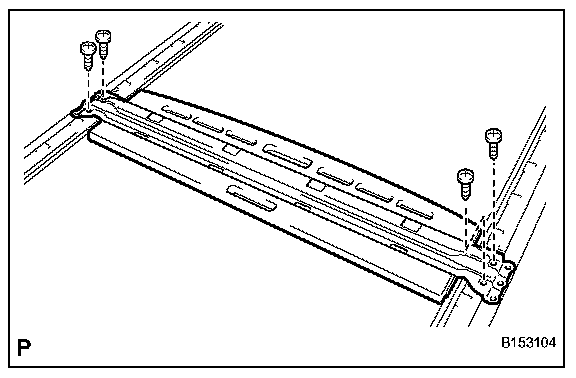

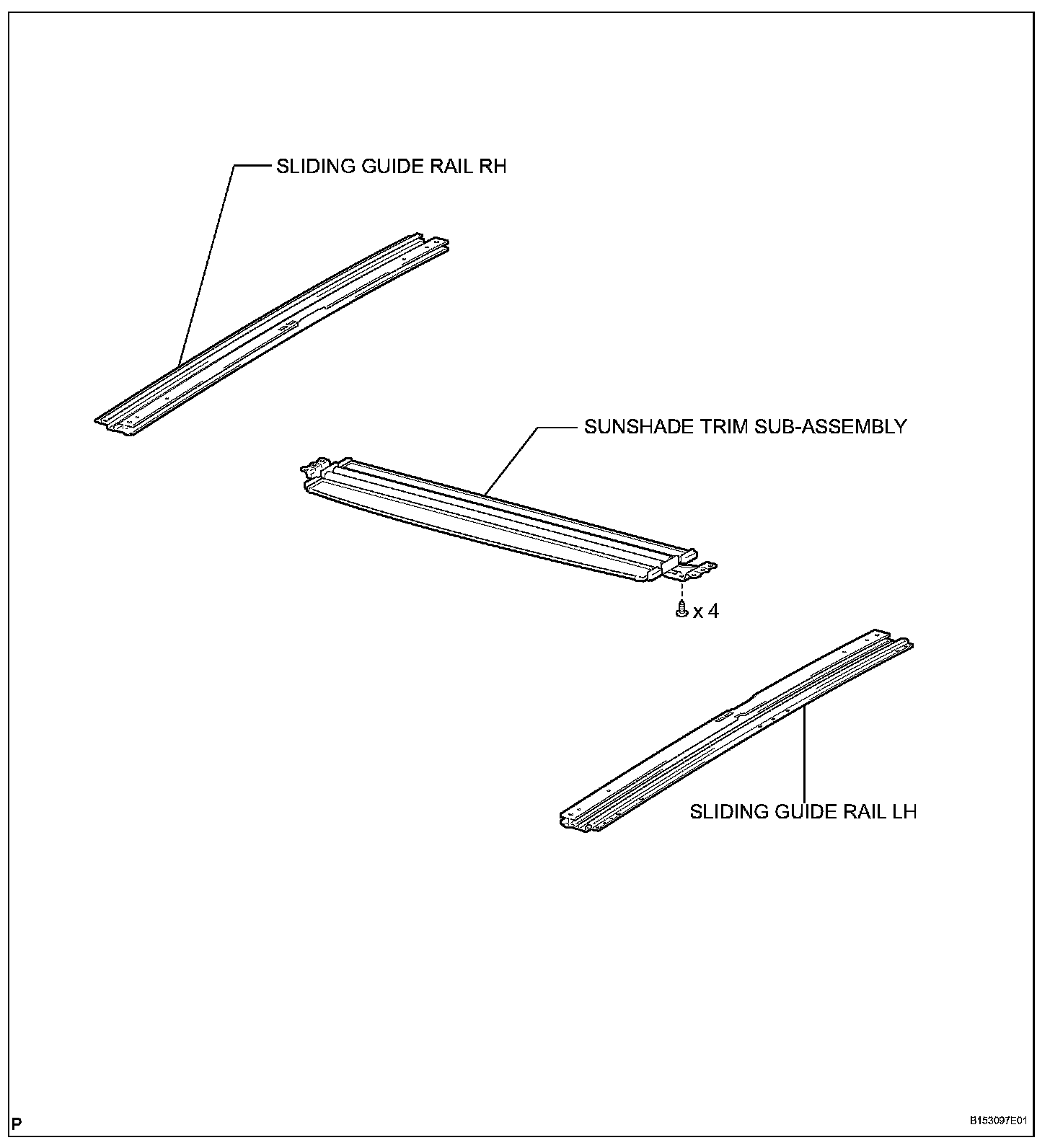

57. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

a. Remove the 4 screws and sunshade trim sub-assembly.

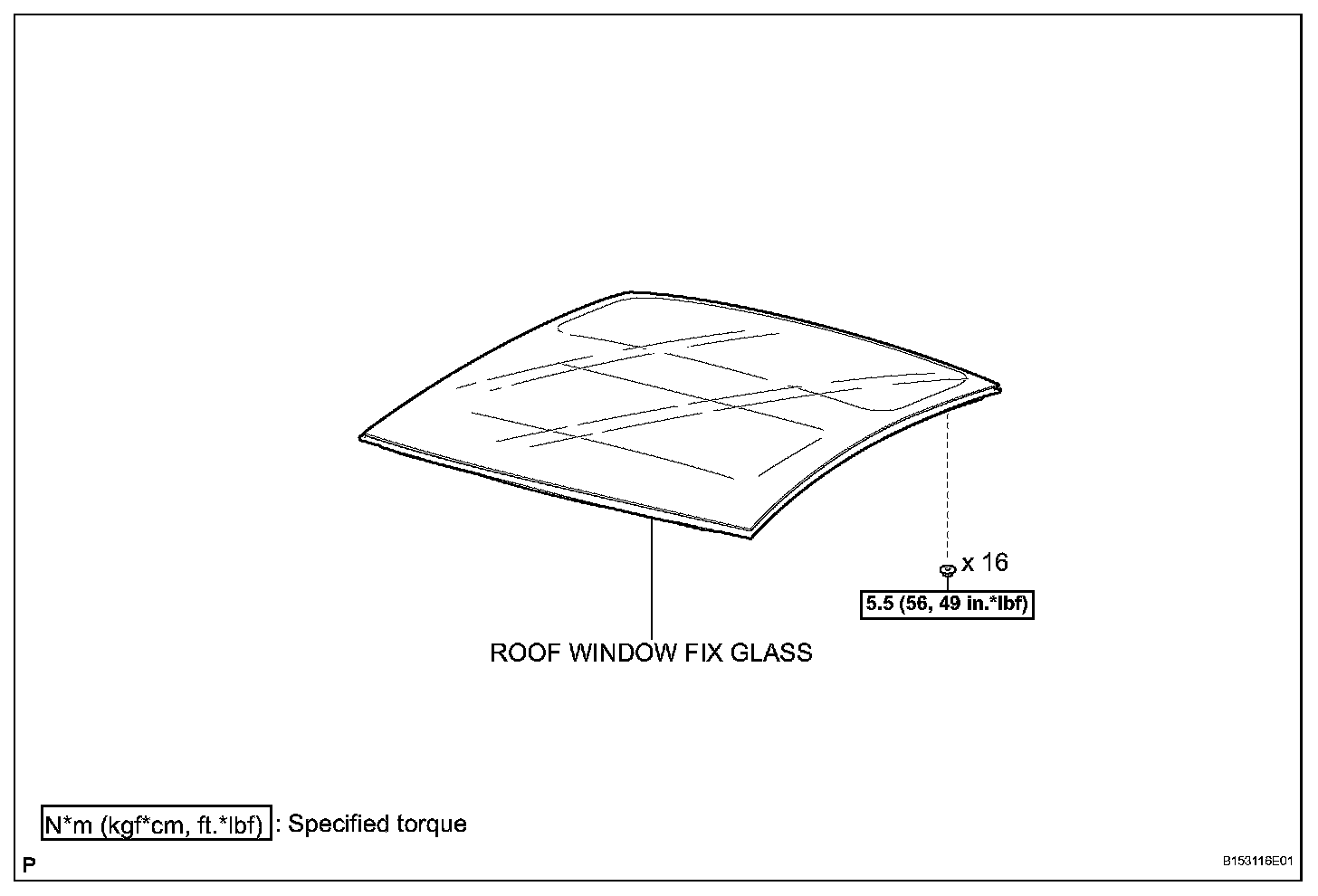

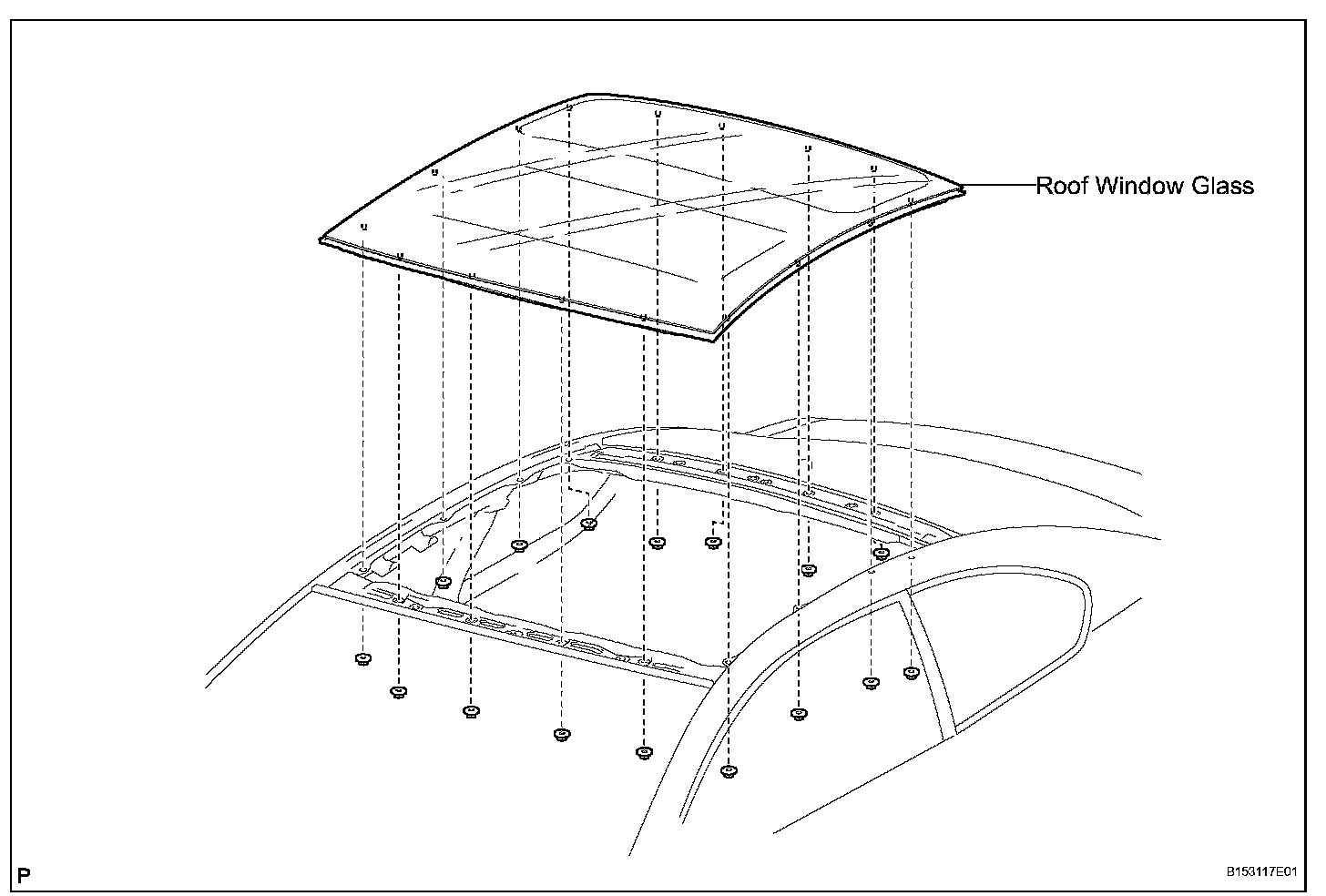

58. REMOVE ROOF WINDOW FIX GLASS
a. Remove the 16 nuts and roof window fix glass.

NOTICE: When removing the panel, be careful not to damage the vehicle. Performing this step will require 2 or more technicians.

INSTALLATION

1. TEMPORARILY TIGHTEN ROOF WINDOW FIX GLASS
a. Temporarily install the roof window fix glass with the 16 nuts.

NOTICE:

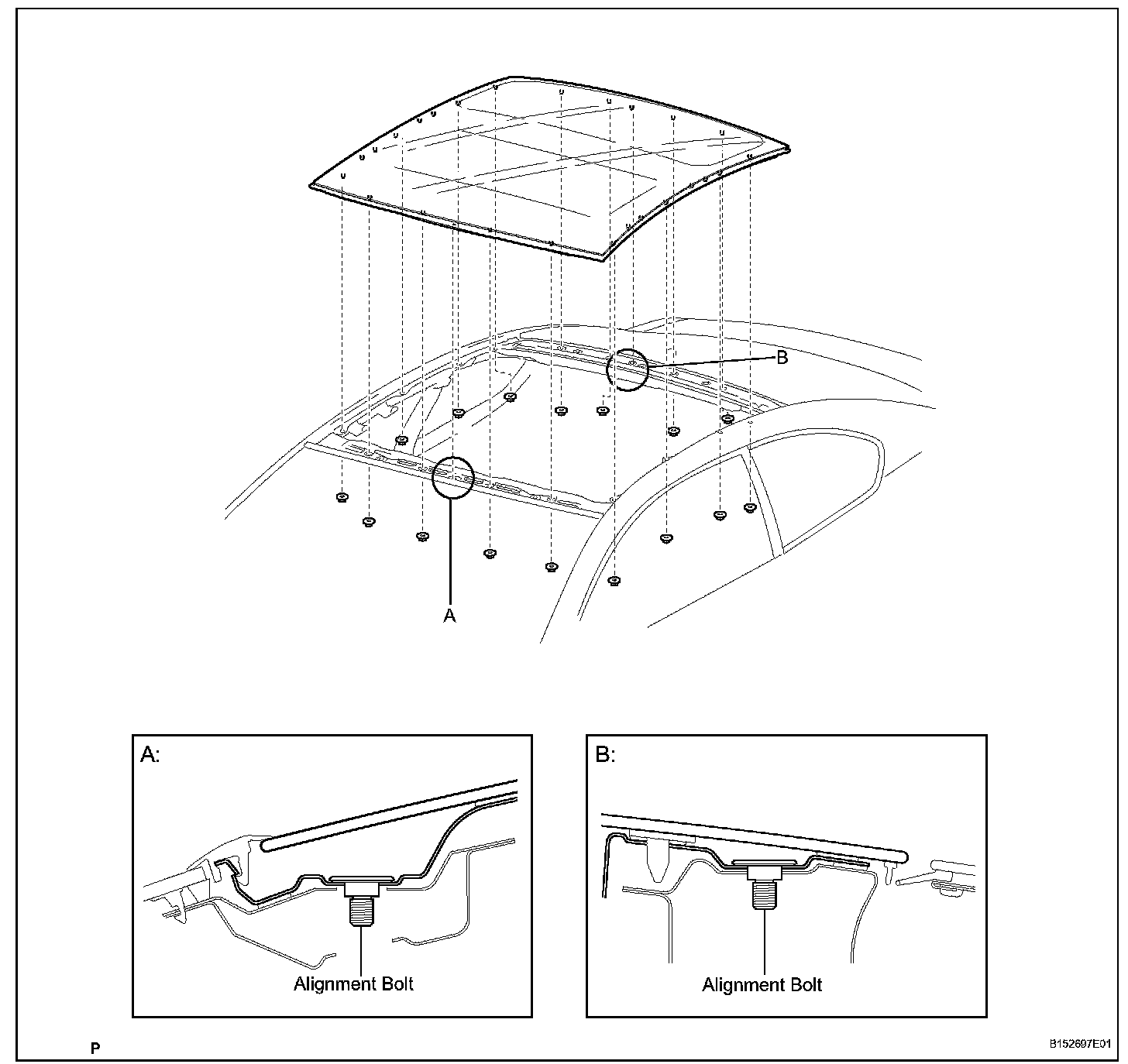

- When installing the panel to the vehicle, first install the panel center front and center rear alignment bolts to the vehicle, as shown in the illustration.
- When installing the panel, be careful not to damage the vehicle.
- Performing this step will require 2 or more technicians.

b. Check that the alignment bolts are firmly installed.

NOTICE: When the bolts are not firmly installed, water will leak, causing malfunctions.

2. ADJUST ROOF WINDOW FIX GLASS

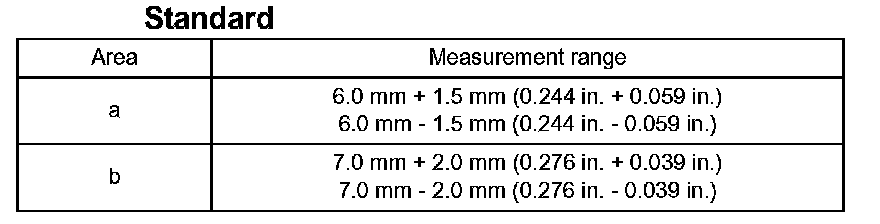

a. The roof window fix glass does not have adjusting screws. Instead, adjust the position of the roof window glass within the measurement range shown in the illustration and table.

HINT: "+" represents the condition that the glass is above the panel level."-" represents the condition that the glass is below the panel level.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

a. Install the sunshade trim sub-assembly with the 4 screws.

4. INSTALL SLIDE ROOF RAIL SUB-ASSEMBLY
a. Install the slide roof rail sub-assembly with the 8 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

b. Install the 2 clamps.

5. INSTALL CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH

a. Install the center sliding roof housing mounting bracket LH with the 2 bolts and 2 nuts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf) (bolt)
5.5 N.m (56 kgf.cm, 49 in.lbf) (nut)

6. INSTALL CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT: Use the same procedure for the rear side and the front side.

7. INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH

a. Install the front sliding roof housing mounting bracket LH with the 2 bolts and 2 nuts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf) (bolt)
5.5 N.m (56 kgf.cm, 49 in.lbf) (nut)

8. INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT: Use the same procedure for the rear side and the front side.

9. INSTALL SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)

a. Engage the 4 claws to install the front side rail spacer LH

10. INSTALL SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)

HINT: Use the same procedure for the rear side and the front side.

11. INSTALL SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)

a. Engage the 4 claws to claws to install the

12. INSTALL SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)

HINT: Use the same procedure for the rear side and the front side.

13. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Curtain Shield Airbag)
14. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH (w/ Curtain Shield Airbag)

HINT: Use the same procedure for the rear side and the front side.

15. INSTALL ROOF HEADLINING ASSEMBLY
16. INSTALL COAT HOOK
17. INSTALL ASSIST GRIP SUB-ASSEMBLY
18. INSTALL ASSIST GRIP COVER
19. INSTALL VISOR HOLDER LH
20. INSTALL VISOR HOLDER RH
21. INSTALL LH VISOR ASSEMBLY
22. INSTALL RH VISOR ASSEMBLY
23. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
24. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
25. INSTALL MAP LIGHT ASSEMBLY
26. INSTALL FRONT PILLAR GARNISH LH
27. INSTALL FRONT PILLAR GARNISH RH
28. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
29. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH
30. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
31. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
32. INSTALL ROOF SIDE GARNISH INNER LOWER LH
33. INSTALL ROOF SIDE GARNISH INNER LOWER RH
34. INSTALL CENTER PILLAR GARNISH LH
35. INSTALL CENTER PILLAR GARNISH RH
36. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH
37. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH
38. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
39. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
40. INSTALL REAR SEATBACK ASSEMBLY LH
41. INSTALL REAR SEATBACK ASSEMBLY RH
42. INSTALL REAR SEAT CUSHION ASSEMBLY
43. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
44. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
45. INSTALL FRONT DOOR SCUFF PLATE LH
46. INSTALL FRONT DOOR SCUFF PLATE RH
47. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH
48. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH
49. INSTALL REAR NO. 1 FLOOR BOARD
50. INSTALL NO. 1 DECK BOARD
51. INSTALL DECK FLOOR BOX REAR
52. INSTALL DECK FLOOR BOX LH
53. INSTALL DECK FLOOR BOX RH
54. INSTALL SPARE WHEEL COVER ASSEMBLY
55. INSTALL BACK DOOR WEATHERSTRIP
56. INSTALL BACK DOOR SCUFF PLATE
57. INSTALL DECK BOARD SUB-ASSEMBLY
58. INSTALL TONNEAU COVER ASSEMBLY
59. CONNECT NEGATIVE BATTERY TERMINAL
60. PERFORM INITIALIZATION
61. INSPECT SRS WARNING LIGHT
