Only Back Door Cannot Be Opened

Only Back Door cannot be Opened

DESCRIPTION
The instrument panel junction block (integration relay) receives switch signals from the driver/passenger side door control switch and activates the back door lock motor according to the signals.

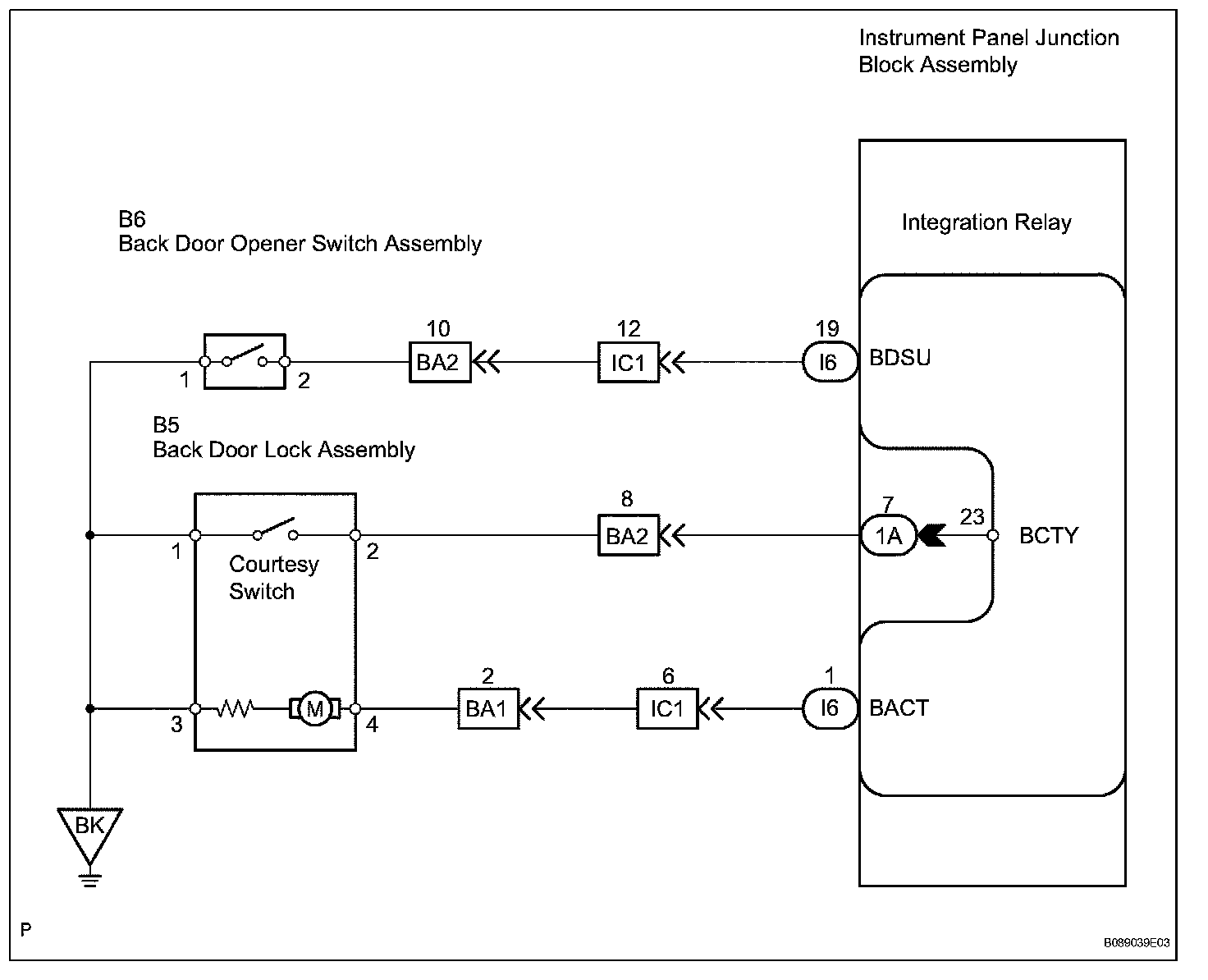

Wiring Diagram:

INSPECTION PROCEDURE

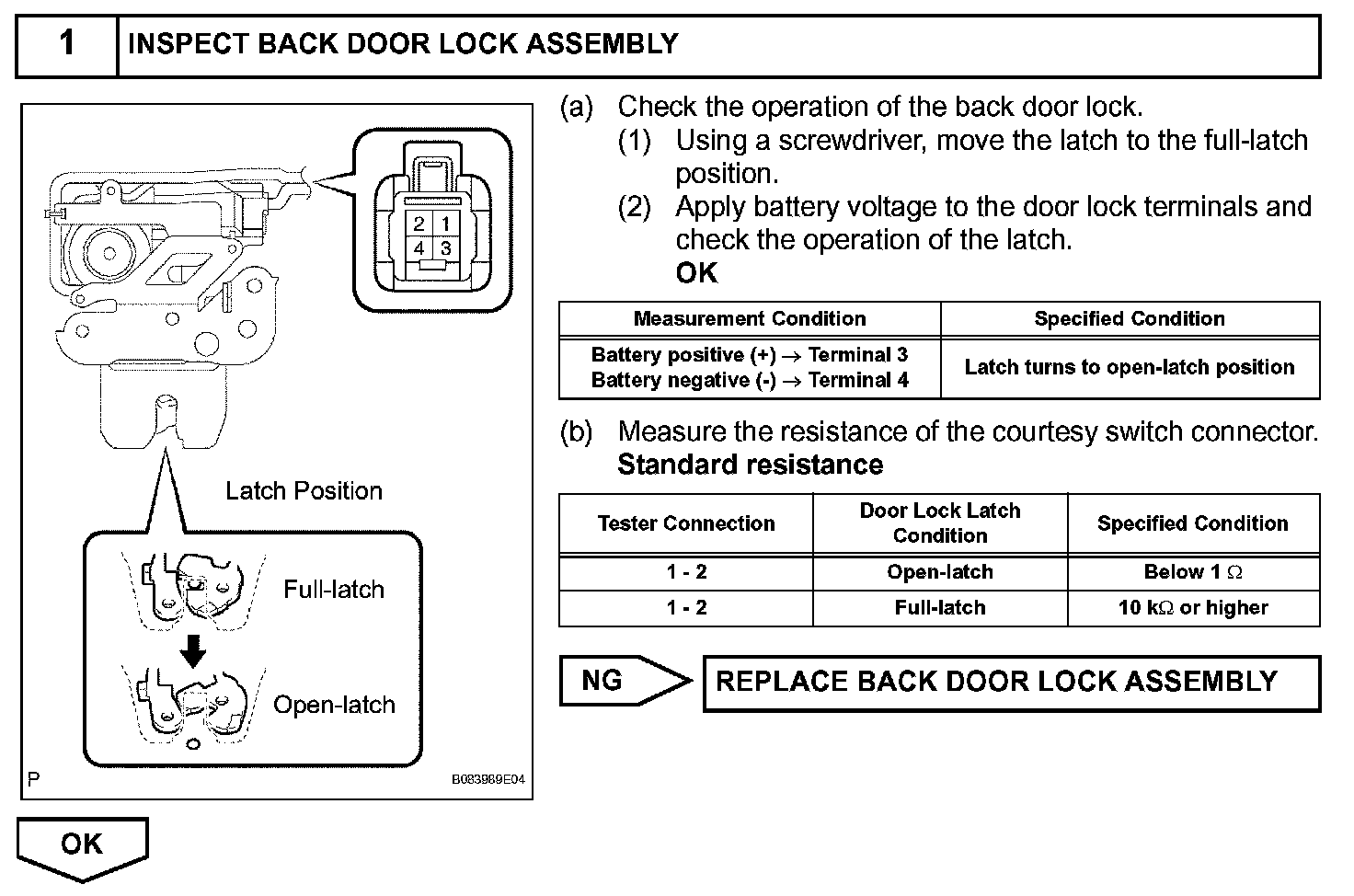

Step 1:

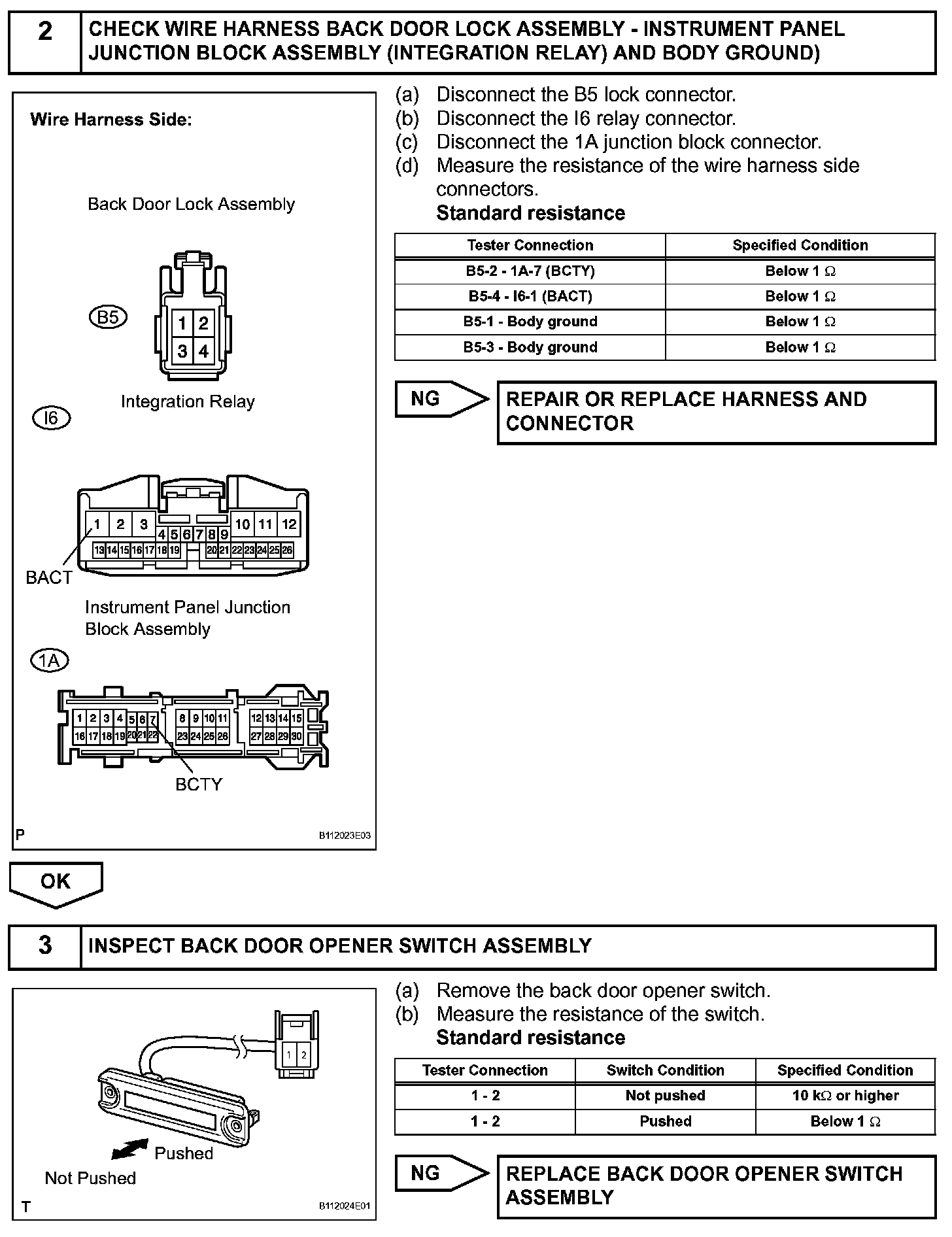

Step 2-3:

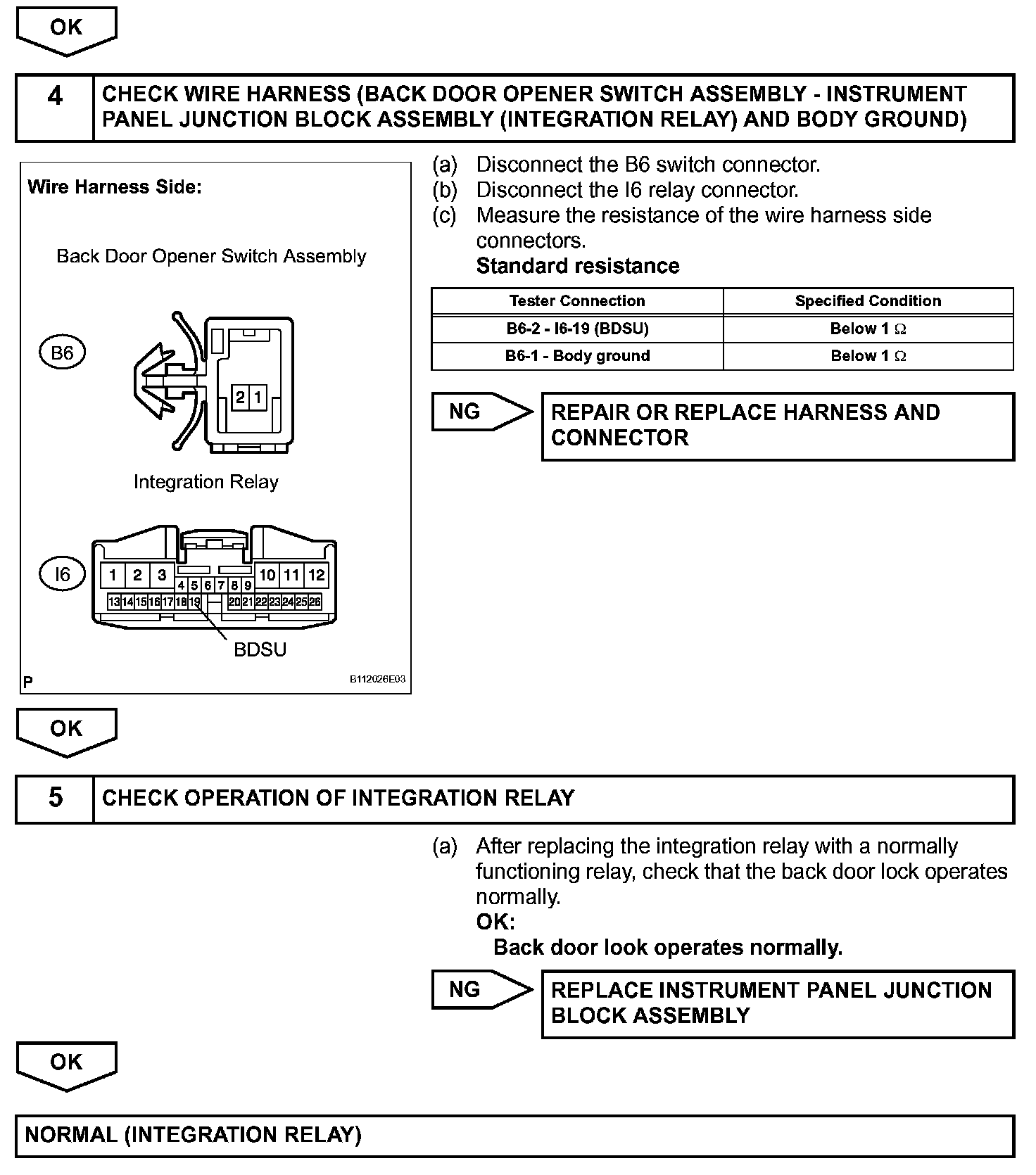

Step 3(Continued)-5:
