Key Lock-In Prevention Function Does Not Work Properly

Key Lock-in Prevention Function does not Work Properly

DESCRIPTION
To prevent the key from being locked in the vehicle, the integration relay prevents the door from being locked by monitoring 2 switches: 1) the unlock warning switch, which turns ON when the key is inserted into the ignition key cylinder; and 2) the driver side courtesy light switch, which turns ON when the driver side door is opened.

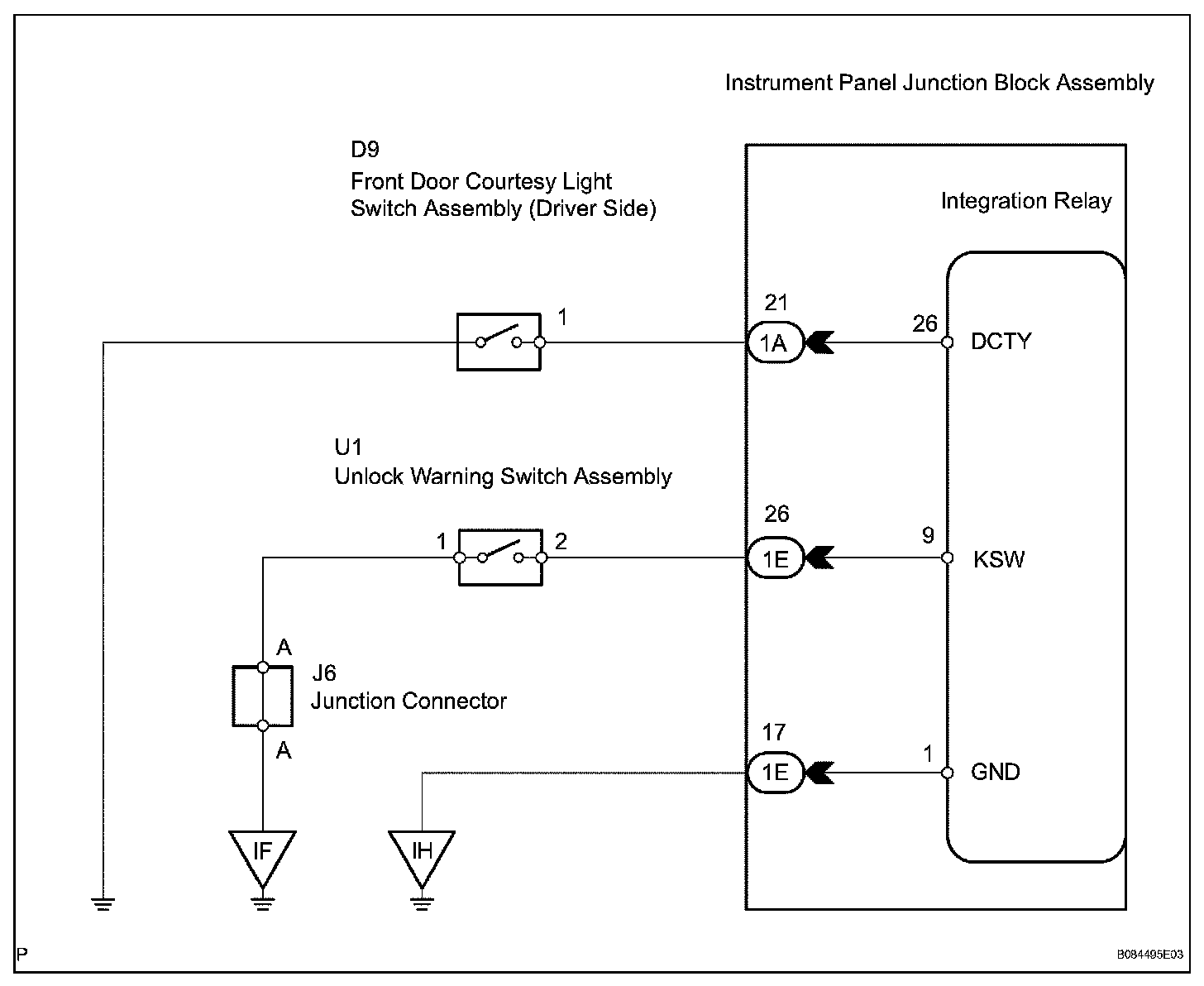

Wiring Diagram:





INSPECTION PROCEDURE

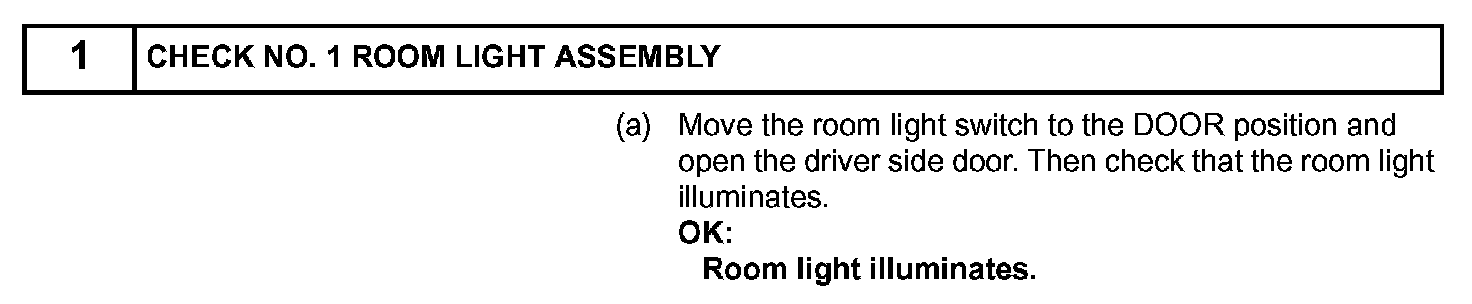

Step 1:

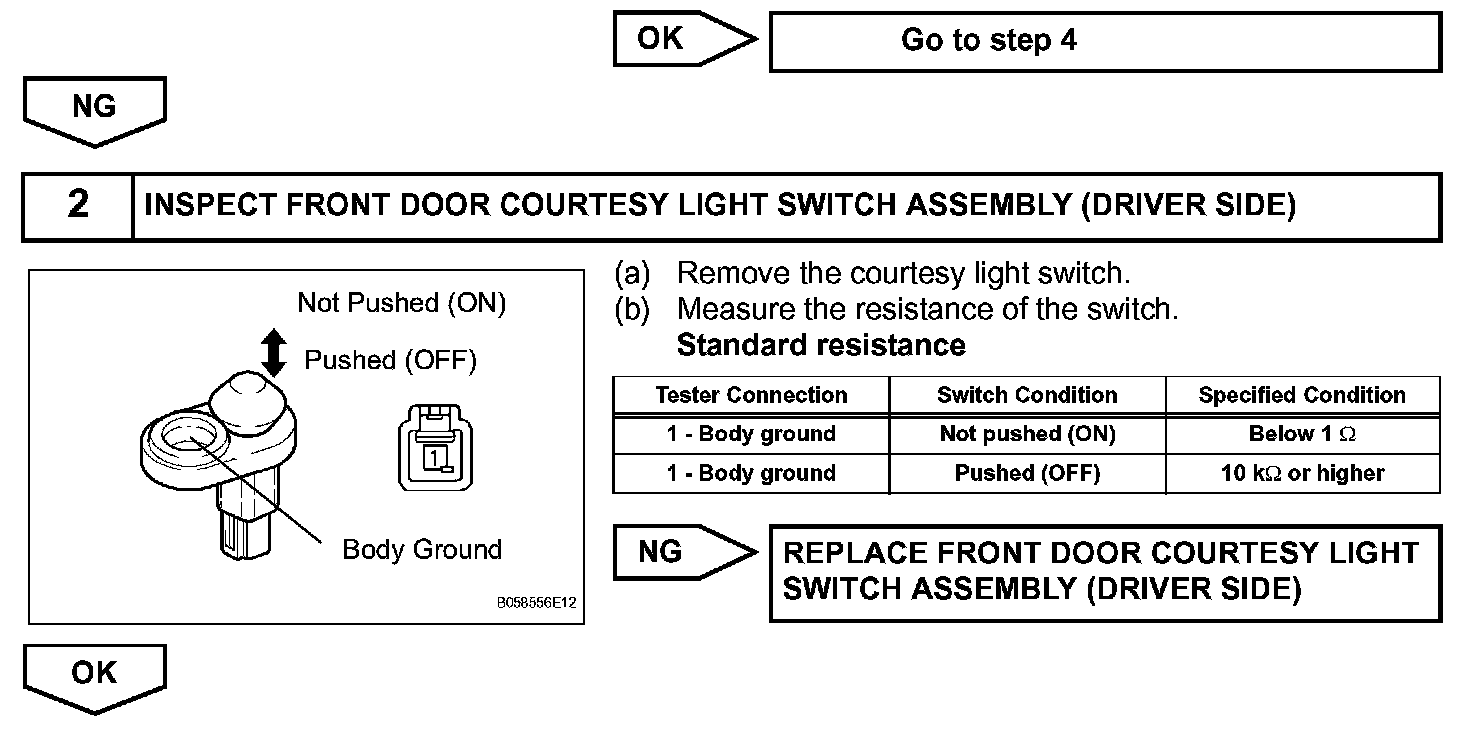

Step 1(Continued)-2:

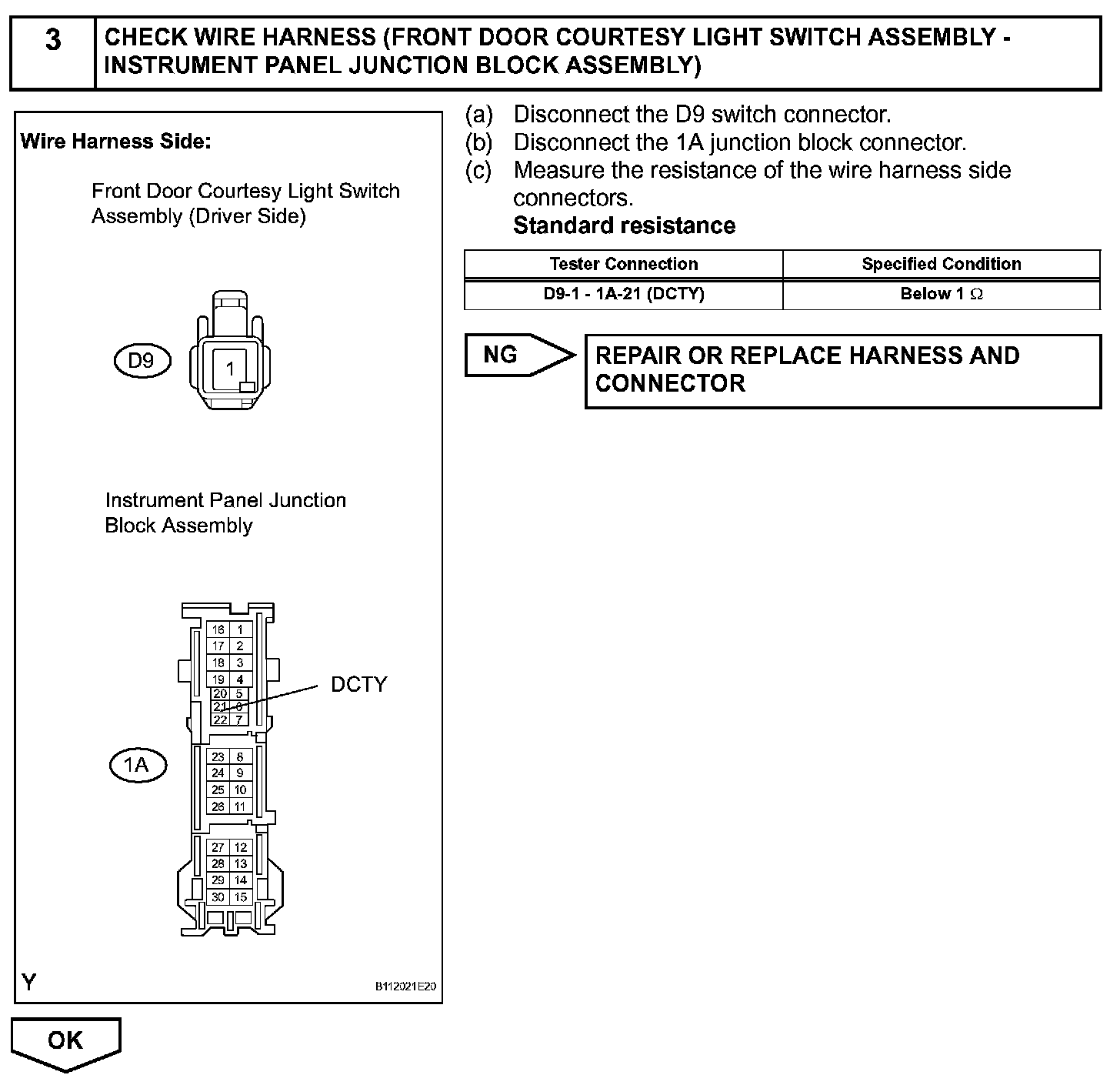

Step 3:

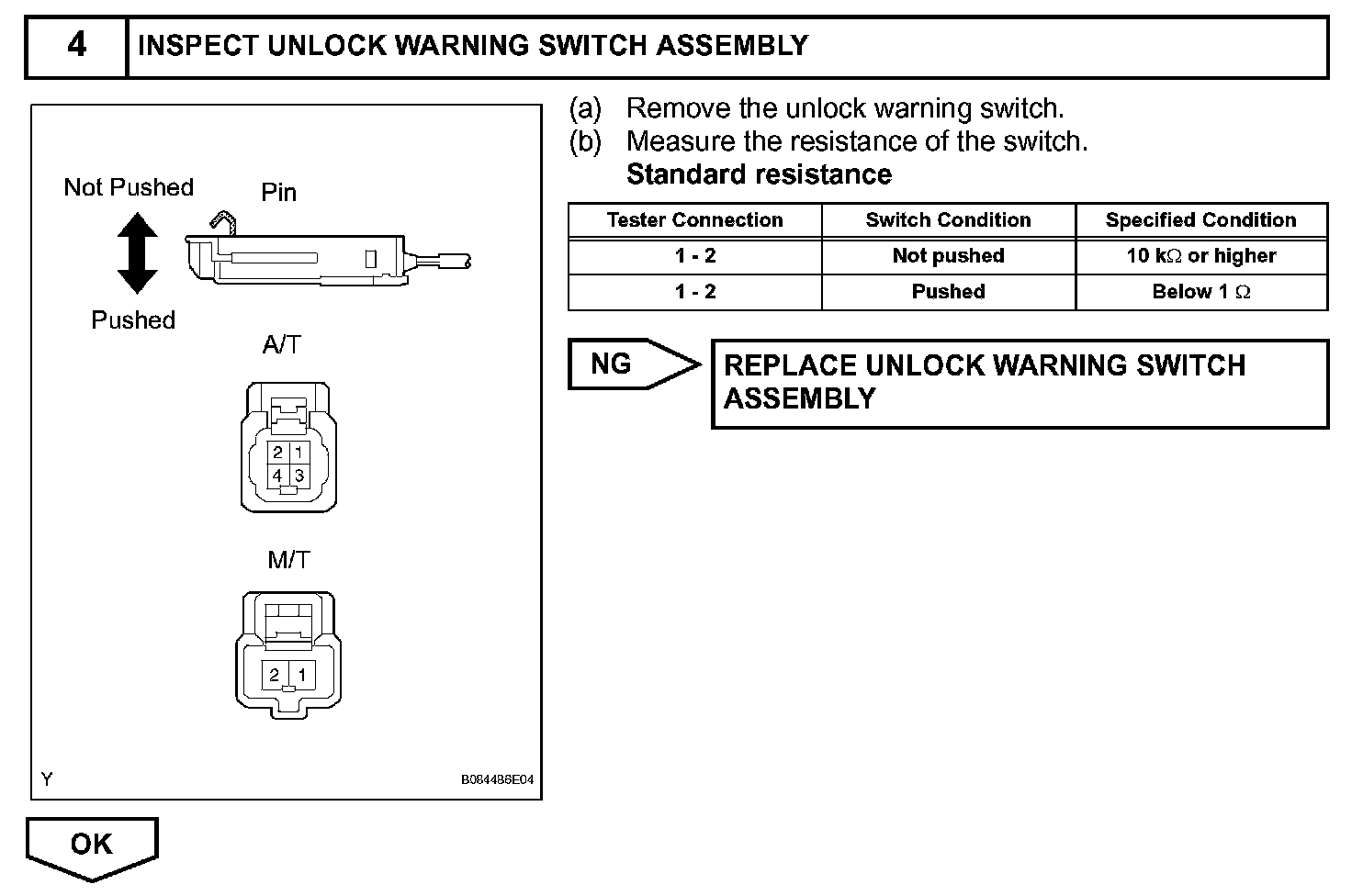

Step 4:

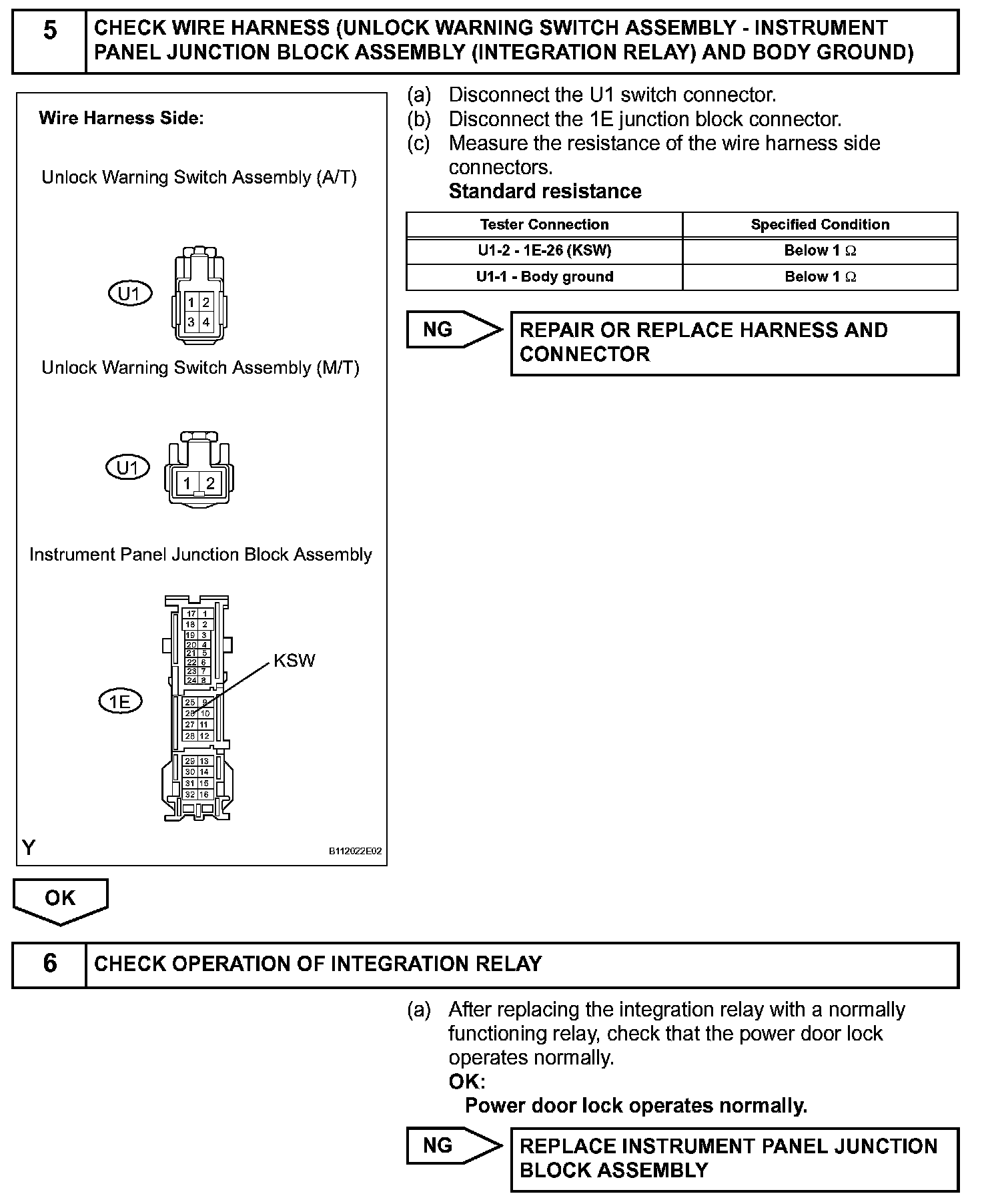

Step 5-6:




Step 6(Continued):
