Pinout Values and Diagnostic Parameters

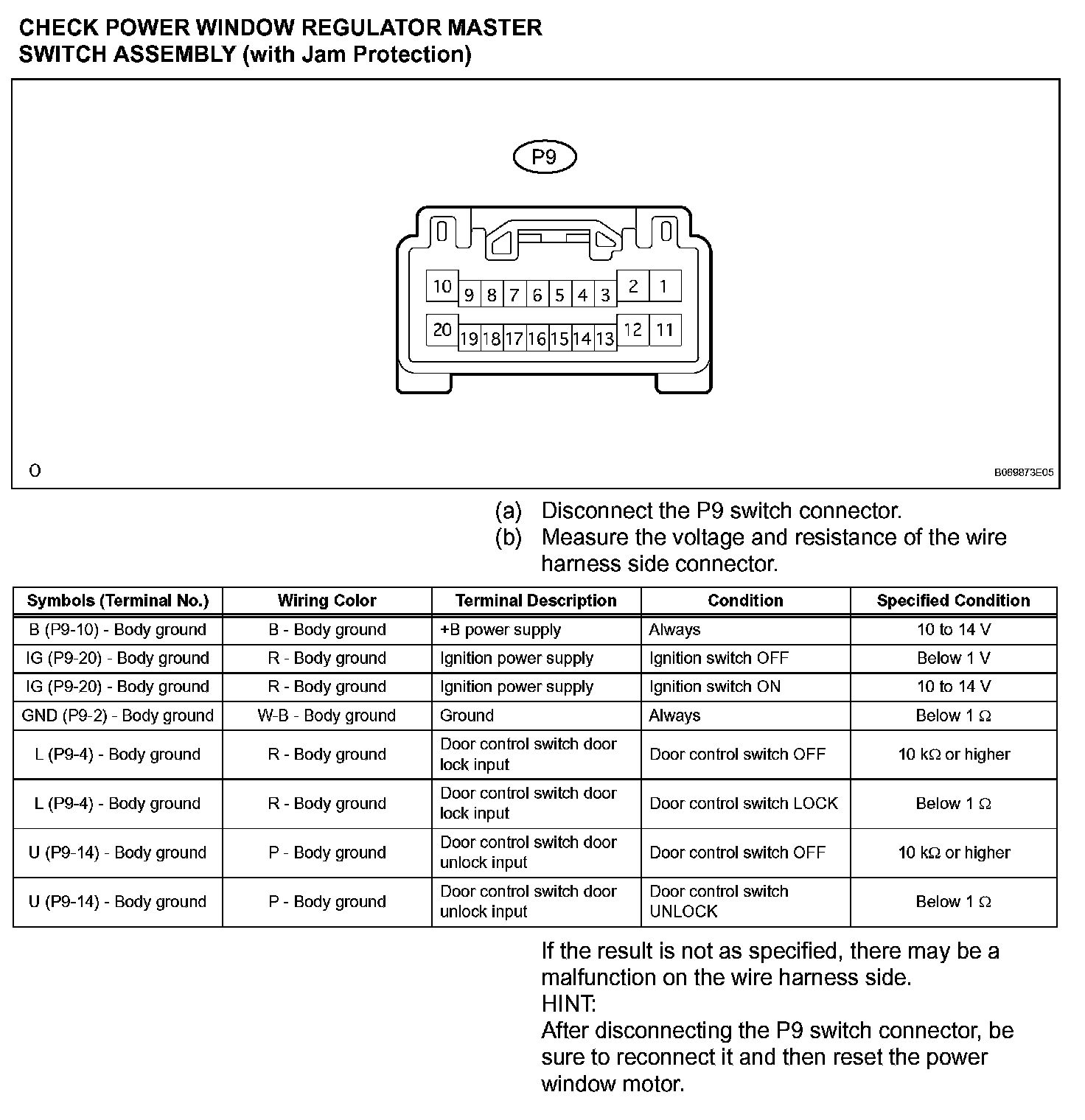

Terminals Of Control Module/Pinouts-Check Power Window Regulator Master Switch Assembly (With Jam Protection):

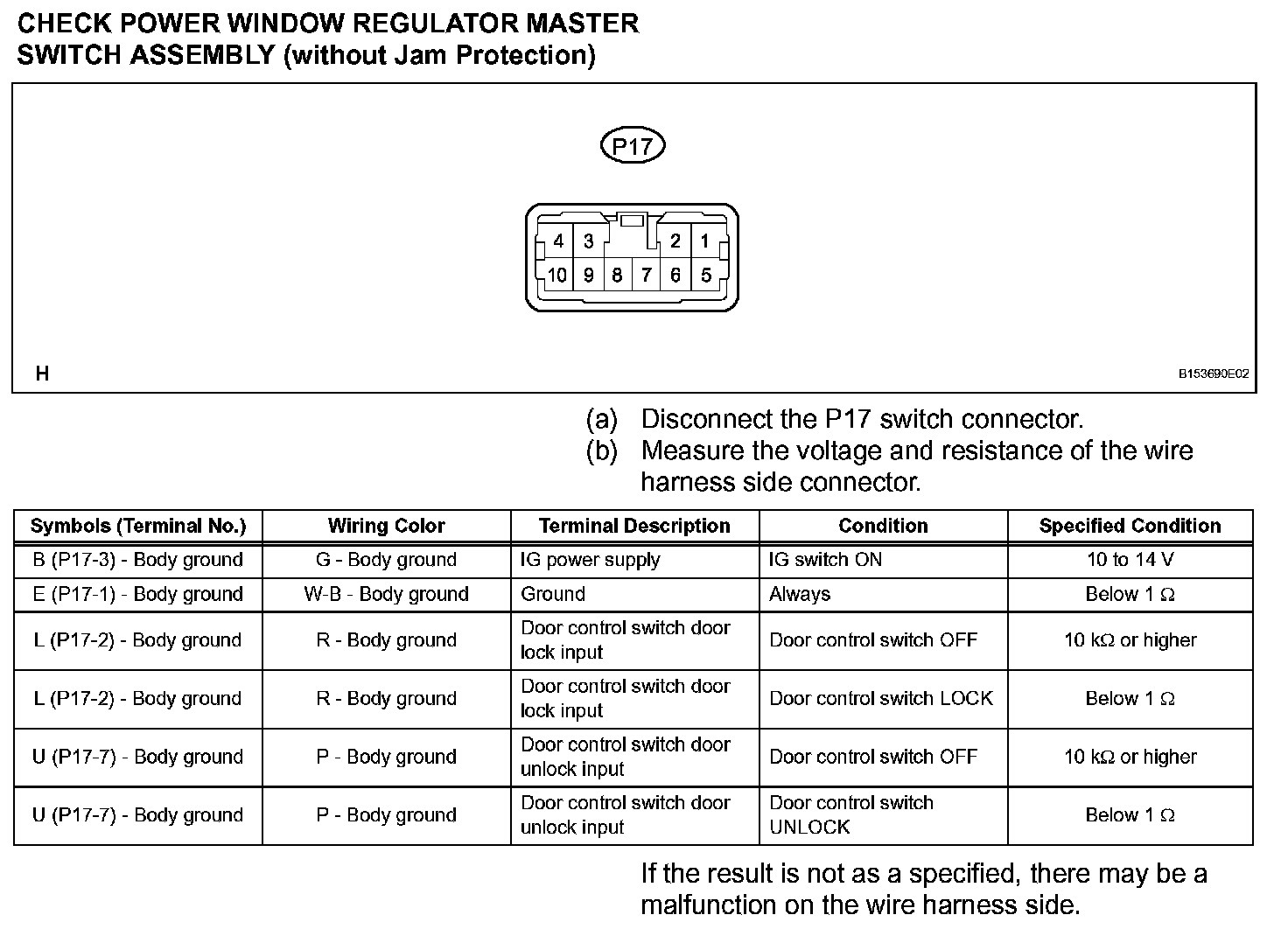

Terminals Of Control Module/Pinouts-Check Power Window Regulator Master Switch Assembly (Without Jam Protection):

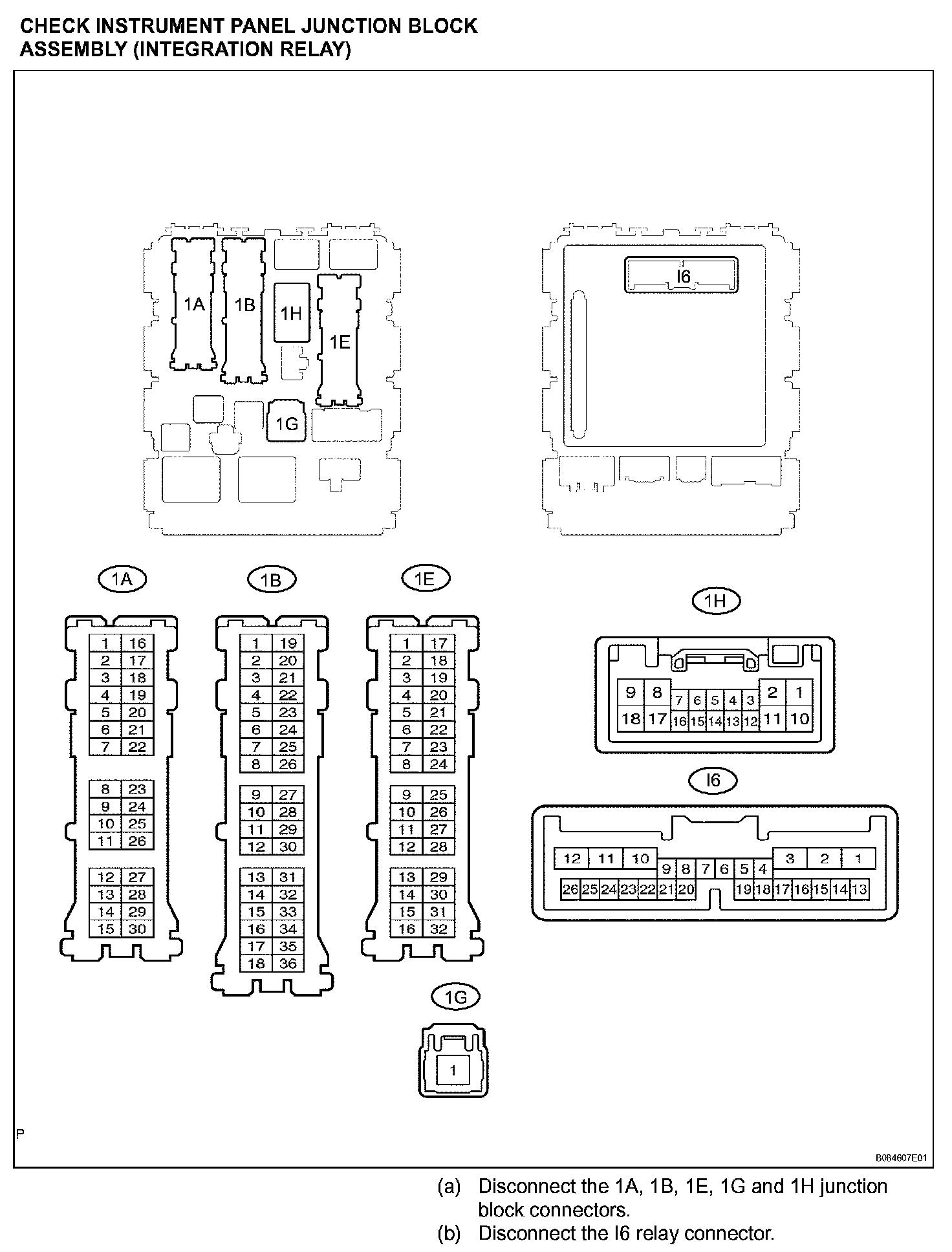

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 1):

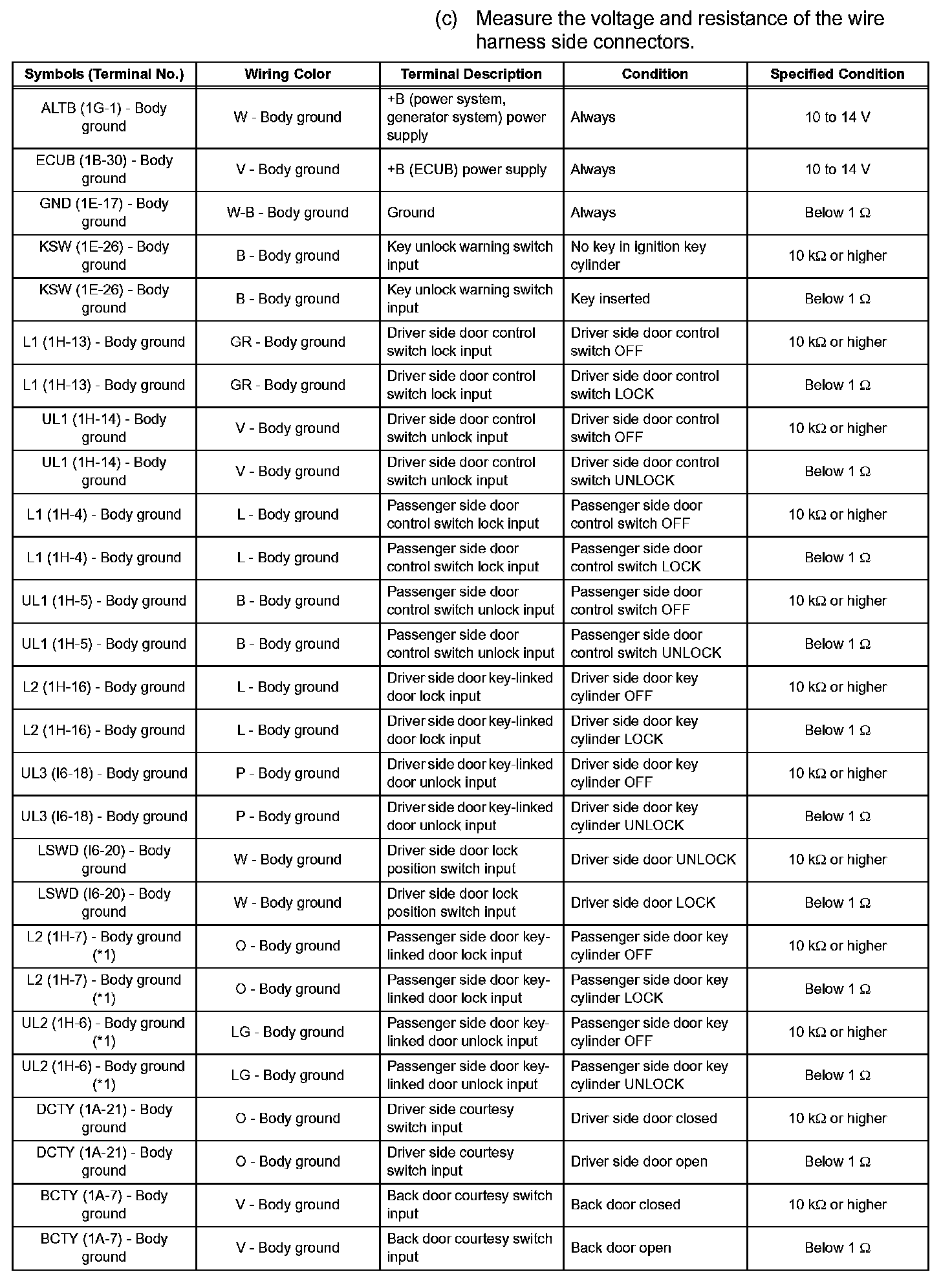

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 2):

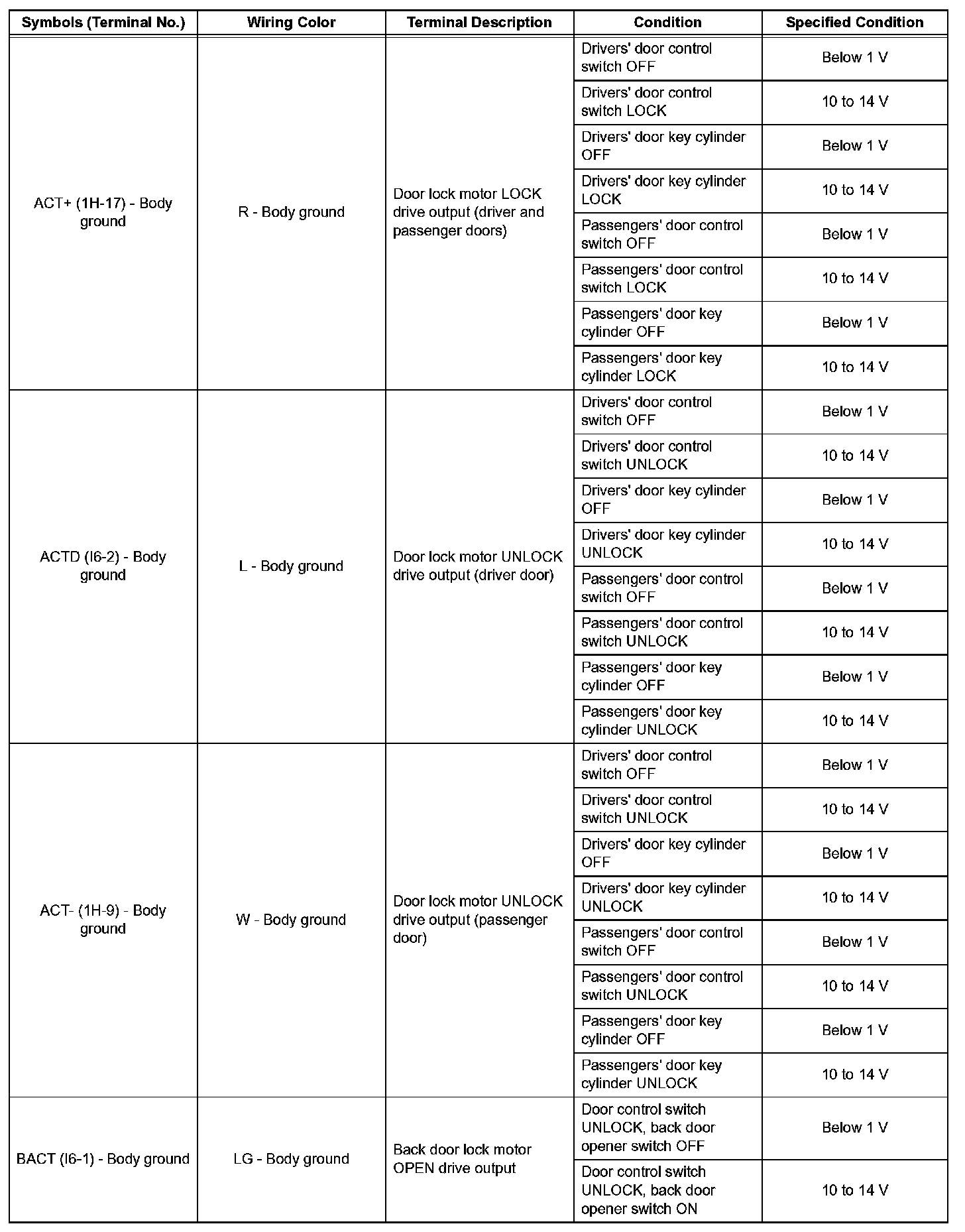

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 3):

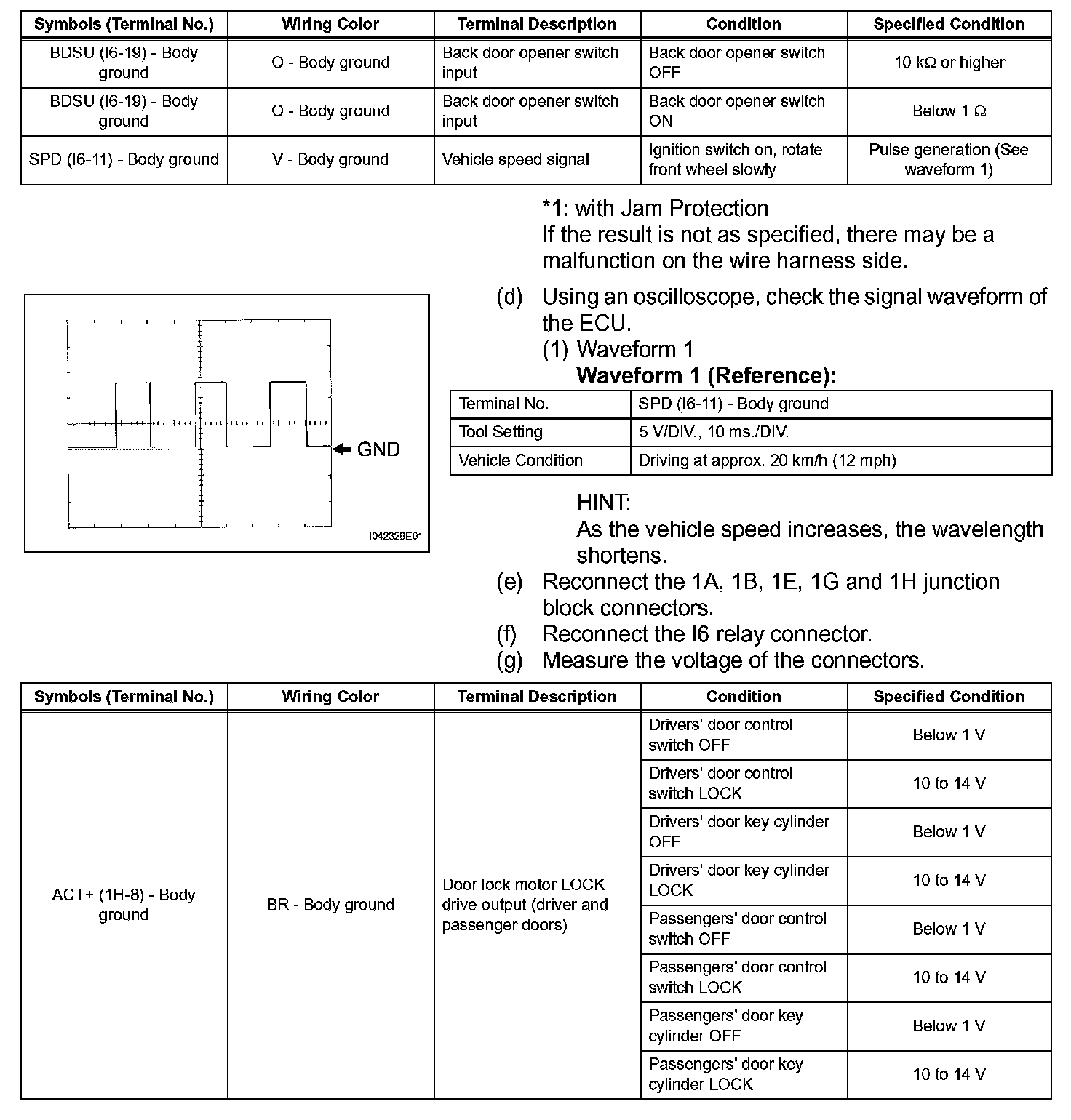

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 4):

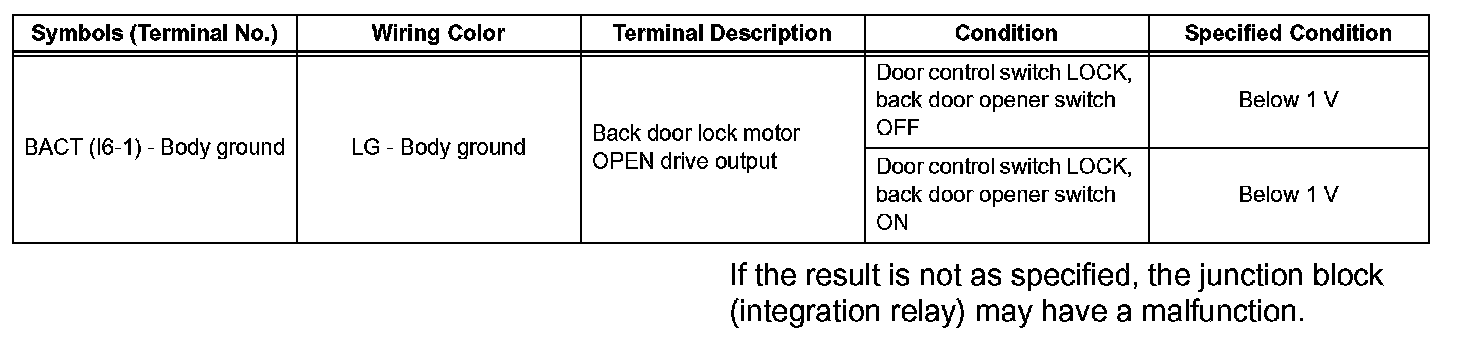

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 5):
