System Description

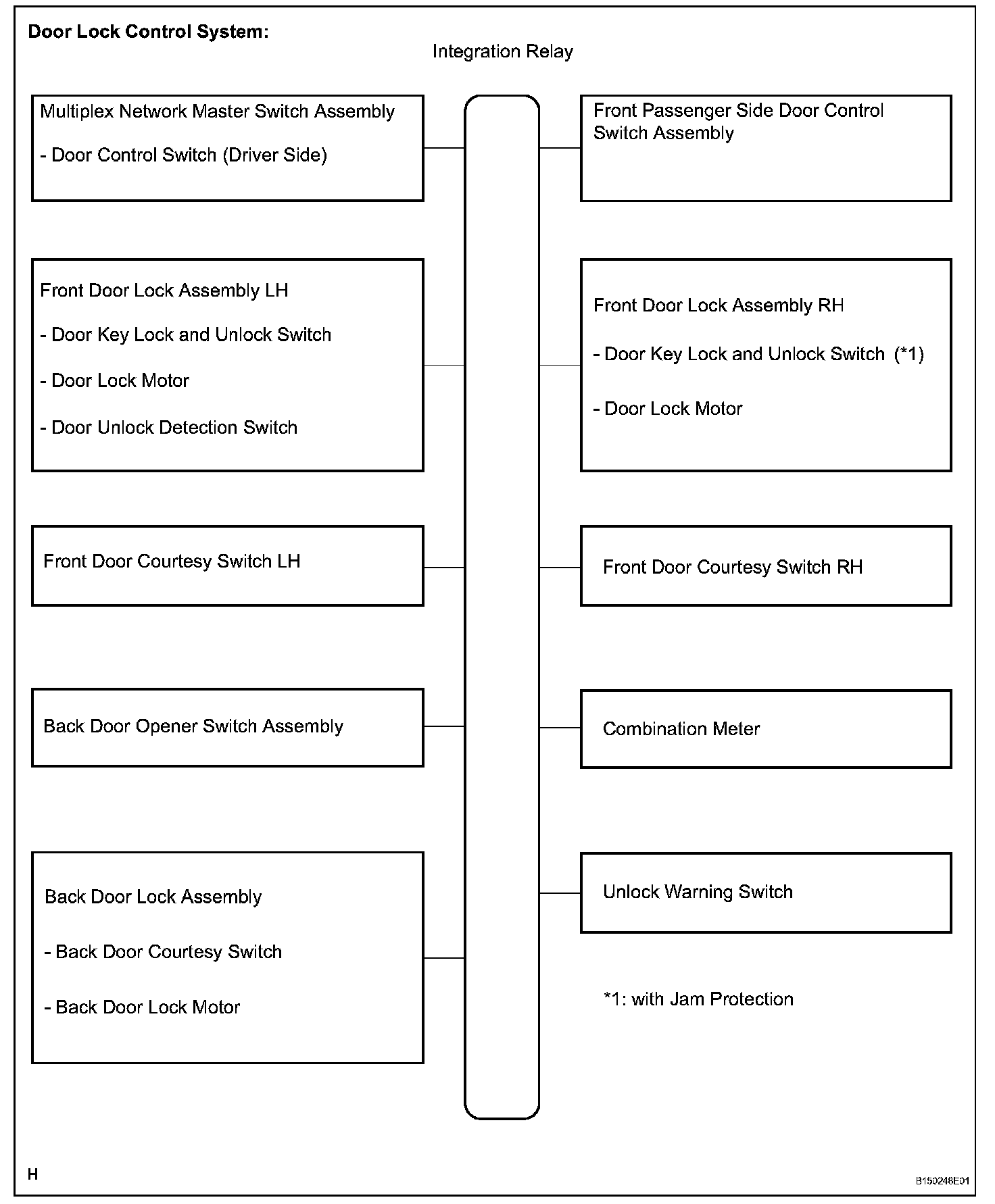

System Diagram:

SYSTEM DESCRIPTION

All doors are locked and unlocked simultaneously by the door lock motor. The motors are operated by the integration relay (instrument panel junction block). The integration relay receives lock/unlock signals from the driver and passenger door key cylinders, and the driver and passenger side door control switches. The signals are sent when: 1) the driver/ passenger door key cylinder is turned with the key, and 2) the driver/passenger side door control switch is pressed.

The power door lock system has the given functions.
