No Answer-Back

No Answer-Back

SYSTEM DESCRIPTION
In some cases, wireless control functions are normal but the hazard warning light is not. A malfunction may be present in the integration relay hazard warning light signal outputs from the integration relay.

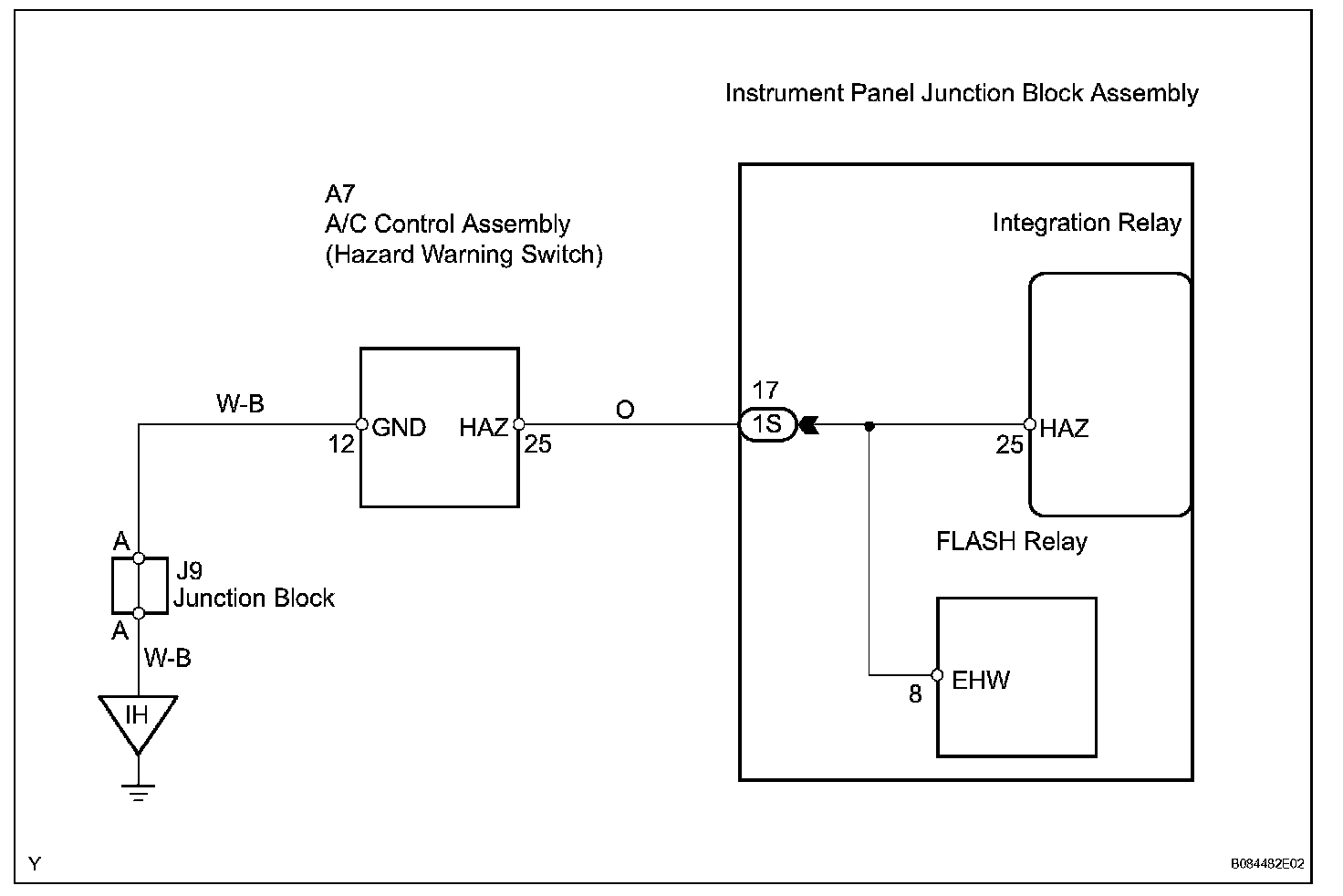

Wiring Diagram:





INSPECTION PROCEDURE

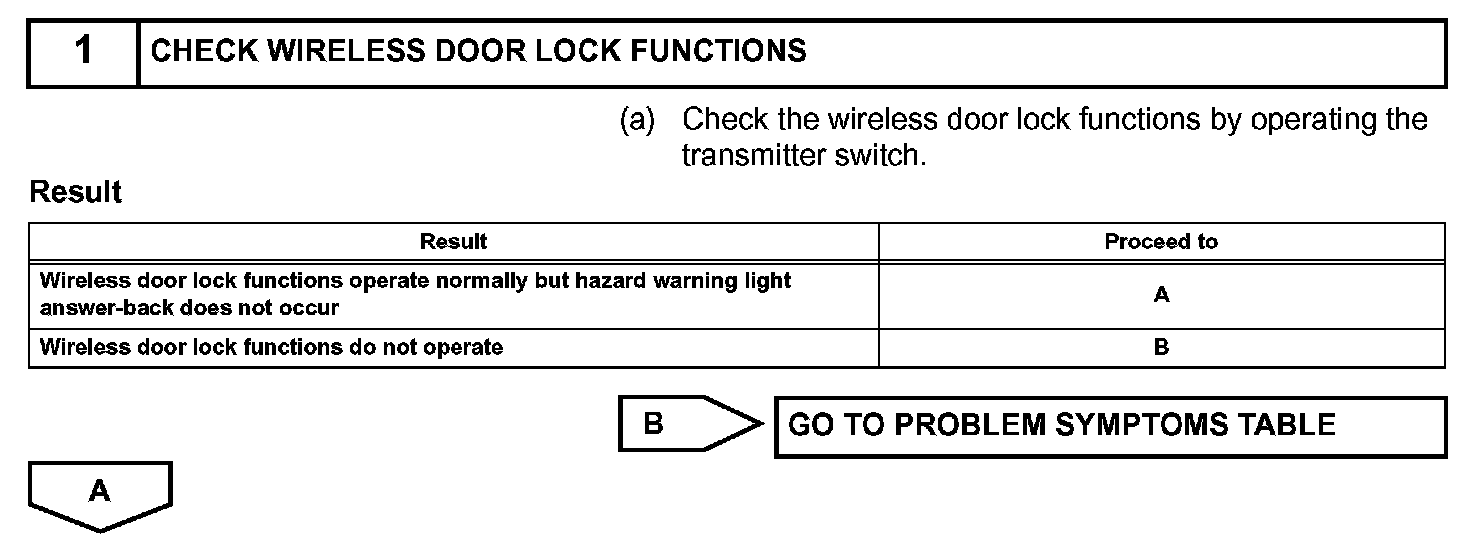

Step 1:

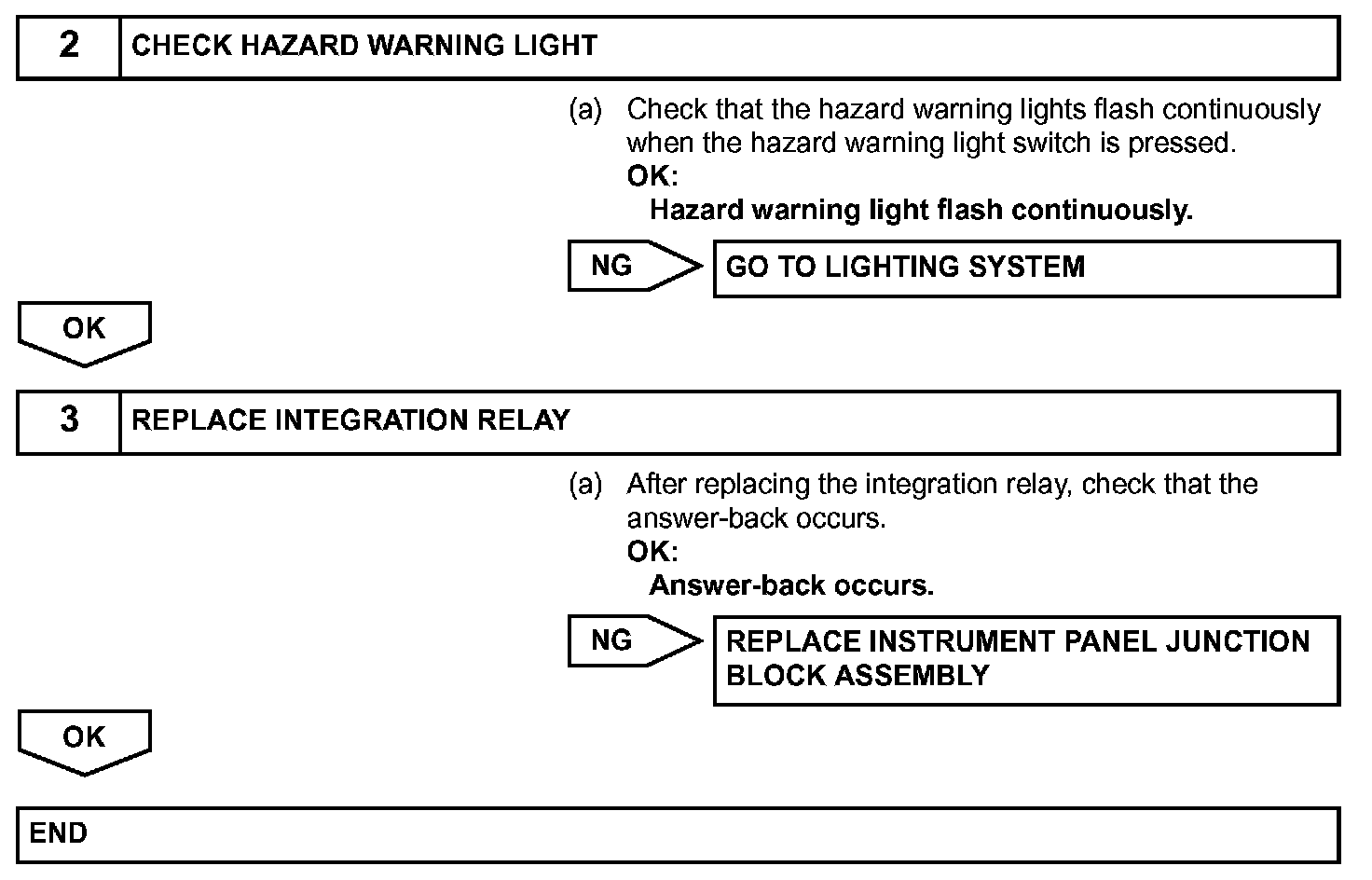

Step 2-3:
