Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Wireless Door Lock Control System

Wireless Door Lock Control System

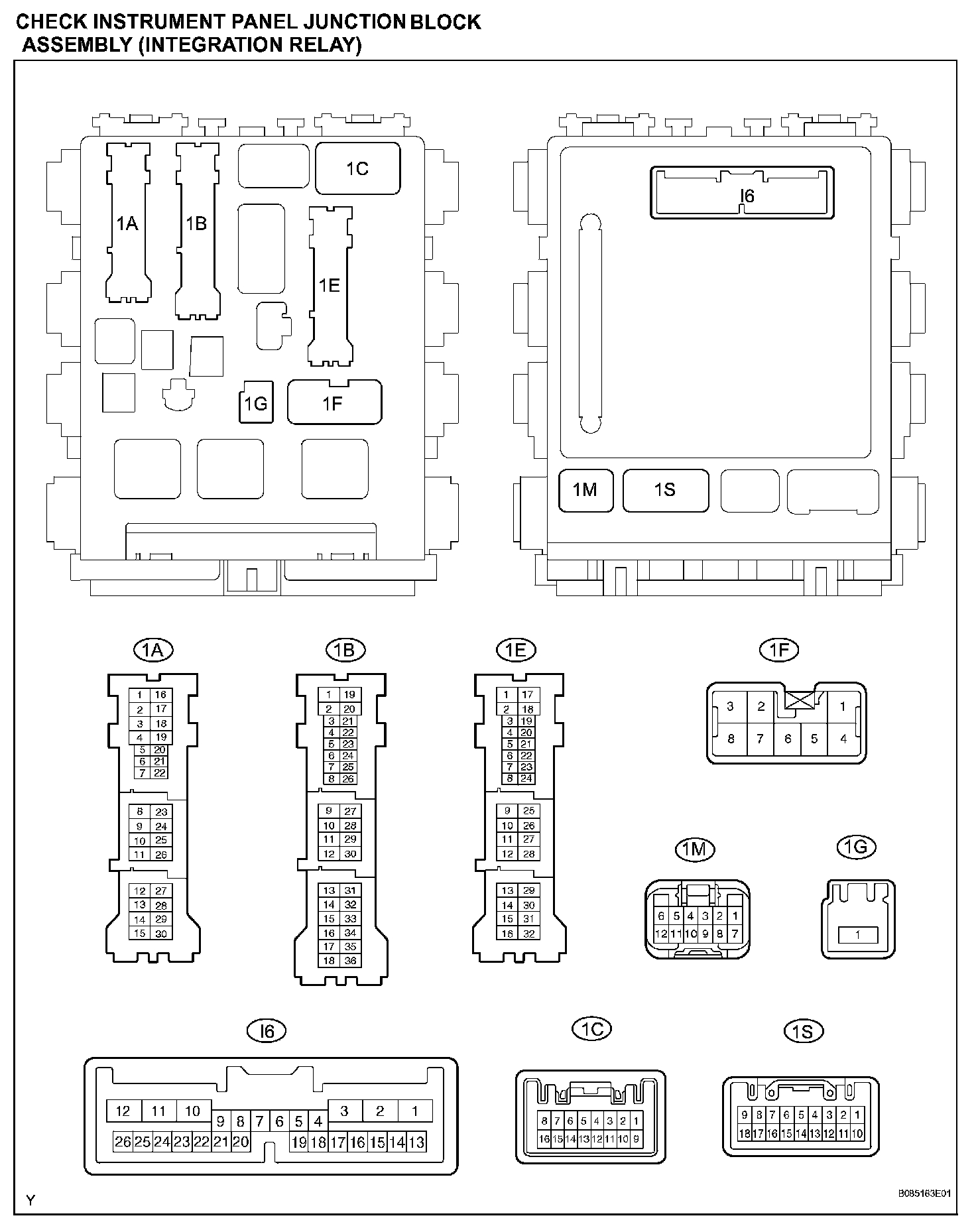

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 1):

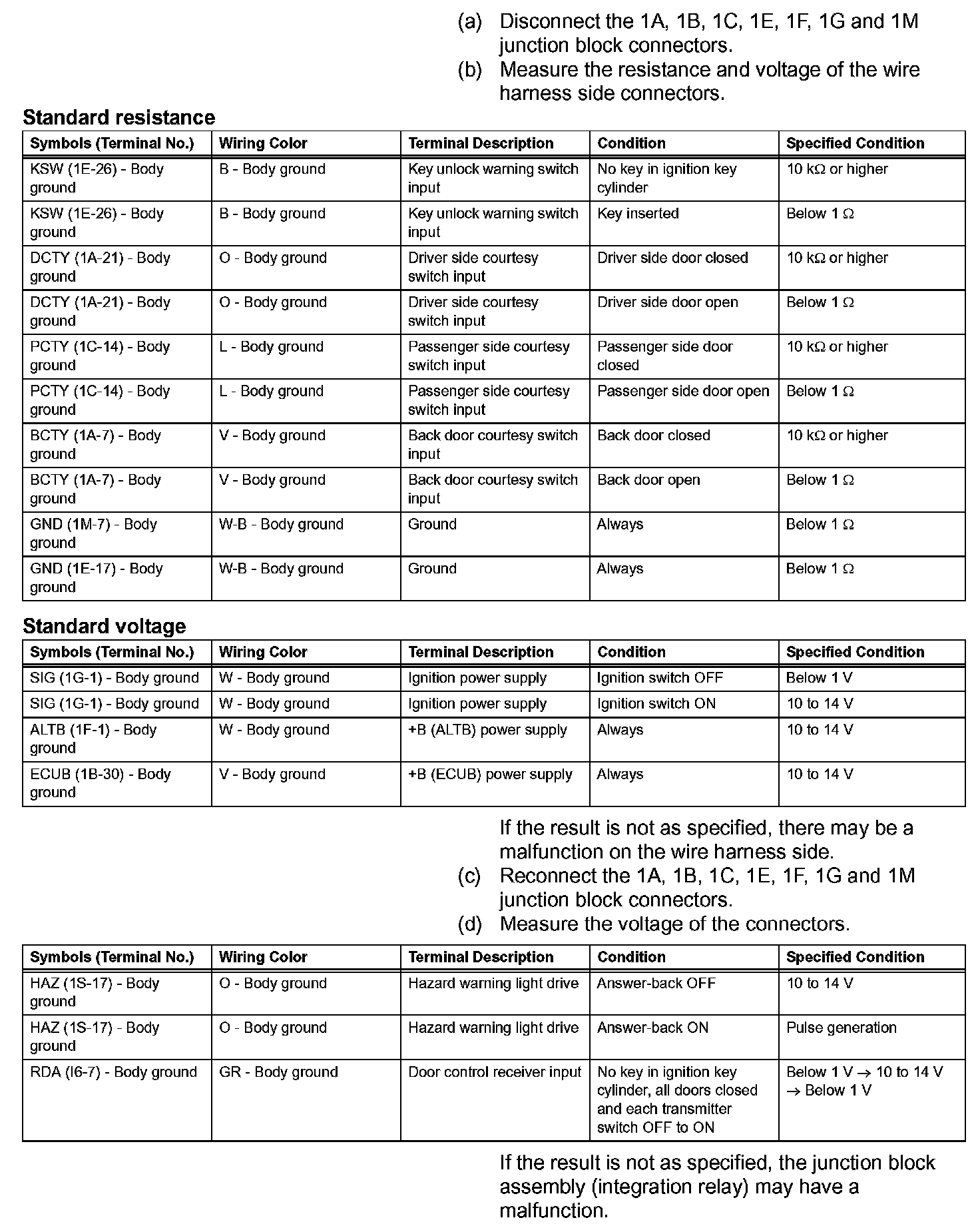

Terminals Of Control Module/Pinouts-Check Instrument Panel Junction Block Assembly (Integration Relay) (Part 2):
