Rear Console Box

REAR CONSOLE BOX

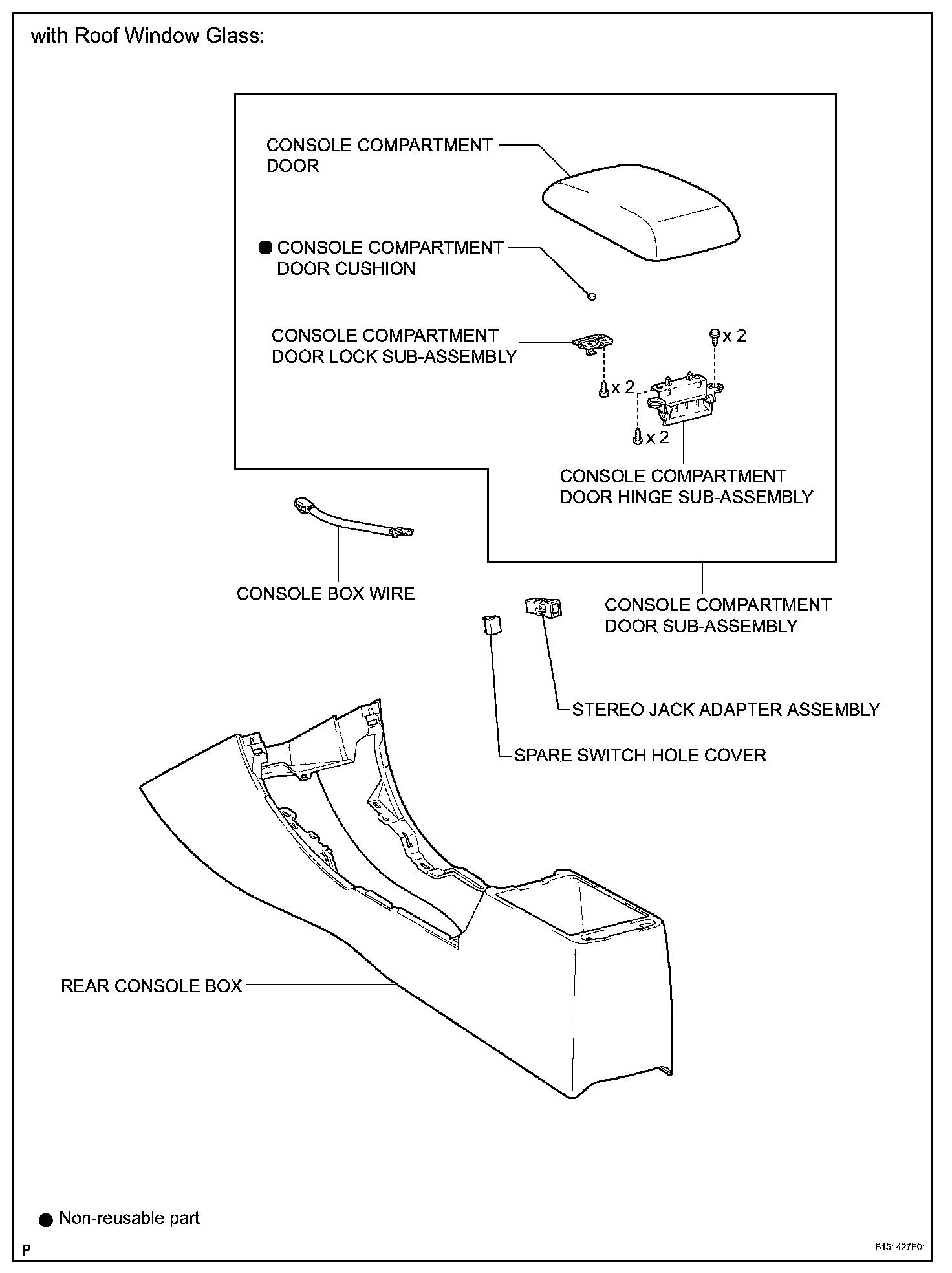

Rear Console Box:

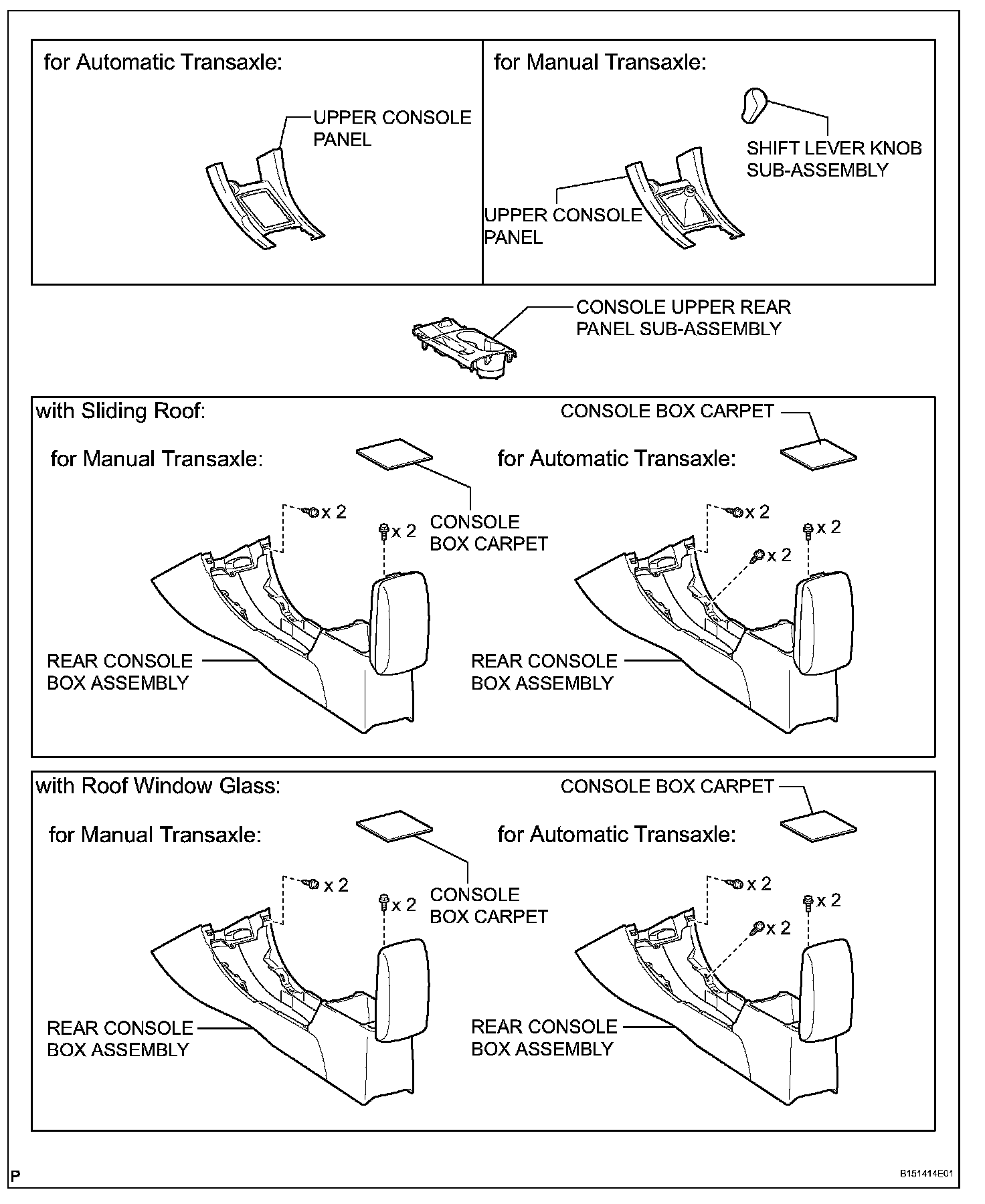

Rear Console Box:

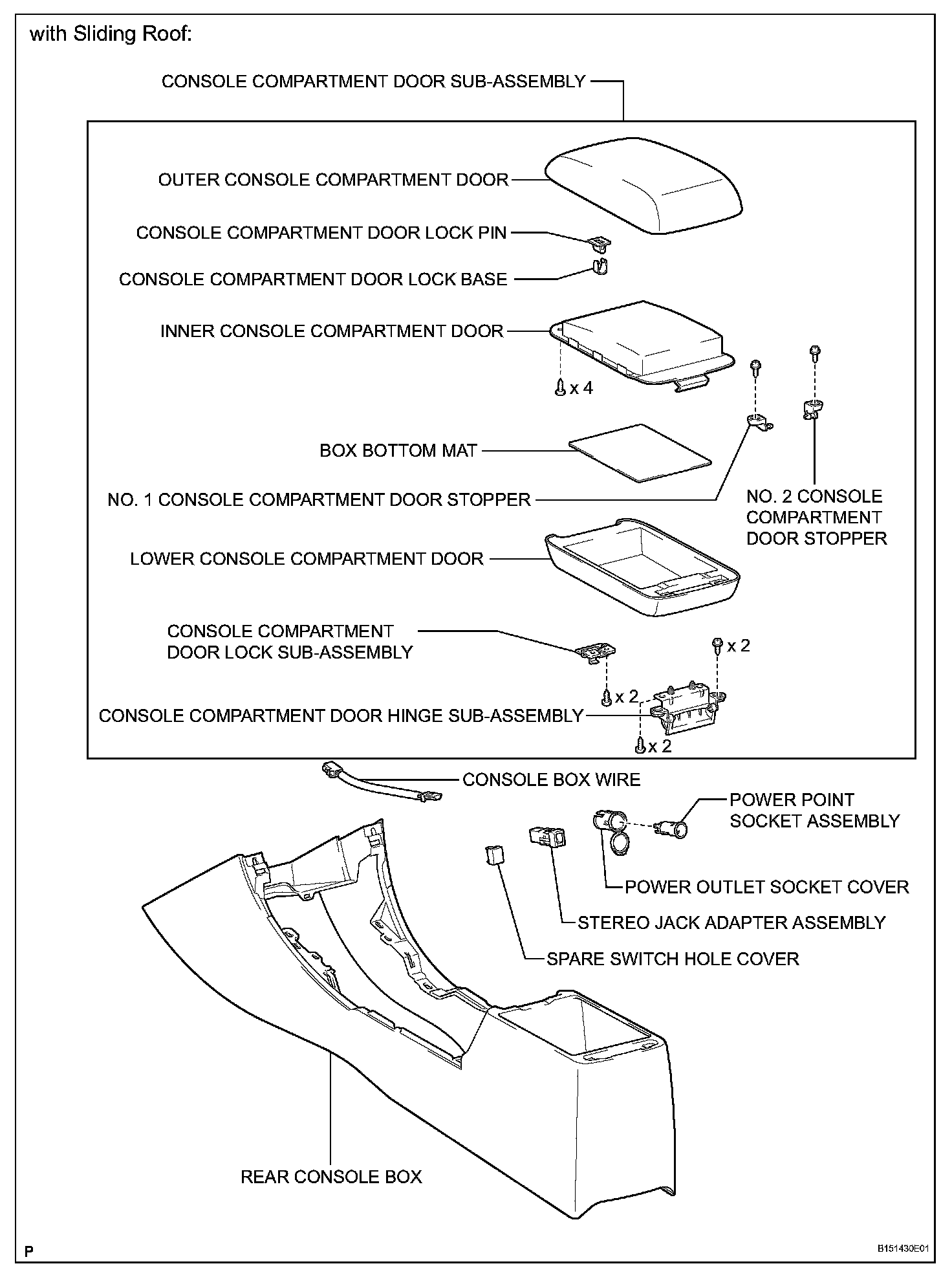

Rear Console Box:

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE UPPER CONSOLE PANEL
3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
4. REMOVE REAR CONSOLE BOX ASSEMBLY

INSTALLATION

1. INSTALL REAR CONSOLE BOX ASSEMBLY
2. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
3. INSTALL UPPER CONSOLE PANEL
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
