Console Lamp: Service and Repair

Front Console Illumination:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

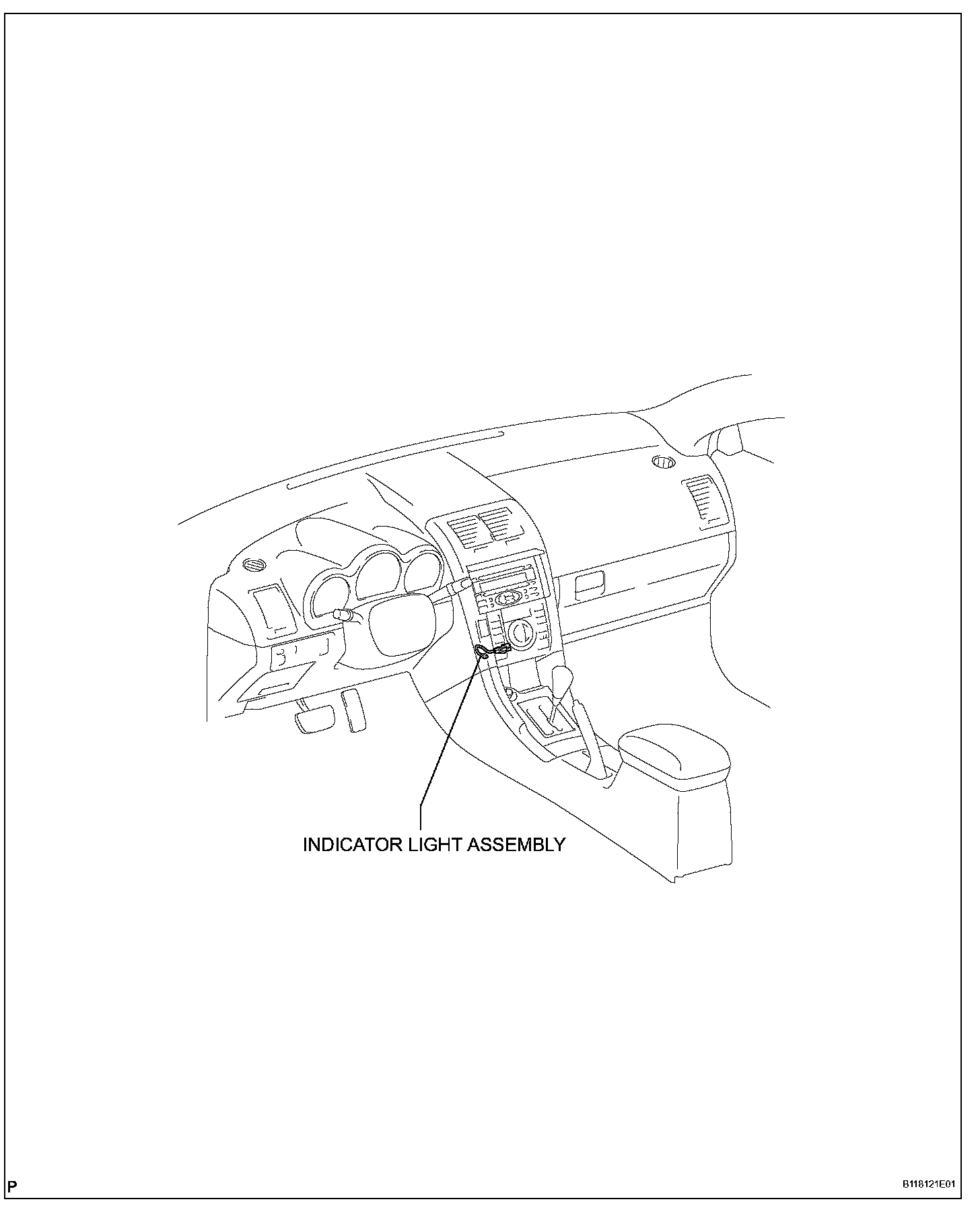

3. REMOVE INDICATOR LIGHT ASSEMBLY
a. Disconnect the connector.
b. Detach the clip and remove the light.

INSTALLATION

1. INSTALL INDICATOR LIGHT ASSEMBLY
a. Attach the clip and install the light.
b. Connect the connector.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
