Exterior Moulding / Trim: Service and Repair

FRONT PILLAR UPPER COVER

REMOVAL

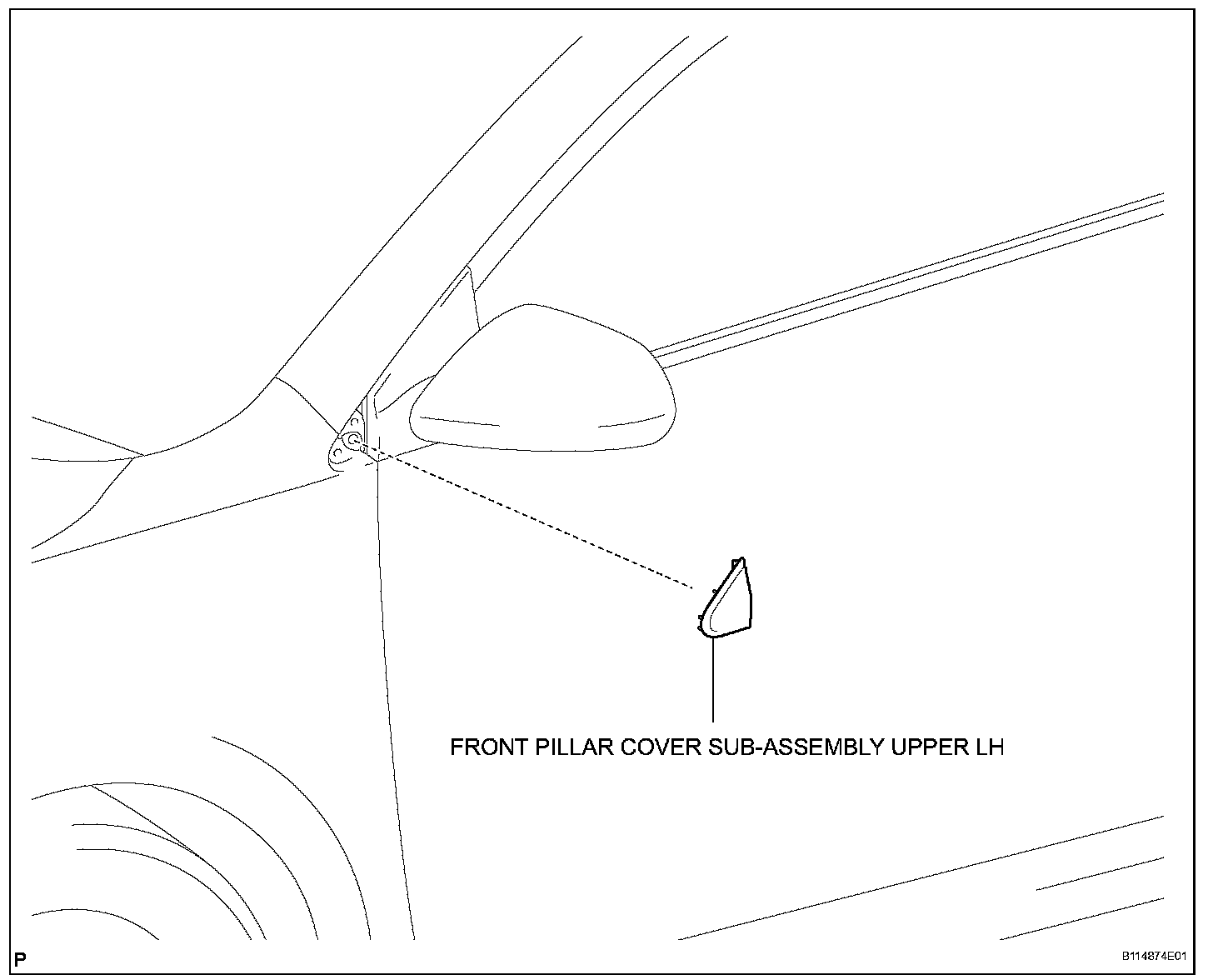

1. REMOVE FRONT PILLAR COVER SUB-ASSEMBLY UPPER LH

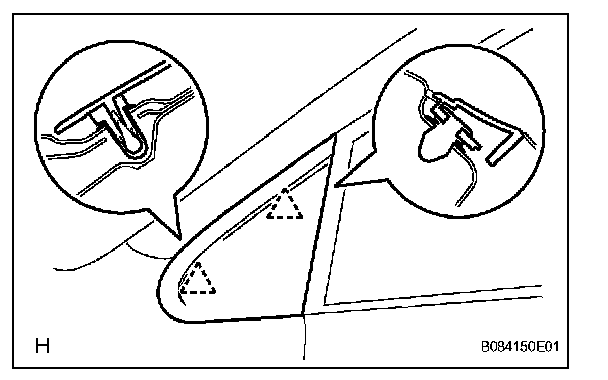

a. Using a moulding remover, detach the 2 clips and remove the pillar cover.

INSTALLATION

1. INSTALL FRONT PILLAR COVER SUB-ASSEMBLY UPPER LH

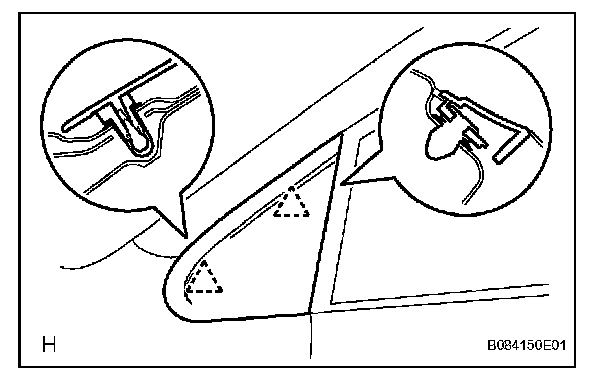

a. Attach the 2 clips to install the pillar cover.
