Removal and Replacement

BACK DOOR SUPPORT

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE BACK DOOR STAY ASSEMBLY LH

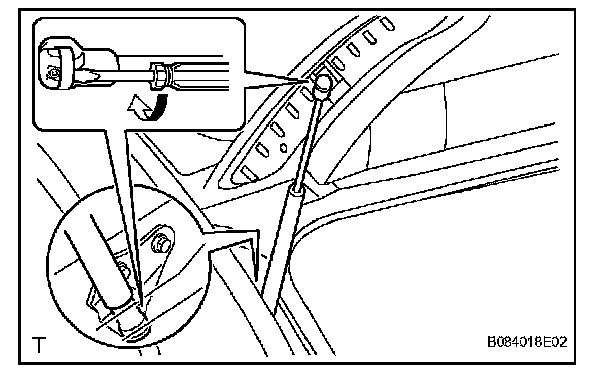

a. Using a screwdriver, remove the 2 stop rings and stay.

HINT: Remove the door stay while supporting the back door with your free hand.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL BACK DOOR STAY ASSEMBLY LH

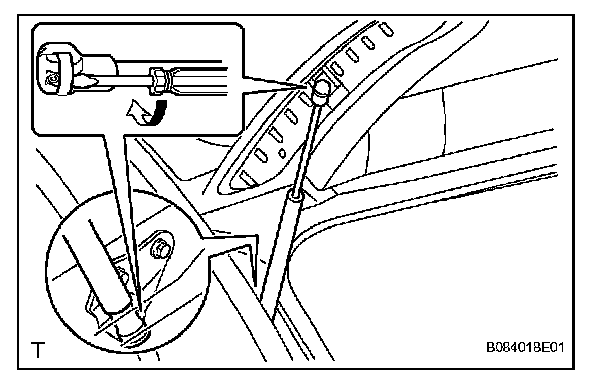

a. Install the stay with the 2 stop rings.
