Trunk / Liftgate: Service and Repair
BACK DOORBack Door:
Back Door:

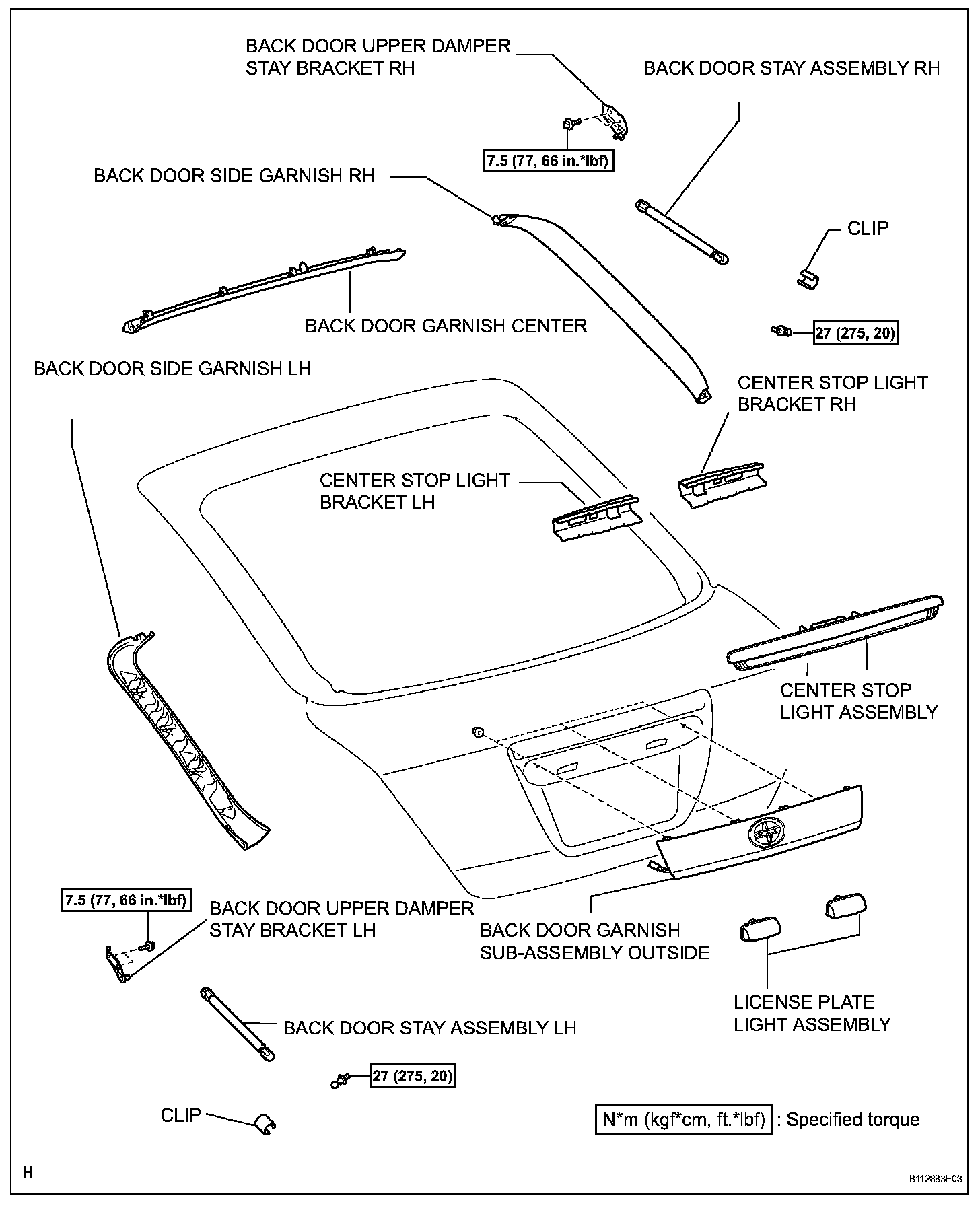

DISASSEMBLY

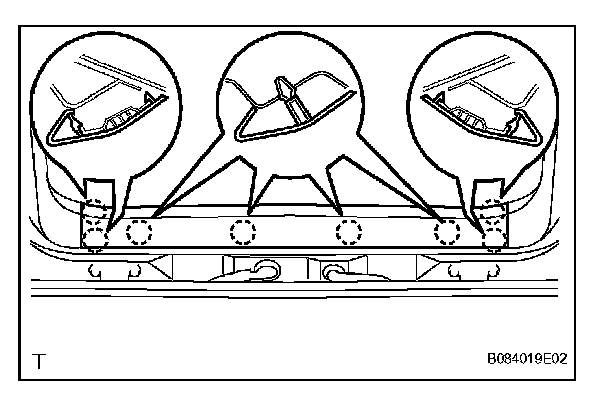

1. REMOVE BACK DOOR GARNISH CENTER
a. Using a screwdriver, detach the 8 claws and remove the garnish.
HINT: Tape the screwdriver tip before use.

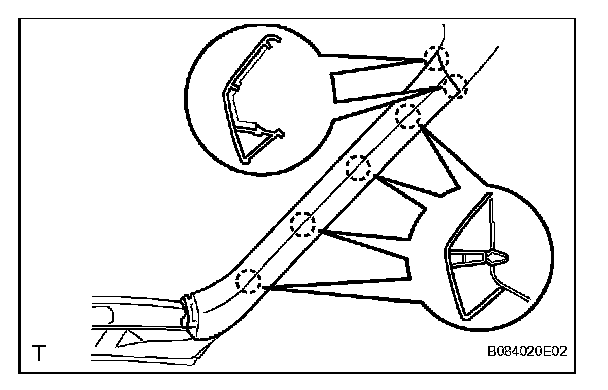

2. REMOVE BACK DOOR SIDE GARNISH LH
a. Using a screwdriver, detach the 6 claws and remove the garnish.
HINT: Tape the screwdriver tip before use.
3. REMOVE BACK DOOR SIDE GARNISH RH
a. Using a screwdriver, detach the 6 claws and remove the garnish.
HINT: Tape the screwdriver tip before use.

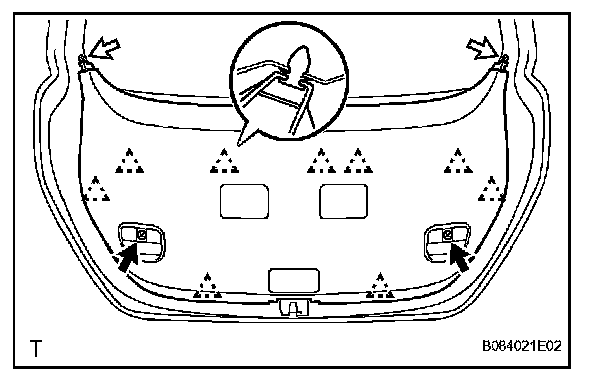

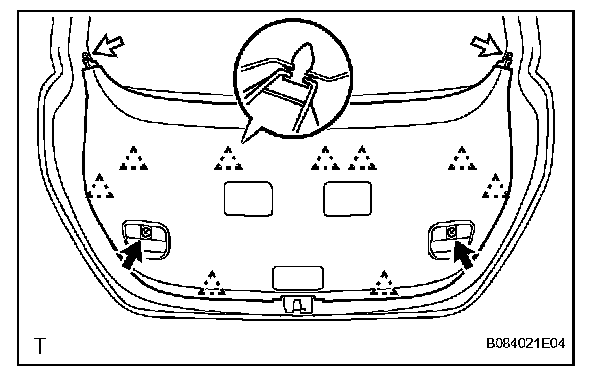

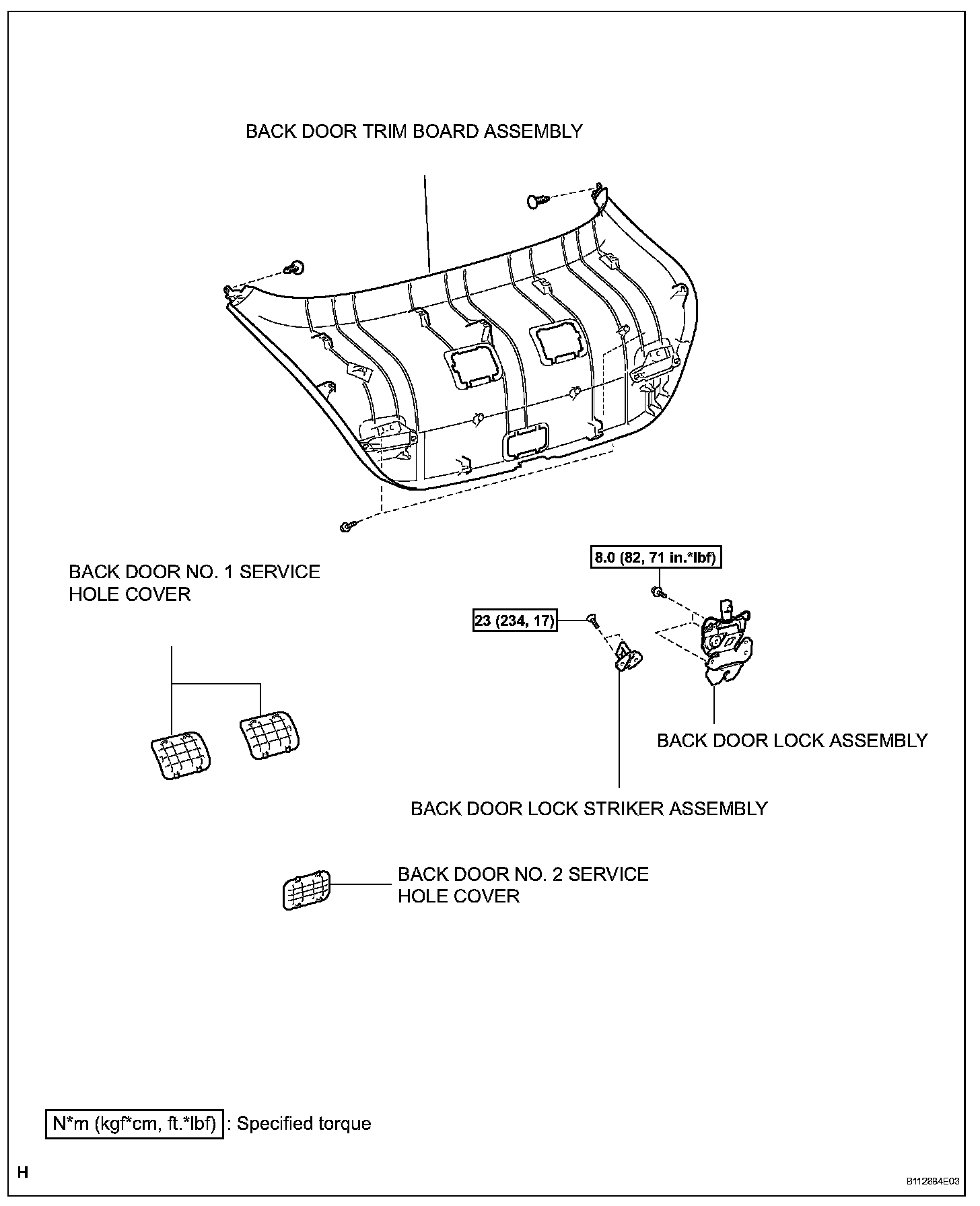

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
a. Remove the 2 screws indicated by the 2 black arrows in the illustration.
b. Using a clip remover, remove the 2 clips indicated by the 2 white arrows in the illustration.
c. Using a screwdriver, detach the 9 clips and remove the trim.
HINT: Tape the screwdriver tip before use.
d. Remove the No. 1 service hole cover.
e. Remove the No. 2 service hole cover.
5. REMOVE CENTER STOP LIGHT ASSEMBLY
6. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
7. REMOVE LICENSE PLATE LIGHT ASSEMBLY

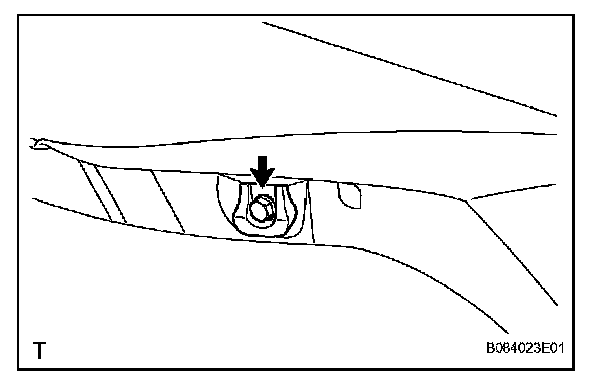

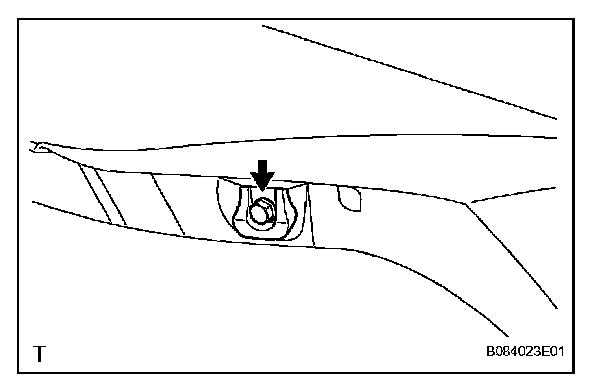

8. REMOVE BACK DOOR STOPPER LOWER
a. Remove the bolt and stopper.

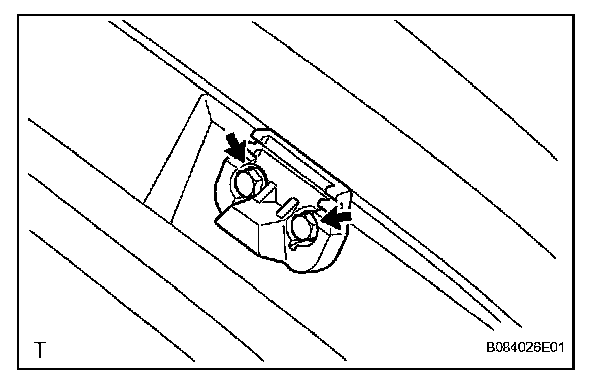

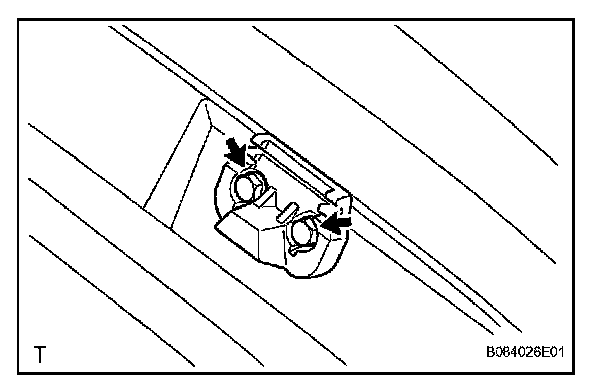

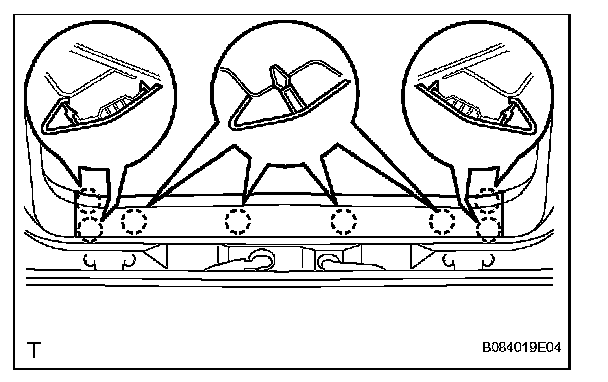

9. REMOVE BACK DOOR LOWER STOPPER CUSHION
a. Remove the 2 bolts and stopper cushion.
10. REMOVE BACK DOOR STAY ASSEMBLY LH
11. REMOVE BACK DOOR STAY ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

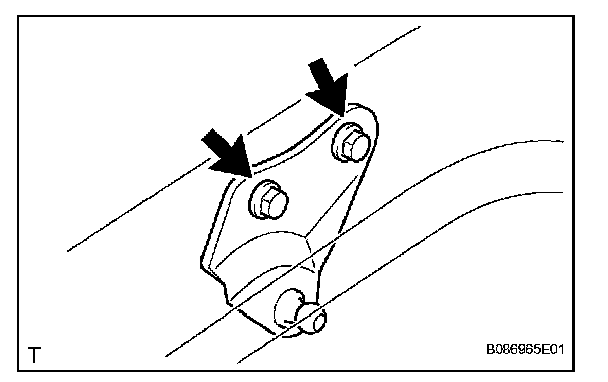

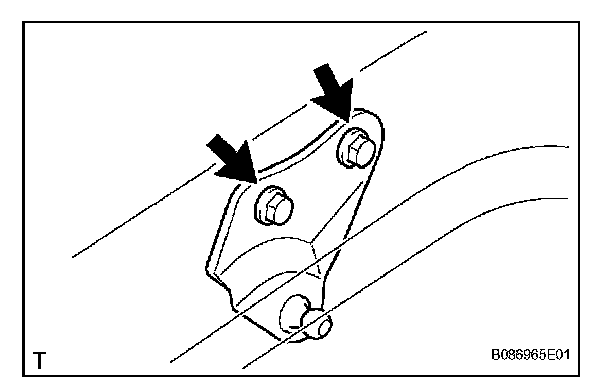

12. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH
a. Remove the 2 bolts and bracket.
13. REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH
a. Remove the 2 bolts and bracket.

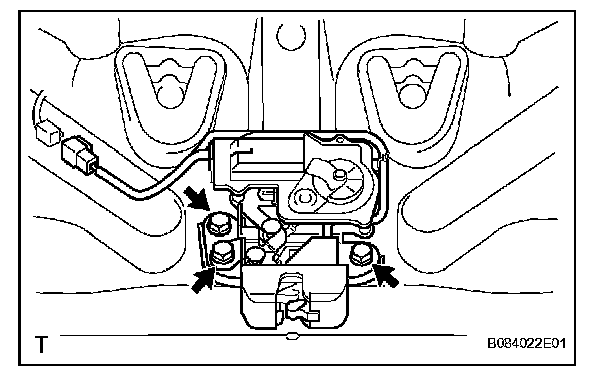

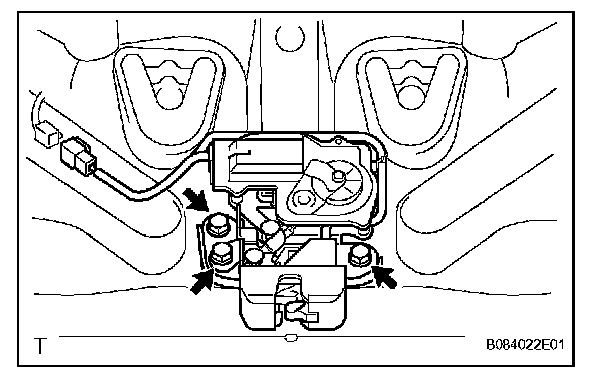

14. REMOVE BACK DOOR LOCK ASSEMBLY
a. Disconnect the connector and clamp.
b. Remove the 3 bolts and lock.
REASSEMBLY
HINT: A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL BACK DOOR LOCK ASSEMBLY
a. Install the lock with the 3 bolts.
b. Connect the connector and clamp.
Torque: 8.0 N.m (82 kgf.cm, 70 in.lbf)
2. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET LH
a. Install the bracket with the 2 bolts.
Torque: 7.5 N.m (77 kgf.cm, 66 in.lbf)
3. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET RH
a. Install the bracket with the 2 bolts.
Torque: 7.5 N.m (77 kgf.cm, 66 in.lbf)
4. INSTALL BACK DOOR STAY ASSEMBLY LH
5. INSTALL BACK DOOR STAY ASSEMBLY RH
6. INSTALL BACK DOOR LOWER STOPPER CUSHION
a. Install the cushion with the 2 bolts.
Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)
7. INSTALL BACK DOOR STOPPER LOWER
a. Install the stopper with the bolt.
Torque: 19.5 N.m (199 kgf.cm, 14.5 ft.lbf)
8. INSTALL LICENSE PLATE LIGHT ASSEMBLY
9. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
10. INSTALL CENTER STOP LIGHT ASSEMBLY
11. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
a. Install the No. 2 service hole cover.
b. Install the No. 1 service hole cover.
c. Attach the 9 clips to install the trim board.
d. Install the 2 clips indicated by the 2 white arrows in the illustration.
e. Install the 2 screws indicated by the 2 black arrows in the illustration.
12. INSTALL BACK DOOR SIDE GARNISH LH
a. Attach the 6 claws to install the garnish.
13. INSTALL BACK DOOR SIDE GARNISH RH
a. Attach the 6 claws to install the garnish.
14. INSTALL BACK DOOR GARNISH CENTER
a. Attach the 8 claws to install the garnish.
