Removal and Replacement
FRONT BUMPERINSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart.

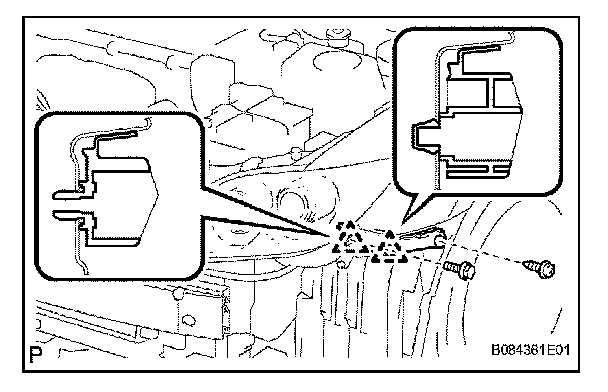

1. INSTALL FRONT BUMPER SIDE SUPPORT LH
a. Attach the 2 clips to install the side support.
b. Install the screw and bolt.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf) for screw
12 N.m (122 kgf.cm, 9 ft.lbf) for bolt
2. INSTALL FRONT BUMPER SIDE SUPPORT RH
a. Attach the 2 clips to install the side support.
b. Install the screw and bolt.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf) for screw
12 N.m (122 kgf.cm, 9 ft.lbf) for bolt
3. INSTALL FRONT BUMPER REINFORCEMENT
a. Install the reinforcement with the 6 nuts.
4. INSTALL FRONT BUMPER ENERGY ABSORBER
5. INSTALL FRONT BUMPER COVER

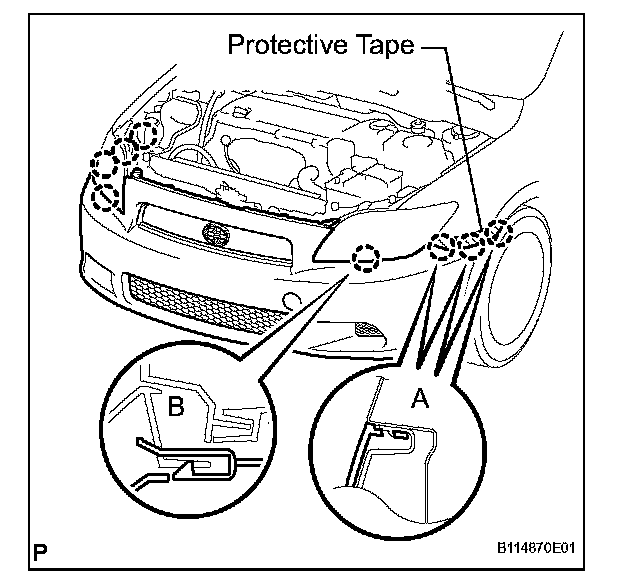

a. Put protective tape under the front fender.
b. Attach the 6 claws labeled A and 2 claws to install the bumper cover.

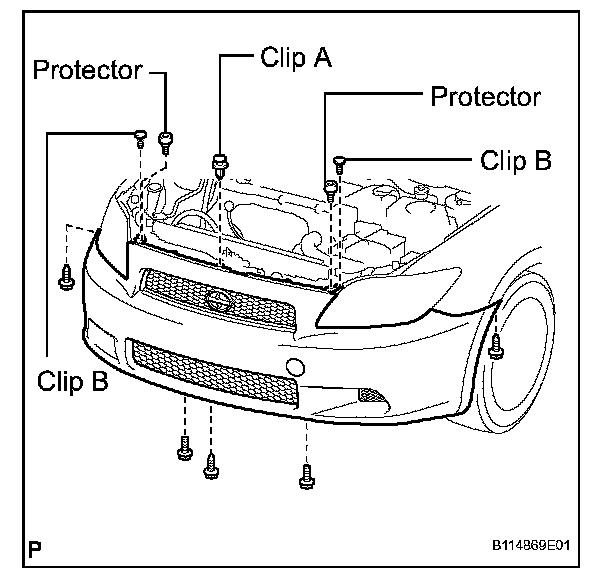

c. Install the 3 screws, 2 bolts, clip labeled A, 2 clips labeled B and 2 radiator protectors.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf) for screw
12 N.m (122 kgf.cm, 9 ft.lbf) for bolt
6. INSTALL FRONT FENDER LINER LH
a. Install the fender liner with the 3 screws.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)
7. INSTALL FRONT FENDER LINER RH
a. Install the fender liner with the 3 screws.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)
