Overhaul

FRONT BUMPER

DISASSEMBLY

1. REMOVE HOOD TO FRONT END PANEL SEAL
a. Using a clip remover, detach the 8 clips and remove the panel seal.

2. REMOVE FRONT BUMPER REINFORCEMENT
a. Using a clip remover, remover the 2 clips and reinforcement from the bumper cover.

3. REMOVE RADIATOR GRILLE LOWER
4. REMOVE FRONT BUMPER HOLE COVER
5. REMOVE FRONT BUMPER GUARD COVER LH

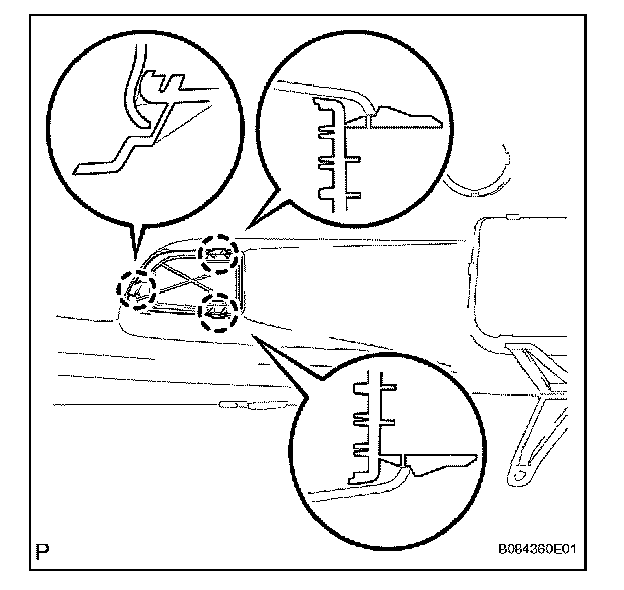

a. Using a screwdriver, detach the 3 claws and remove the cover.

HINT: Tape the screwdriver tip before use.

6. REMOVE FRONT BUMPER GUARD COVER RH

HINT: Use the same procedures described for the LH side.

REASSEMBLY

1. INSTALL FRONT BUMPER GUARD COVER LH

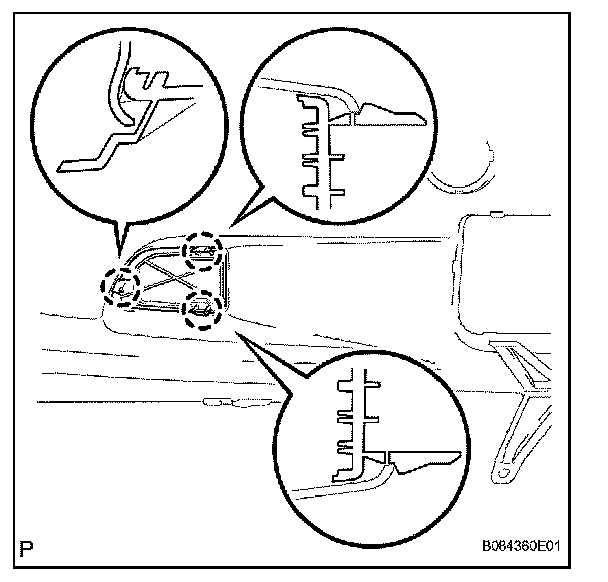

a. Attach the 3 claws to install the cover.

2. INSTALL FRONT BUMPER GUARD COVER RH

HINT: Use the same procedures described for the LH side.

3. INSTALL FRONT BUMPER HOLE COVER
4. INSTALL RADIATOR GRILLE LOWER
5. INSTALL FRONT BUMPER REINFORCEMENT
a. Install the reinforcement to the bumper cover with the 2 clips.

6. INSTALL HOOD TO FRONT END PANEL SEAL
a. Attach the 8 clips to install the panel seal.
