Front No. 2 Speaker

Front No. 2 Speaker:

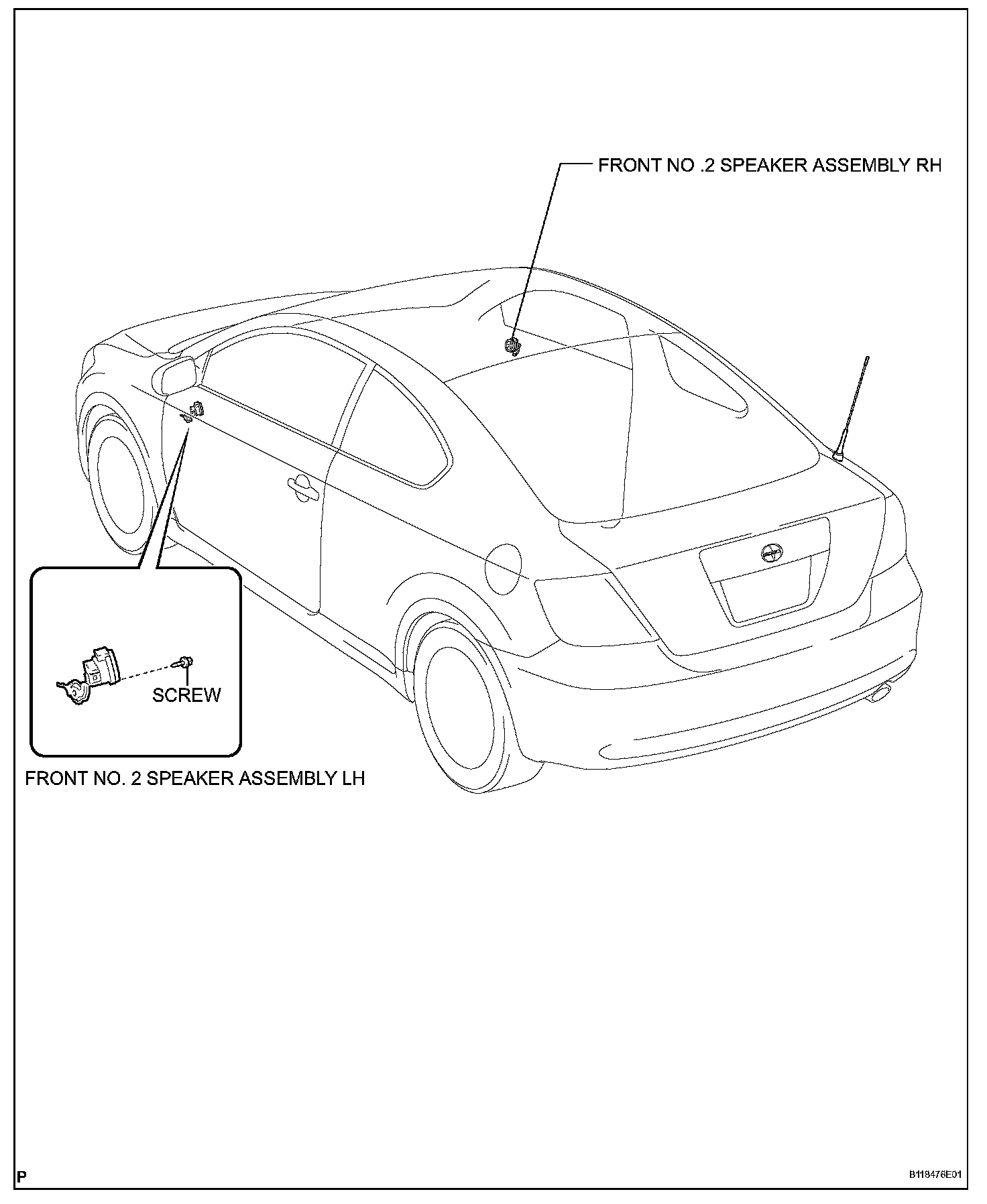

FRONT NO. 2 SPEAKER

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
3. REMOVE ASSIST GRIP COVER LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

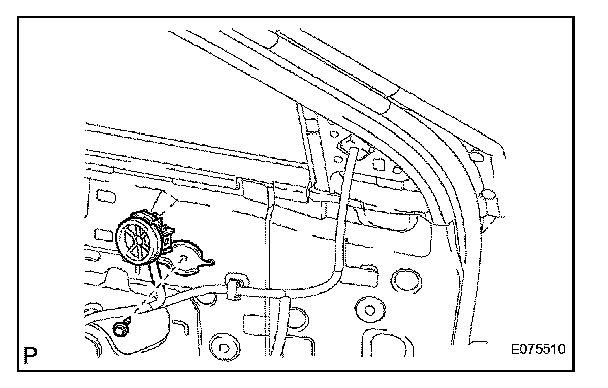

5. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH




a. Disconnect the connector.
b. Remove the screw and speaker.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

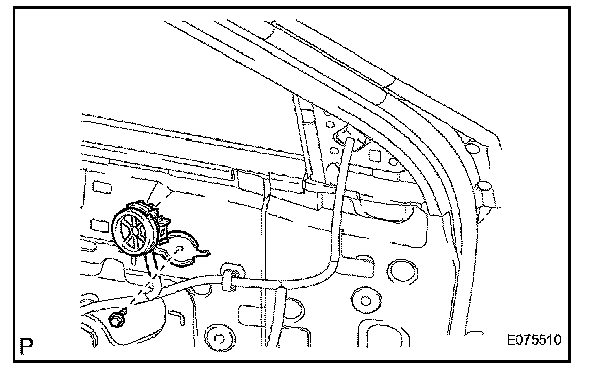

1. INSTALL FRONT NO .2 SPEAKER ASSEMBLY LH




a. Install the speaker with the screw.
b. Connect the connector

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
3. INSTALL ASSIST GRIP COVER LH
4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
