Pinout Values and Diagnostic Parameters

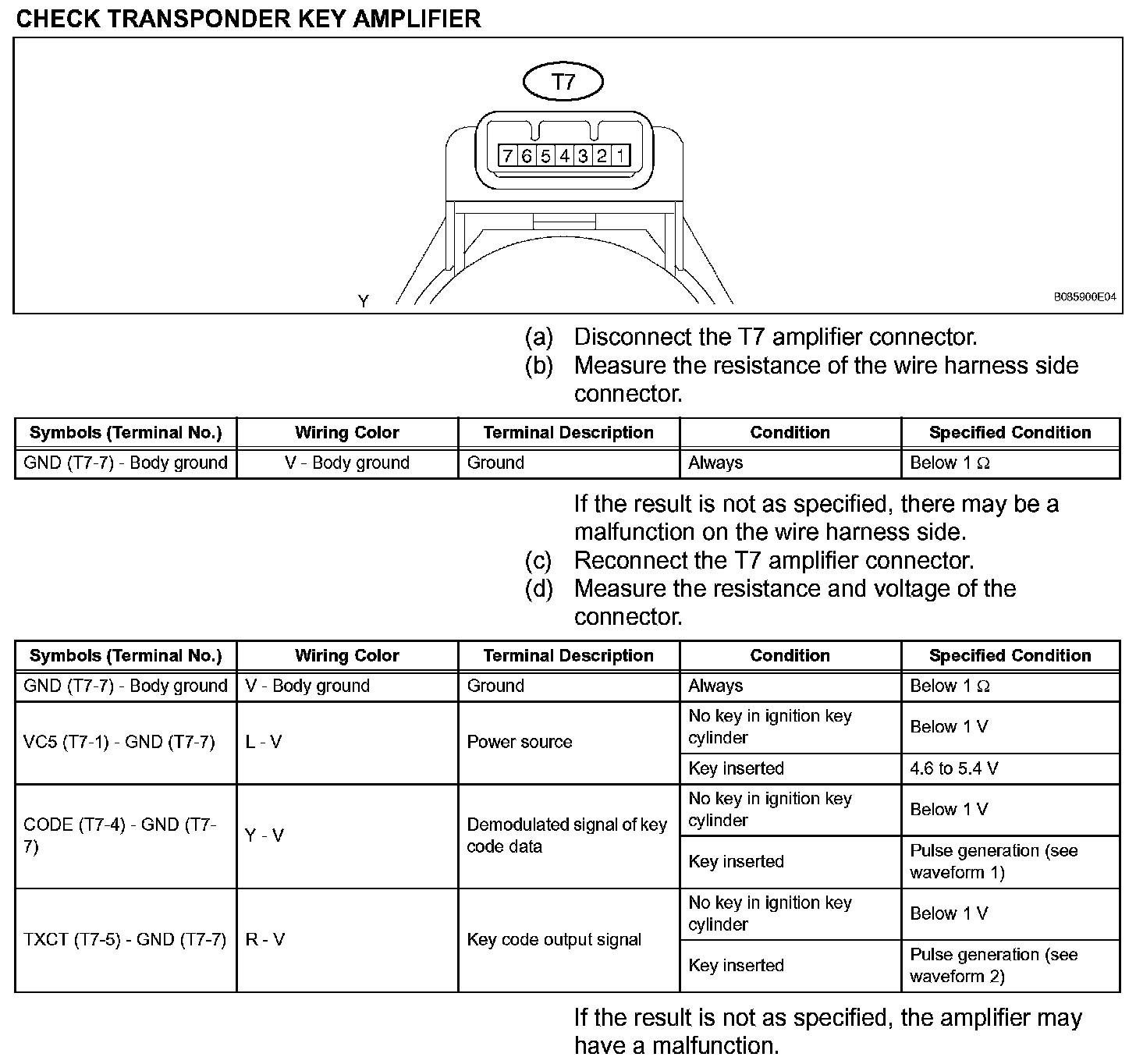

Terminals Of Control Module/Pinouts-Check Transponder Key Amplifier:

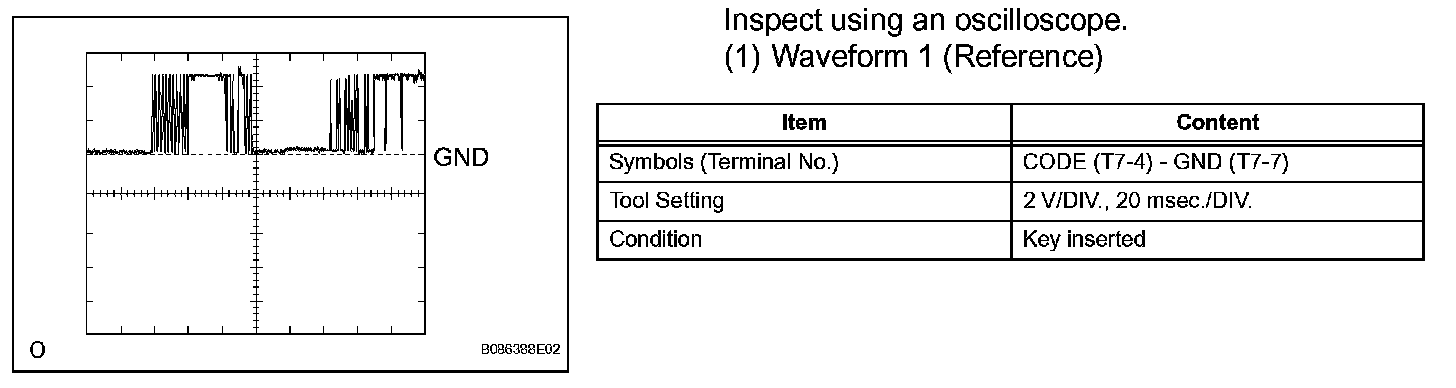

Oscilloscope Waveforms (Part 1):

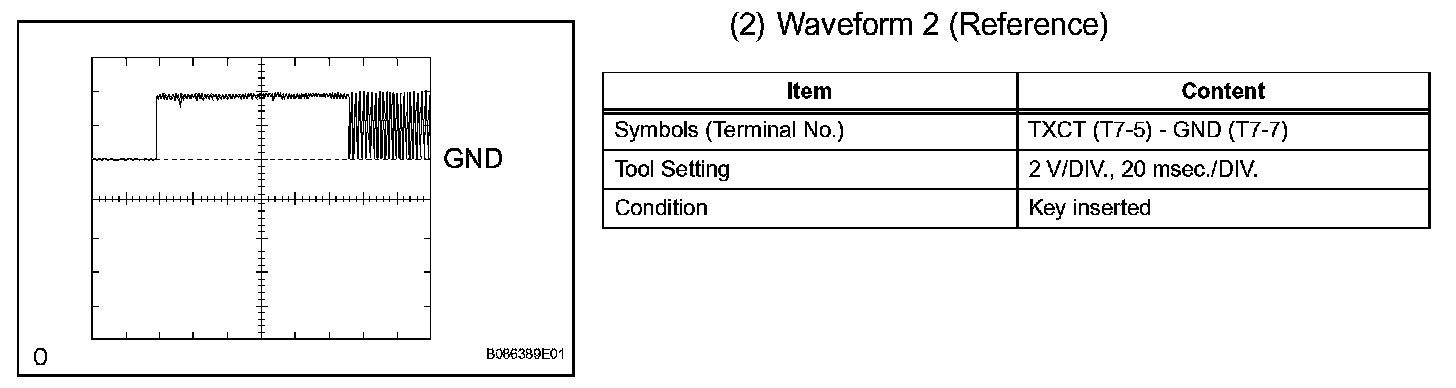

Oscilloscope Waveforms (Part 2):

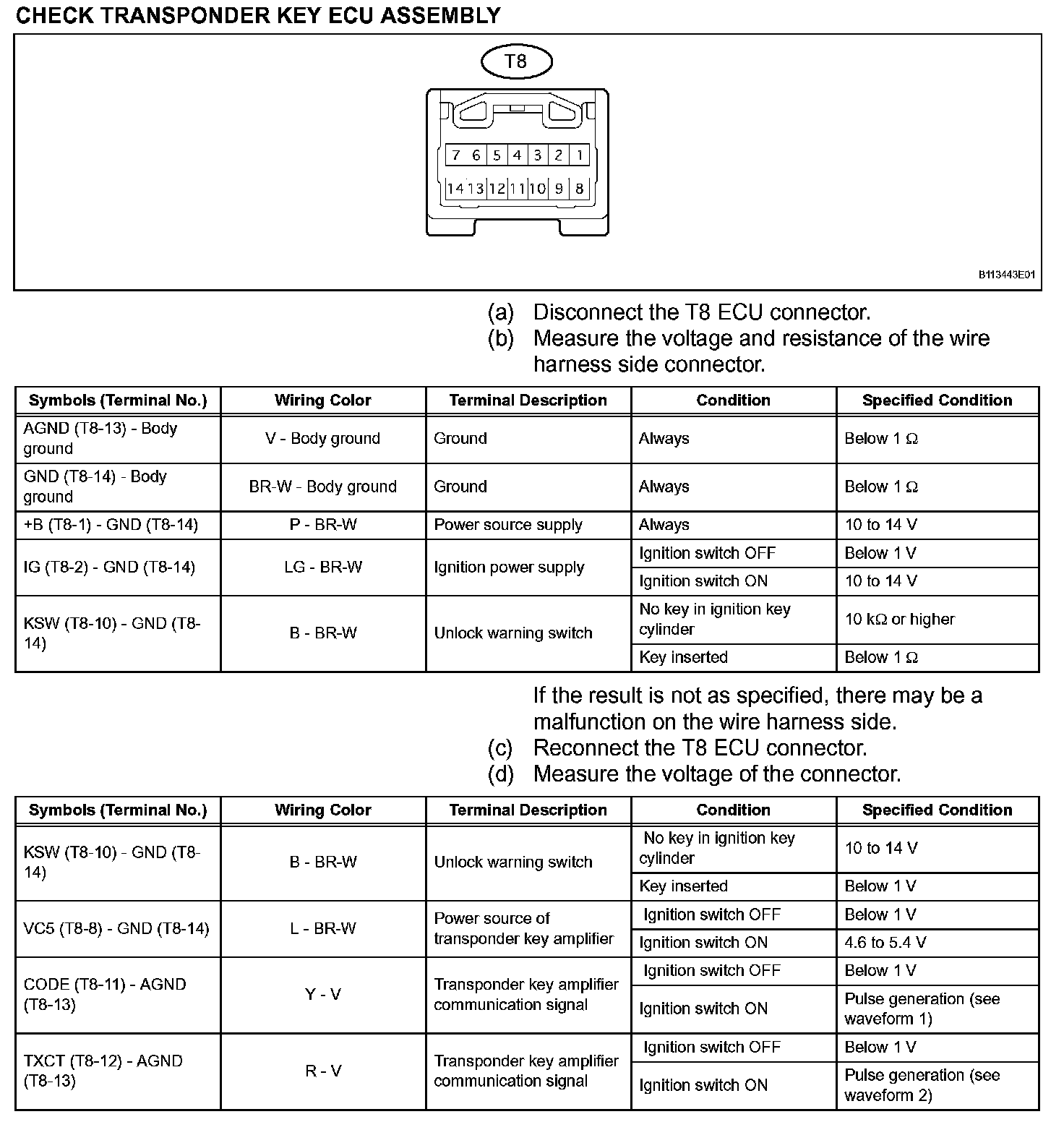

Terminals Of Control Module/Pinouts-Check Transponder Key ECU Assembly (Part 1):

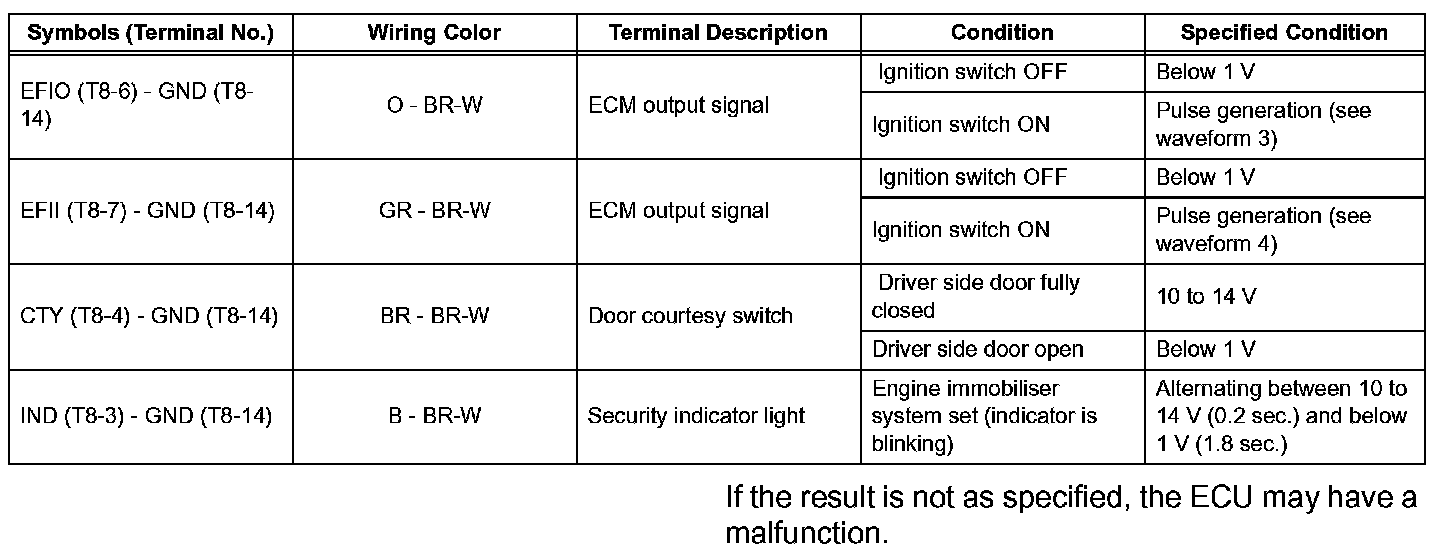

Terminals Of Control Module/Pinouts-Check Transponder Key ECU Assembly (Part 2):

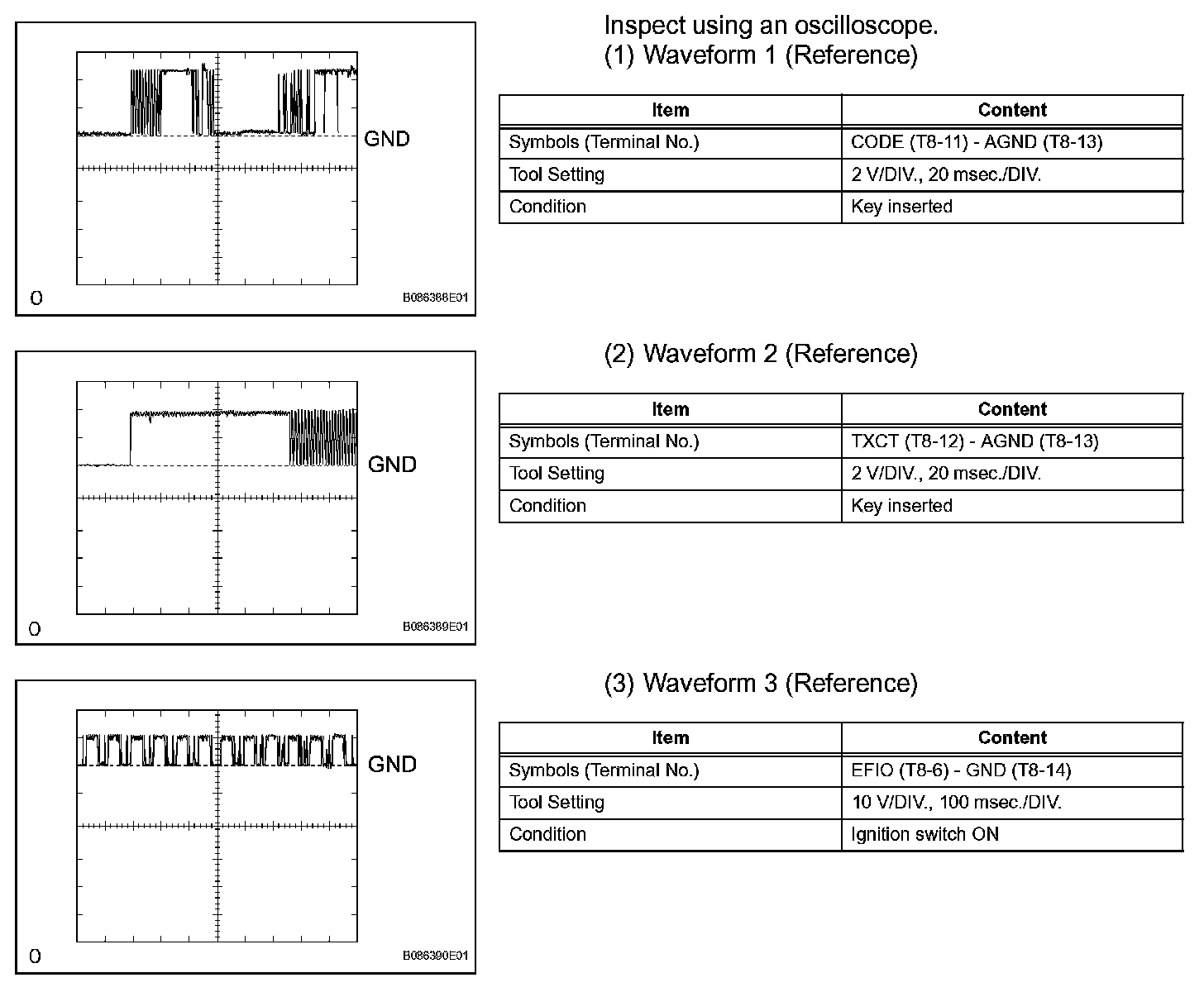

Oscilloscope Waveforms (Part 1):

Oscilloscope Waveforms (Part 2):

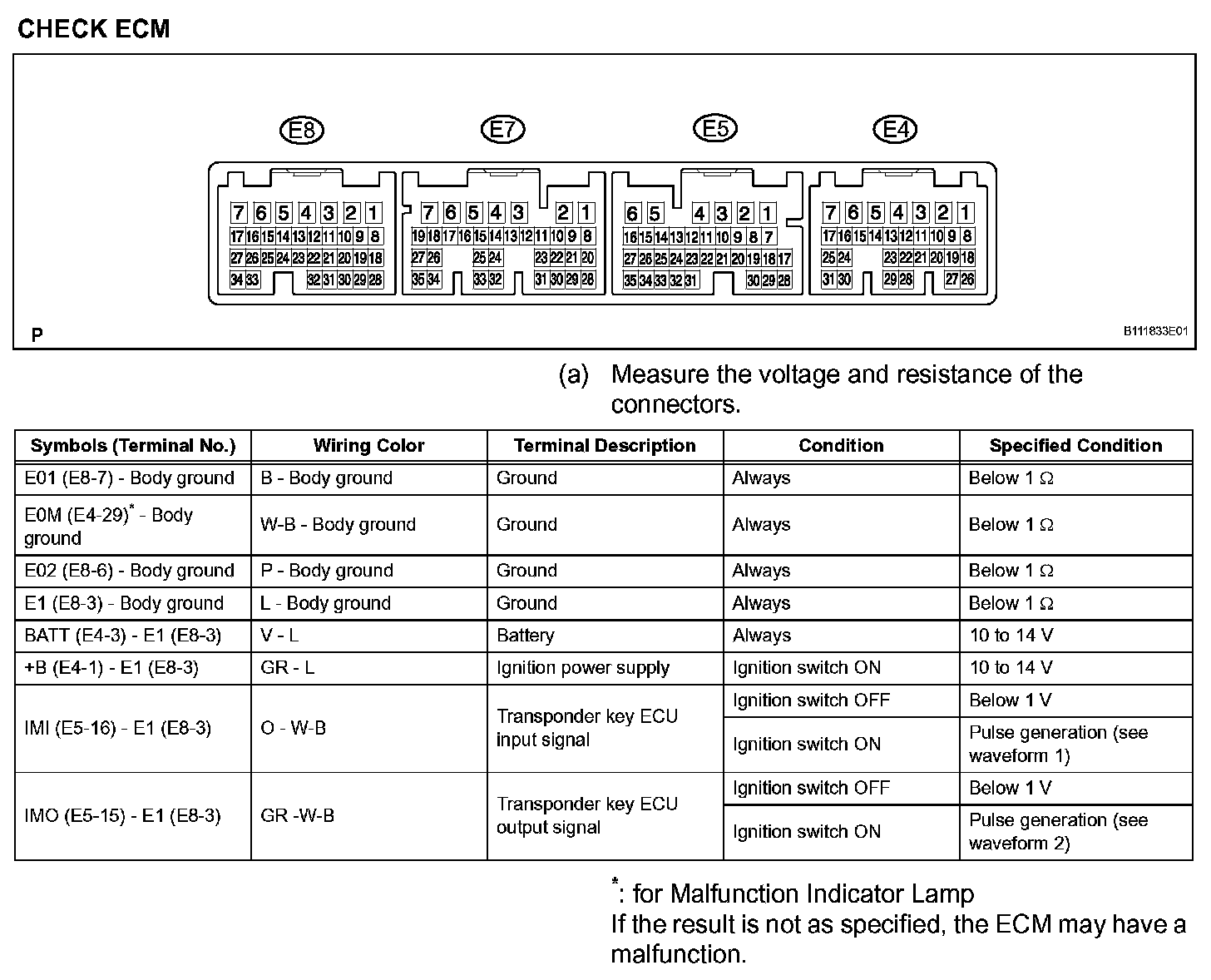

Terminals Of Control Module/Pinouts-Check ECM:

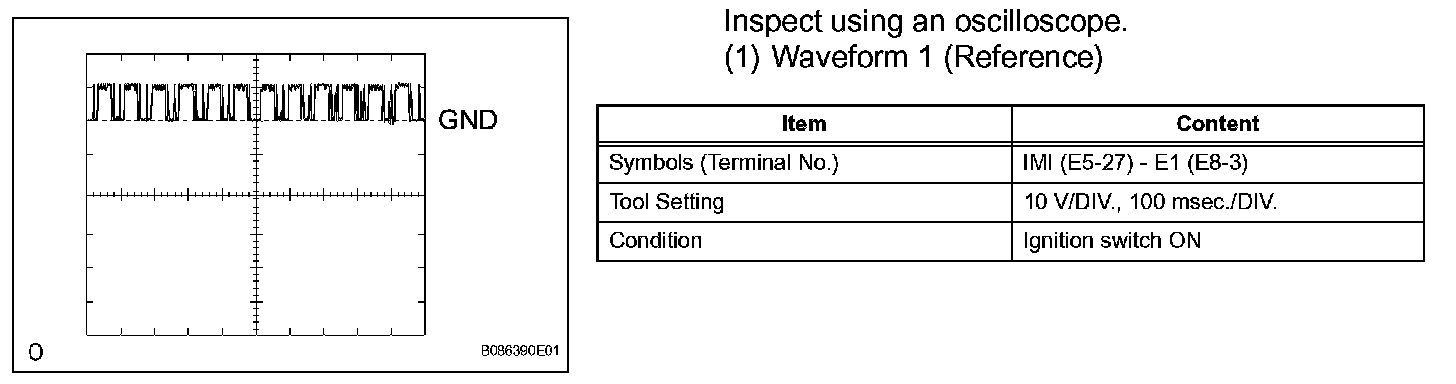

Oscilloscope Waveforms (Part 1):

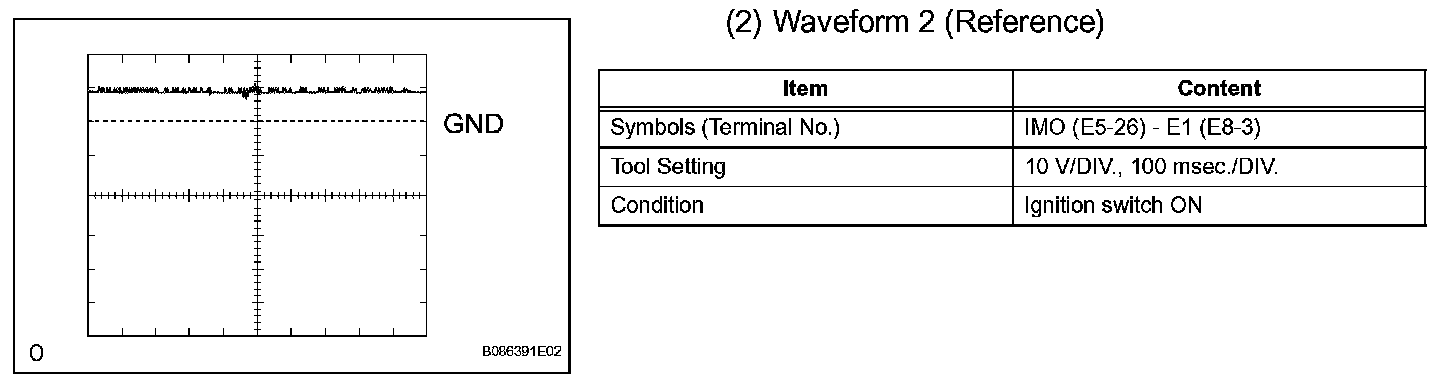

Oscilloscope Waveforms (Part 2):
