Unlock Warning Switch

INSPECTION

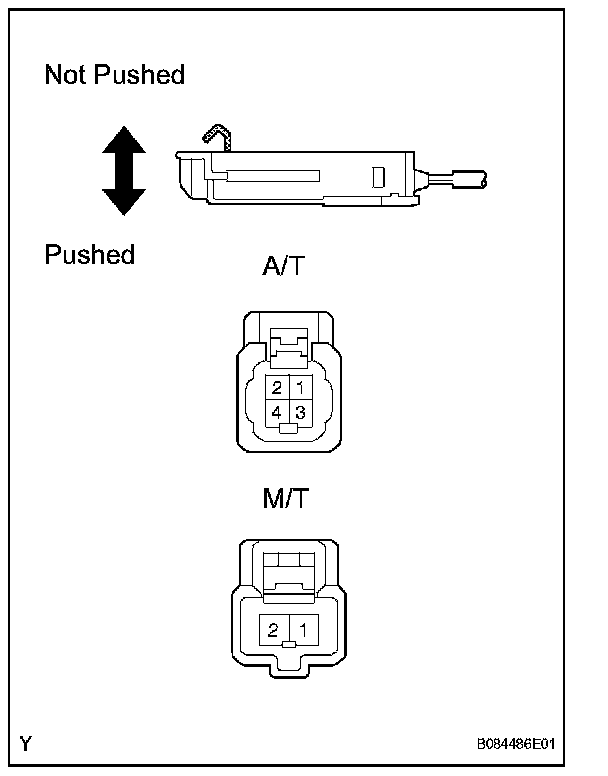

INSPECT UNLOCK WARNING SWITCH ASSEMBLY

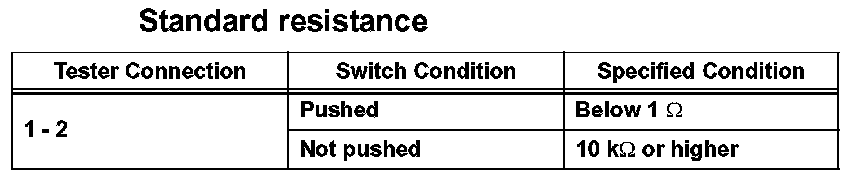

Measure the resistance of the switch.








If the result is not as specified, replace the switch assembly.
