Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit provides power to operate the transponder key ECU.

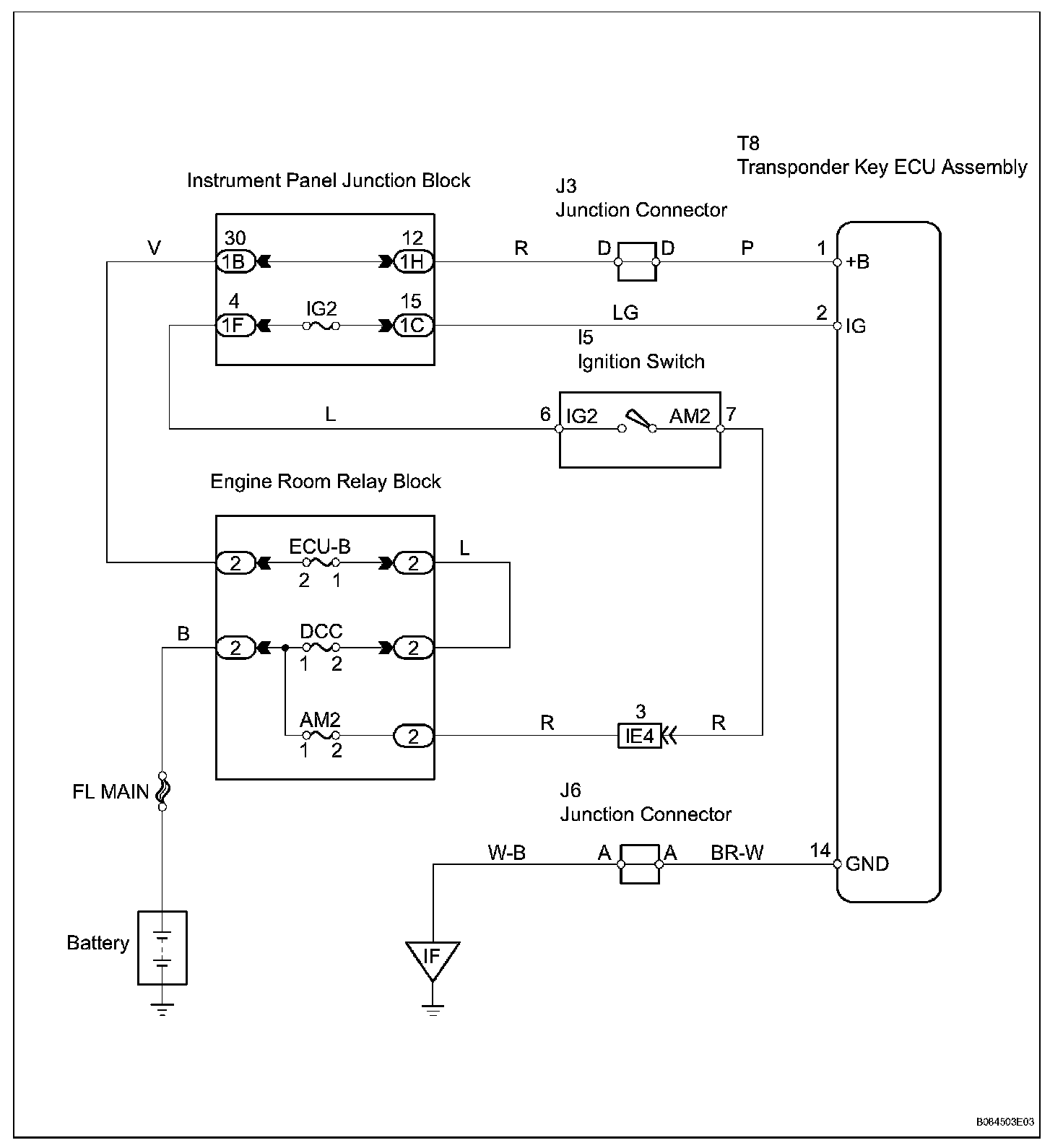

Wiring Diagram:





INSPECTION PROCEDURE

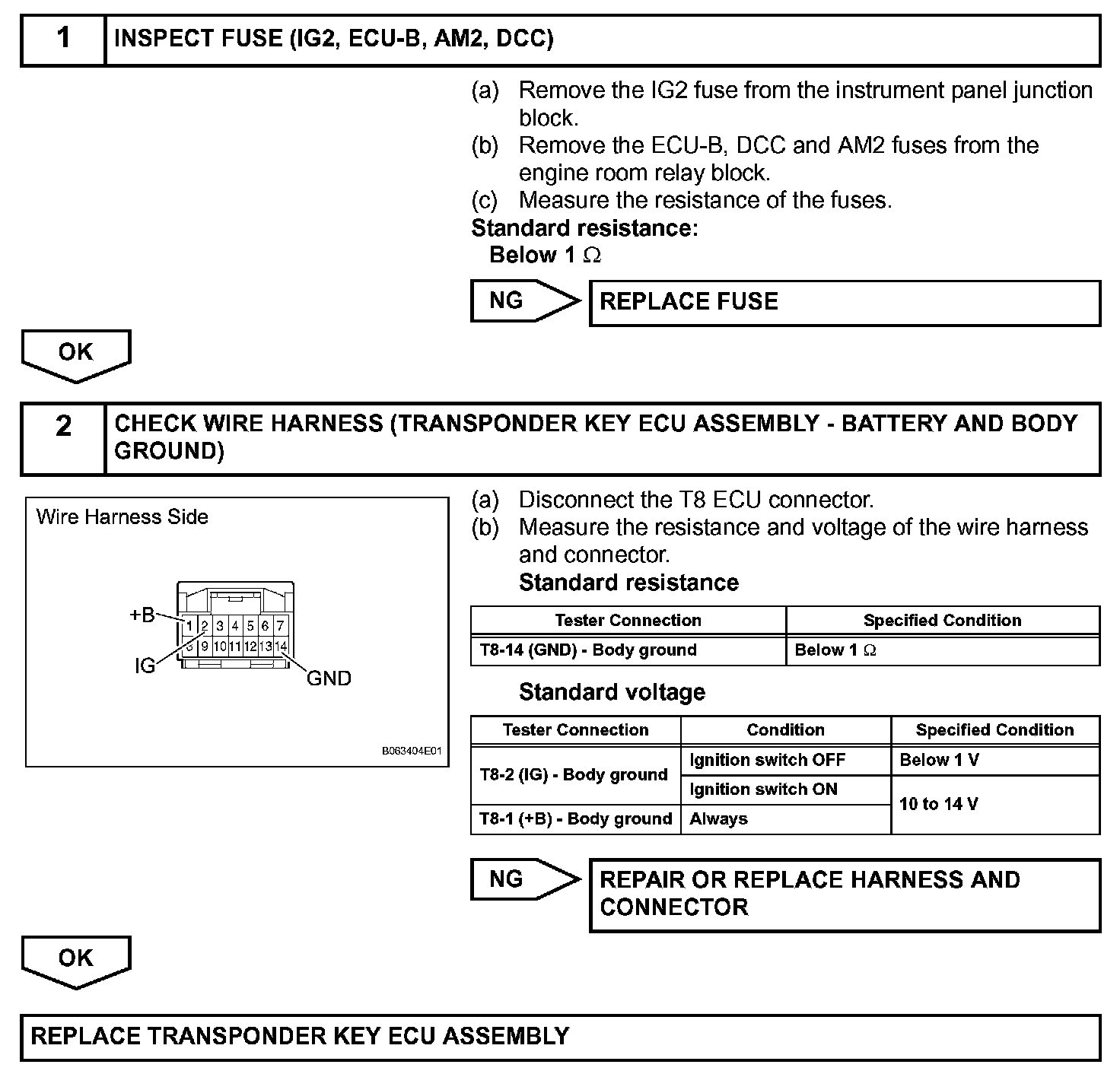

Step 1-2:
