Antenna Cable: Service and Repair

Radio Antenna Cord:

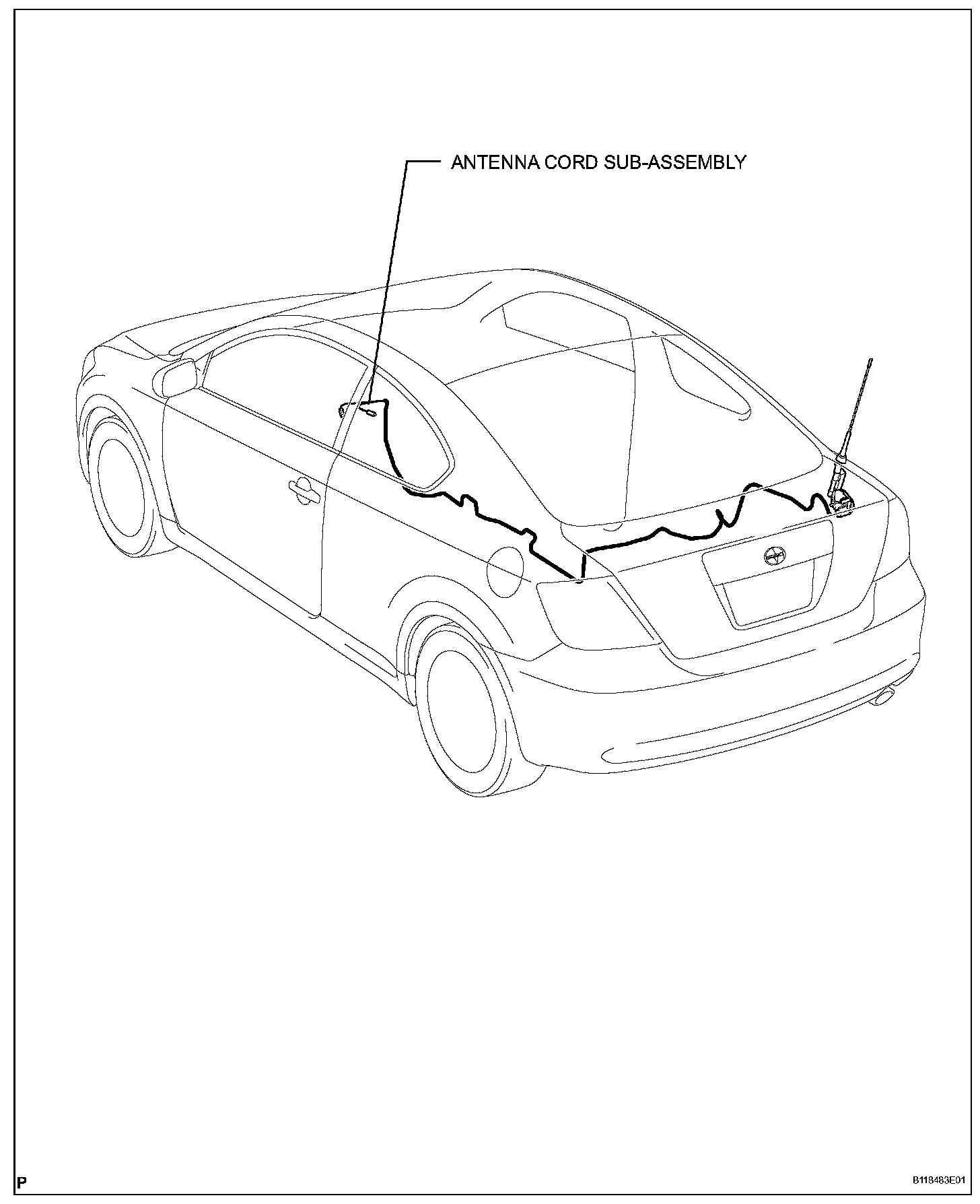

RADIO ANTENNA CORD

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE TONNEAU COVER ASSEMBLY
3. REMOVE DECK BOARD SUB-ASSEMBLY
4. REMOVE BACK DOOR SCUFF PLATE
5. REMOVE DECK FLOOR BOX LH
6. REMOVE DECK FLOOR BOX RH
7. REMOVE ROPE HOOK ASSEMBLY
8. REMOVE REAR NO. 1 FLOOR BOARD
9. REMOVE SEAT TRACK BRACKET COVER OUTER RH
10. REMOVE SEAT TRACK BRACKET COVER INNER RH
11. REMOVE FRONT SEAT ASSEMBLY RH
12. REMOVE REAR SEAT CUSHION ASSEMBLY
13. REMOVE REAR SEATBACK ASSEMBLY RH
14. REMOVE LAP BELT OUTER ANCHOR COVER
15. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
16. REMOVE FRONT DOOR SCUFF PLATE RH
17. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
18. REMOVE NO. 1 SIDE TRIM ASSEMBLY RH
19. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
21. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
22. REMOVE UPPER CONSOLE PANEL
23. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
24. REMOVE CONSOLE BOX REAR ASSEMBLY
25. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

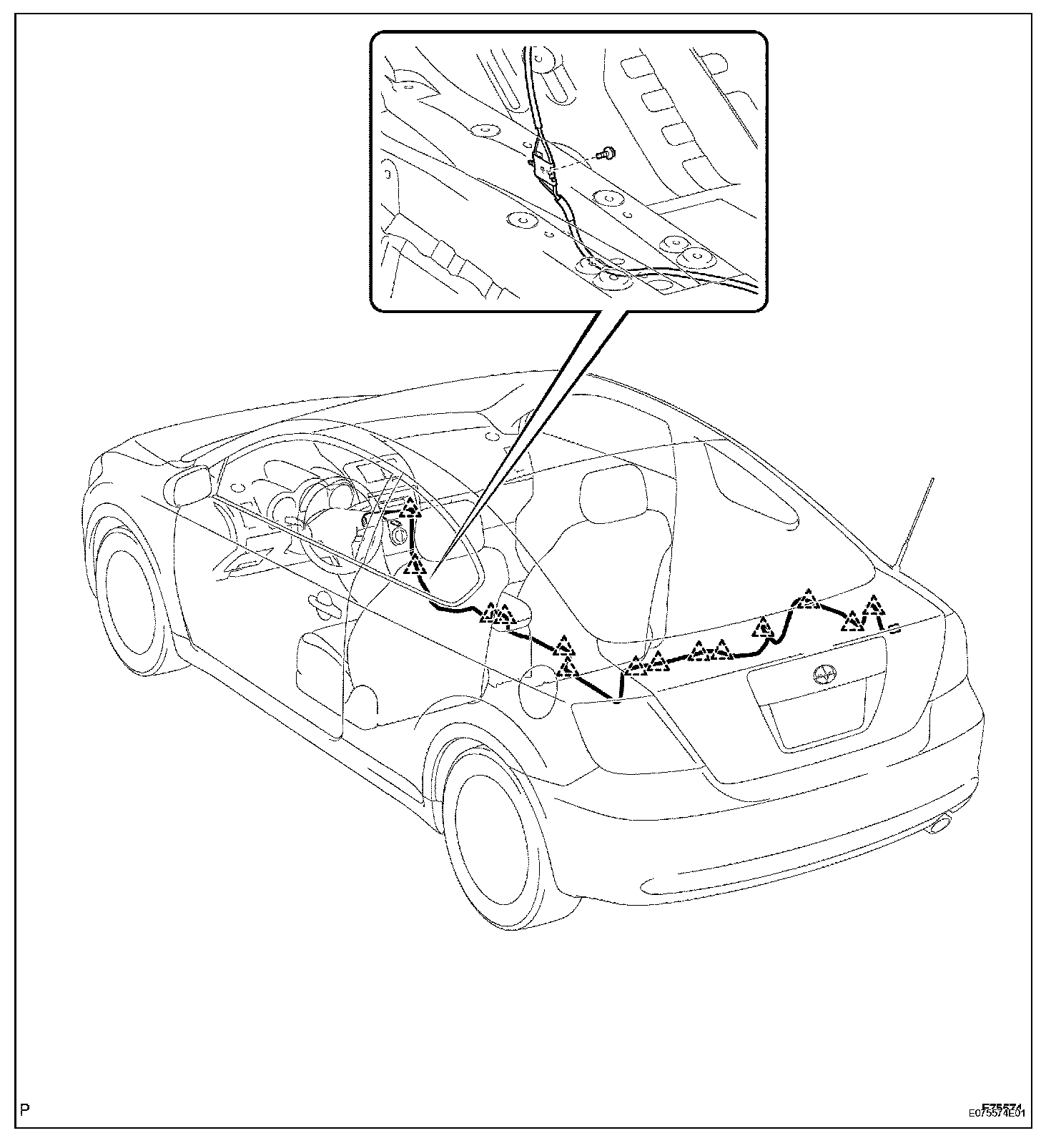

26. REMOVE ANTENNA CORD SUB-ASSEMBLY




a. Remove the bolt.
b. Detach all clamps and remove the antenna cord.

INSTALLATION

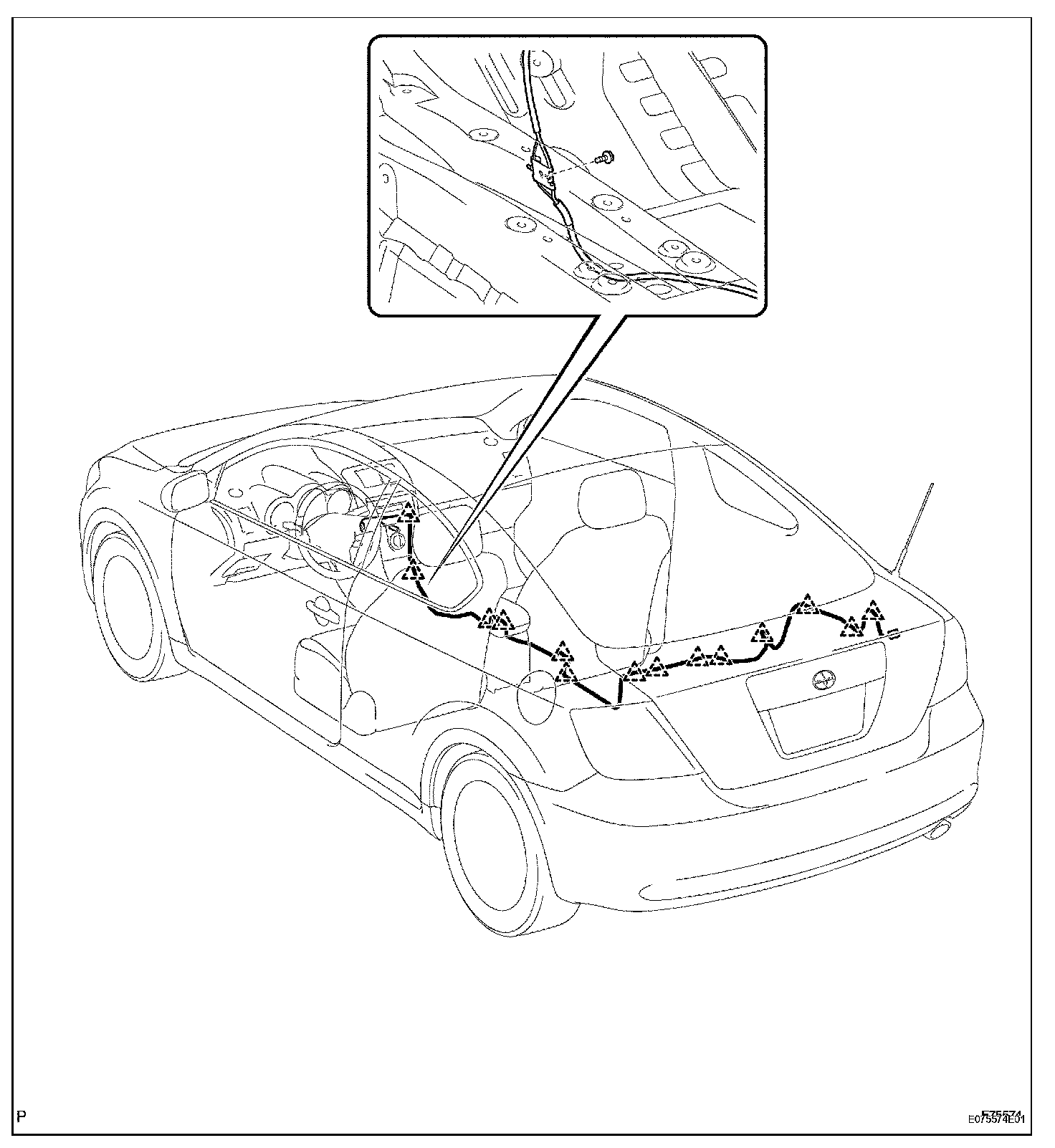

1. INSTALL ANTENNA CORD SUB-ASSEMBLY




a. Attach all clamps to install the antenna cord.
b. Install the bolt.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
3. INSTALL REAR CONSOLE BOX ASSEMBLY
4. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
5. INSTALL UPPER CONSOLE PANEL
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
8. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
9. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH
10. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
11. INSTALL FRONT DOOR SCUFF PLATE RH
12. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
13. INSTALL LAP BELT OUTER ANCHOR COVER
14. INSTALL REAR SEATBACK ASSEMBLY RH
15. INSTALL REAR SEAT CUSHION ASSEMBLY
16. INSTALL FRONT SEAT ASSEMBLY
17. INSTALL SEAT TRACK BRACKET COVER INNER RH
18. INSTALL SEAT TRACK BRACKET COVER OUTER RH
19. INSTALL REAR NO. 1 FLOOR BOARD
20. INSTALL ROPE HOOK ASSEMBLY
21. INSTALL DECK FLOOR BOX RH
22. INSTALL DECK FLOOR BOX LH
23. INSTALL BACK DOOR SCUFF PLATE
24. INSTALL DECK BOARD SUB-ASSEMBLY
25. INSTALL TONNEAU COVER ASSEMBLY
26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
27. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
