Automatic Transaxle System

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the DTC given.

HINT:
^ *1: Comes on MIL (Malfunction Indicator Lamp) light up
^ *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.

AUTOMATIC TRANSAXLE SYSTEM

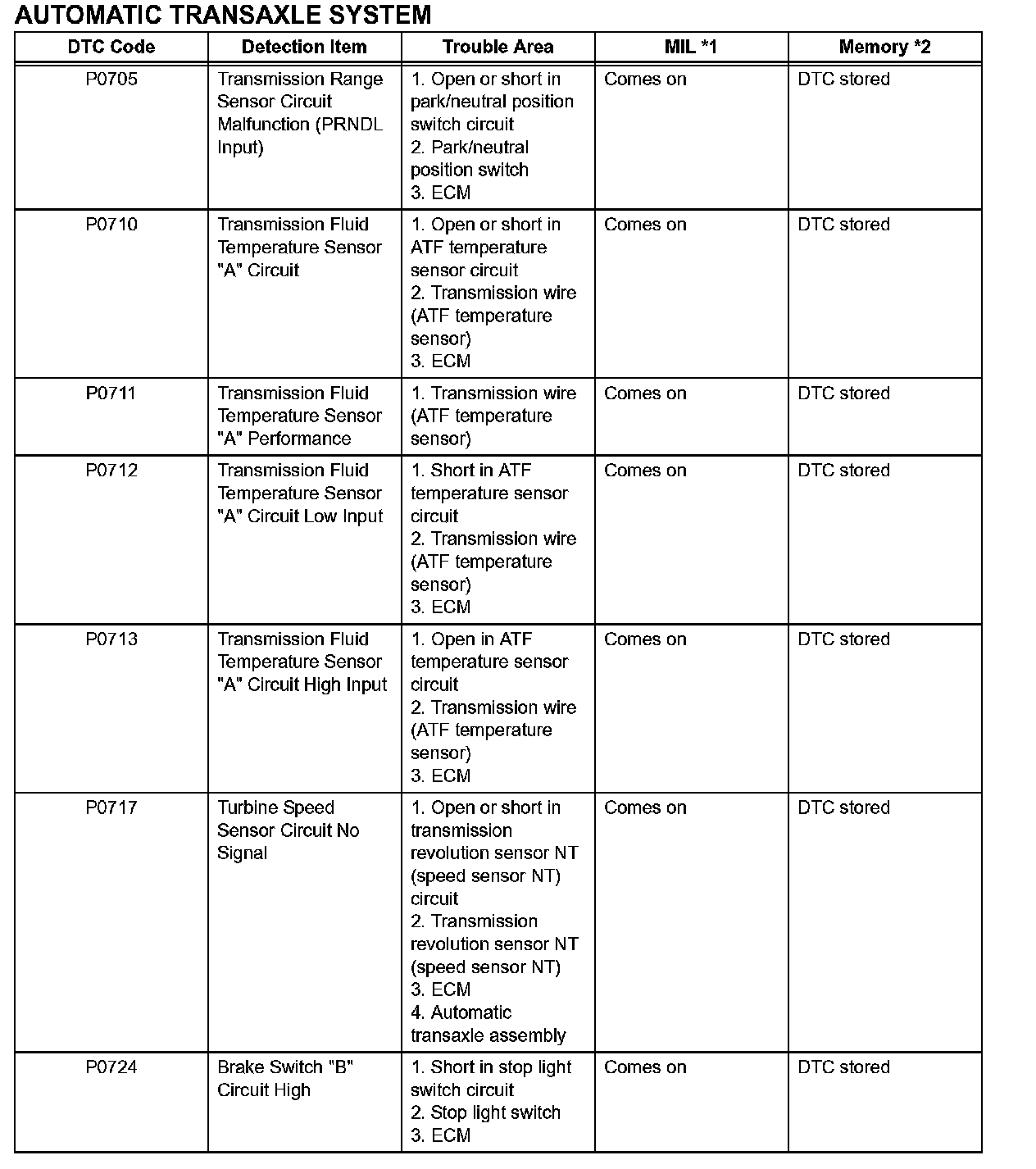

P0705-P0724:

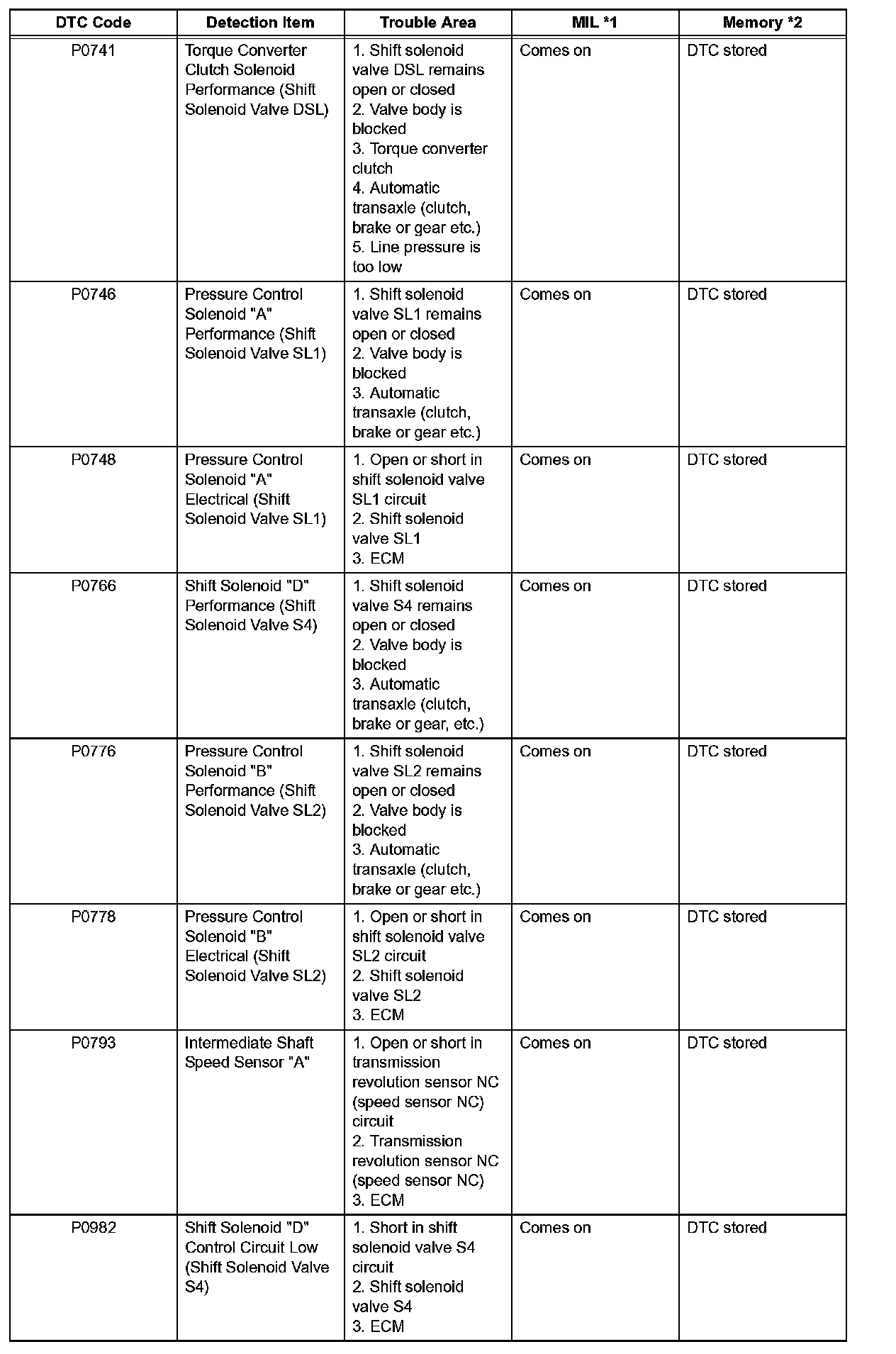

P0741-P0982:

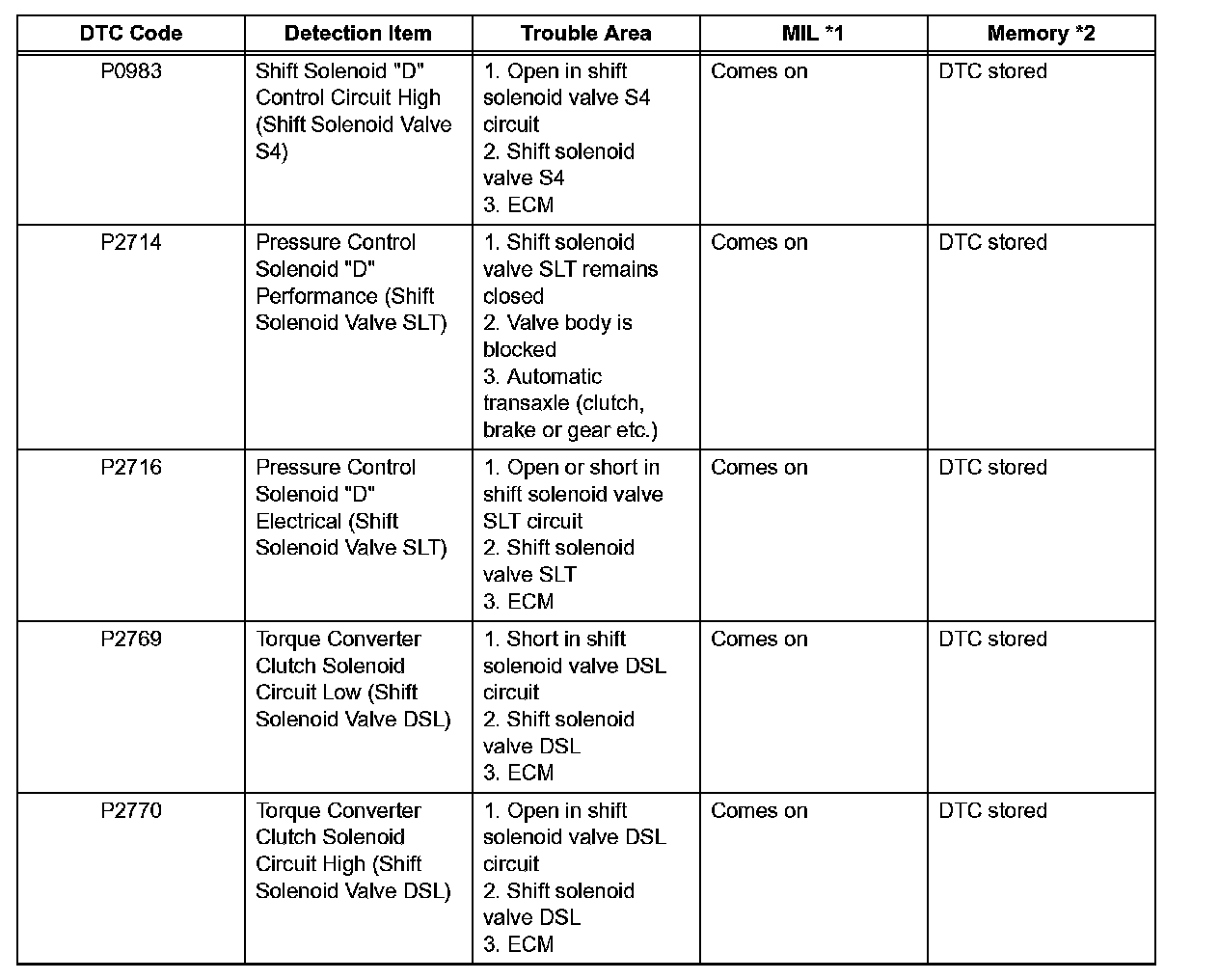

P0983-P2770:
