Antitheft and Alarm Systems

DIAGNOSTIC TROUBLE CODE CHART

B2780-B2798:

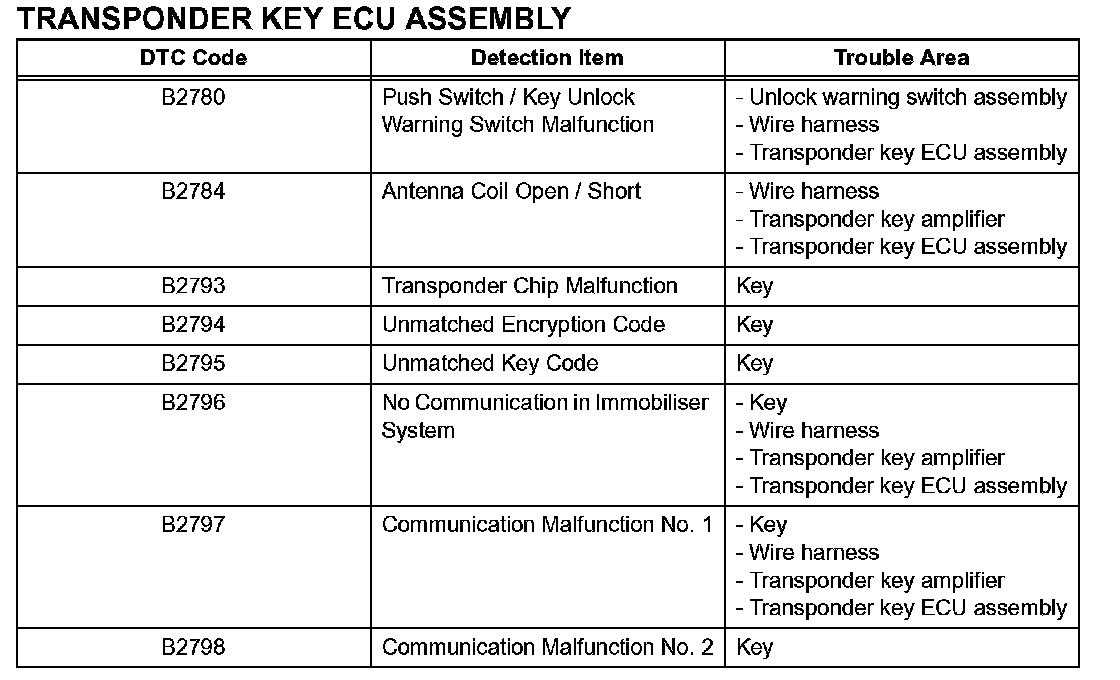

1. TRANSPONDER KEY ECU ASSEMBLY DTC CHART

B2799:

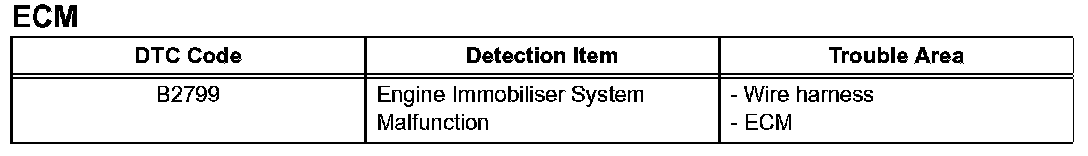

2. ECM DTC CHART

NOTE: The DTC for the immobilizer system is specified. If other codes are output, check the DTC chart of the SFI system.
