C1241

DTC C1241/41 Low Battery Positive Voltage

DESCRIPTION.

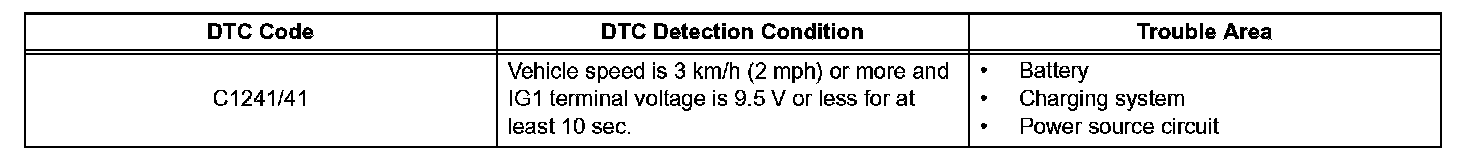

DTC Detection Condition:

If there is a problem with the brake actuator assembly (skid control ECU) power supply circuit, the skid control ECU outputs the DTC and prohibits operation under the fail safe function.

If the voltage supplied to the IG1 terminal is not within the DTC detection threshold due to malfunctions, such as the battery and alternator circuit, this DTC is stored.

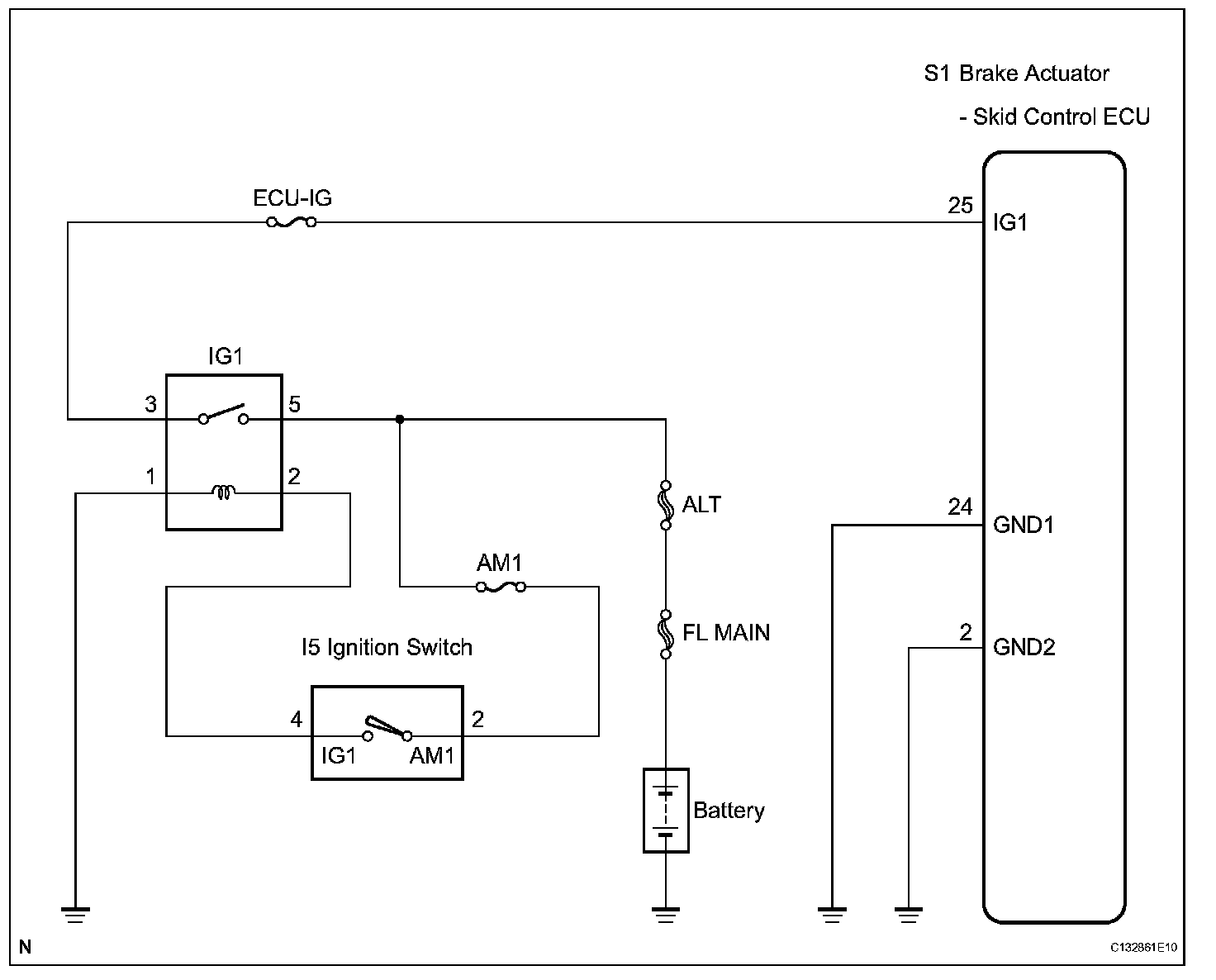

Wiring Diagram:

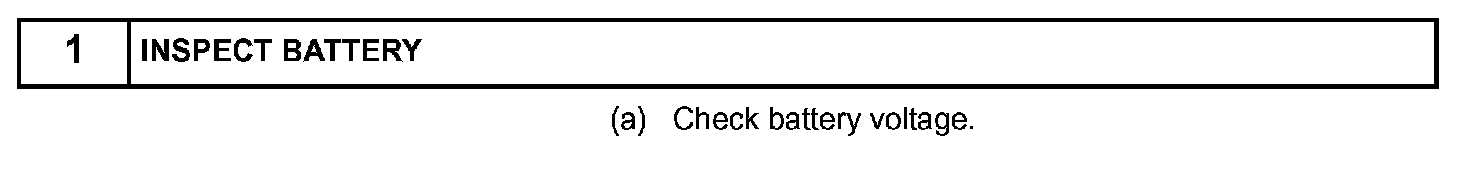

Step 1:

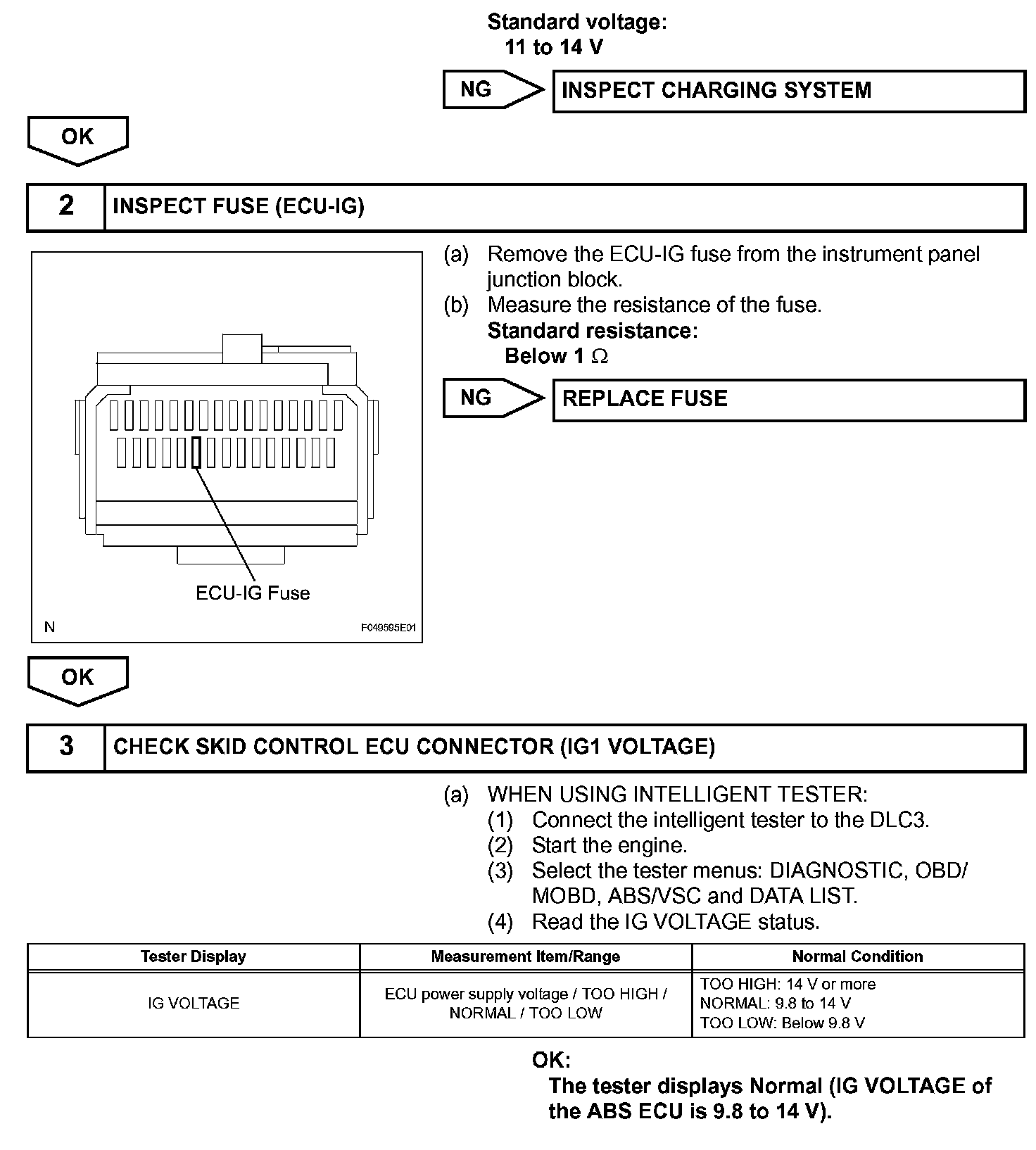

Step 1(Continued)-3:

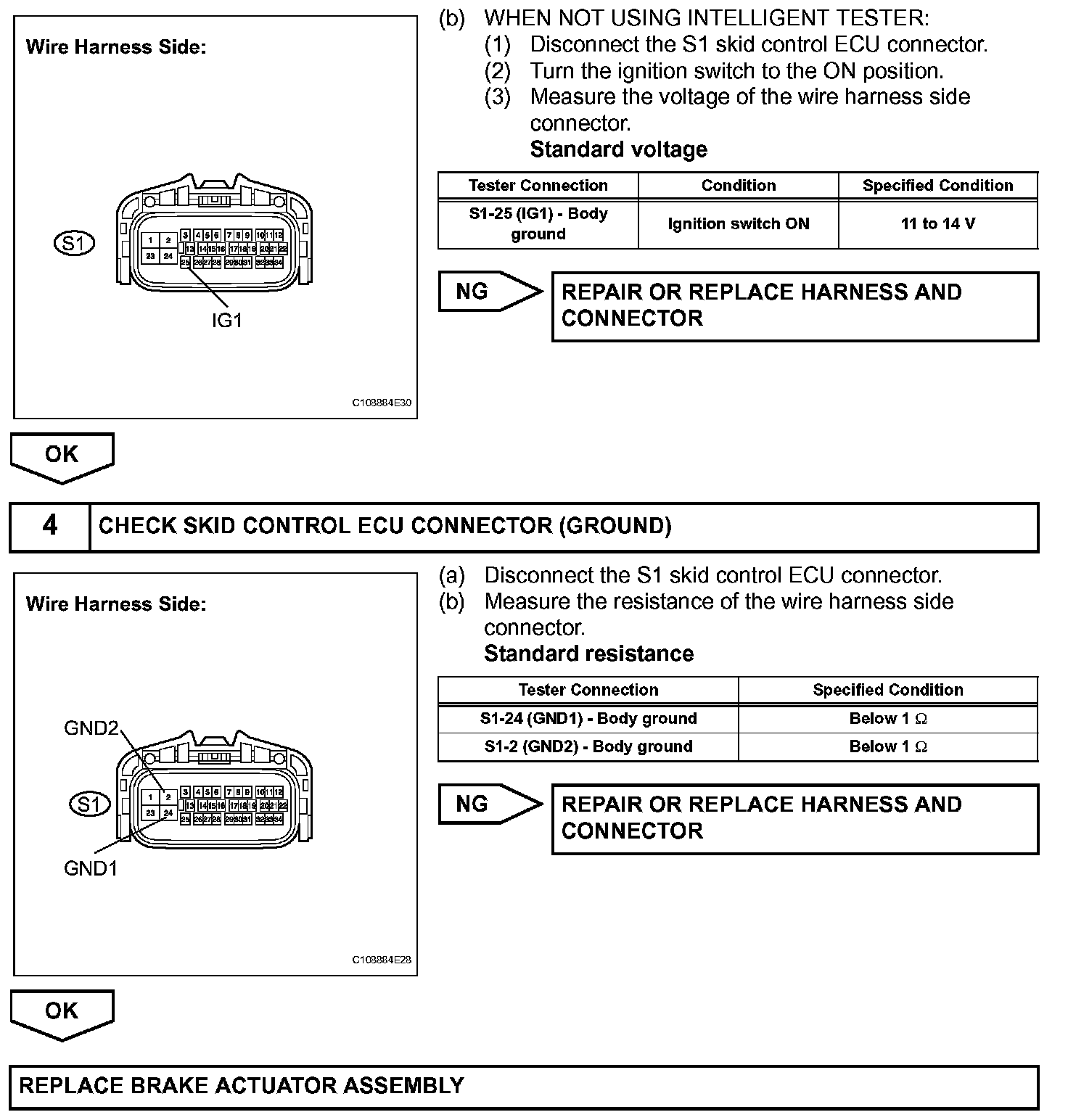

Step 3(Continued)-4:

INSPECTION PROCEDURE
