B2797

DTC B2797 Communication Malfunction No. 1

DESCRIPTION

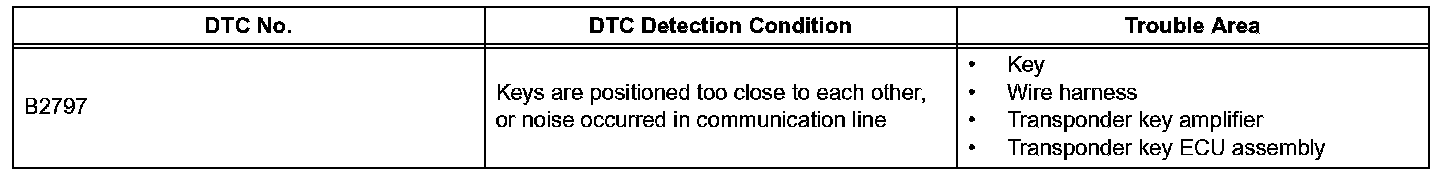

DTC Detection Condition:

This DTC is output when a communication error occurs between the transponder key amplifier and transponder key ECU. A possible reason for the communication error is that noise is occurring on the communication line.

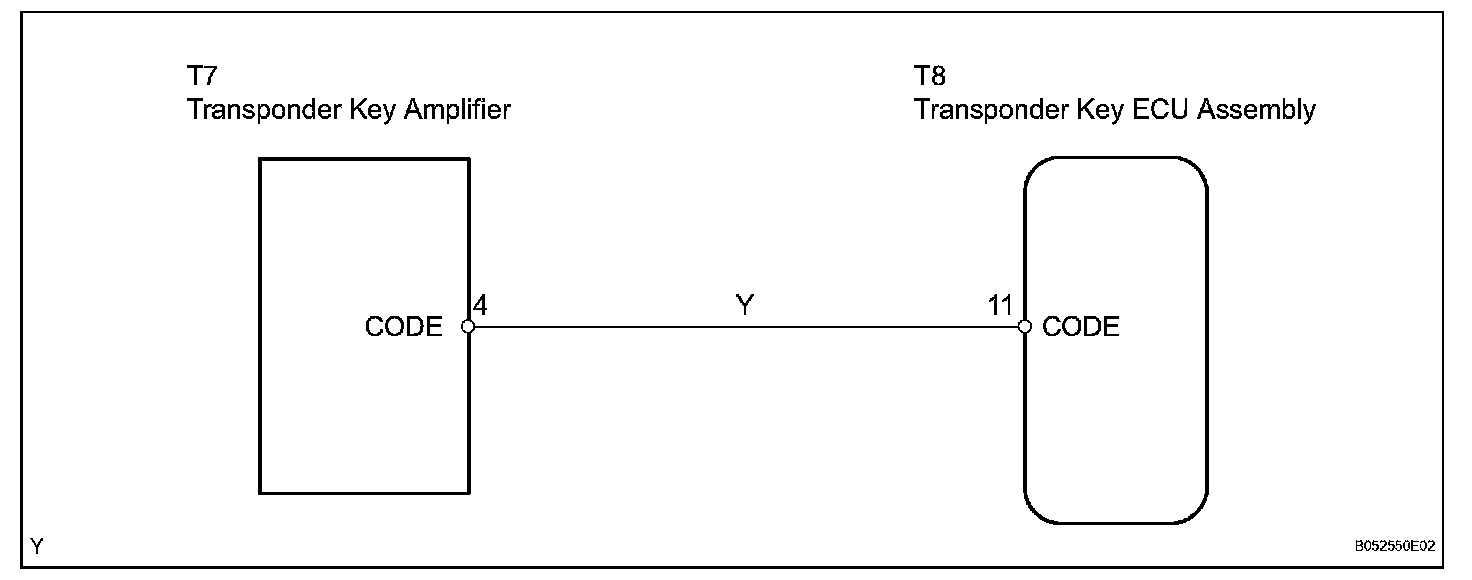

Wiring Diagram:

INSPECTION PROCEDURE

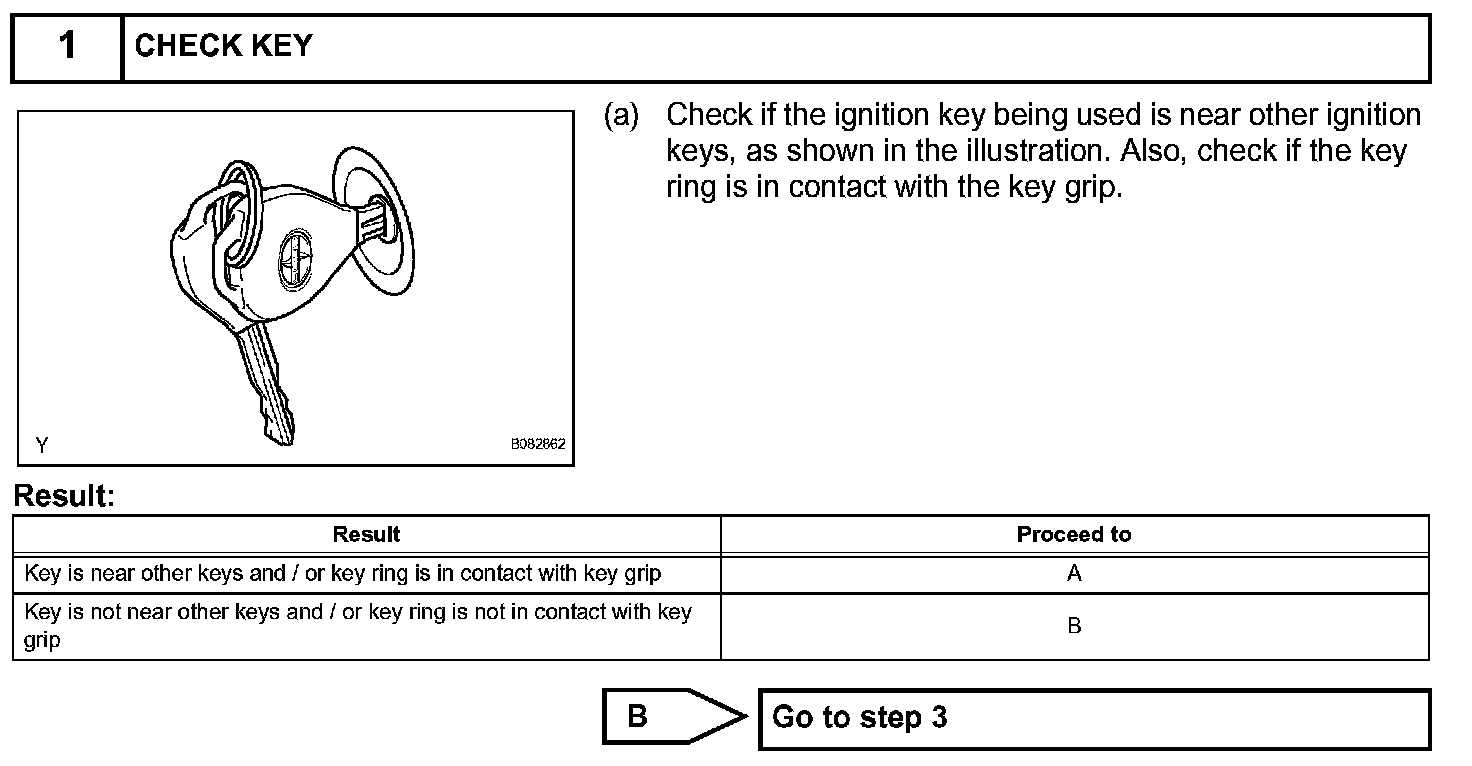

Step 1:

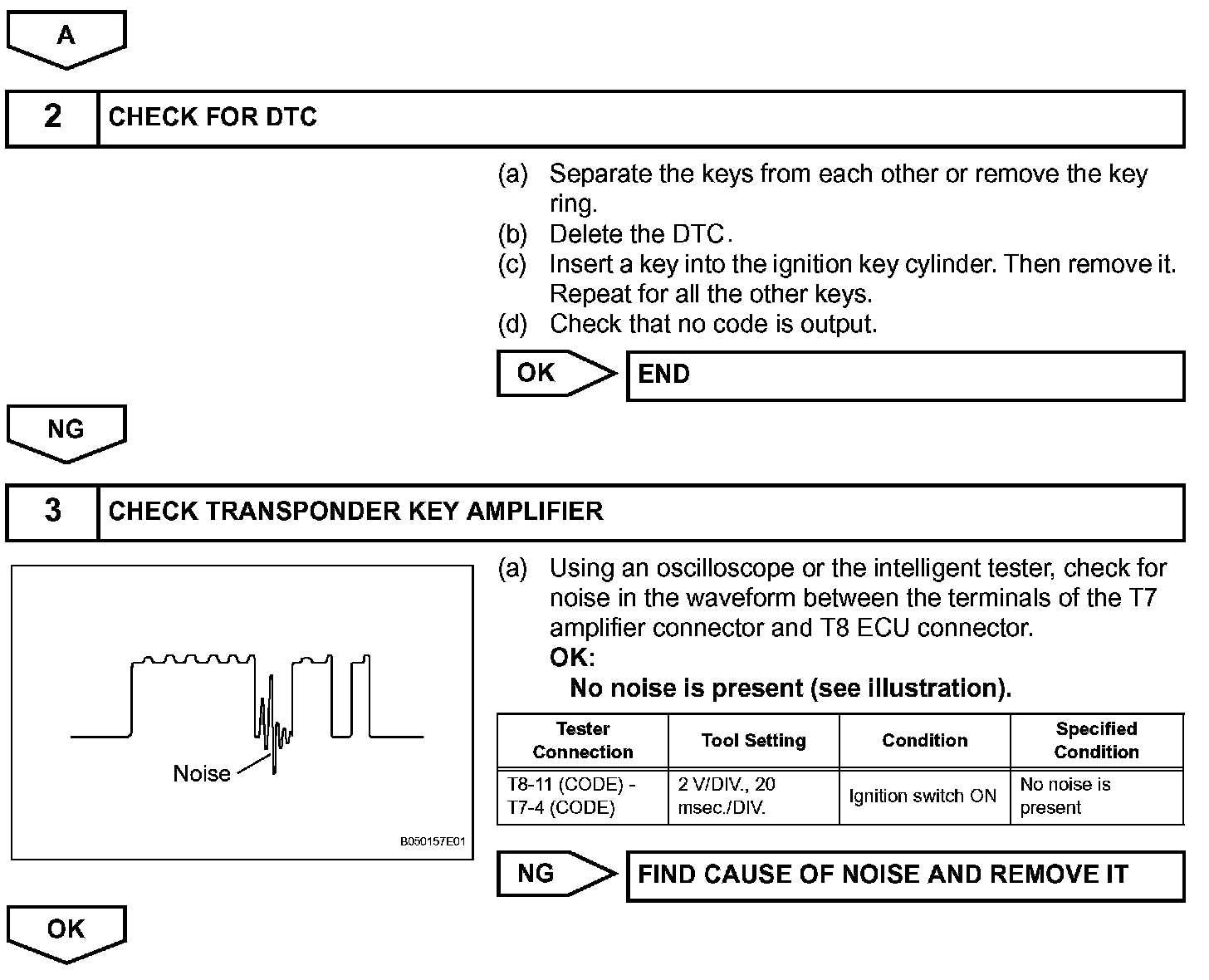

Step 1(Continued)-3:

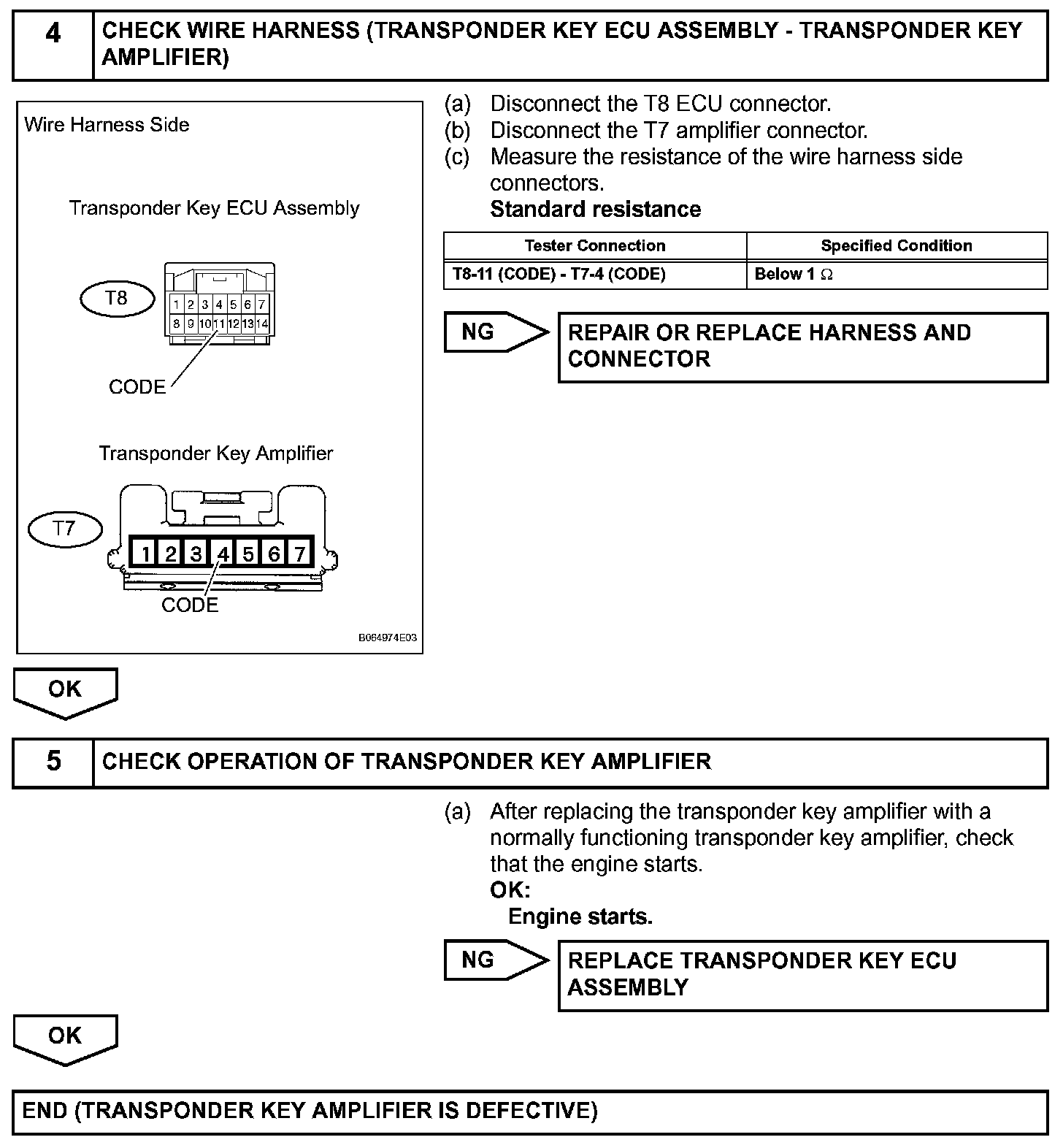

Step 4-5:
