B1795

DTC B1795 Occupant Classification ECU Malfunction

DESCRIPTION

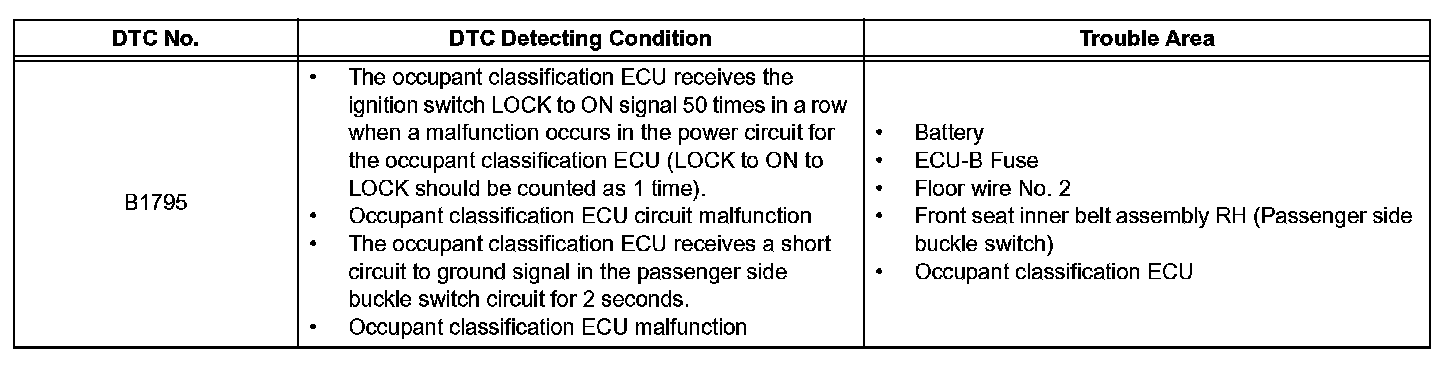

DTC Detecting Condition:

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU.

Troubleshoot DTC B1771 first when the DTCs B1771 and B1795 are output simultaneously.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1795 is output, perform troubleshooting for the DTC.

Wiring Diagram:

INSPECTION PROCEDURE

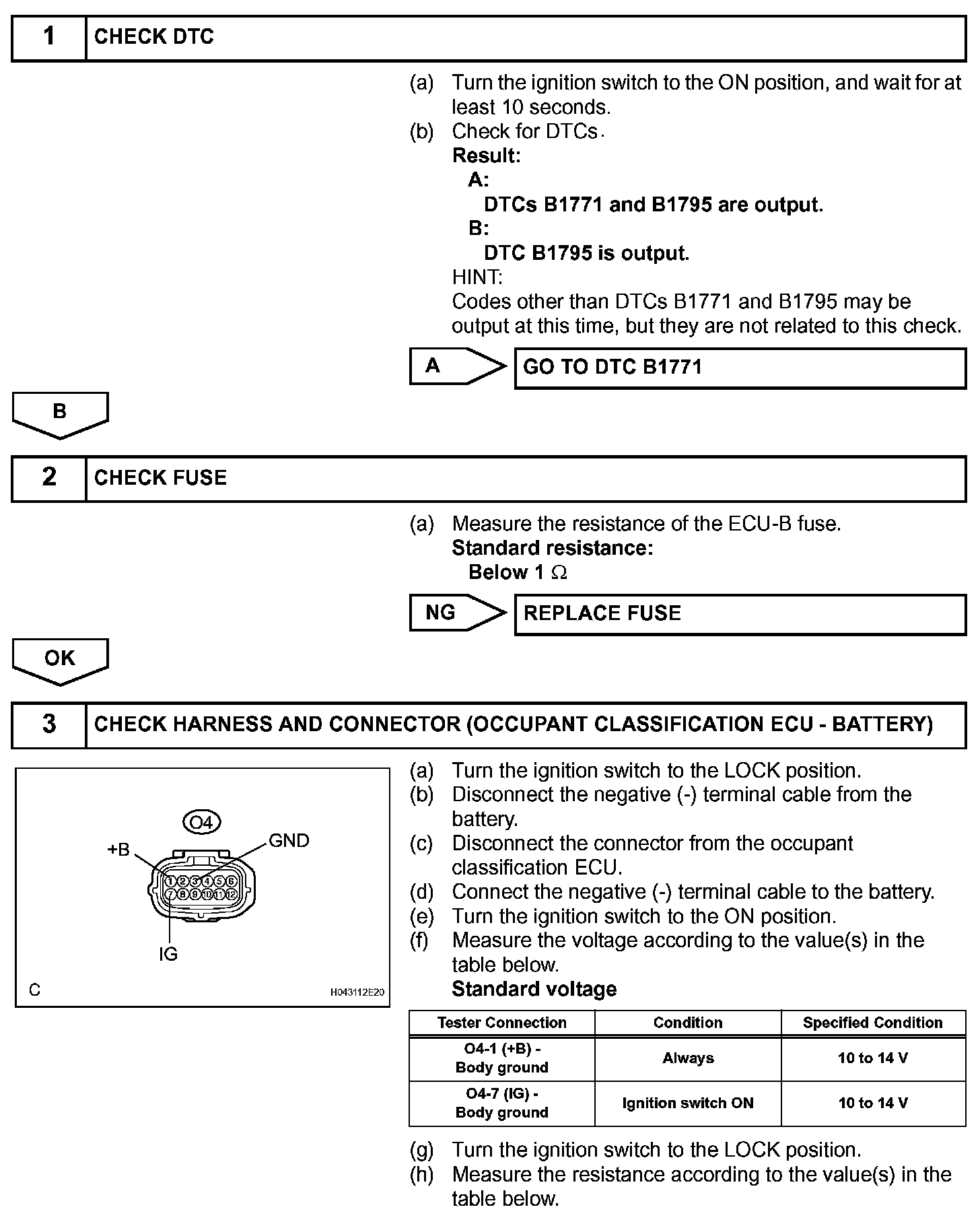

Step 1-3:

Step 3(Continued)-6:
