B1794

DTC B1794 Open in Occupant Classification ECU Battery Positive Line

DESCRIPTION

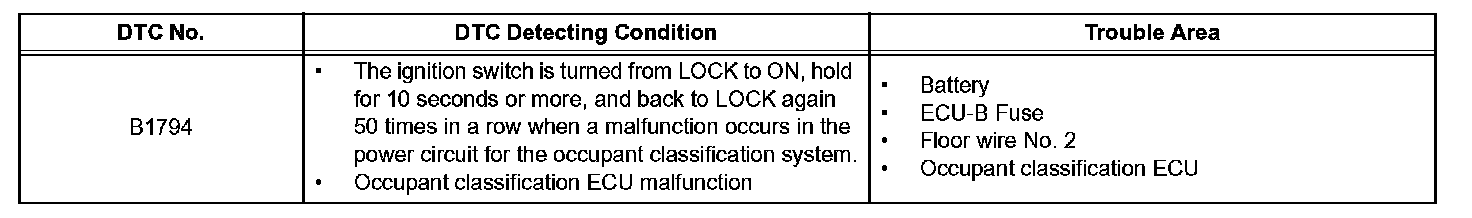

DTC Detecting Condition:

This circuit consists of the occupant classification ECU and the power source circuit (battery, fuse, wire harness).

DTC B1794 is recorded when a malfunction is detected in the occupant classification ECU or the power source circuit.

HINT: When DTC B1794 is output after switching the ignition switch LOCK-ON-LOCK 50 times in a row when a malfunction occurs in the power circuit for the occupant classification system, the DTC is output again when a malfunction is detected even once after being cleared, unless the normal system code is input.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for the AIRBAG SYSTEM, check the DTCs stored in the occupant classification ECU. When DTC B1794 is output, perform troubleshooting for the DTC.

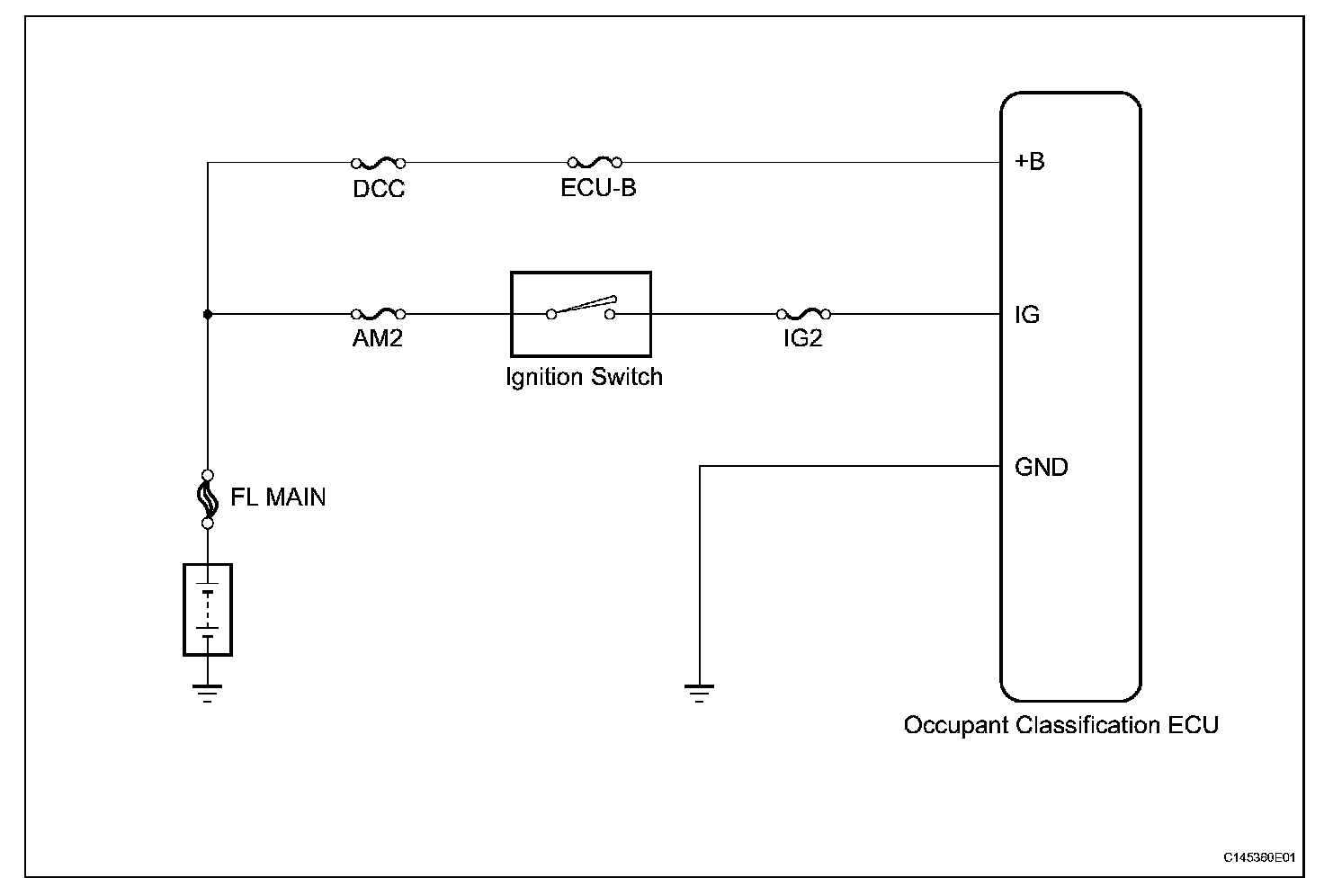

Wiring Diagram:

INSPECTION PROCEDURE

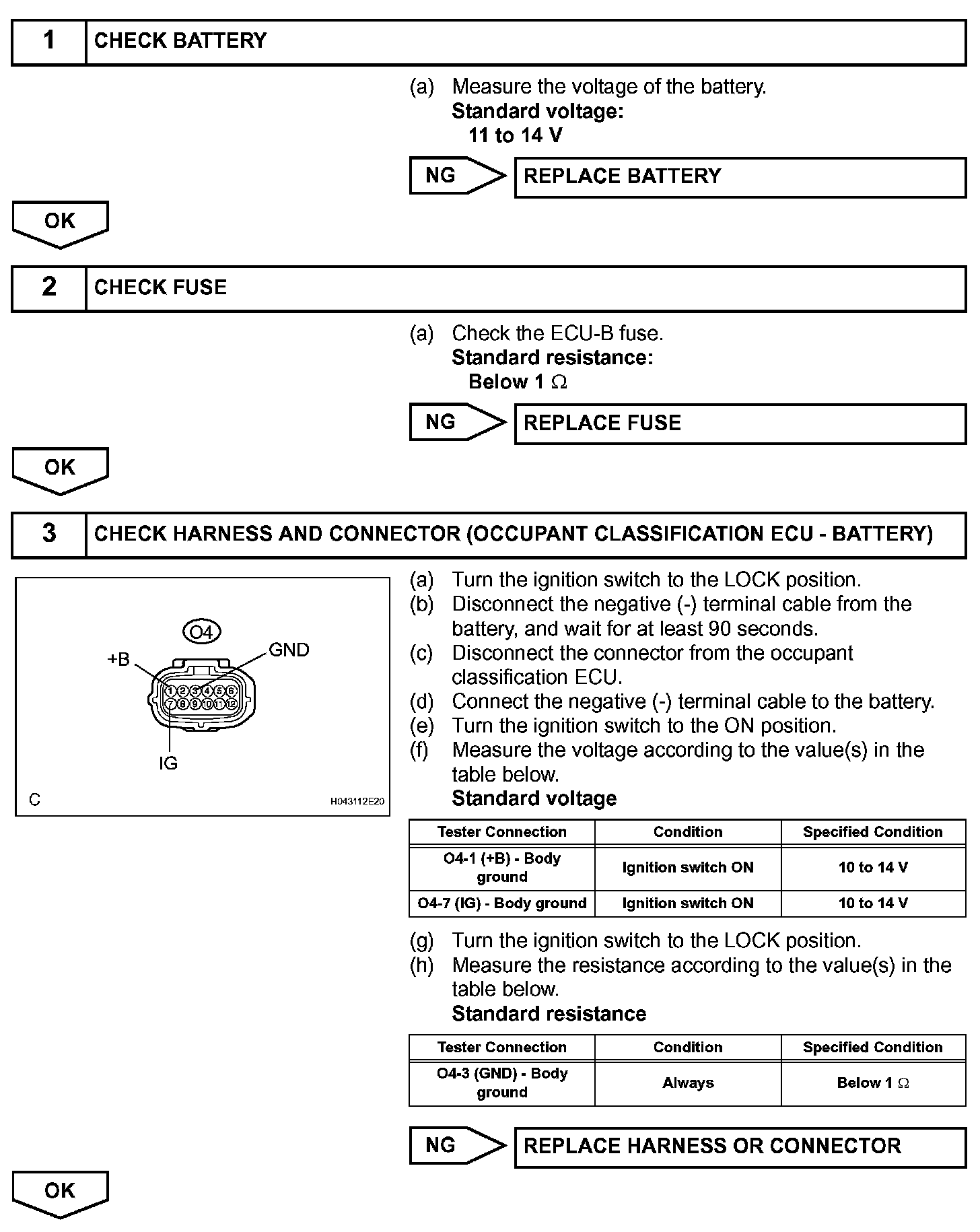

Step 1-3:

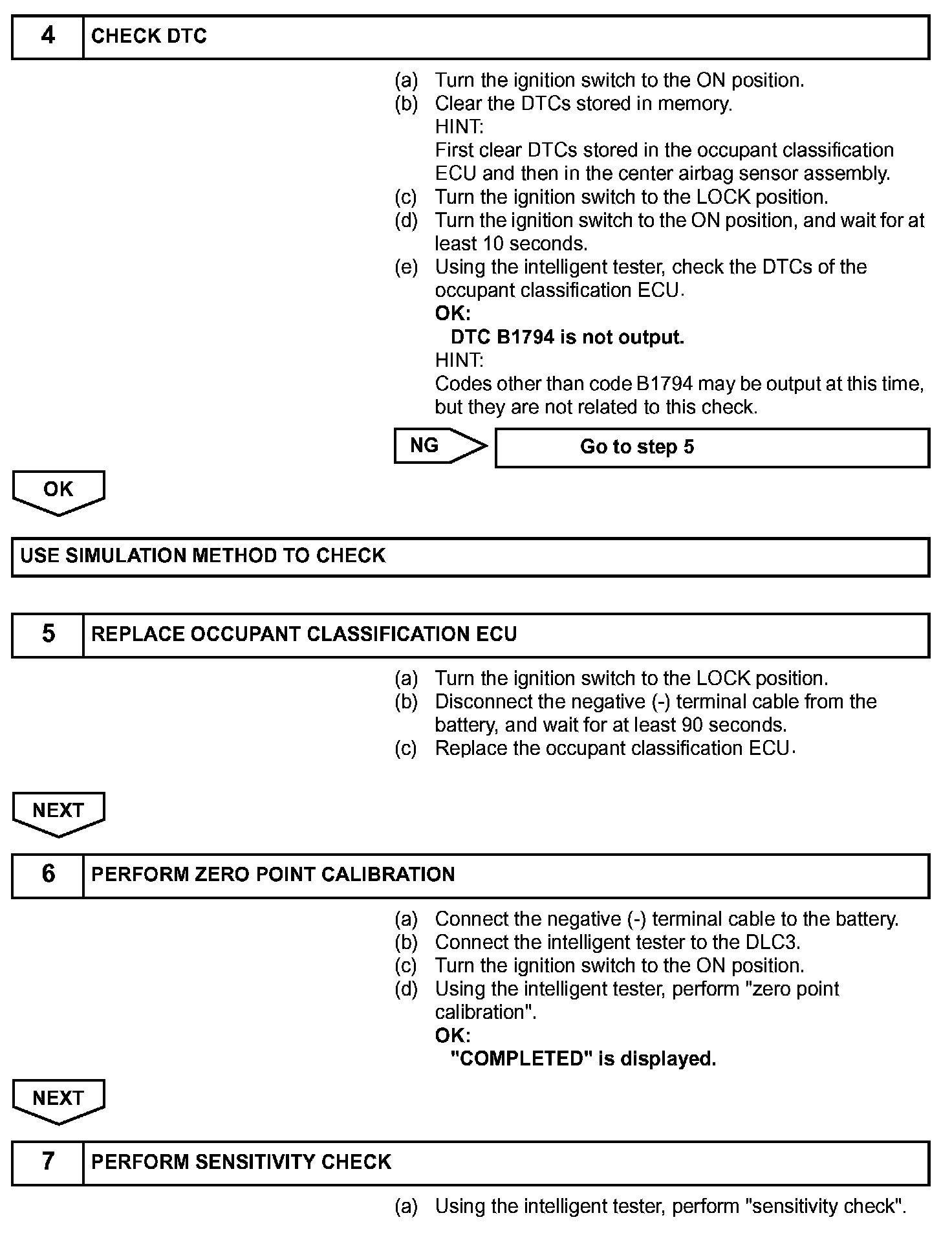

Step 4-7:

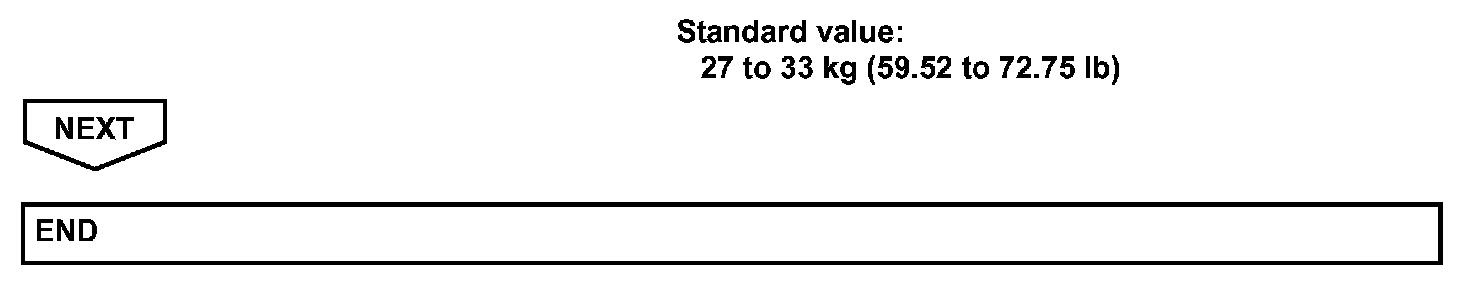

Step 7(Continued):
