B1783

DTC B1783 Rear Occupant Classification Sensor RH Circuit Malfunction

DESCRIPTION

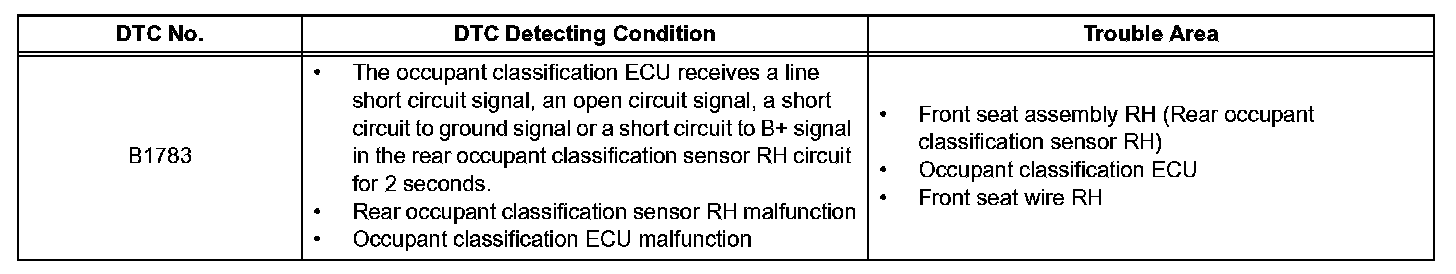

DTC Detecting Condition:

The rear occupant classification sensor RH circuit consists of the occupant classification ECU and the rear occupant classification sensor RH.

DTC B1783 is recorded when a malfunction is detected in the rear occupant classification sensor RH circuit.

HINT: When DTC B1650/32 is detected as a result of troubleshooting for "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1783 is output, perform troubleshooting for the DTC.

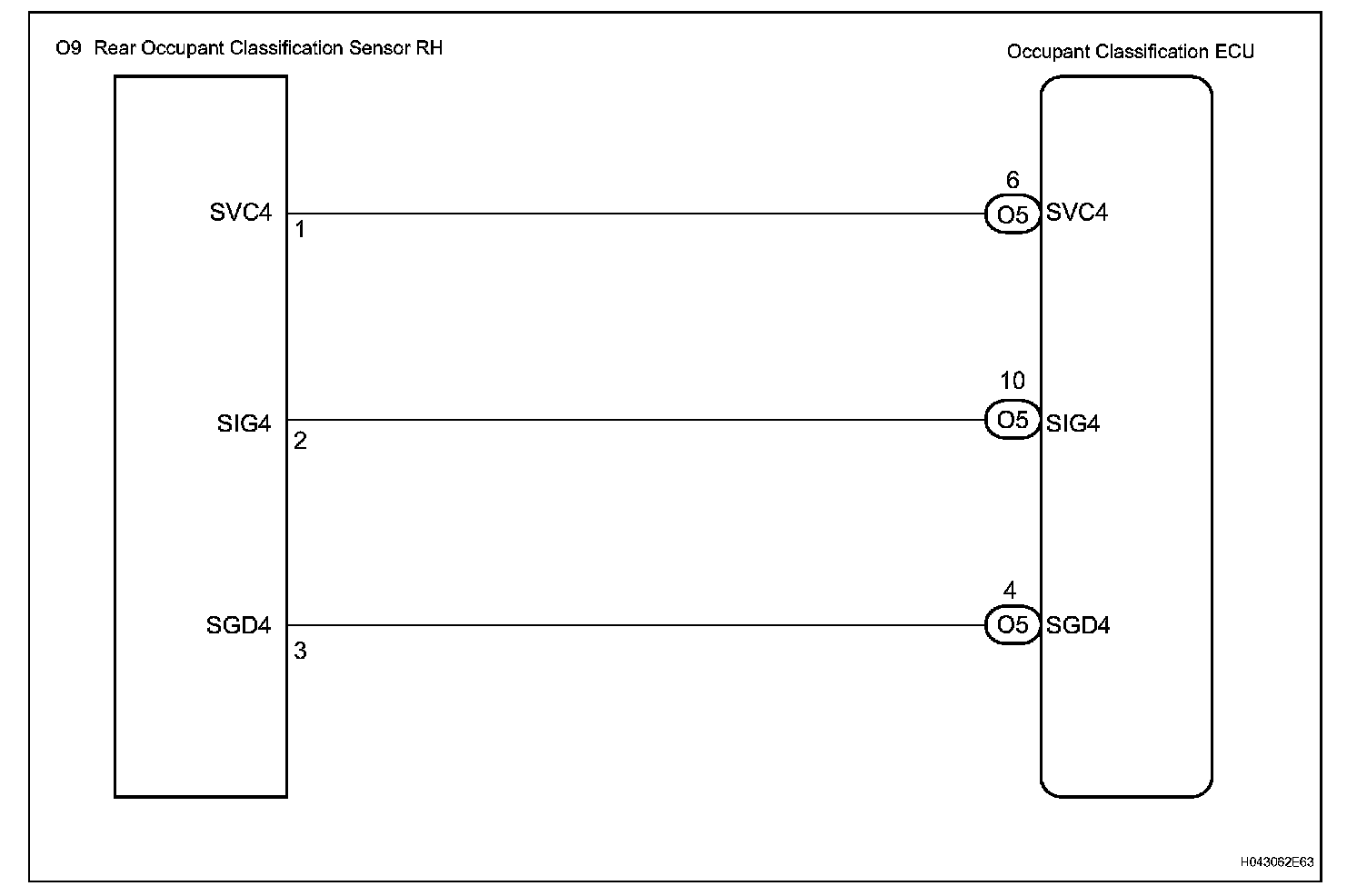

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the under surface of the seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

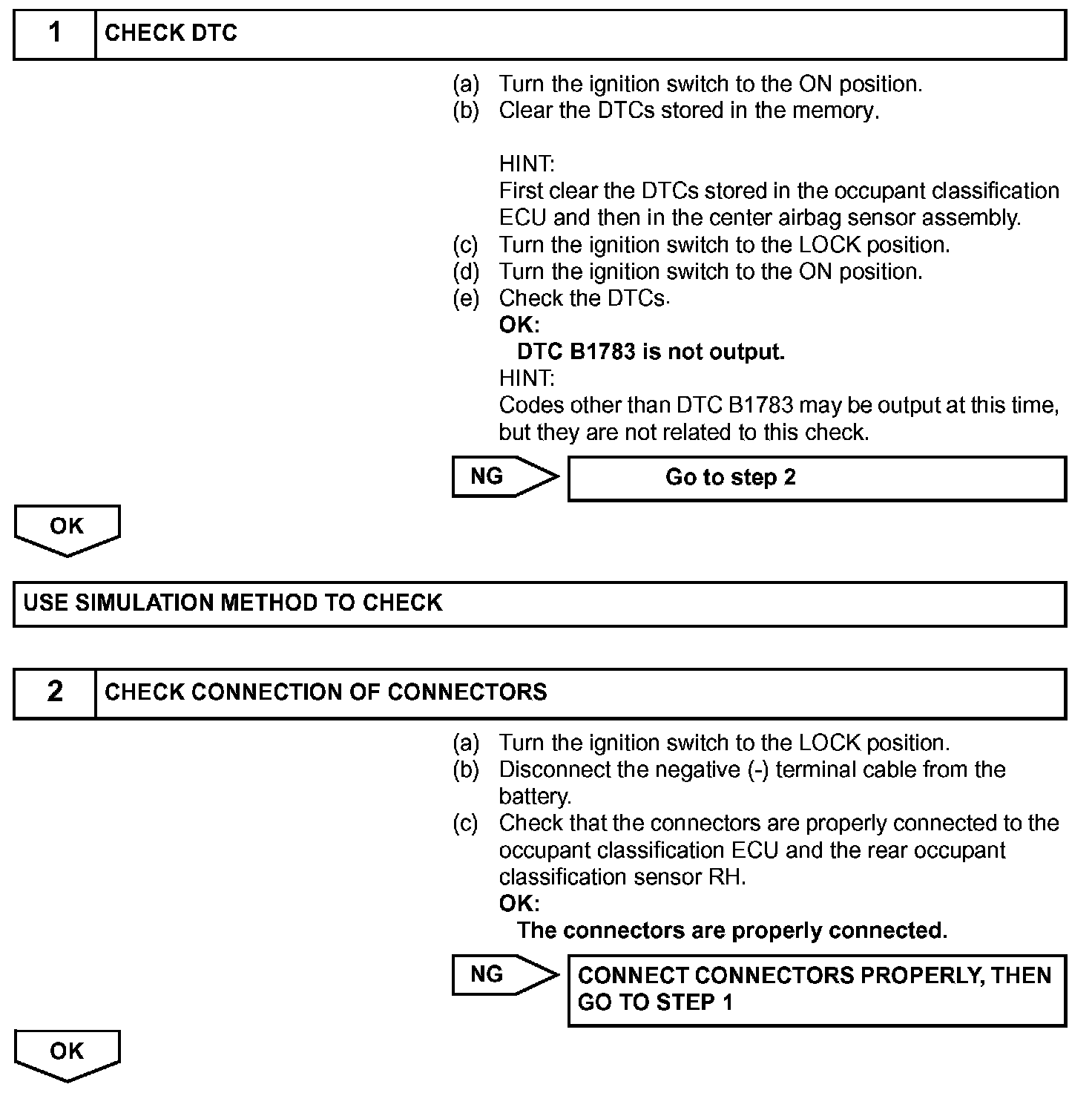

Step 1-2:

Step 3-4:

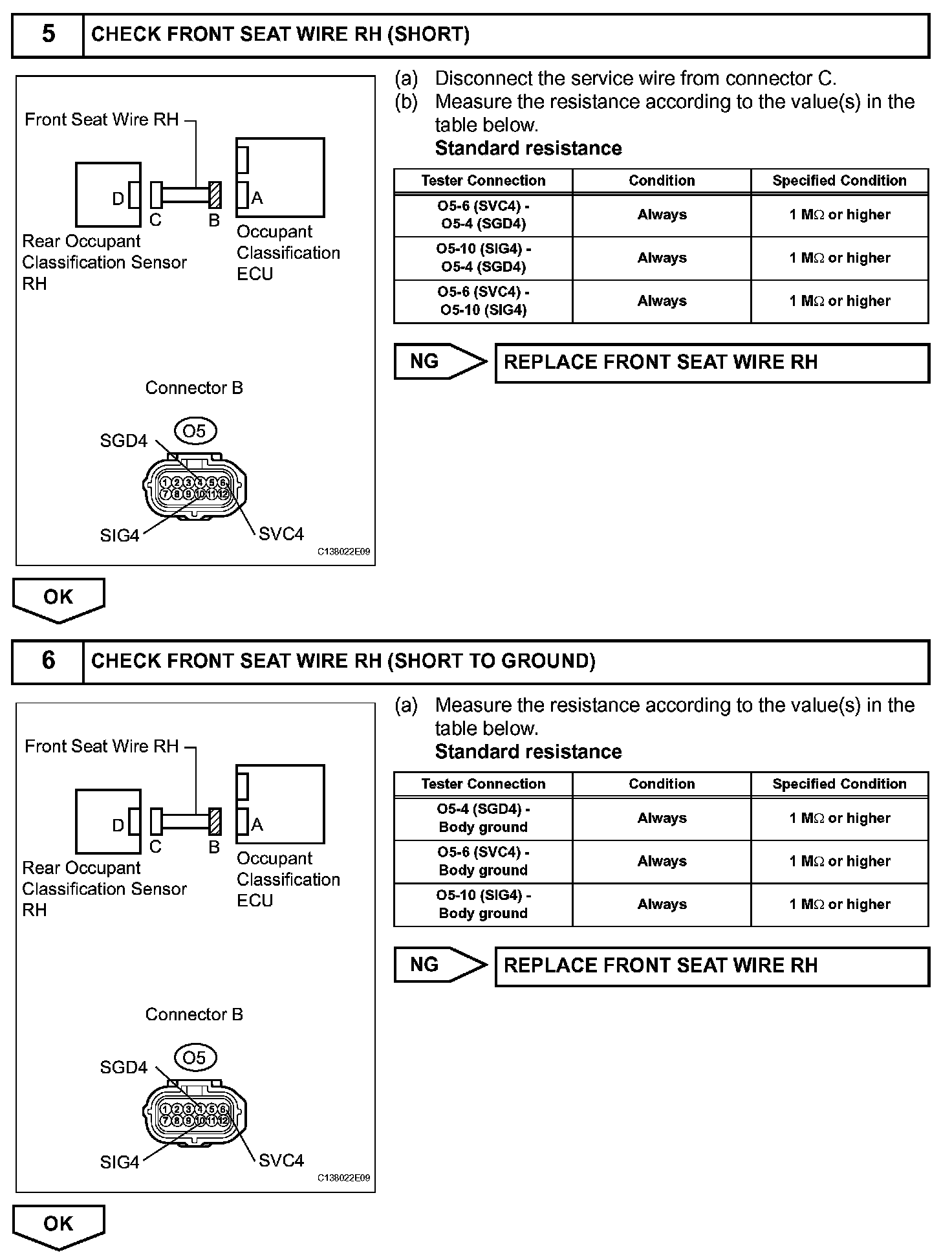

Step 5-6:

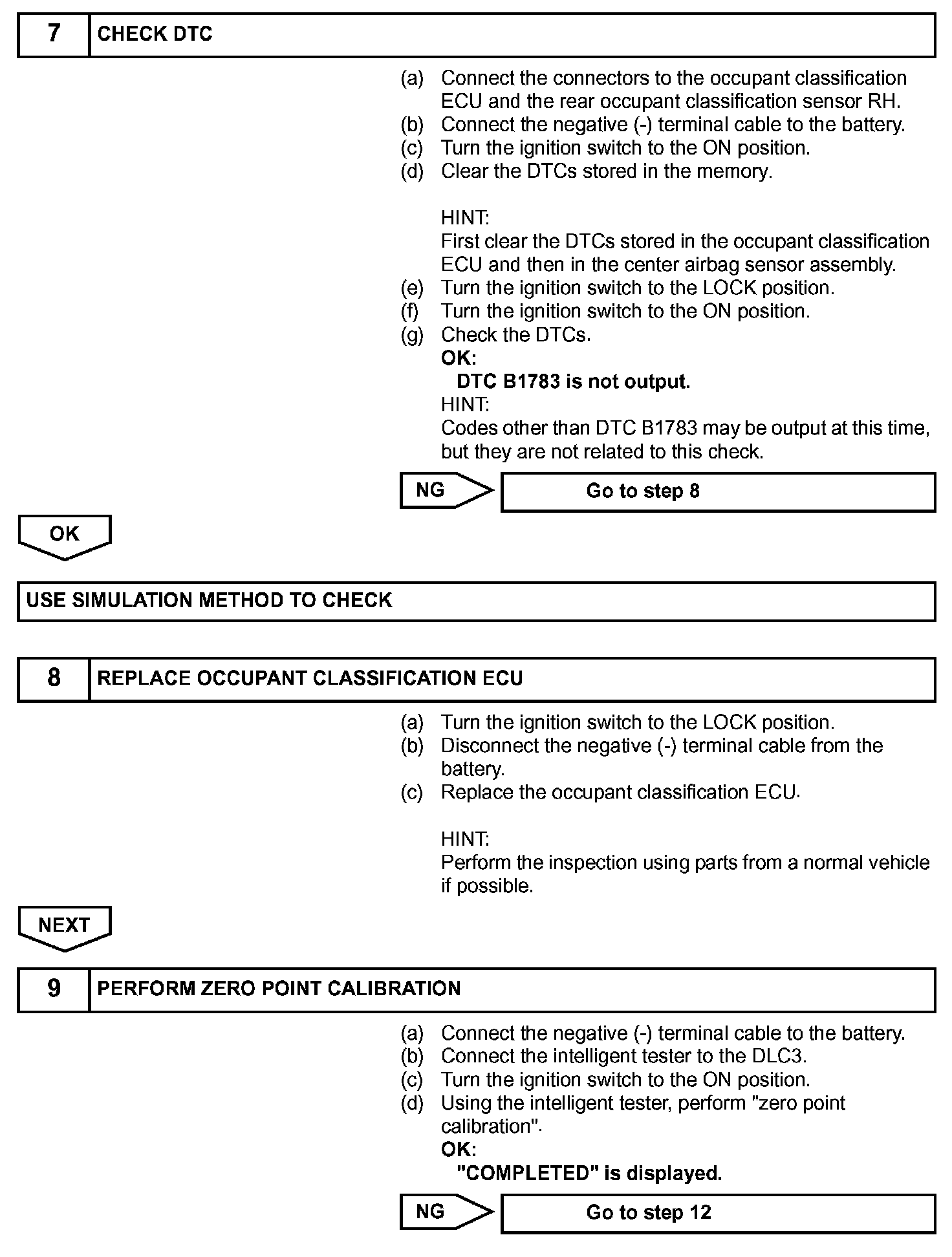

Step 7-9:

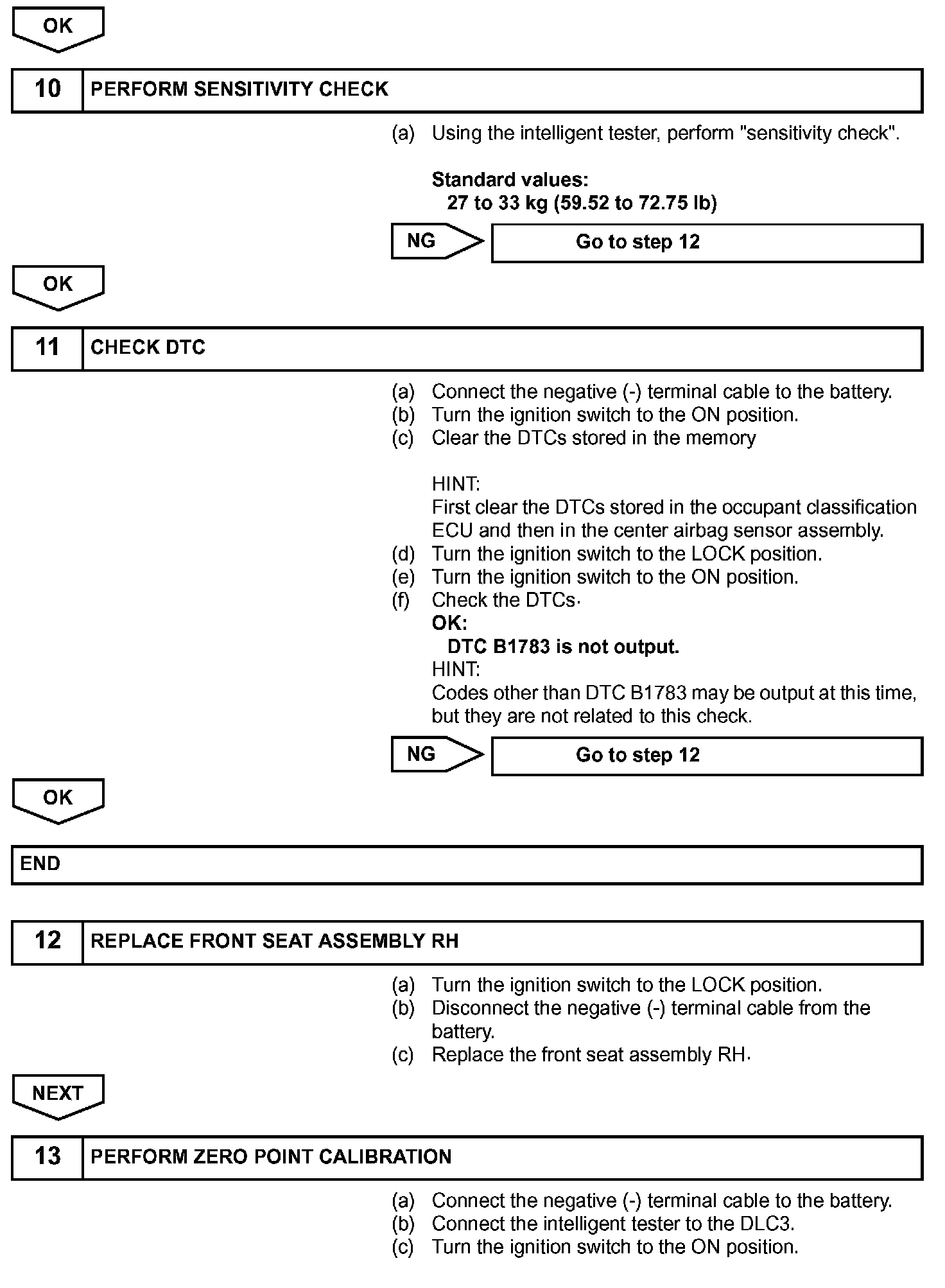

Step 9(Continued)-13:

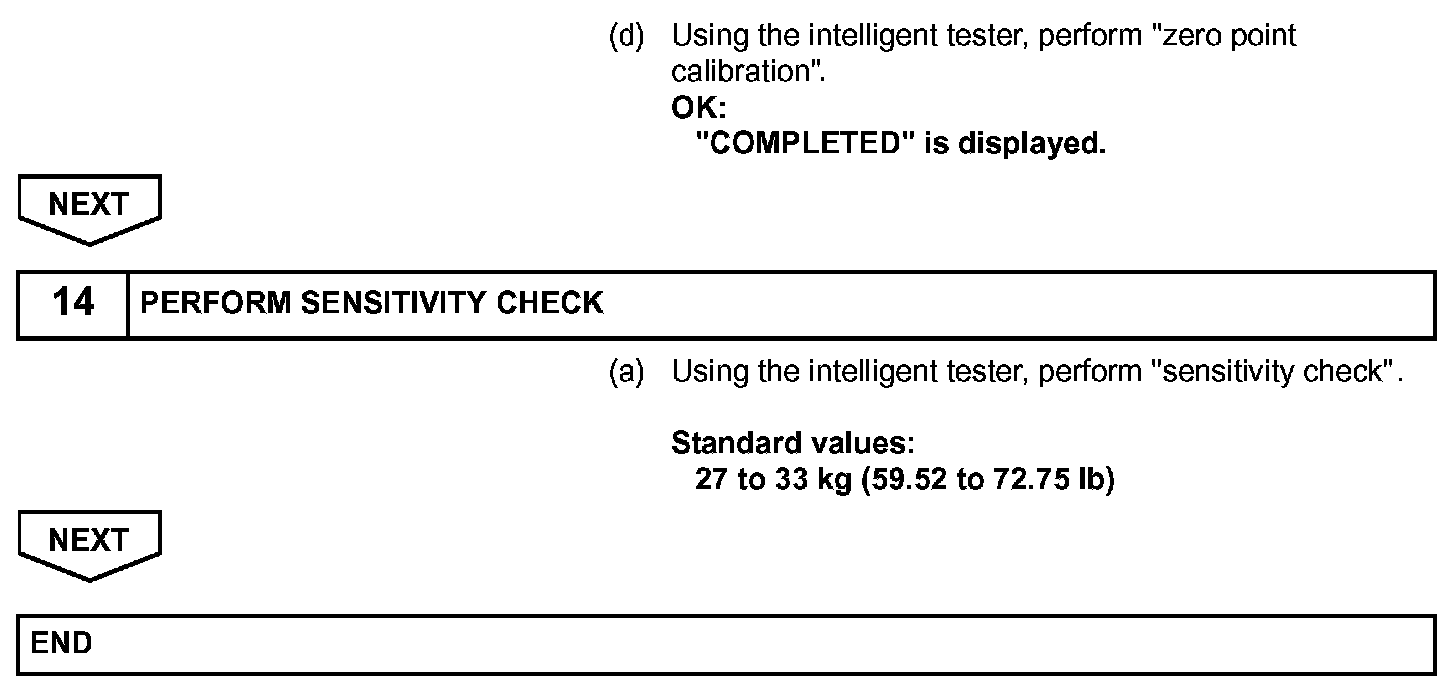

Step 13(Continued)-14:
