B1630

DTC B1630/23 Driver Side Rear Airbag Sensor Circuit Malfunction

DESCRIPTION

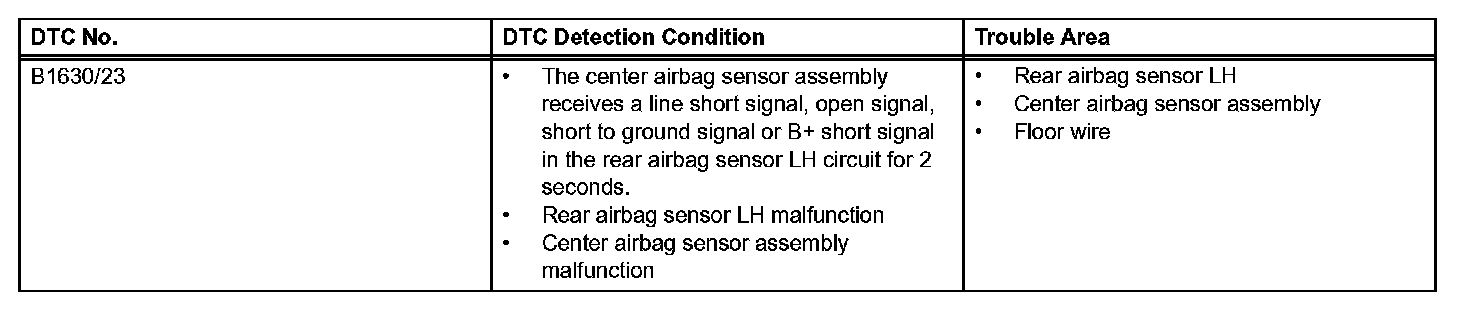

DTC Detection Condition:

The rear airbag sensor LH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1630/23 is recorded when a malfunction is detected in the rear airbag sensor LH circuit.

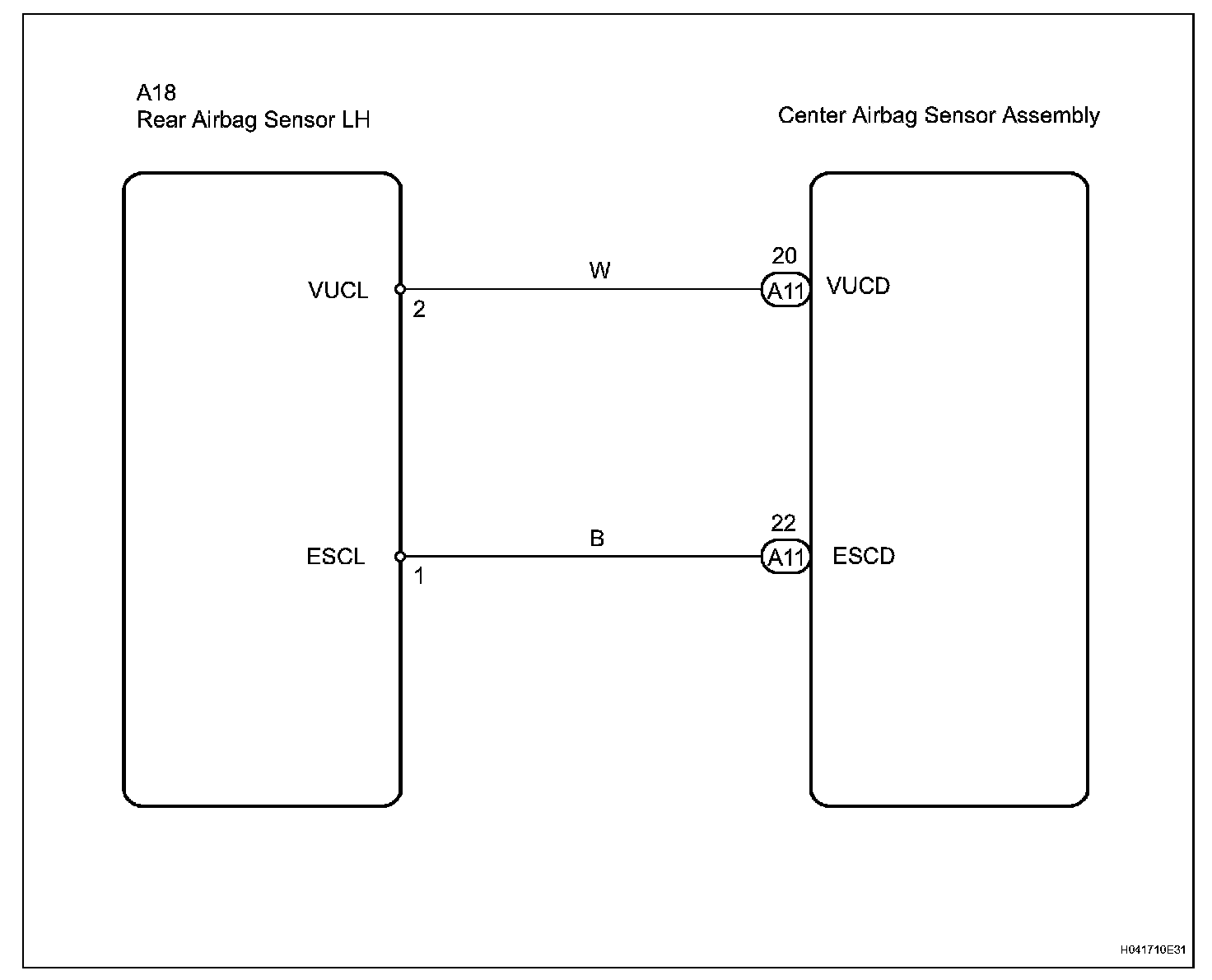

Wiring Diagram:

INSPECTION PROCEDURE

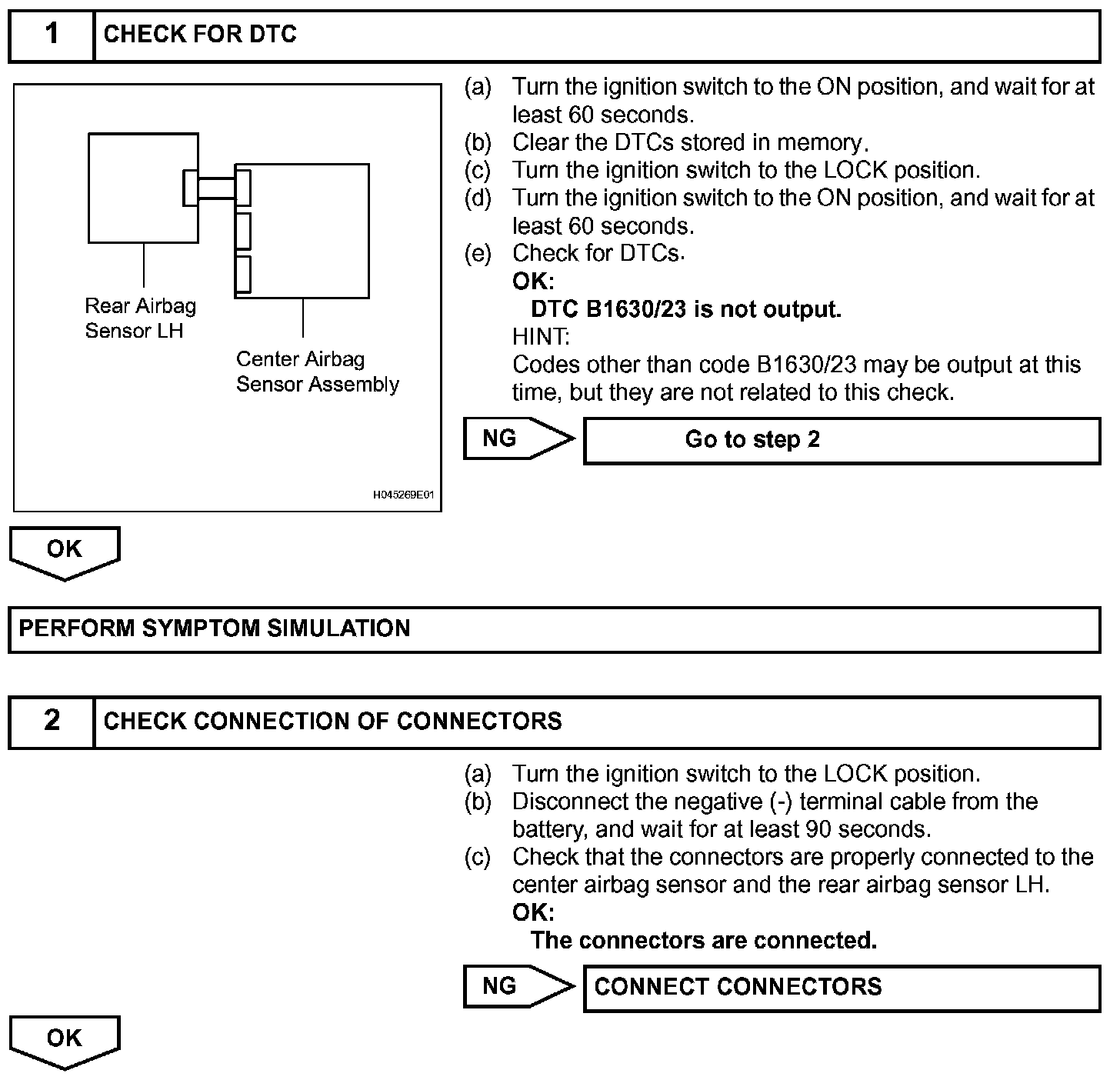

Step 1-2:

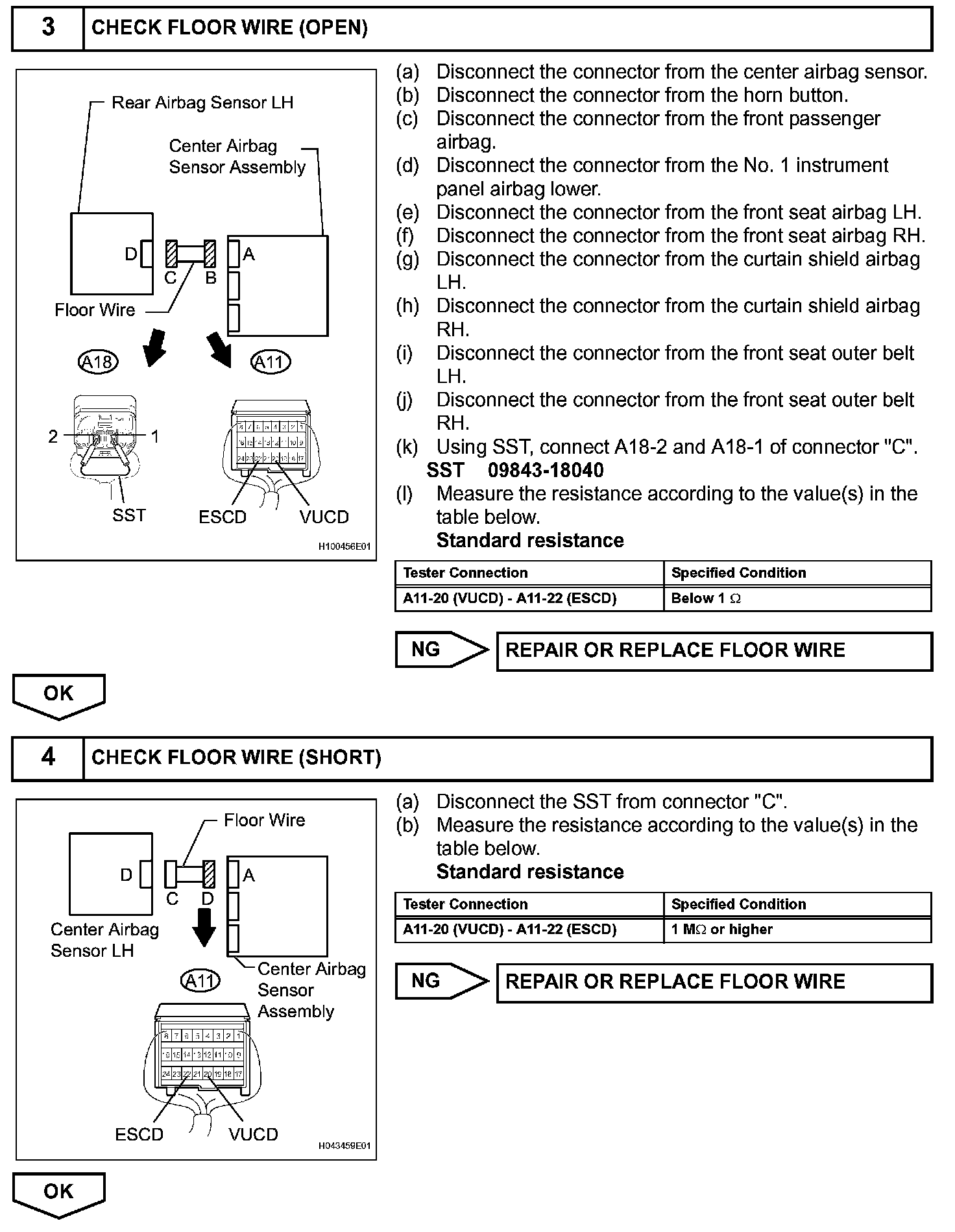

Step 3-4:

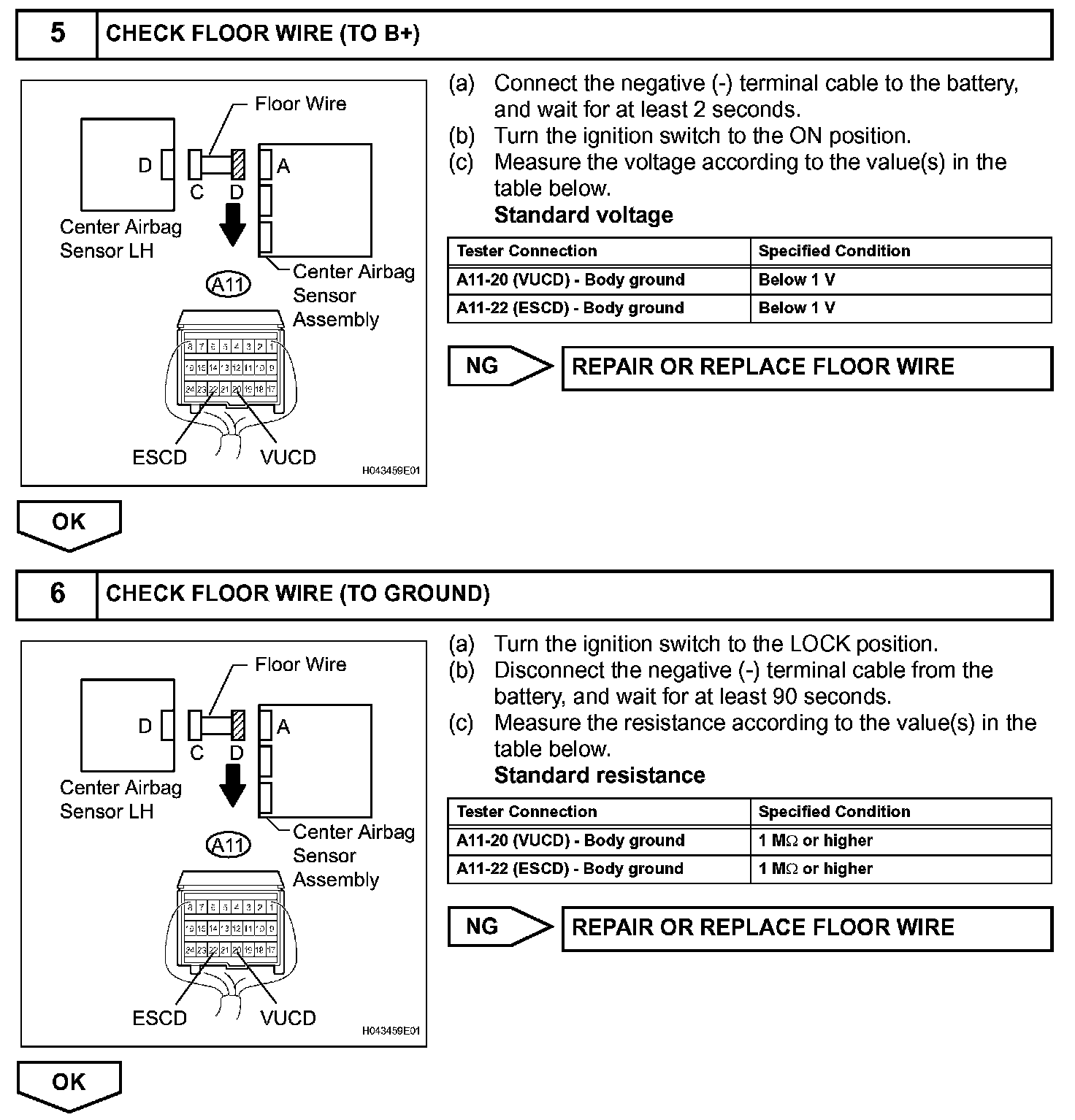

Step 5-6:

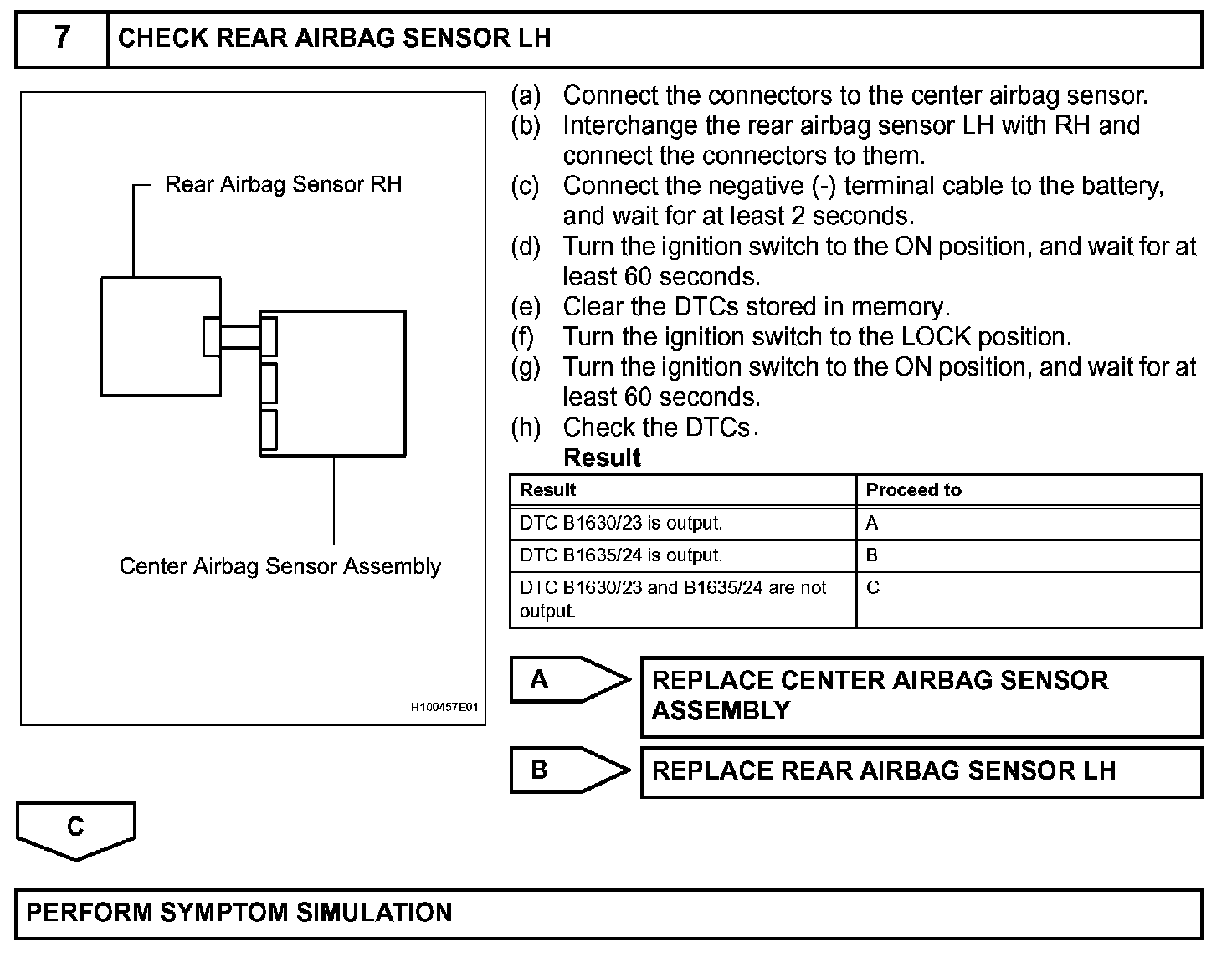

Step 7:
