B1625

DTC B1625/22 Side Airbag Sensor LH Circuit Malfunction

DESCRIPTION

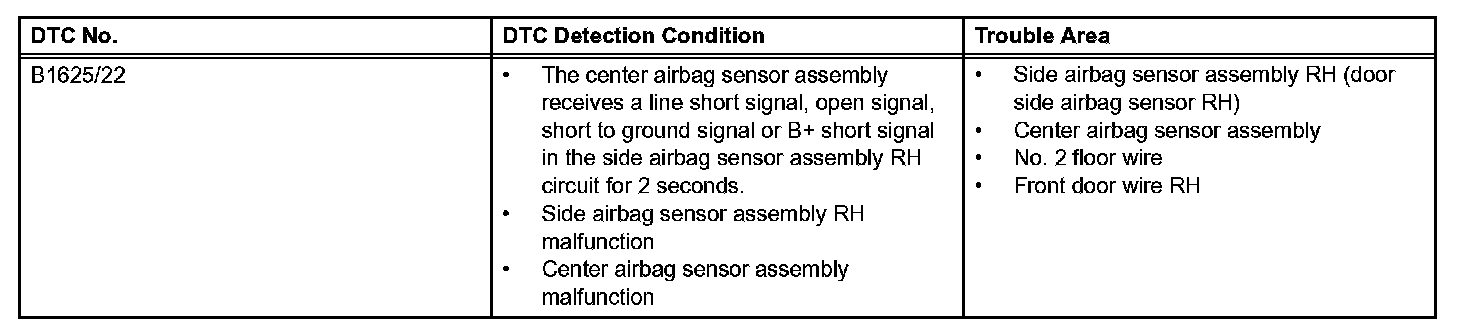

DTC Detection Condition:

The side airbag sensor RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1625/22 is recorded when a malfunction is detected in the side airbag sensor RH circuit.

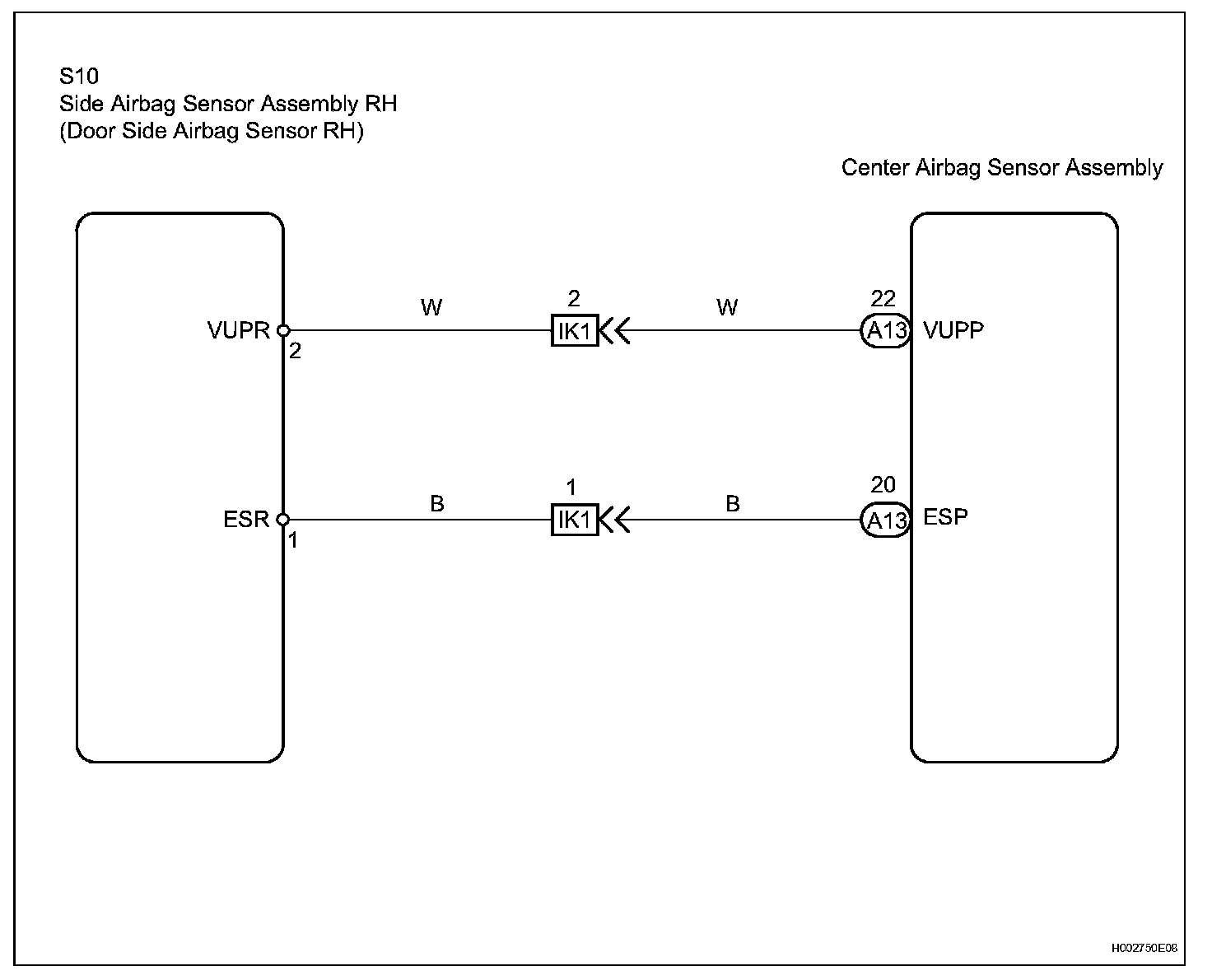

Wiring Diagram:

INSPECTION PROCEDURE

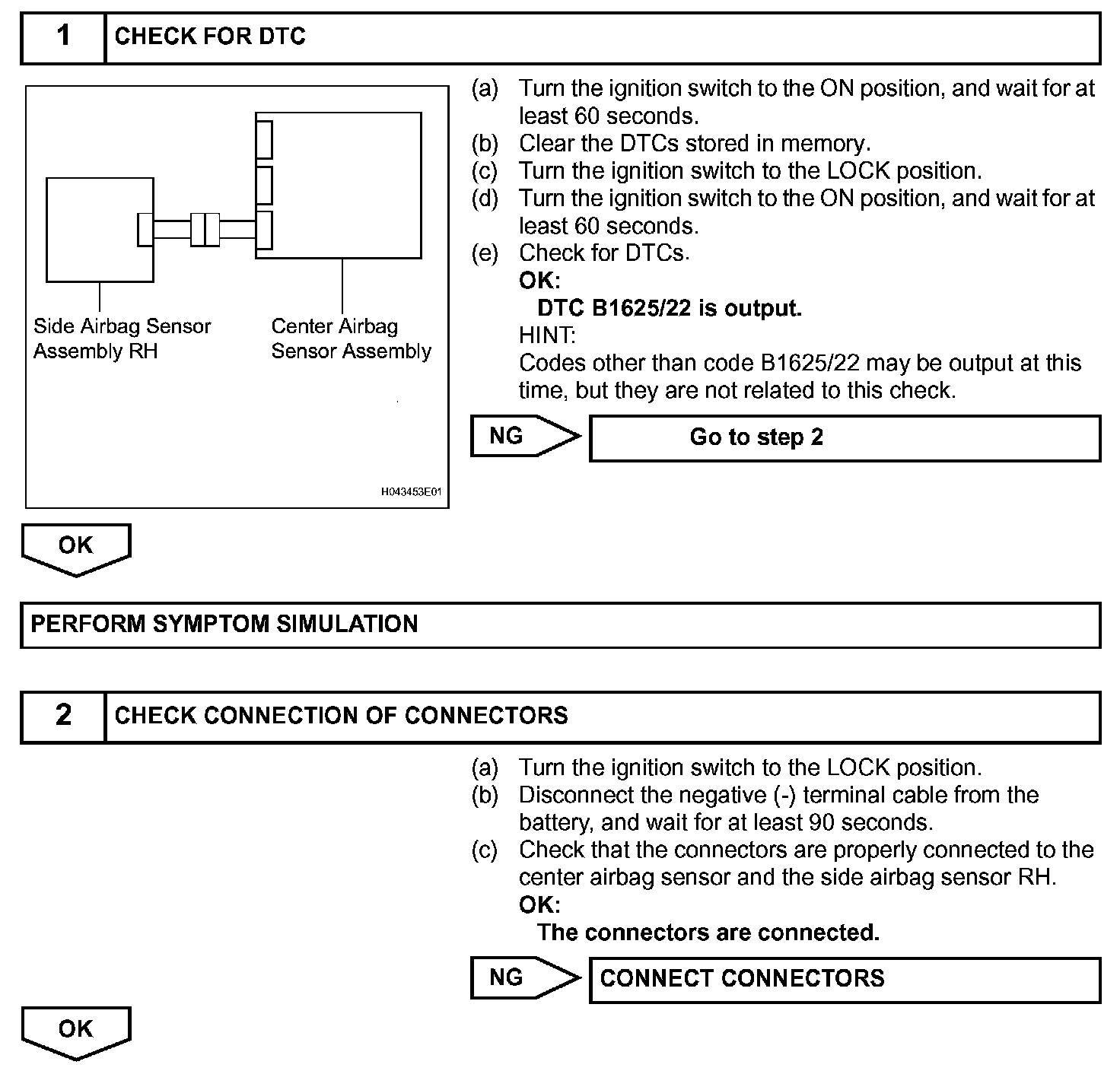

Step 1-2:

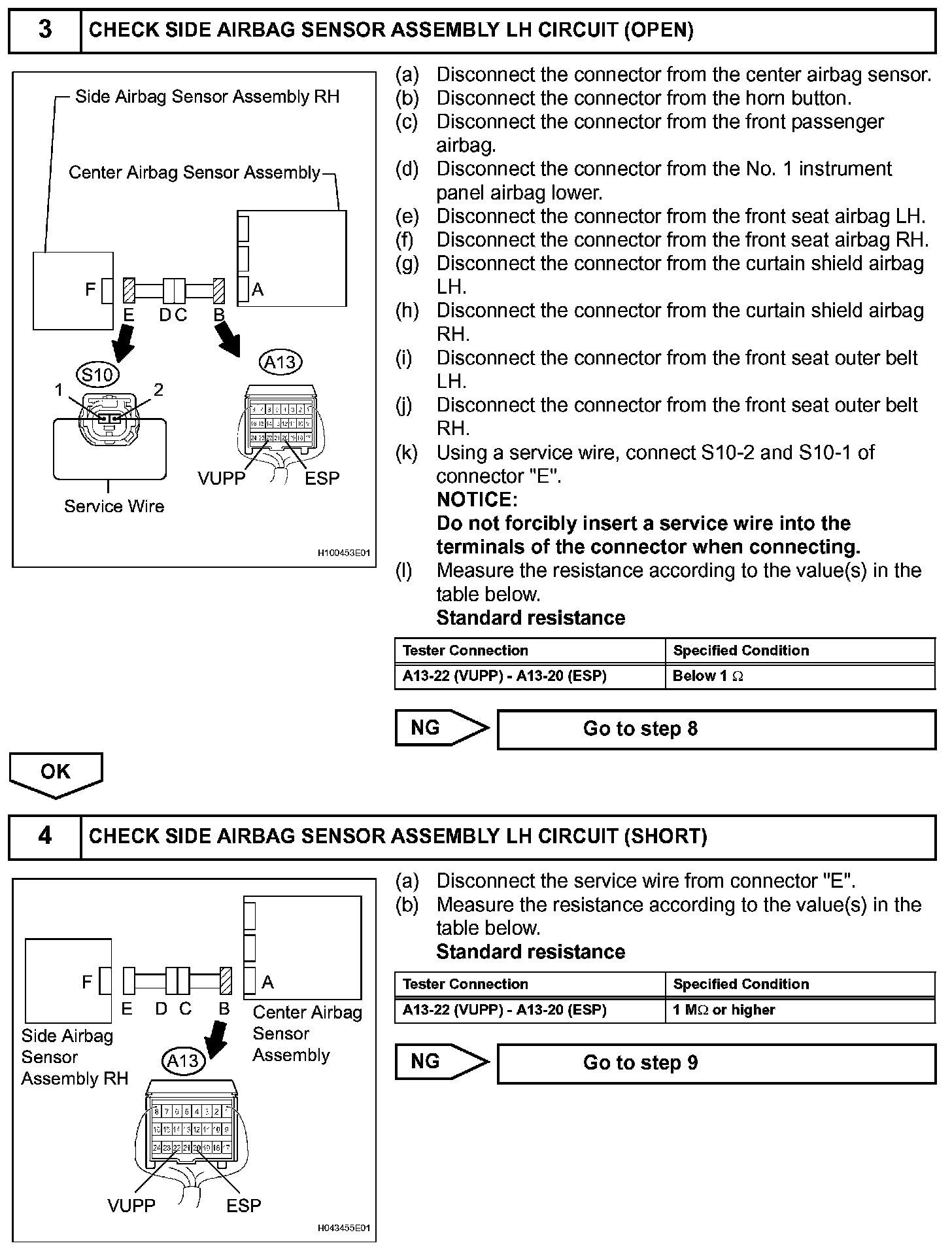

Step 3-4:

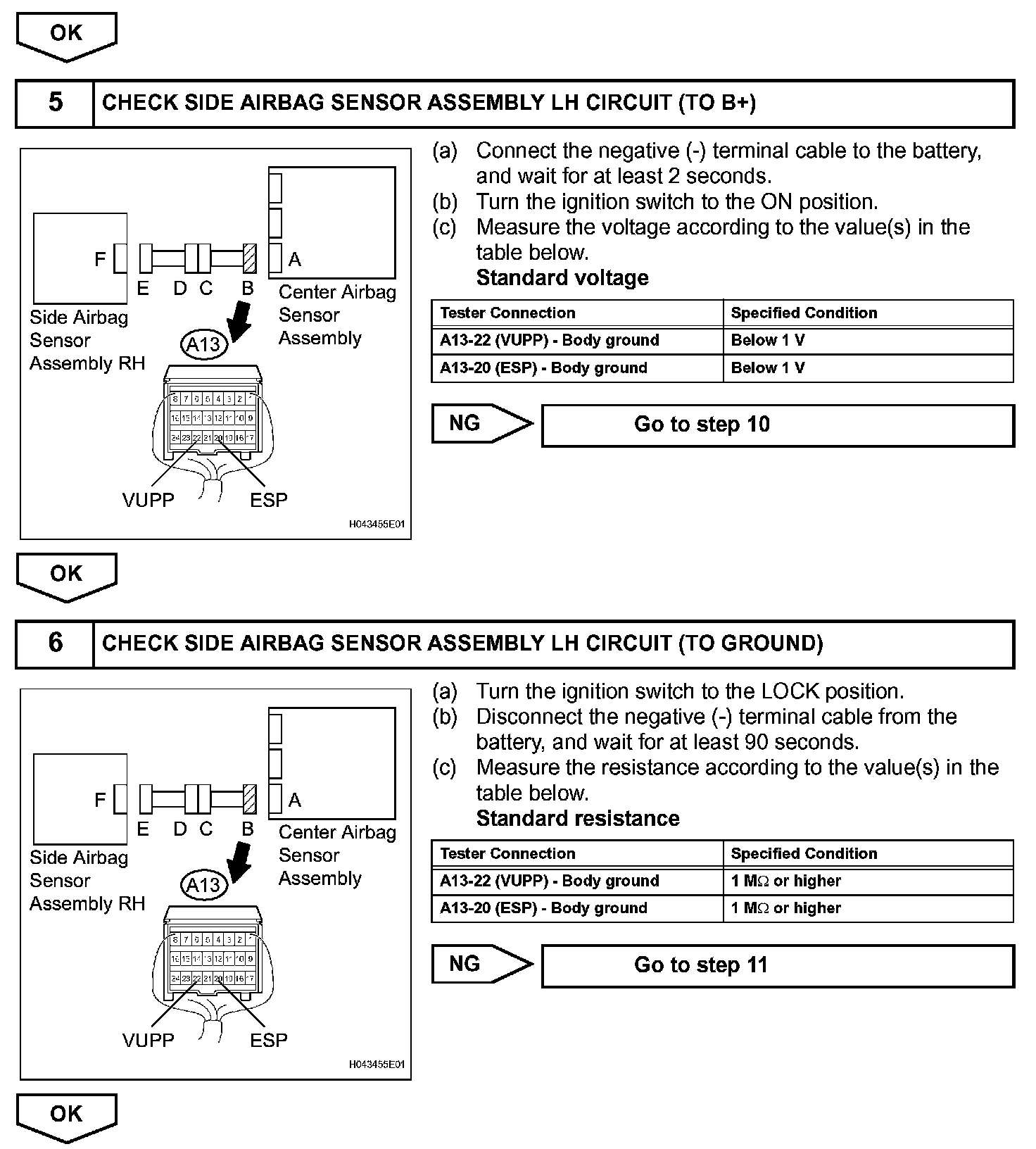

Step 4(Continued)-6:

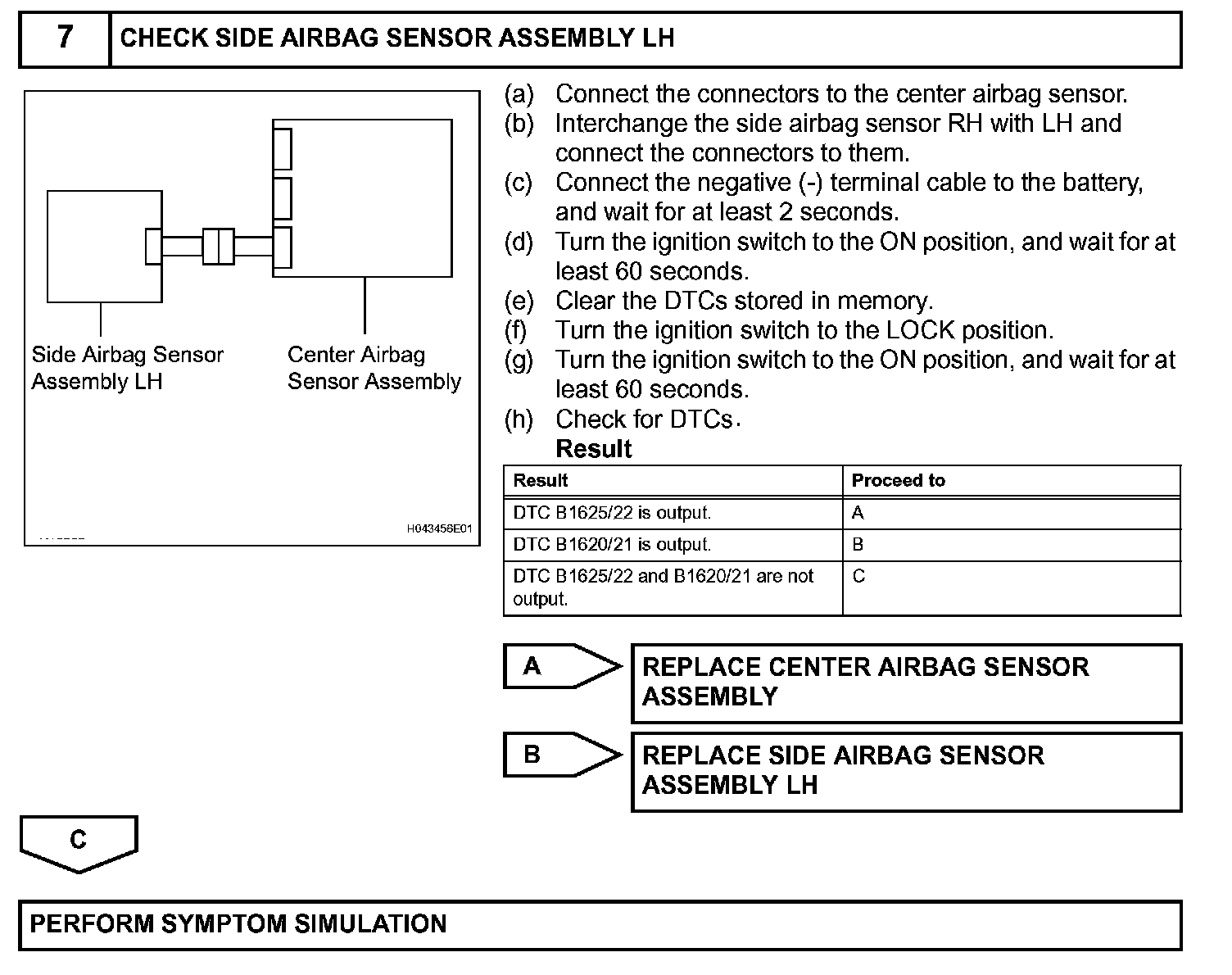

Step 7:

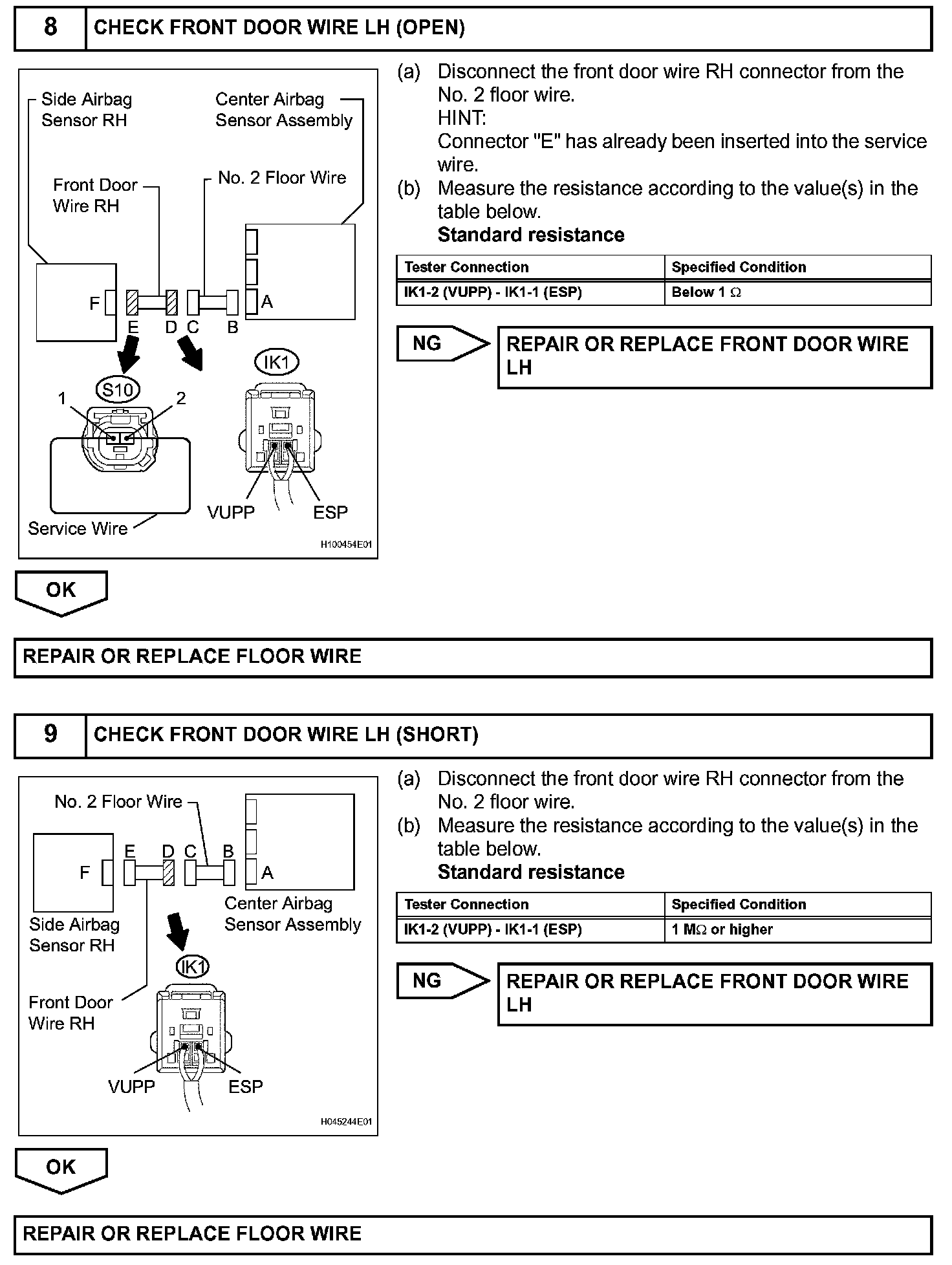

Step 8-9:

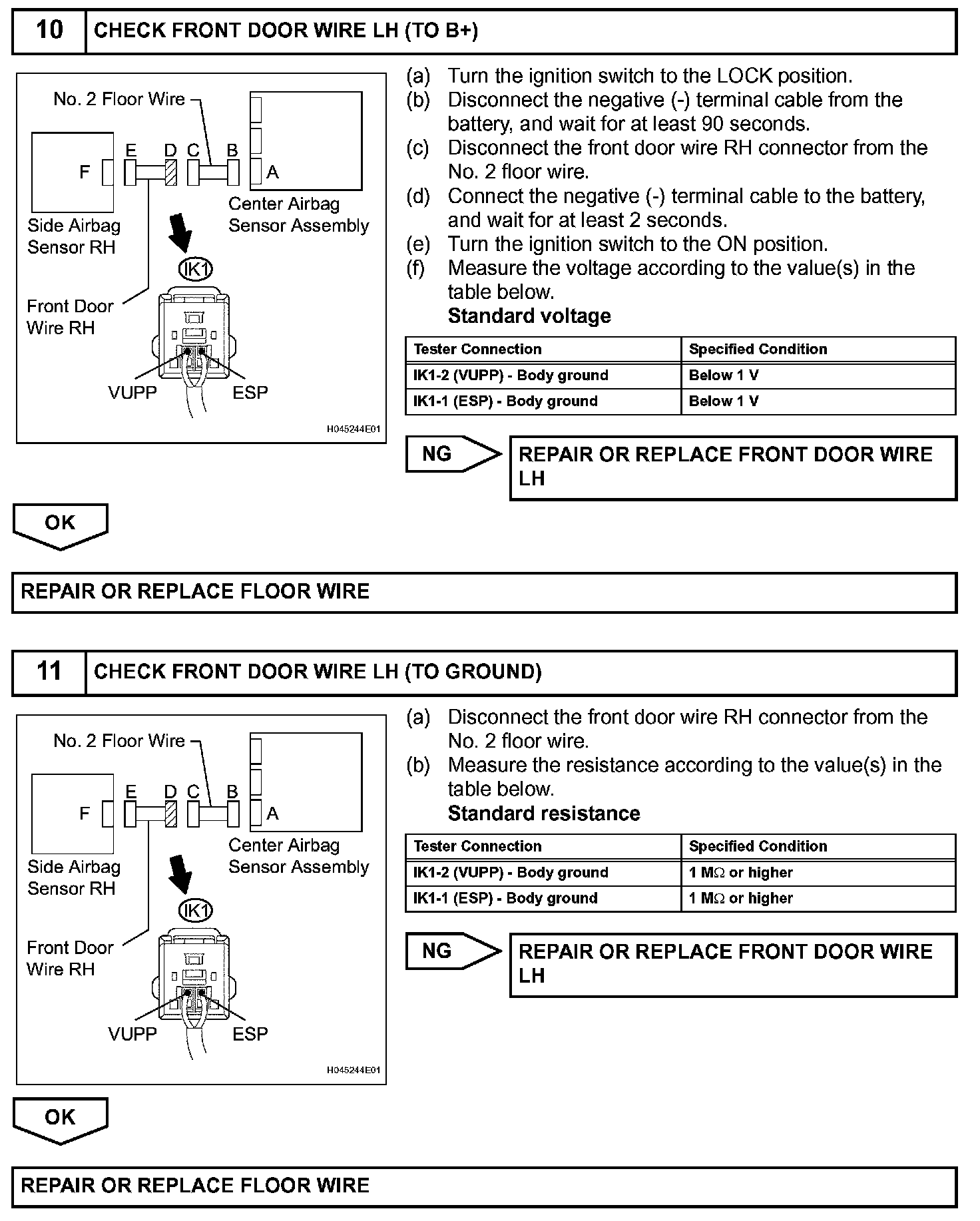

Step 10-11:
