Rear Wiper Motor

REAR WIPER MOTOR

INSPECTION
1. INSPECT REAR WIPER MOTOR ASSEMBLY





(a) Check operation.

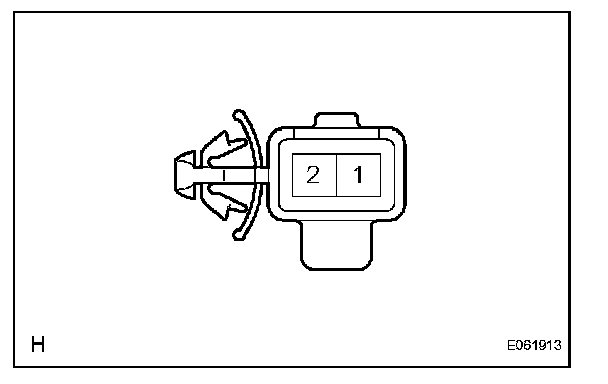

(1) Connect the battery's positive (+) lead to terminal 1 of the connector and the negative (-) lead to terminal 2, and check that the rear wiper motor operates.

NOTICE: The body earth should be connected.





(b) Check automatic stop position operation.
(1) Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2.

NOTICE: The body earth should be connected.

(2) With the motor being rotated, disconnect terminal 1 (+B) and terminal 3 (+1) to stop the motor operation at any position other than the automatic stop position.
(3) Connect the battery's positive (+) lead to terminal 1. Check that the motor is restarted and automatically stops.
