Windshield Washer Spray Nozzle: Adjustments

WASHER NOZZLE

ADJUSTMENT
1. INSPECT WASHER NOZZLE

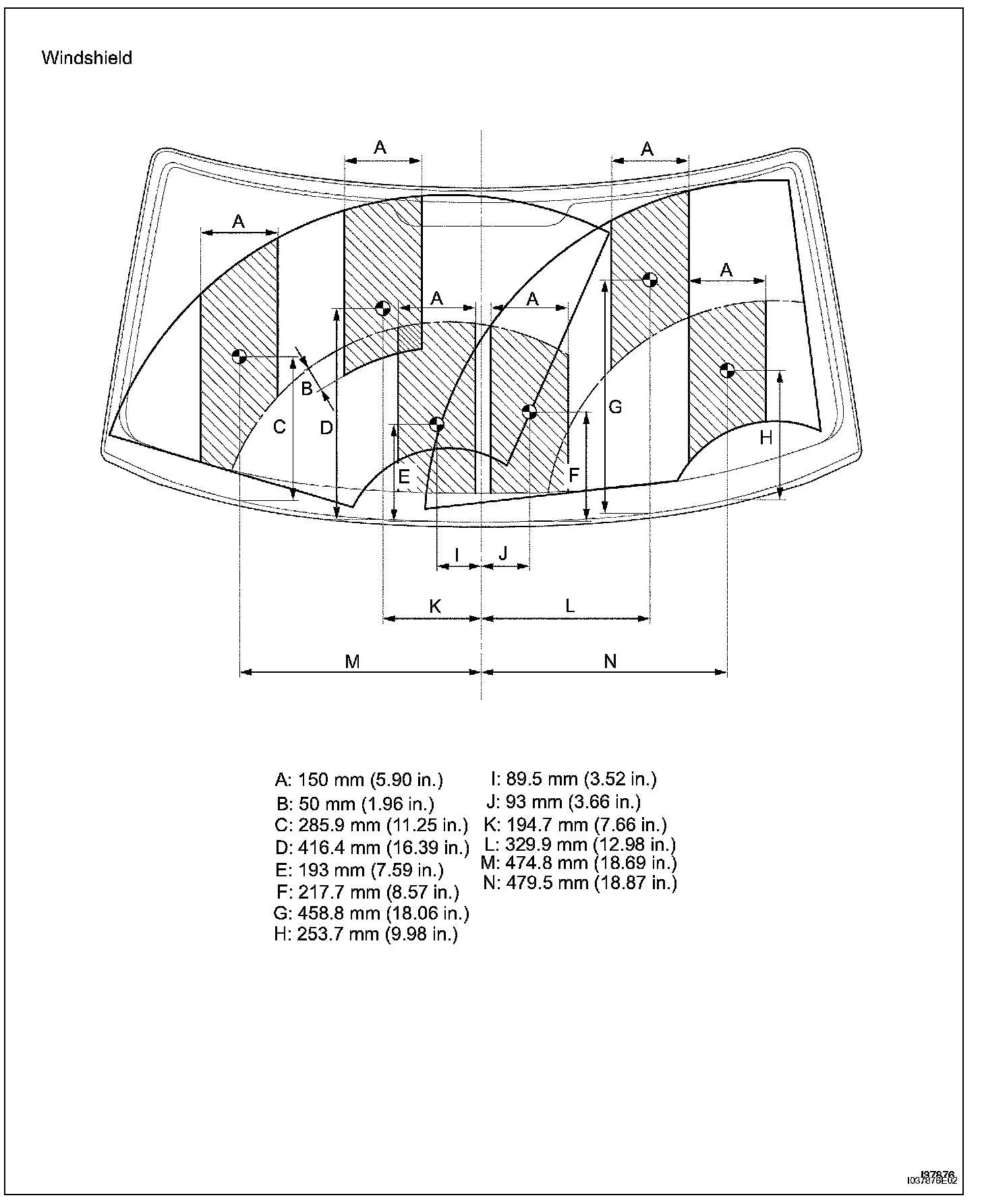

(a) With the engine running, check that the point where the washer fluid hits the windshield and the rear window is within the range indicated by the hatched line.

Windshield:

Rear Window:

2. ADJUST WASHER NOZZLE

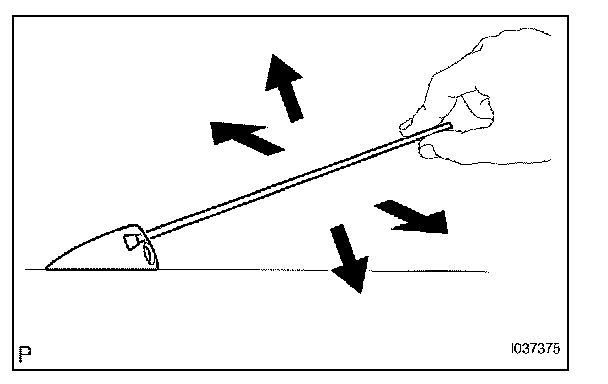

(a) Using a pin, adjust the direction of the washer nozzle.

NOTICE: Use a pin that the end is not sharp.
