Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

WIPER AND WASHER SYSTEM

PARTS LOCATION

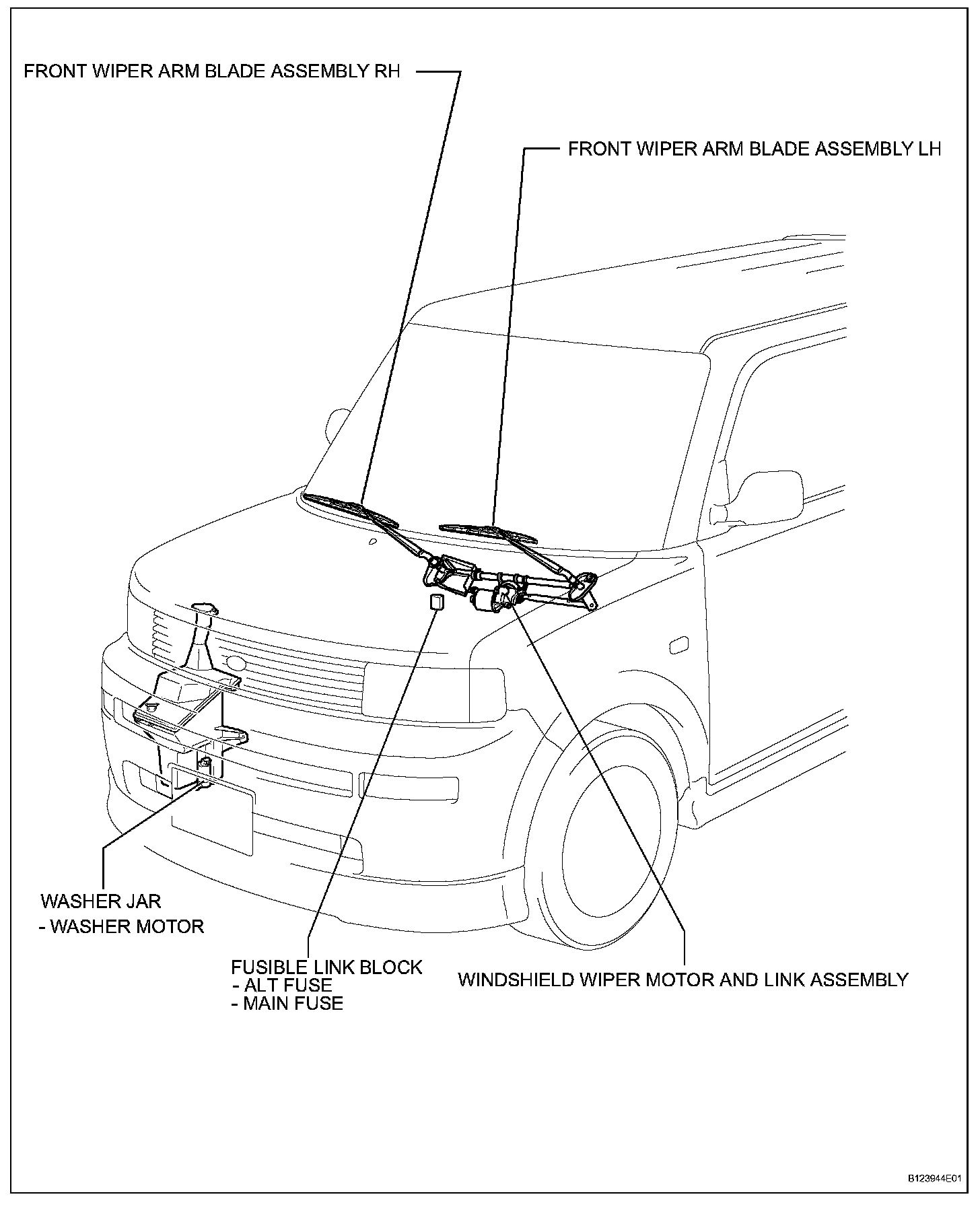

Wiper And Washer System:

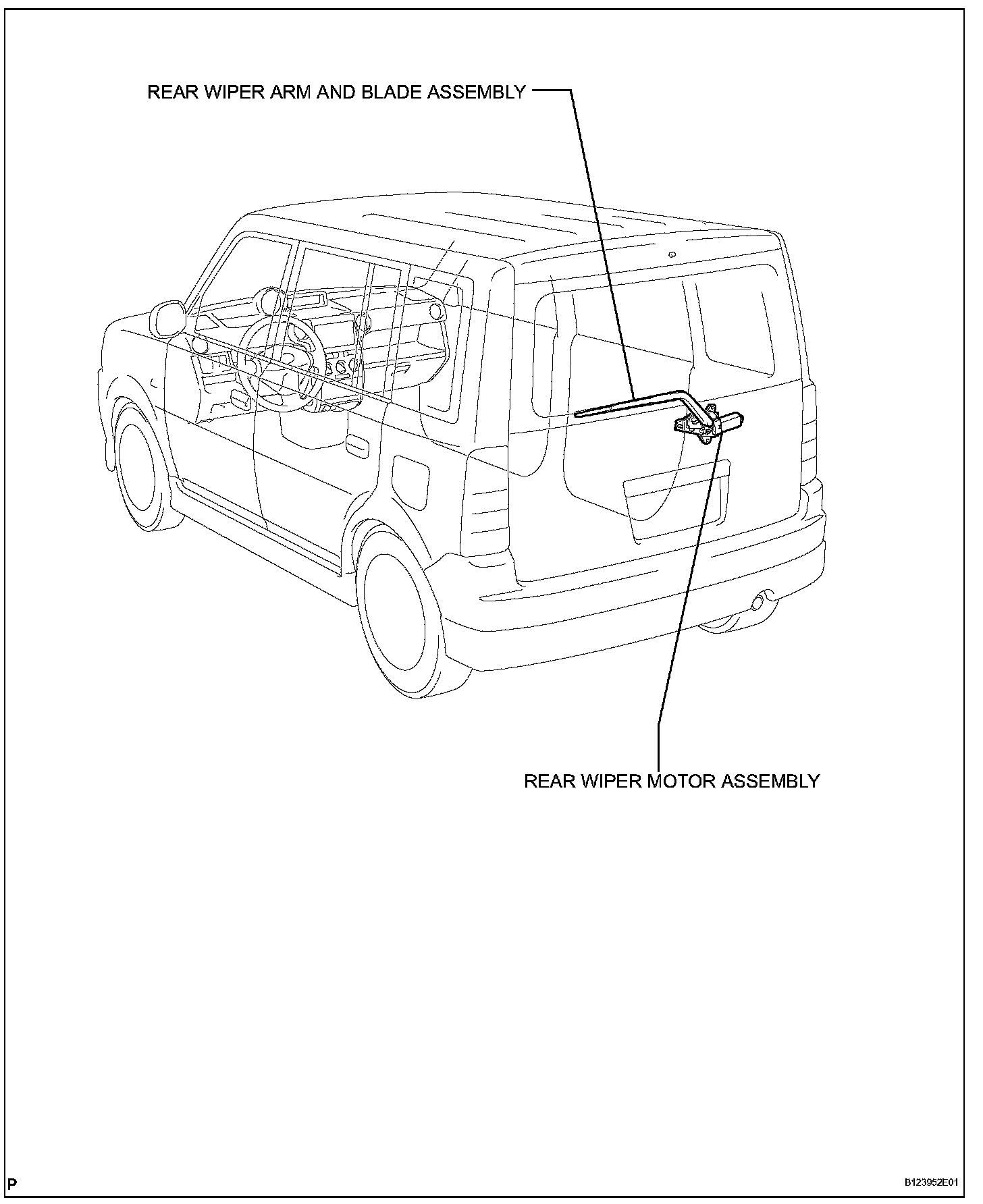

Wiper And Washer System:

Wiper And Washer System:
