System Diagram

WIPER AND WASHER SYSTEM

SYSTEM DIAGRAM

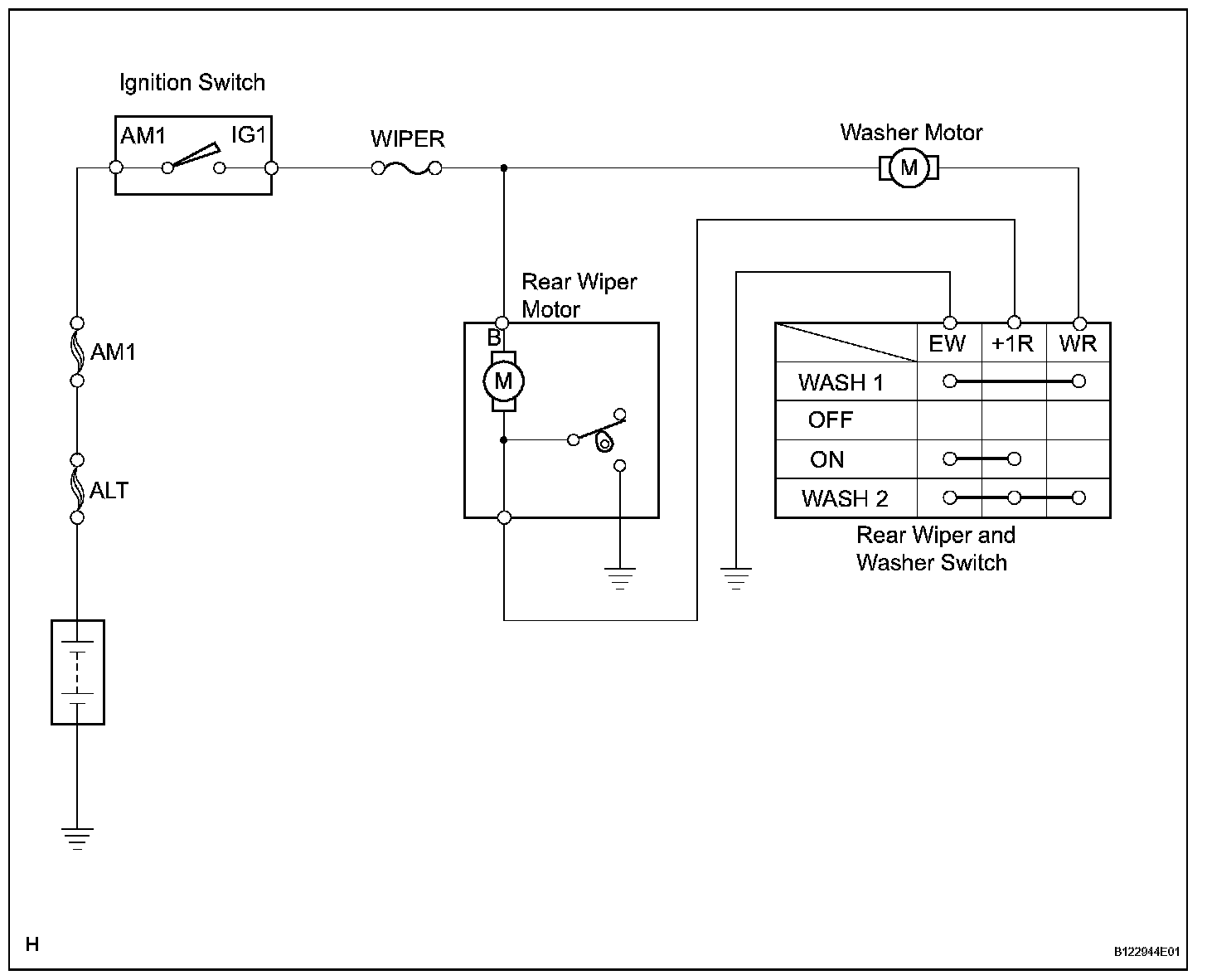

System Diagram (Part 1):

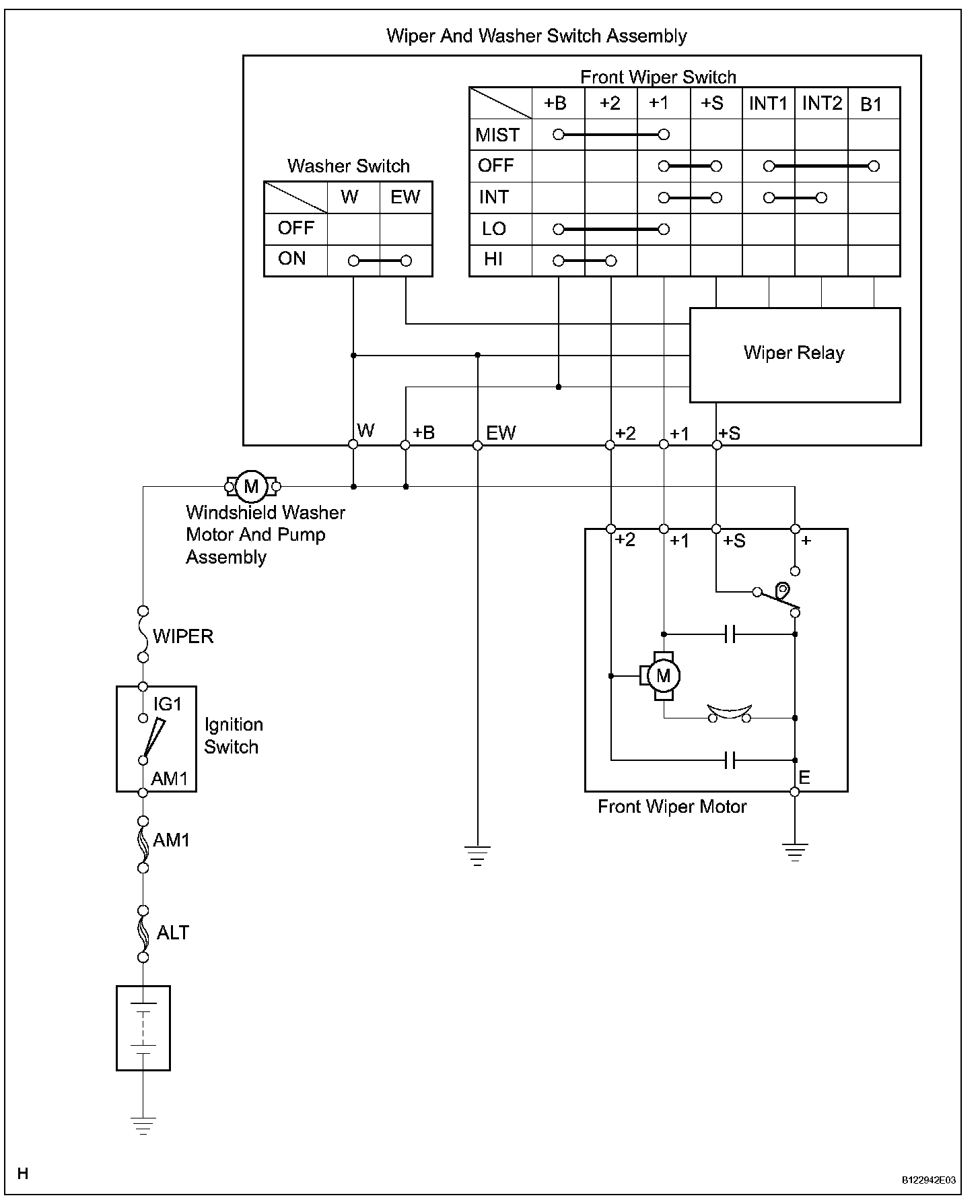

System Diagram (Part 2):
