Wiring Harness: Service and Repair

TRANSMISSION WIRE

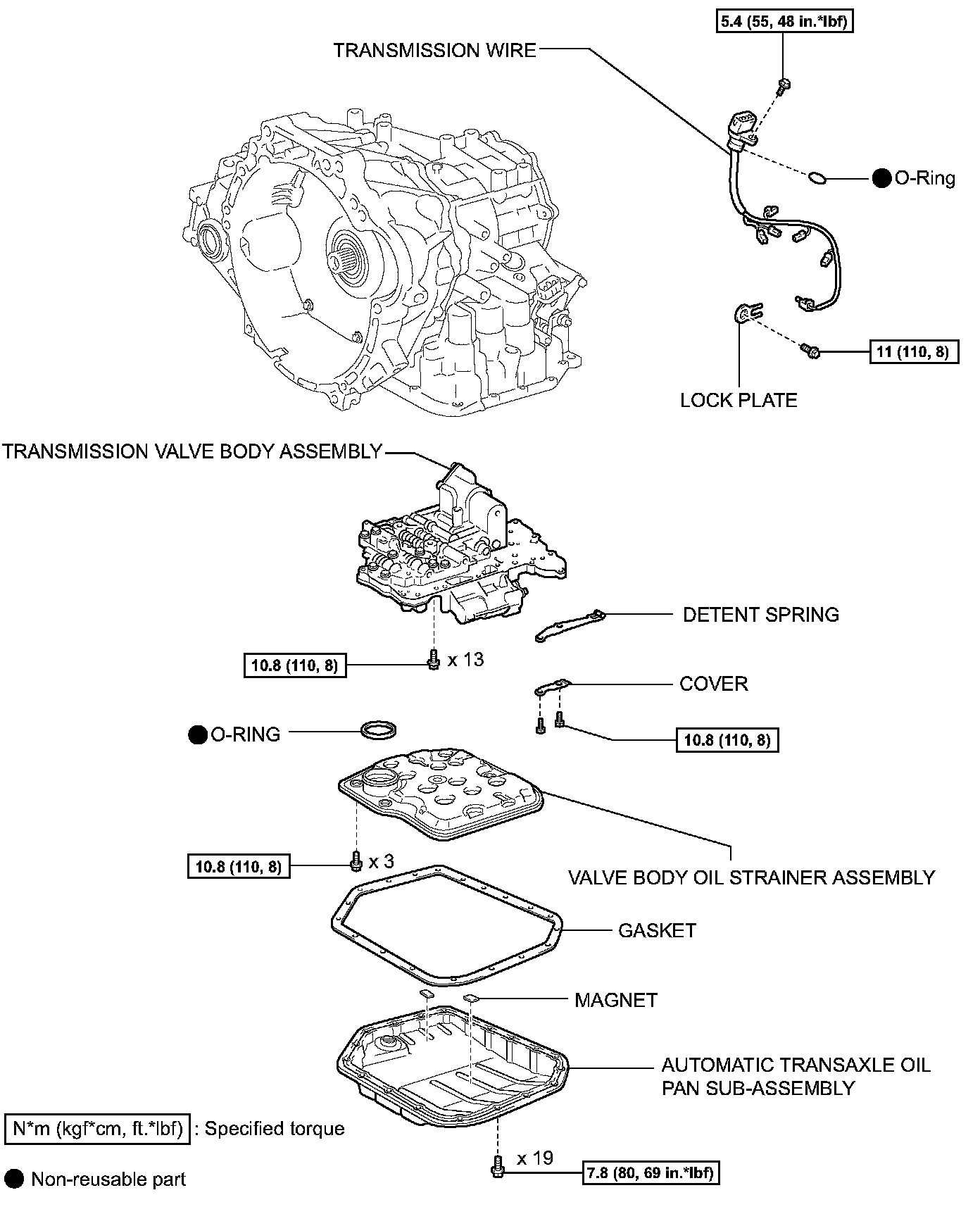

COMPONENTS:





REMOVAL





1. REMOVE ENGINE UNDER COVER LH
2. DRAIN AUTOMATIC TRANSAXLE FLUID
a) Remove the drain plug and gasket, and drain ATF.
b) Install a new gasket and the drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

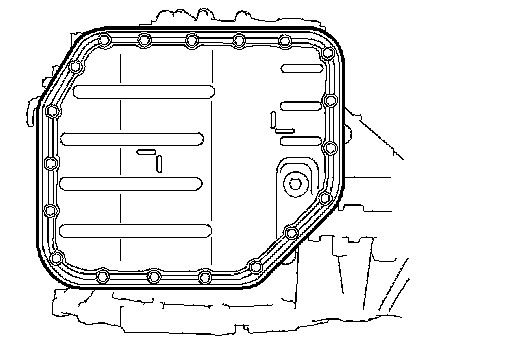

3. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

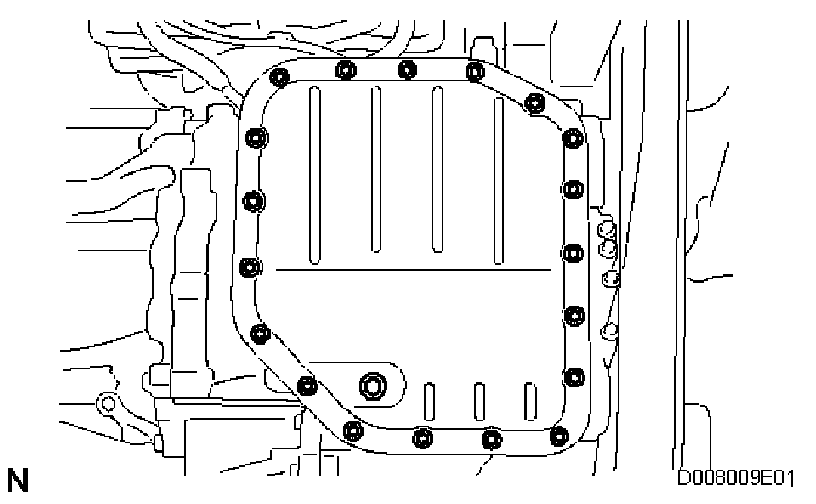

a) Remove the 19 bolts, oil pan and gasket.

NOTICE: Some fluid will remain in the oil pan. Remove all the oil pan bolts, and carefully remove the oil pan.





b) Remove the 2 magnets from the oil pan.





c) Examine particles in the pan.

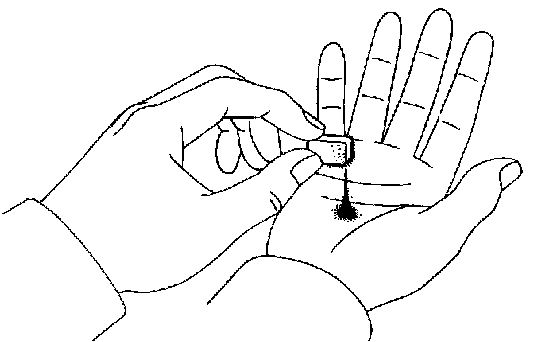

1) Use the removed magnets to collect any steel chips. Look carefully at the chips and particles in the pan and on the magnet to anticipate what type of wear you will find in the transaxle.
Steel (magnetic): bearing, gear and plate wear
Brass (non-magnetic): bushing wear

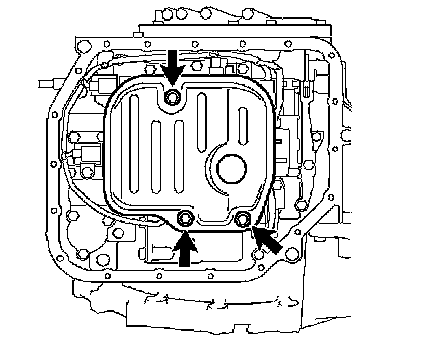

4. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
a) Remove the 3 bolts and oil strainer.

NOTICE: Be careful as some fluid will come out with the oil strainer.

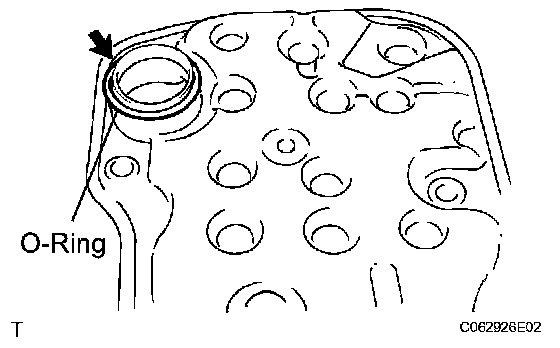

b) Remove the O-ring from the oil strainer.





5. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
a) Disconnect the 5 connectors.

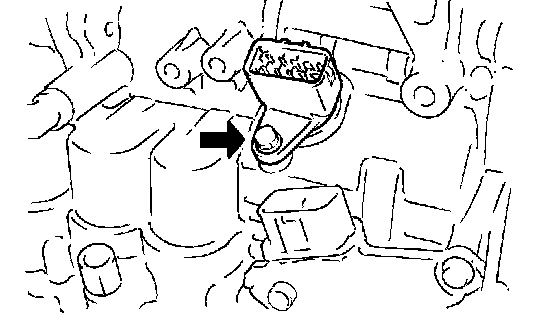

b) Remove the bolt and lock plate, and remove the ATF temperature sensor.





c) Remove the 2 bolts, cover and detent spring.





d) Remove the 13 bolts and valve body.

NOTICE: Be careful not to drop the check valve body, spring and accumulator piston.

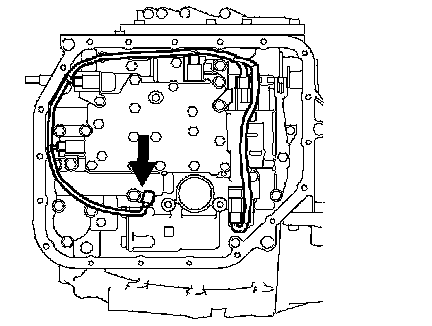

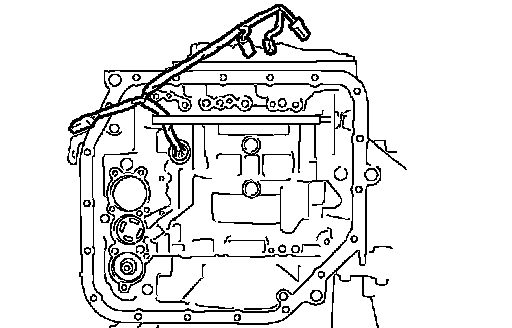

6. REMOVE TRANSMISSION WIRE
a) Remove the bolt and transmission wire.

INSPECTION





1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)
a) Disconnect the E1 wire connector.
b) Measure the resistance of the transmission wire.
Standard resistance

Standard resistance:





HINT: If the resistance is not as specified for either of the ATF temperatures shown in the table, the driveability of the vehicle may decrease.

Standard resistance

Standard resistance:





INSTALLATION





1. INSTALL TRANSMISSION WIRE
a) Coat an O-ring with ATF.
b) Install the transmission wire.





c) Install the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)





2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
a) Align the groove of the manual valve with the pin of the manual valve lever.
b) Temporarily install the valve body with the 13 bolts.

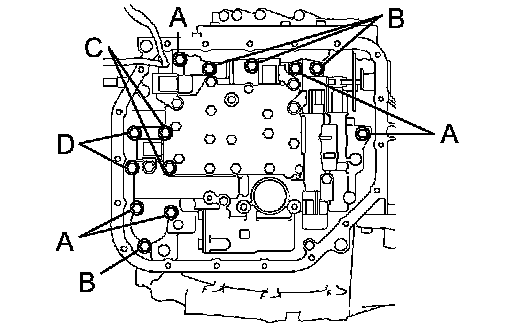

HINT: Bolt length:
32 mm (1.26 inch) for bolt A
22 mm (0.87 inch) for bolt B
55 mm (2.17 inch) for bolt C
45 mm (1.77 inch) for bolt D

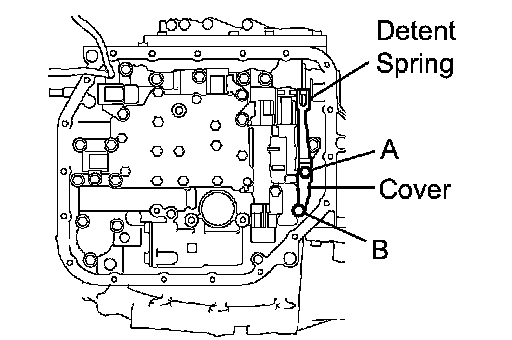

c) Temporarily install the detent spring and cover with the 2 bolts.

HINT: Bolt length:
14 mm (0.55 inch) for bolt A
45 mm (1.77 inch) for bolt B

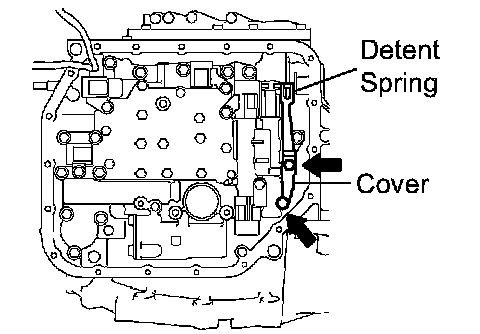

d) Check that the manual valve lever contacts the center of the roller at the tip of the detent spring.
e) Tighten the 15 bolts.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)

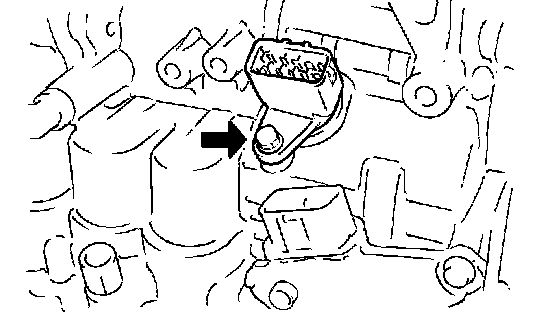

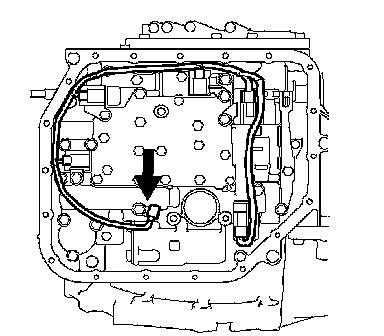

f) Install the ATF temperature sensor with the lock plate and bolt.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)
g) Connect the 5 shift solenoid valve connectors.





3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
a) Coat a new O-ring with ATF.

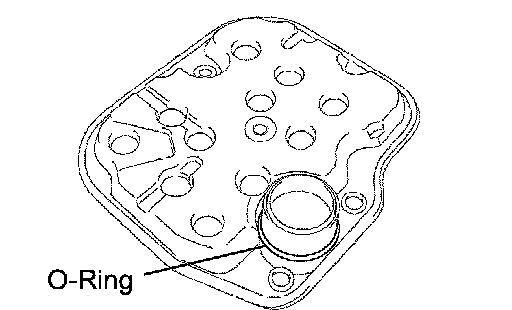

b) Install the O-ring on the oil strainer.





c) Install the oil strainer with the 3 bolts.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)





4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

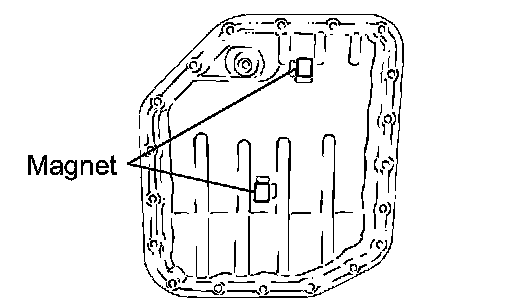

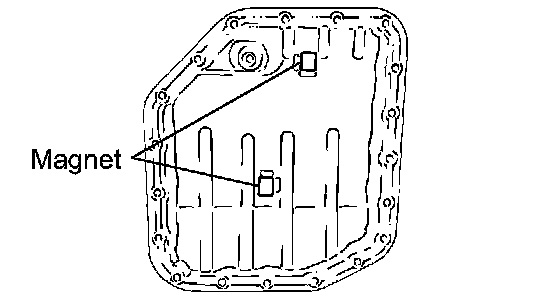

a) Install the 2 magnets in the oil pan, as shown in the illustration.





b) Install a new gasket and the oil pan with the 19 bolts.
Torque: 7.8 Nm (8 kgf-cm, 69 inch lbs.)
5. INSTALL ENGINE UNDER COVER LH
6. ADD AUTOMATIC TRANSAXLE FLUID
Fluid type: Toyota Genuine ATF TYPE T-IV
Standard capacity: 2.9 liters (3.1 US quarts, 2.6 Imp. quarts)
7. INSPECT AUTOMATIC TRANSAXLE FLUID
a) Inspect the automatic transaxle fluid.
