A/T - Reman A/T Serial Number Locations

TRANSMISSION & CLUTCH
TC012-06

September 1, 2006

Title:
REMANUFACTURED AUTOMATIC TRANSMISSION SERIAL NUMBER LOCATION

Models:
^ All '06 - '07 Toyota & Scion

Introduction

The purpose of this TSB is to assist in the identification and location of serial numbers on 2006 - 2007 model year remanufactured automatic transmissions.

NOTE:
^ Per Toyota Warranty Policy & Procedure Policy 4.23:

Whenever a remanufactured or OEM automatic transmission is replaced, the serial number from the back of the failed component must be entered in the "Transmission Serial Number" field, which can be found on the "Additional Information" tab of the warranty claim.

^ When writing a Product Report, the serial number MUST be provided.

^ Warranty policy requires shipment of ALL replaced transmissions to AWTEC, even if the transmission is replaced with a new service unit.

Applicable Vehicles:
^ 2006 - 2007 model year Toyota and Scion vehicles.





Warranty Information

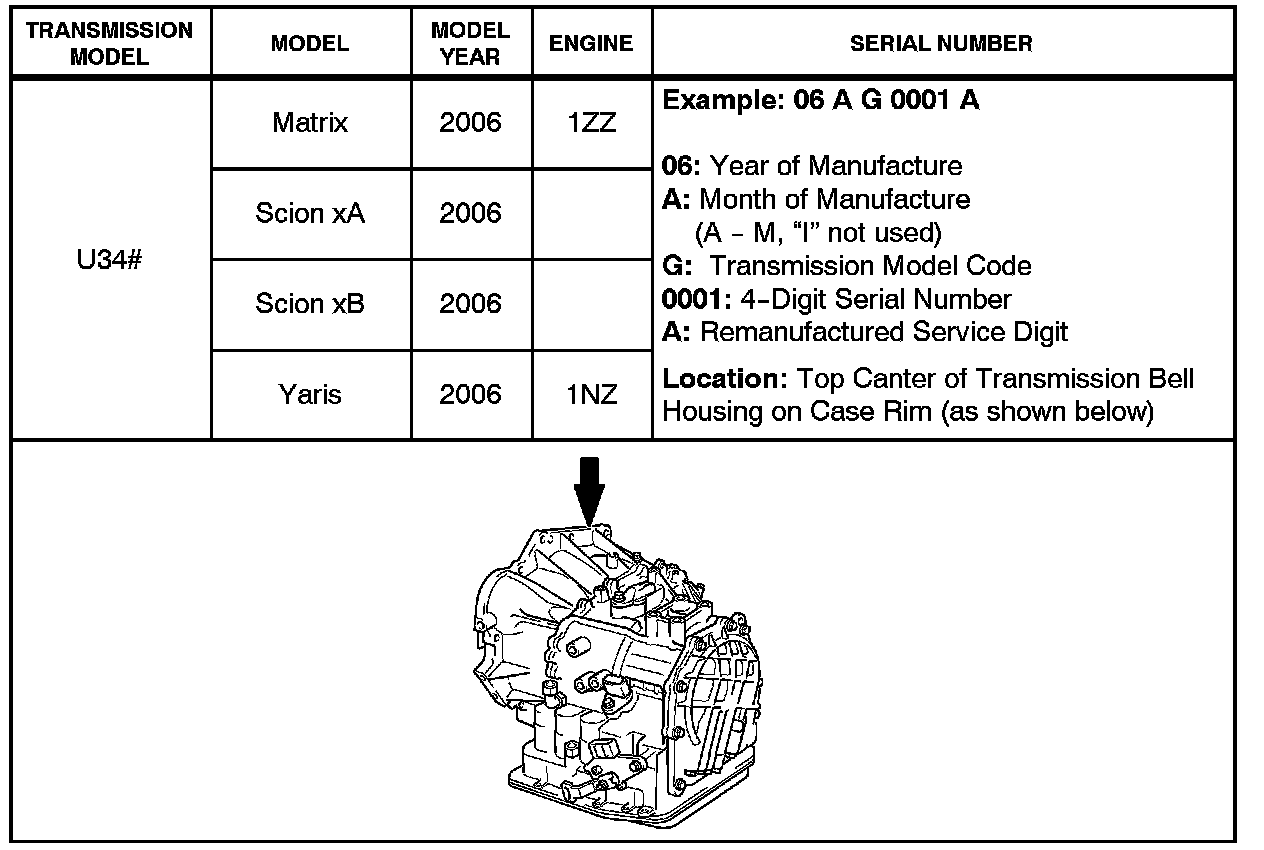

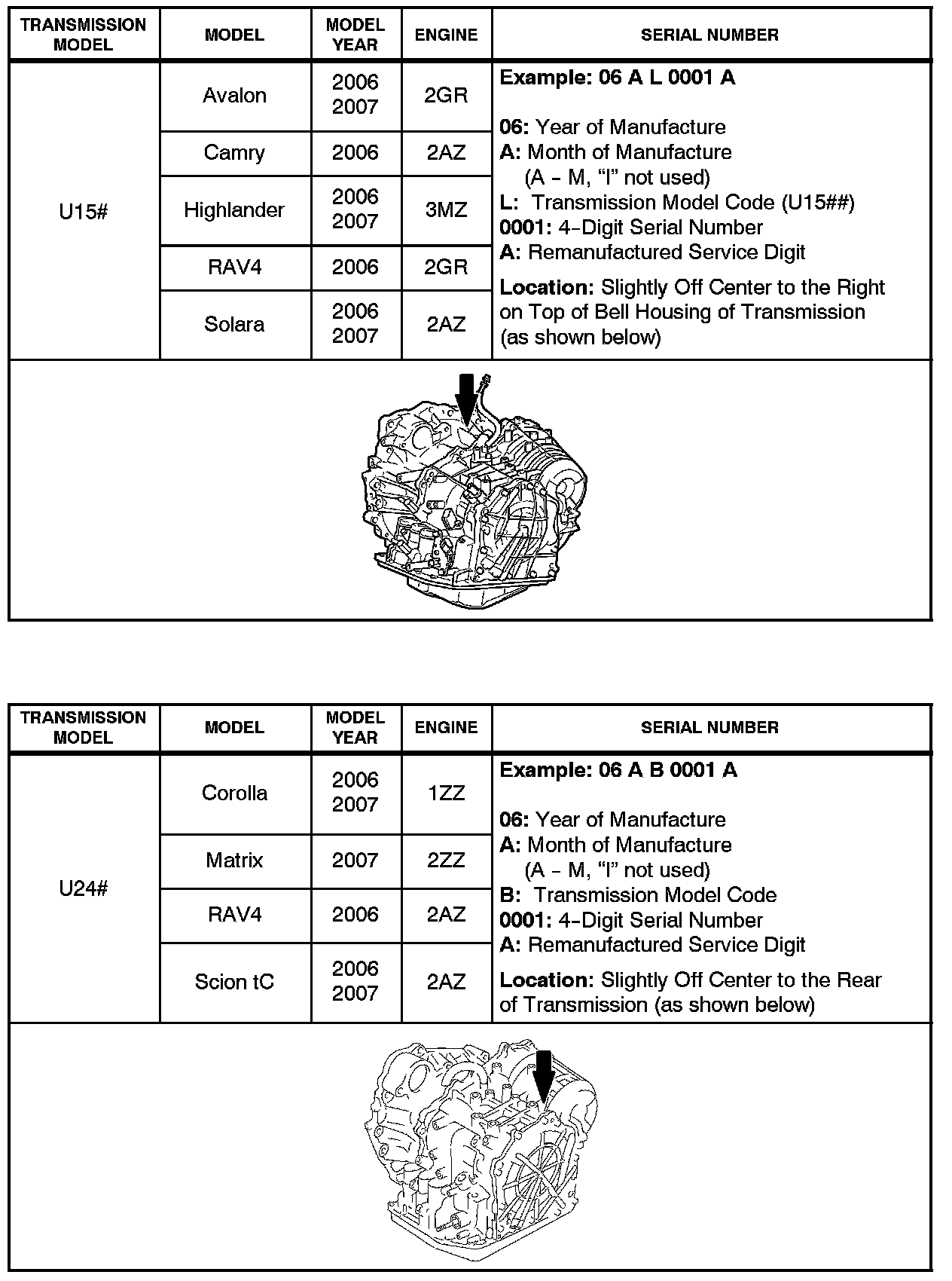

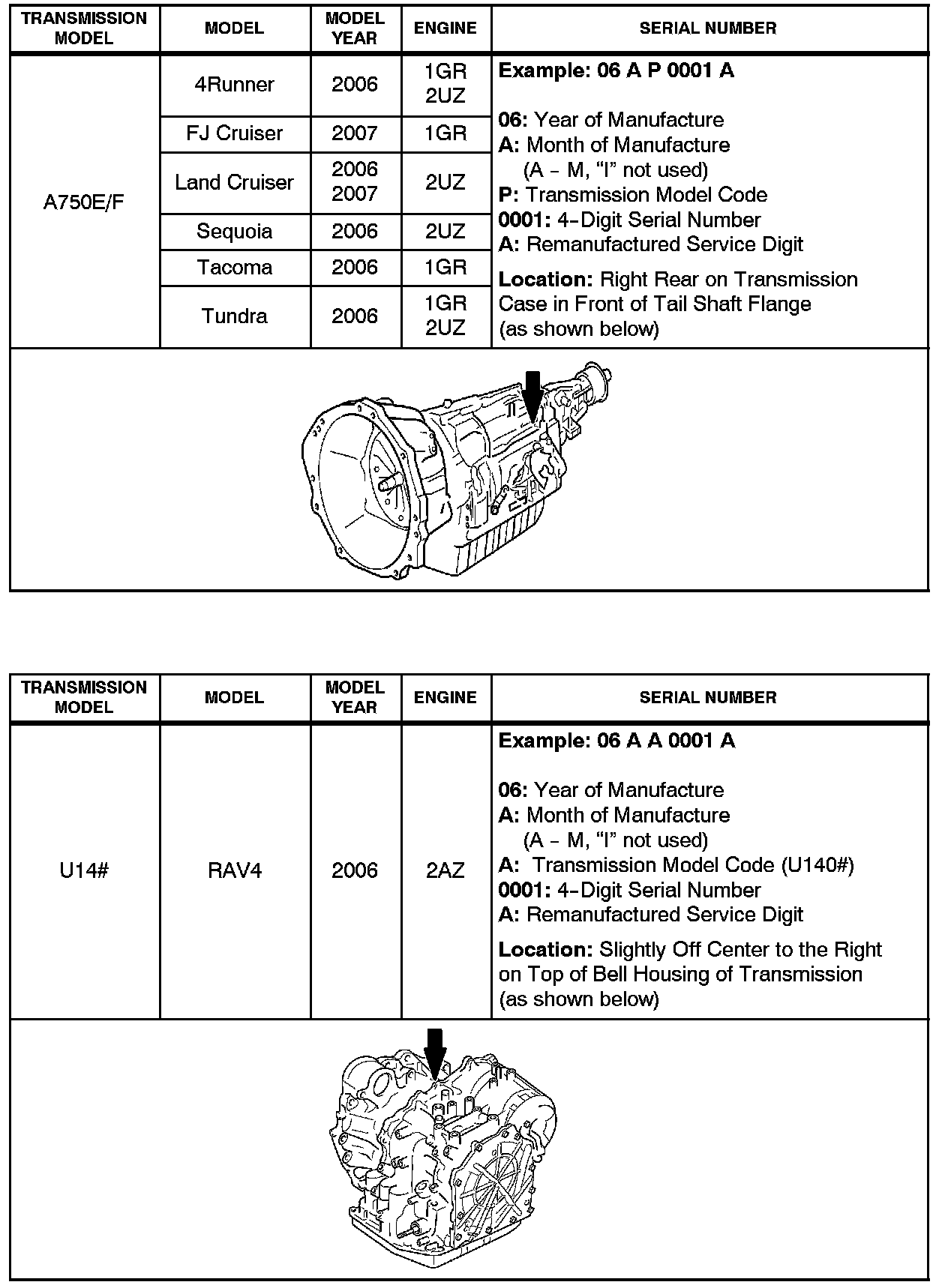

Identification Procedure

NOTE:
Serial numbers on remanufactured transmissions are highlighted with paint.
