A/T - Identification/Serial Number Location

TRANSMISSION & CLUTCH
TC012-06
REVISED

Title:
AUTOMATIC TRANSMISSION SERIAL
NUMBER LOCATION

Models:
All '06 - '07 Scion

September 1, 2006

TSB REVISION NOTICE:

^ February 9, 2007: The location arrows have been updated in the illustrations for transmission model U15# (Japan built and TMMWV built).

Previous versions of this TSB should be discarded.

Introduction

The purpose of this TSB is to assist in the identification and location of serial numbers on 2006 - 2007 model year automatic transmissions.

NOTE:

^ Per Toyota Warranty Policy & Procedure Policy 4.23:
Whenever a remanufactured or OEM automatic transmission is replaced, the serial number from the back of the failed component must be entered in the "Transmission Serial Number" field, which can be found on the "Additional Information" tab of the warranty claim.

^ When writing a Product Report, the serial number MUST be provided.

^ Warranty policy requires shipment of ALL replaced transmissions to AWTEC, even if the transmission is replaced with a new service unit.

Applicable Vehicles

^ 2006 - 2007 model year Scion vehicles.

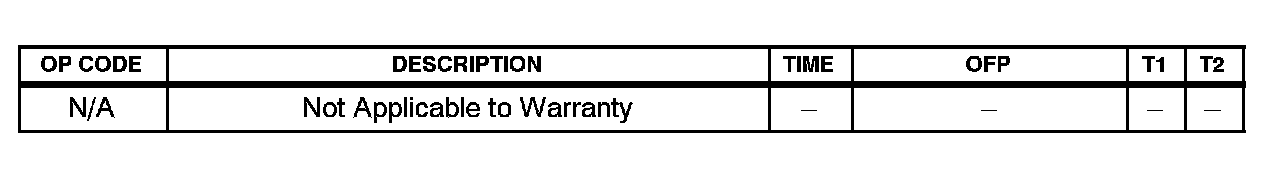

Warranty Information

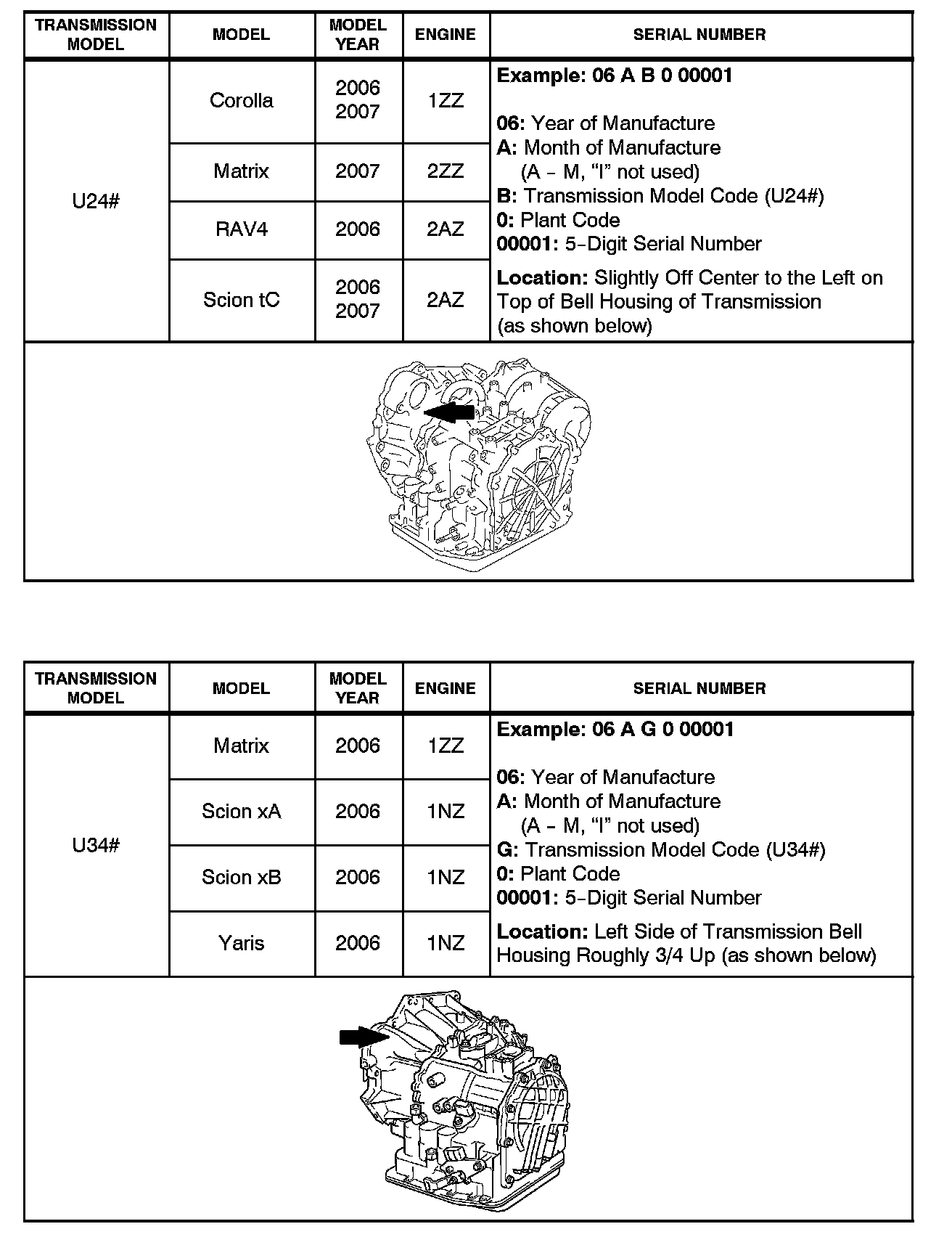

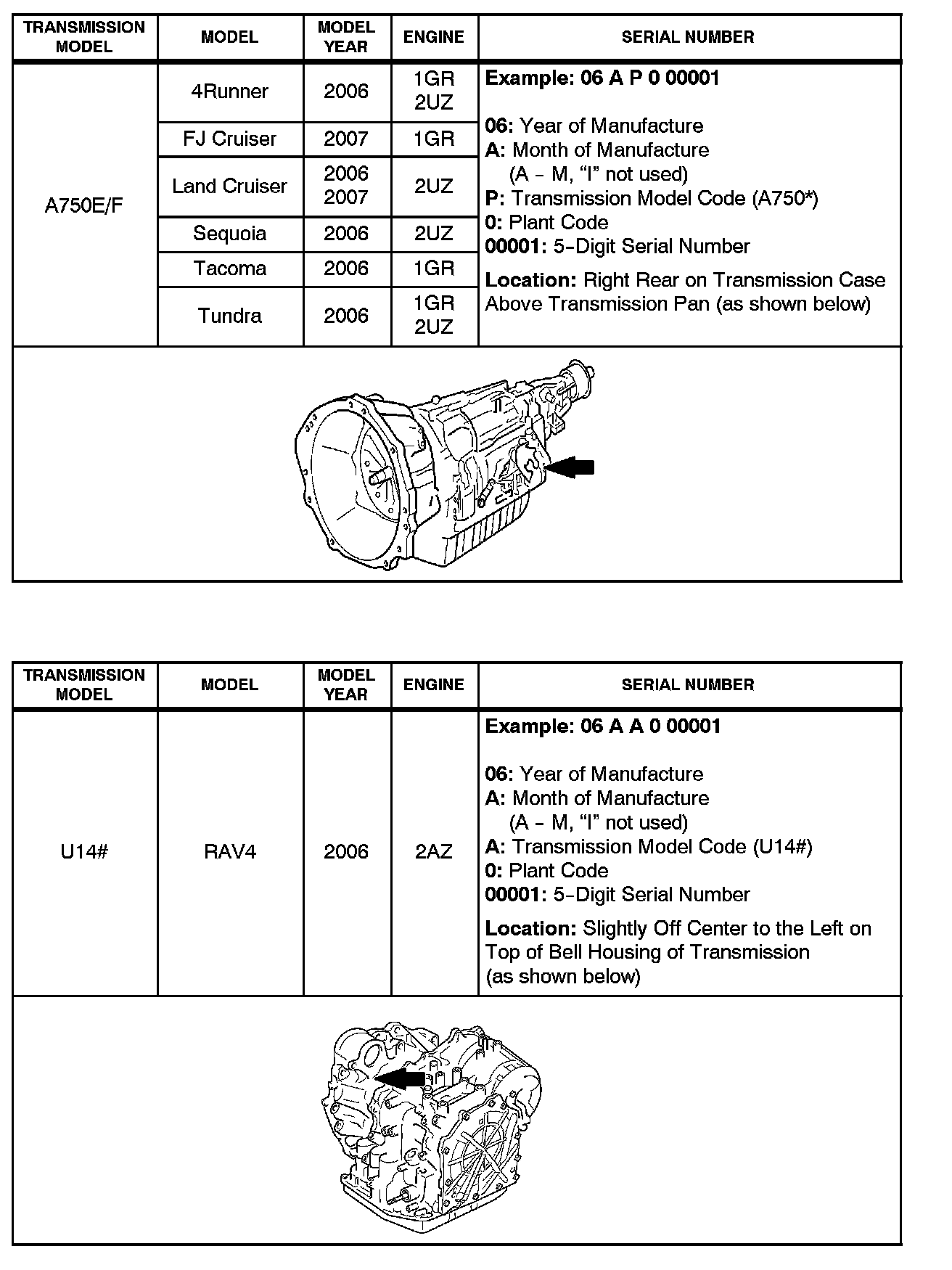

Identification Procedure
