System Diagram

SHIFT LOCK SYSTEM

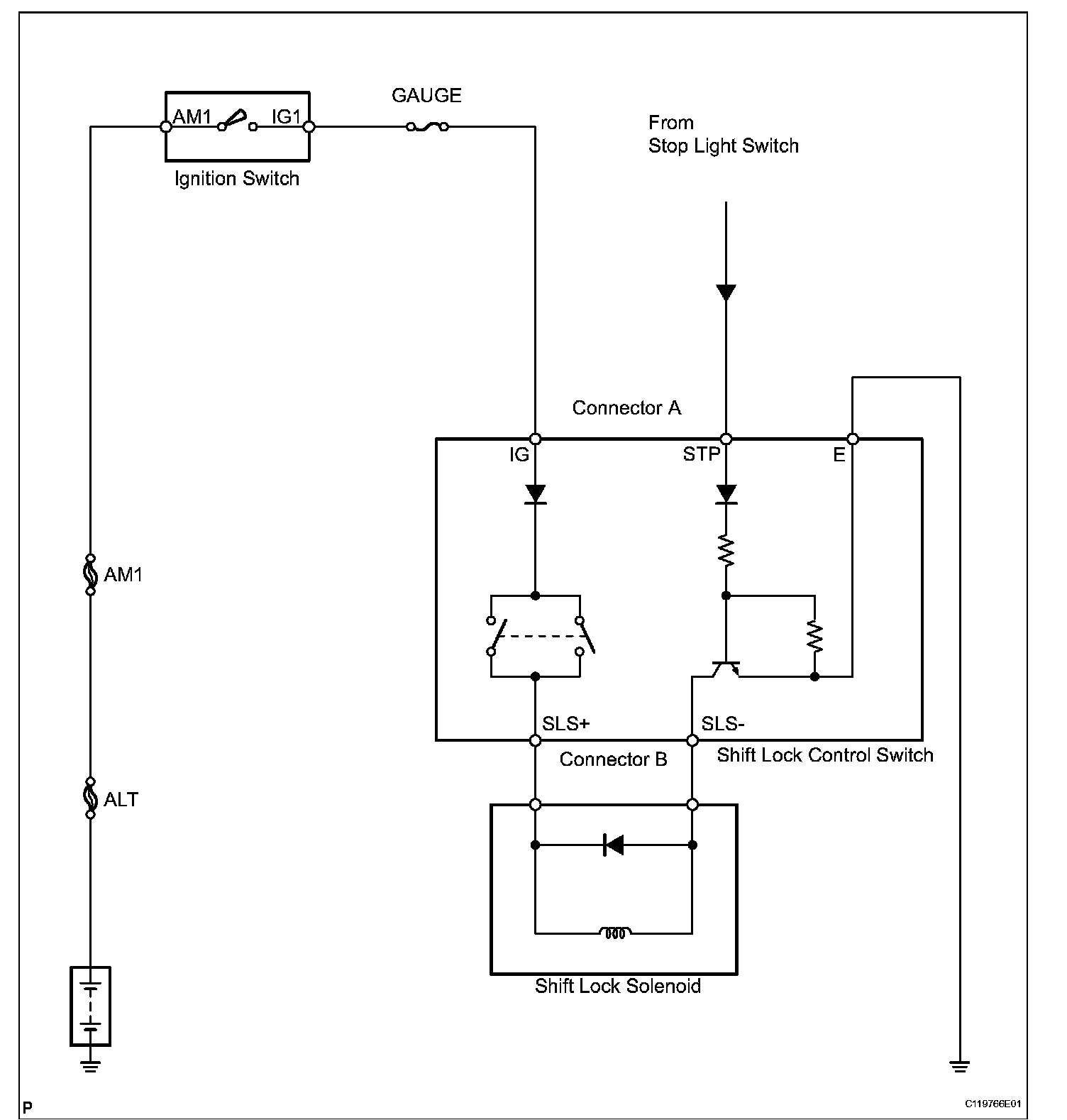

SYSTEM DIAGRAM

SYSTEM DIAGRAM:

HINT: The shift lock control switch turns ON when the shift lever is in the P position, and turns OFF when the shift lever is not in the P position.
