Oil Pump

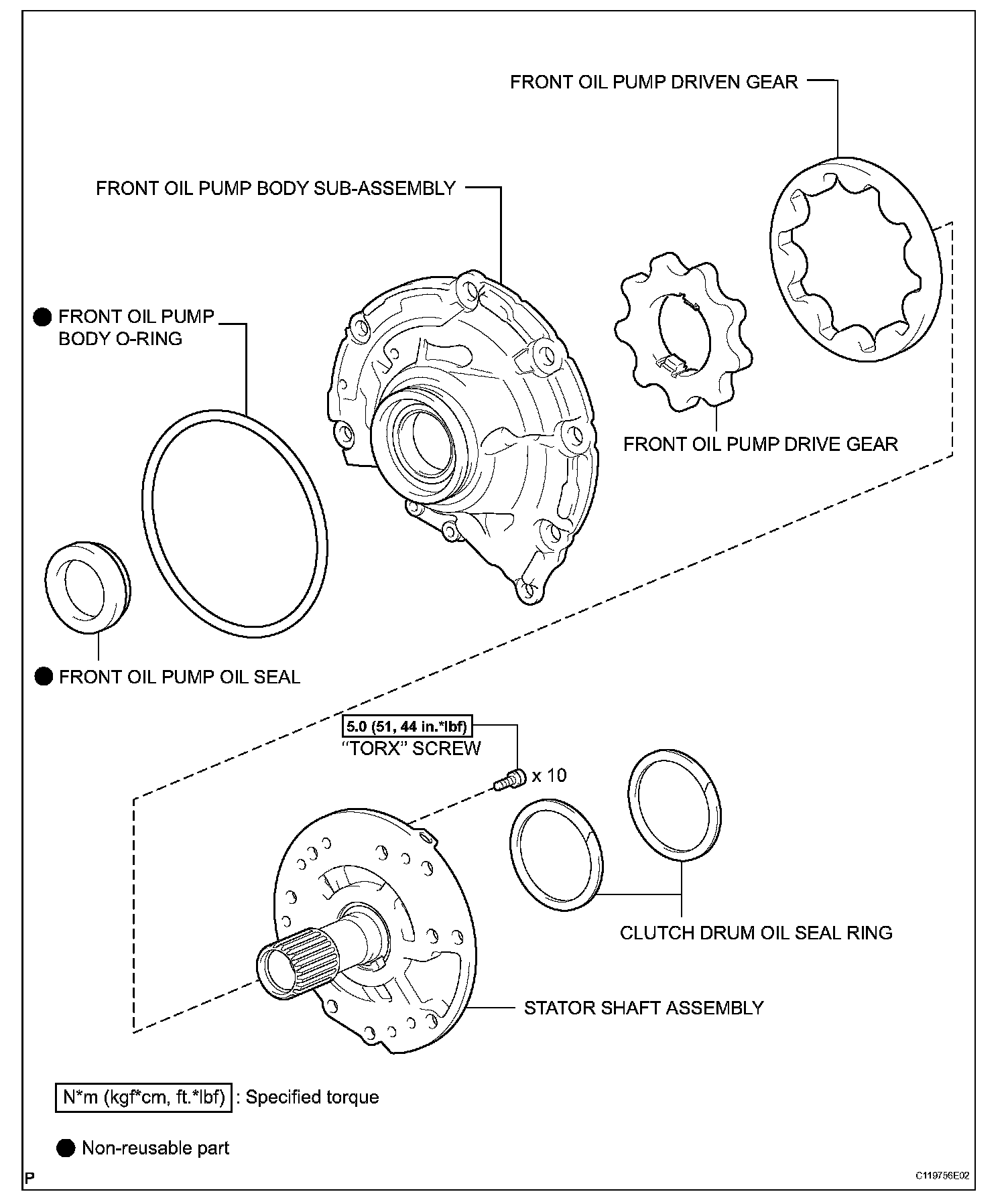

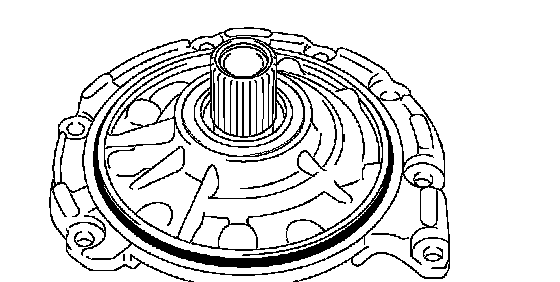

OIL PUMPCOMPONENTS:
DISASSEMBLY
1. REMOVE FRONT OIL PUMP BODY O-RING
a) Remove the O-ring from the oil pump.
2. INSPECT STATOR SHAFT ASSEMBLY
3. REMOVE STATOR SHAFT ASSEMBLY

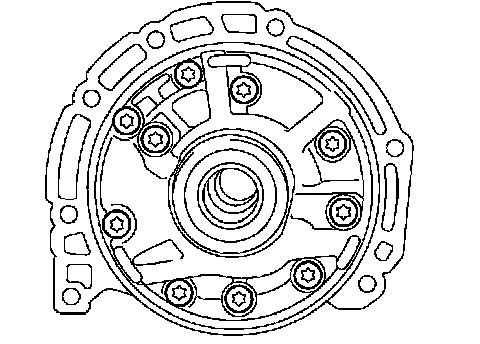

a) Using a T30 "Torx" socket wrench, remove the 10 screws.
4. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY
5. REMOVE FRONT OIL PUMP DRIVE GEAR

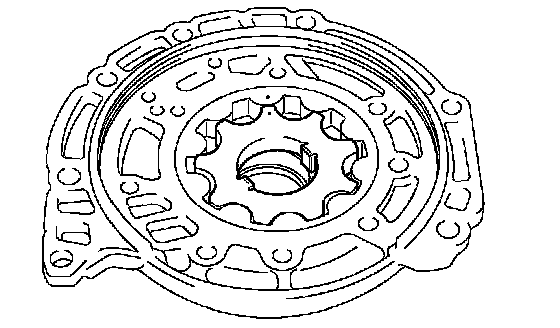

a) Remove the front oil pump drive gear from the oil pump body.
6. REMOVE FRONT OIL PUMP DRIVEN GEAR
a) Remove the front oil pump driven gear from the oil pump body.
7. REMOVE FRONT OIL PUMP OIL SEAL

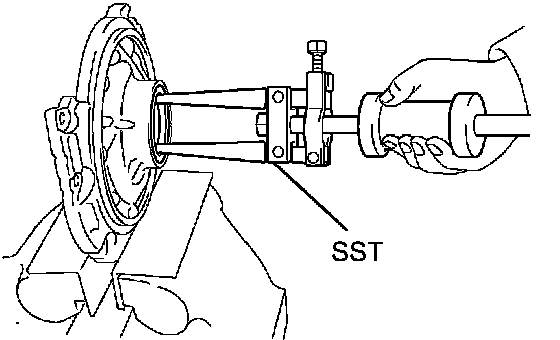

a) Using SST, tap out the oil seal from the oil pump body.
SST 09308-00010
8. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY
9. REMOVE CLUTCH DRUM OIL SEAL RING

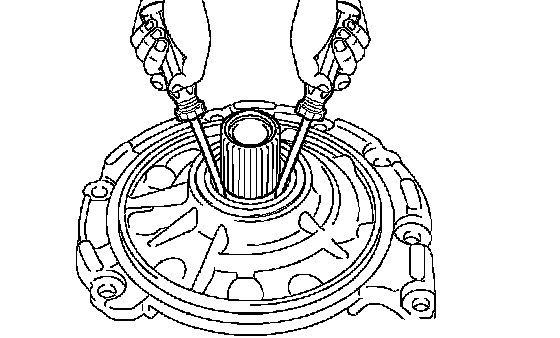

a) Using a screwdriver, remove the 2 oil seals from the stator shaft.
INSPECTION
1. INSPECT STATOR SHAFT ASSEMBLY

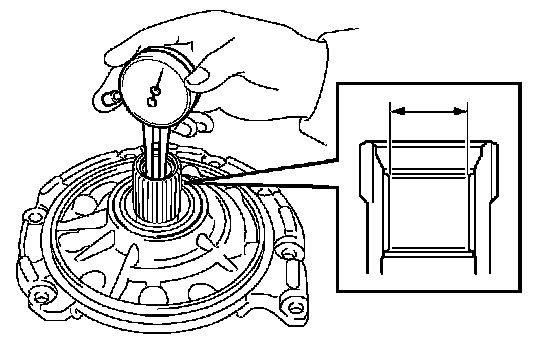

a) Using a dial indicator, measure the inside diameter of the stator shaft bushings.
Standard inside diameter: 21.500 to 21.526 mm (0.84646 to 0.84748 inch)
Maximum inside diameter: 21.526 mm (0.84748 inch)
If the inside diameter is greater than the maximum, replace the stator shaft.

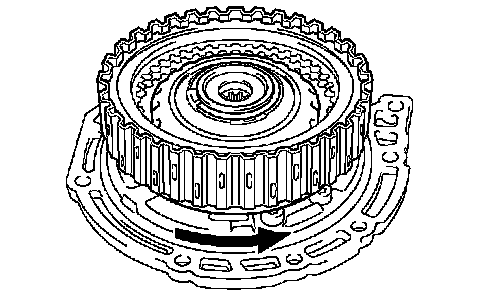

b) Install the input shaft assembly to the stator shaft assembly, check that the input shaft assembly turns smoothly.
NOTICE: Replace the stator shaft assembly with a new one if rough movement or unusual noise is identified. When replacing, inspect the input shaft's contact surface with the bearing and if any damage or discoloring is found, replace the input shaft with a new one.
2. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY
a) Using a feeler gauge, measure the tip clearance between the driven gear teeth and drive gear teeth.
Standard tip clearance: 0.10 to 1.15 mm (0.0039 to 0.0059 inch)
Maximum tip clearance: 0.15 mm (0.0059 inch)
If the tip clearance is greater than the maximum, replace the oil pump body sub-assembly.
b) Push the driven gear to one side of the body. Using a feeler gauge, measure the clearance.
Standard body clearance: 0.07 to 0.15 mm (0.0028 to 0.0059 inch)
Maximum body clearance: 0.15 mm (0.0059 inch)
If the body clearance is greater than the maximum, replace the oil pump body sub-assembly.
c) Using a steel straightedge and feeler gauge, measure the side clearance of both gears.
Standard side clearance: 0.02 to 0.05 mm (0.0008 to 0.0020 inch)
Maximum side clearance: 0.05 mm (0.0020 inch)
If the side clearance is greater than the maximum, replace the drive gear, driven gear or pump body.

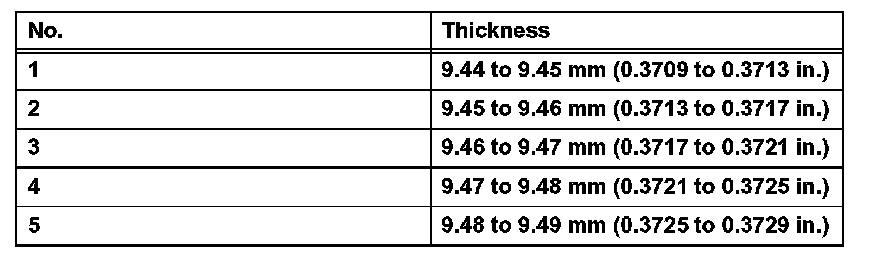

Standard driven gear thickness
Standard driven gear thickness:
3. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

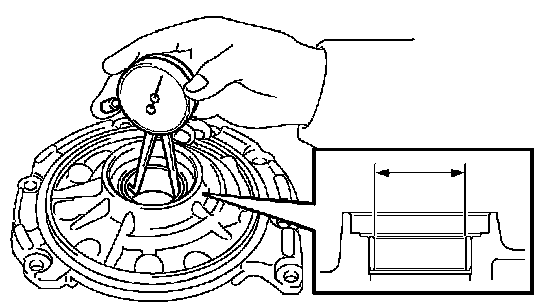

a) Using a caliper gauge, measure the inside diameter of the oil pump body bushing.
Standard inside diameter: 38.113 to 38.138 mm (1.5005 to 1.5015 inch)
Maximum inside diameter: 38.138 mm (1.5015 inch)
If the inside diameter is greater than the maximum, replace the oil pump body sub-assembly.
REASSEMBLY
1. INSTALL CLUTCH DRUM OIL SEAL RING

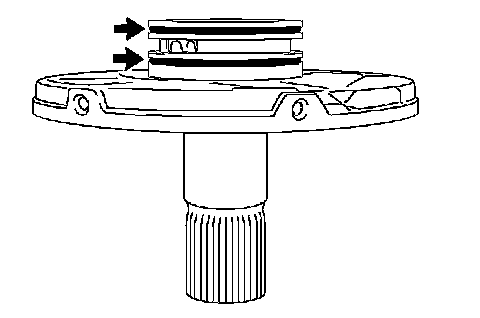

a) Install the 2 seal rings to the stator shaft assembly.
2. INSTALL FRONT OIL PUMP OIL SEAL

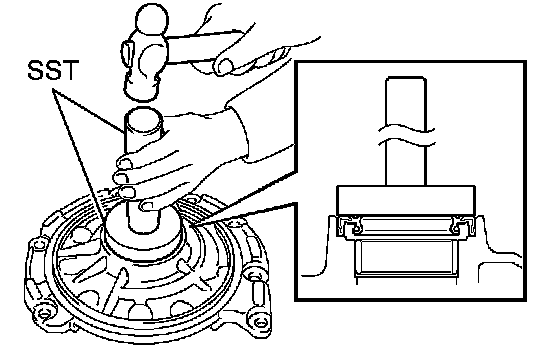

a) Using SST and a hammer, tap in the oil seal to the oil pump body.
SST 09950-60010 (09951-00550), 09950-70010 (09951-07100)
Standard oil seal depth: 0 ±0.5 mm (0 ±0.020 inch)
3. INSTALL FRONT OIL PUMP DRIVEN GEAR

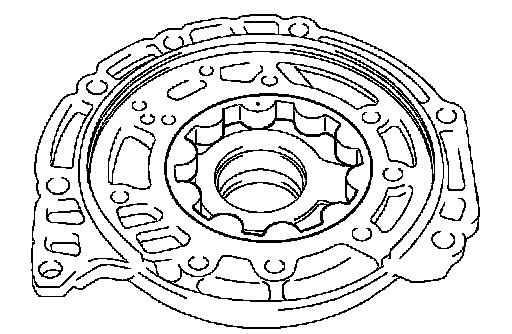

a) Apply ATF to the front oil pump driven gear and install it to the oil pump body with the marked side facing upward.
4. INSTALL FRONT OIL PUMP DRIVE GEAR

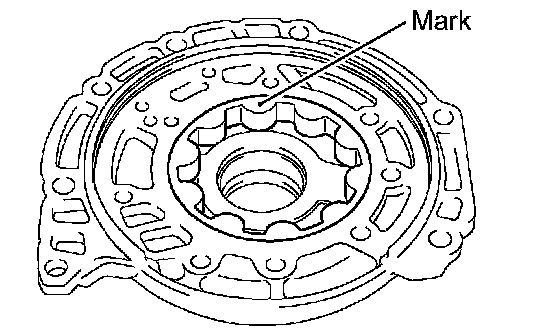

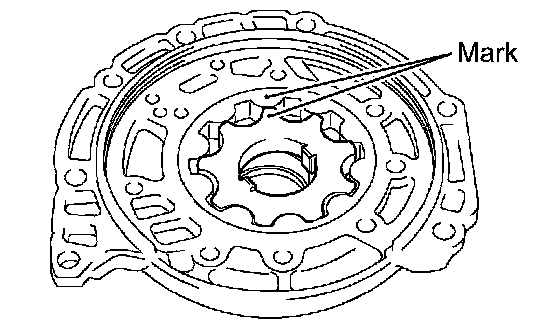

a) Apply ATF to the front oil pump drive gear and install it to the oil pump body with the marked side facing upward.
5. INSTALL STATOR SHAFT ASSEMBLY

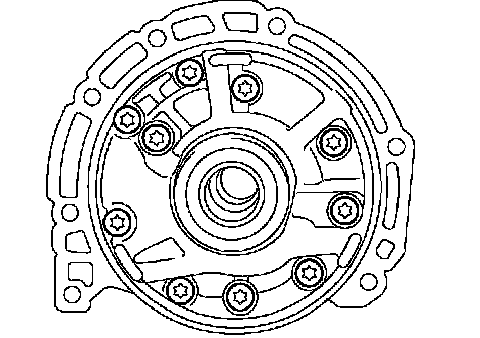

a) Using a T30 "Torx" socket wrench, install the 10 screws.
6. INSPECT OIL PUMP ASSEMBLY

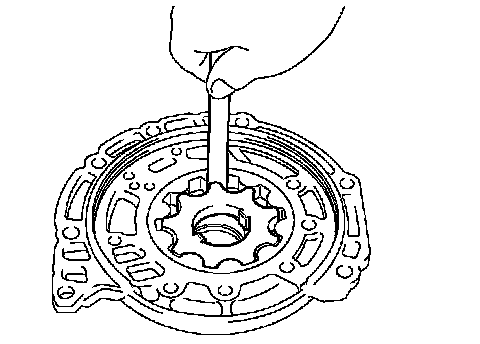

a) Turn the drive gear with 2 screwdrivers and make sure it rotates smoothly.
NOTICE: Be careful not to damage the lip of the oil seal.
7. INSTALL FRONT OIL PUMP BODY O-RING

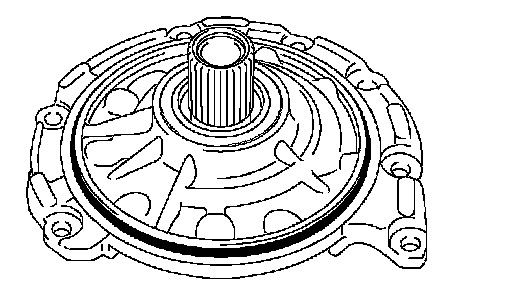

a) Apply ATF to the O-ring and install it to the oil pump.
