Rear Wheel Alignment
REAR WHEEL ALIGNMENTADJUSTMENT
1. INSPECT TIRE
a) Inspect the tire.
2. INSPECT VEHICLE HEIGHT
a) Inspect the vehicle height.
NOTICE: Before inspecting wheel alignment, adjust vehicle height to the specified value.

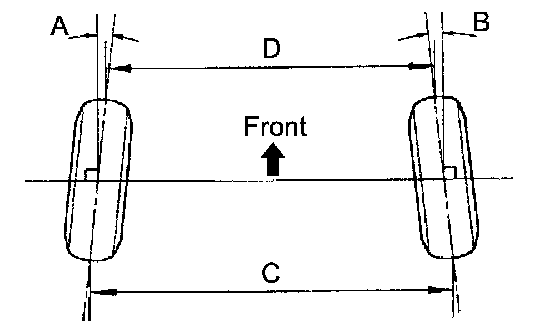

3. INSPECT TOE-IN
Standard toe-in
Standard toe-in:
If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
4. INSPECT CAMBER
a) Install the camber-caster-kingpin gauge or position the vehicle on the wheel alignment tester.
b) Inspect the camber.
Standard camber
Standard camber:
If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them as necessary because the camber is not adjustable.
