Ignition Switch: Testing and Inspection

IGNITION SWITCH

INSPECTION

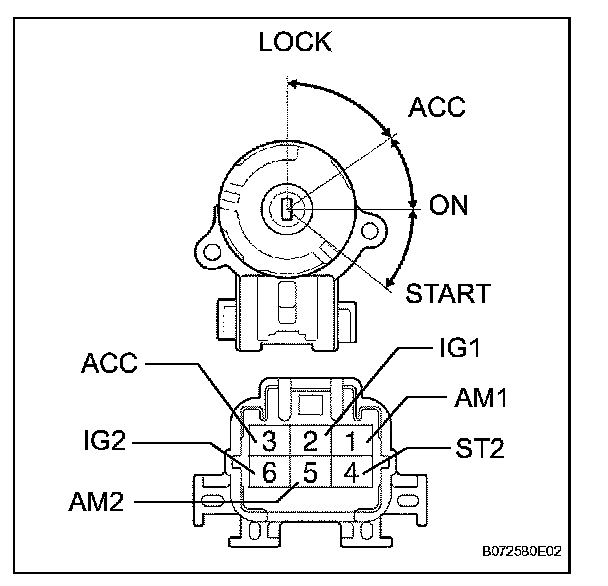

1. INSPECT IGNITION SWITCH ASSEMBLY

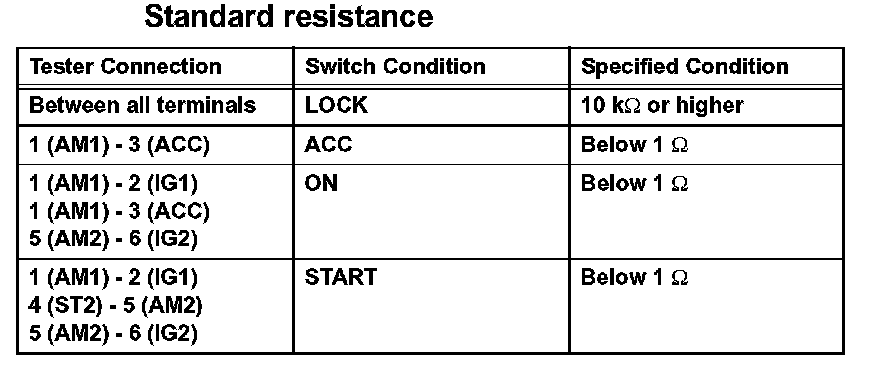

a. Measure the resistance of the switch.
If the result is not as specified, replace the ignition switch assembly.
