Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Standard Bolt

Standard Bolt

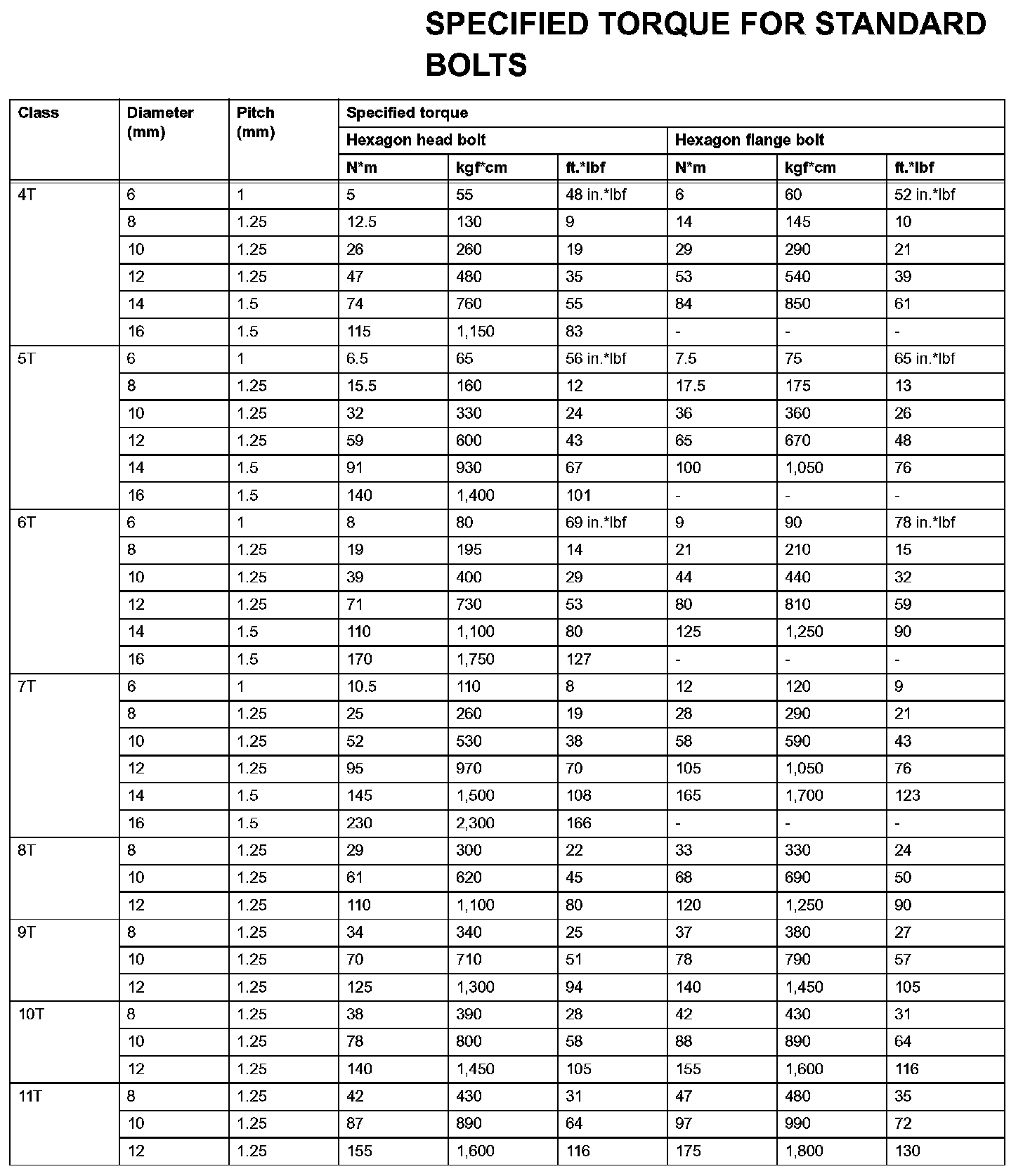

Standard Bolt (Part 1):

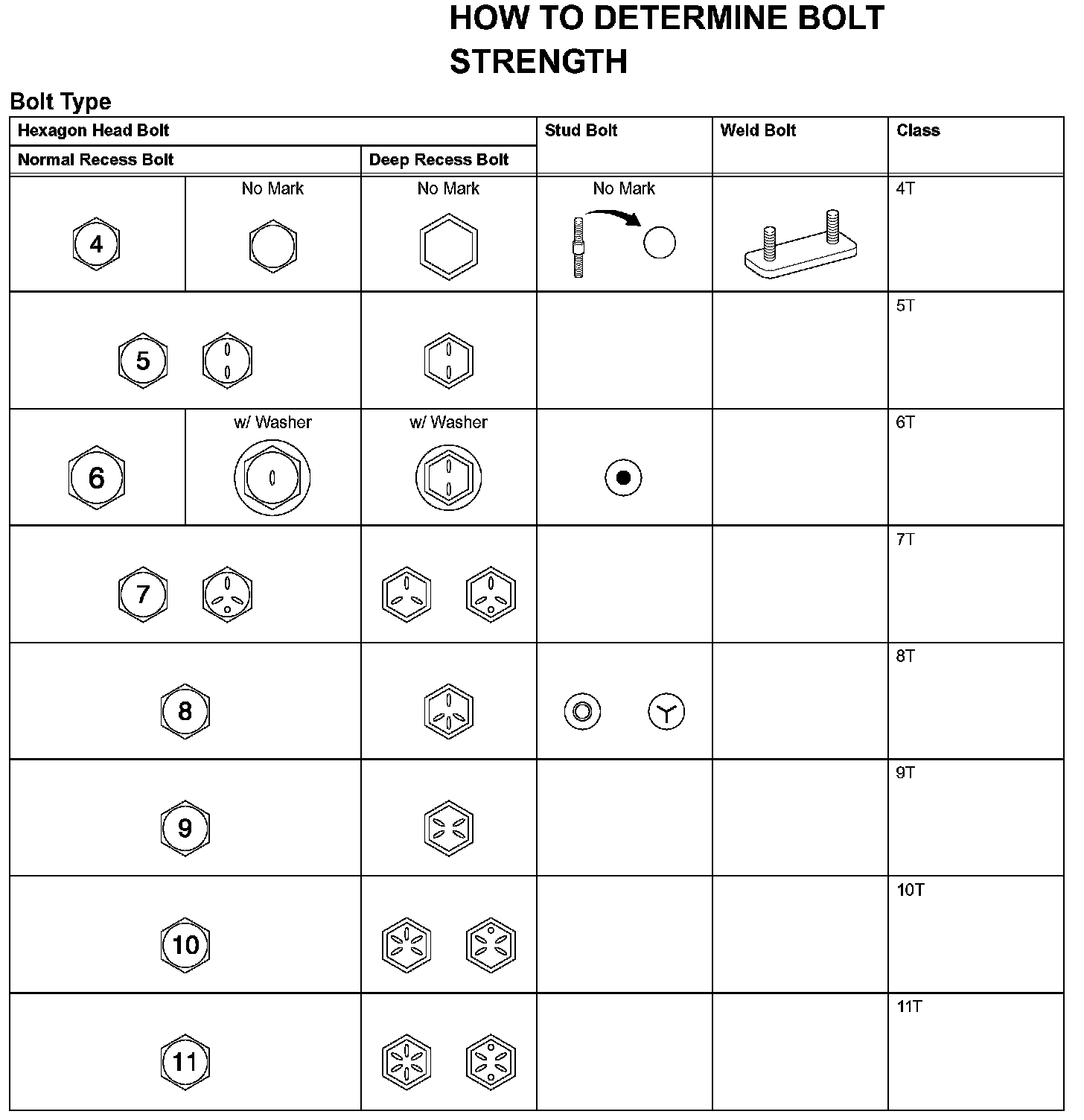

Standard Bolt (Part 2):
