Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque

Torque

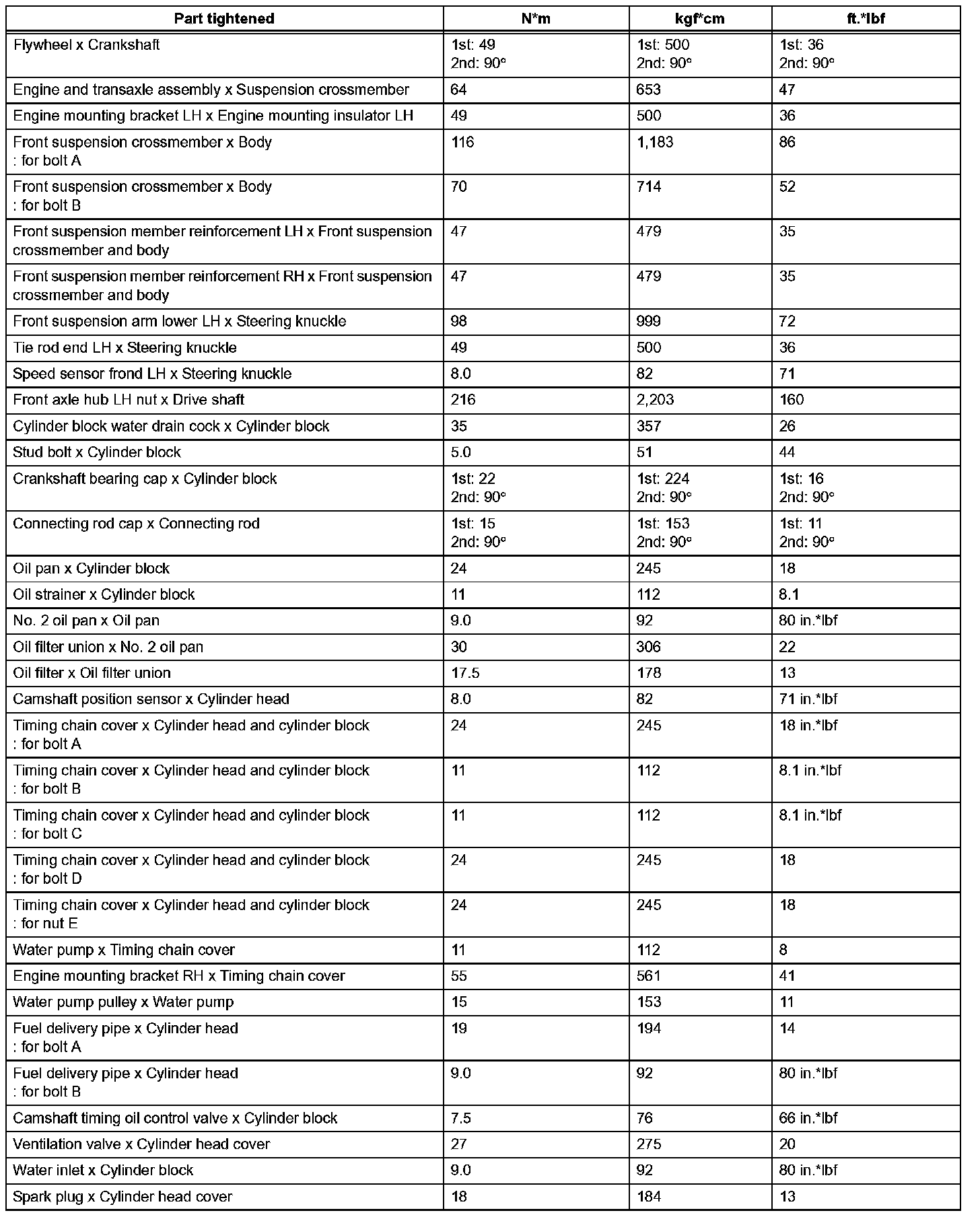

Engine Mechanical-Torque Specifications (Part 1):

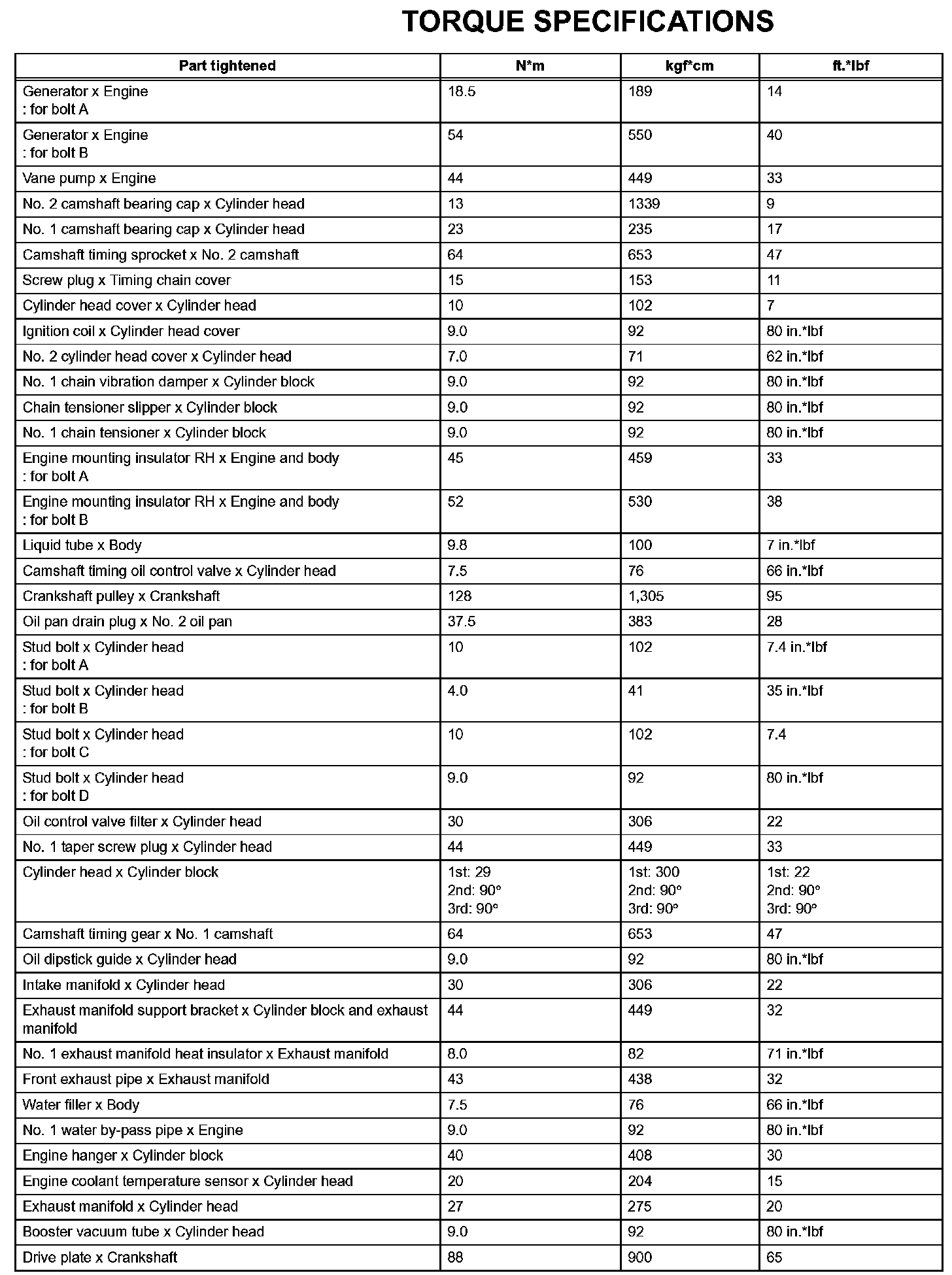

Engine Mechanical-Torque Specifications (Part 2):
