Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Torque

Torque

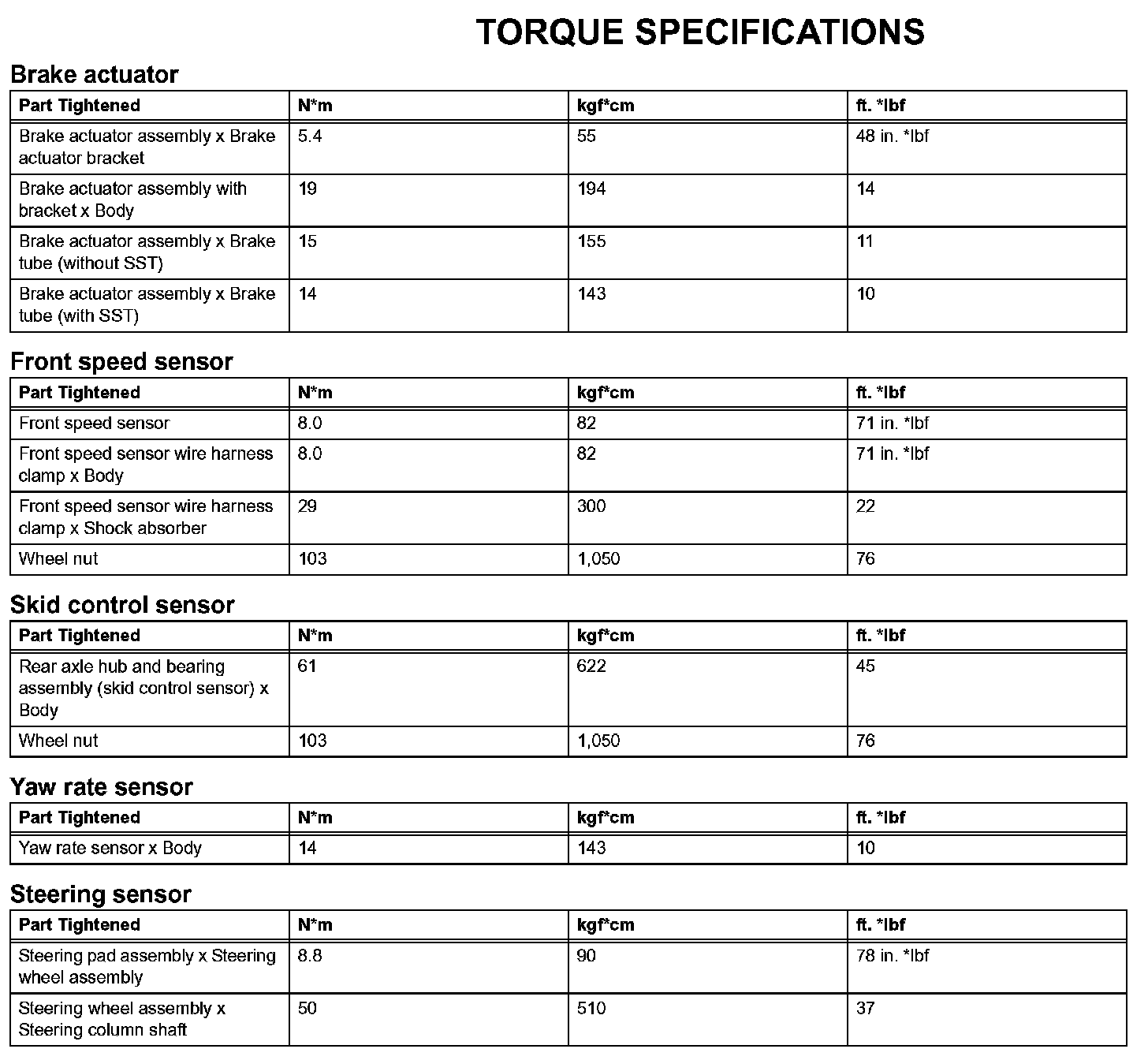

Brake Control-Torque Specifications:

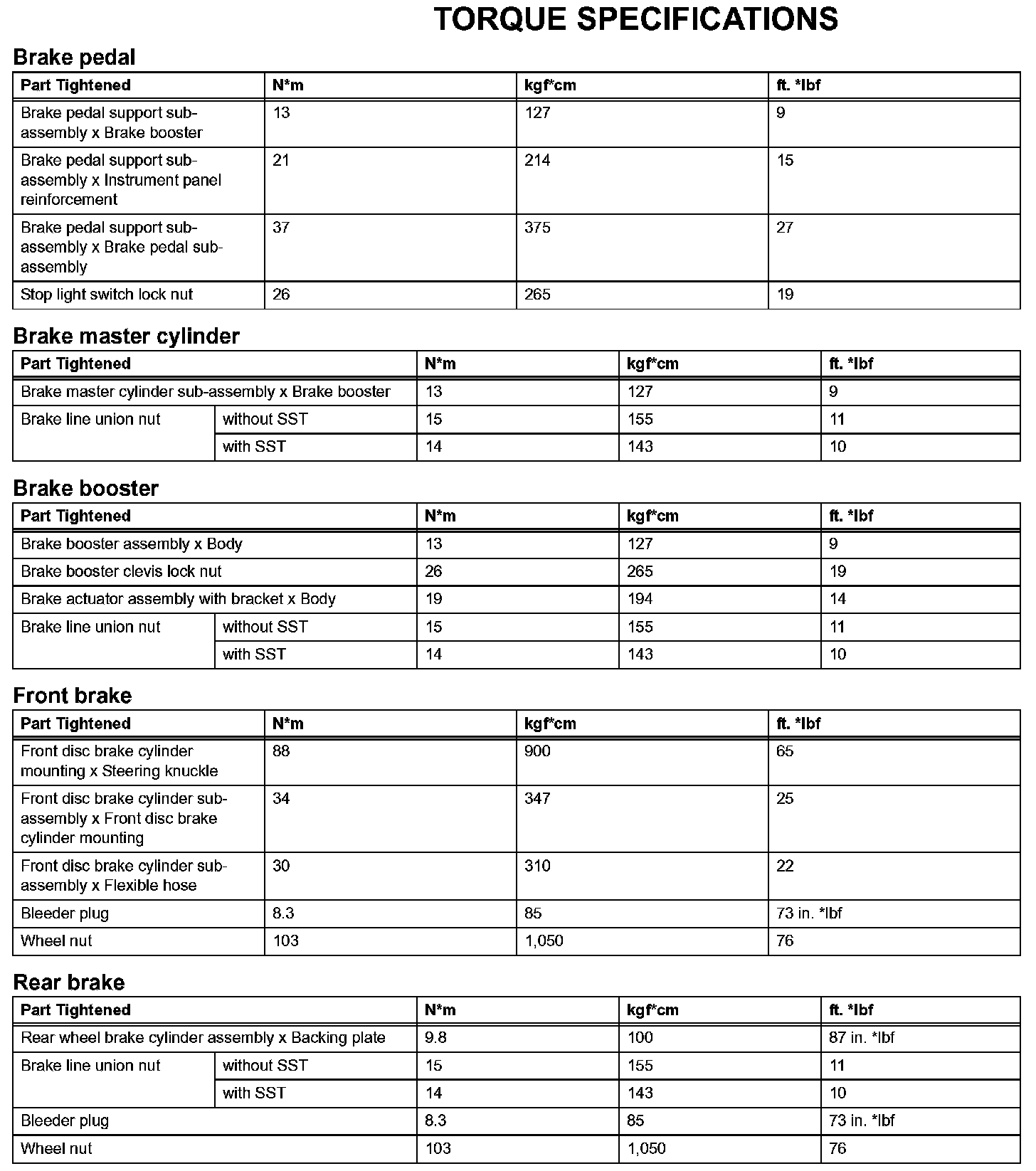

Brake-Torque Specifications:
