Front Wheel Alignment

Front Wheel Alignment

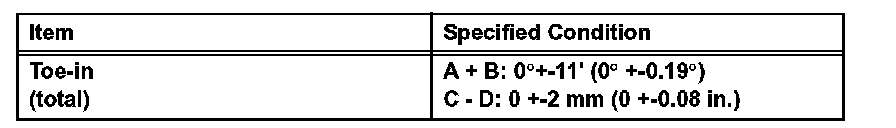

Standard toe-in:

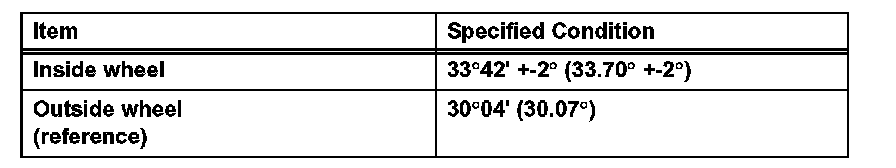

Standard wheel turning angle:




Standard camber, caster and steering axis inclination:
