Component Tests and General Diagnostics
INSPECTION1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
a. Check the buckle switch.
1. Fasten the seat belt (buckle switch is ON).

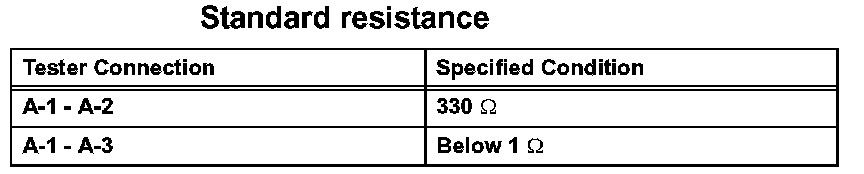

2. Measure the resistance between the terminals.
3. Release the seat belt (buckle switch is OFF).

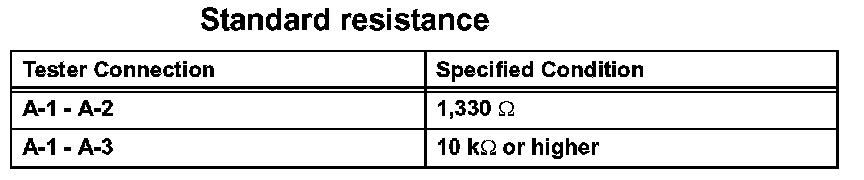

4. Measure the resistance between the terminals.
If the result is not as specified, replace the inner belt assembly.

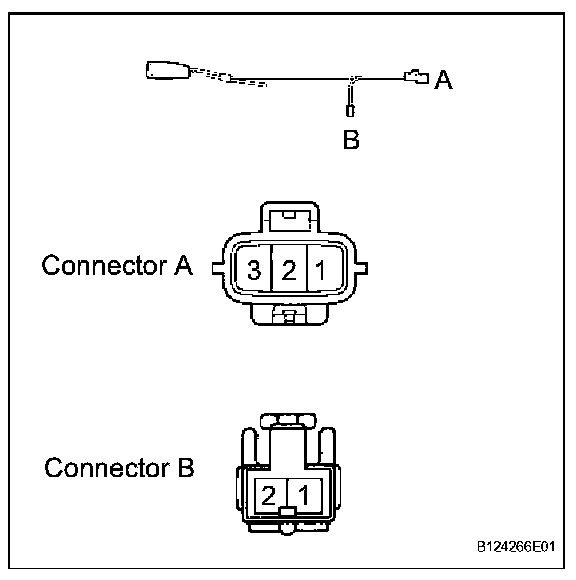

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
a. Check the buckle switch.
1. Fasten the seat belt (buckle switch is ON).

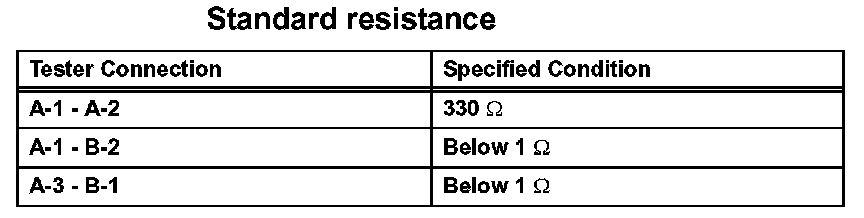

2. Measure the resistance between the terminals.
3. Release the seat belt (buckle switch is OFF).

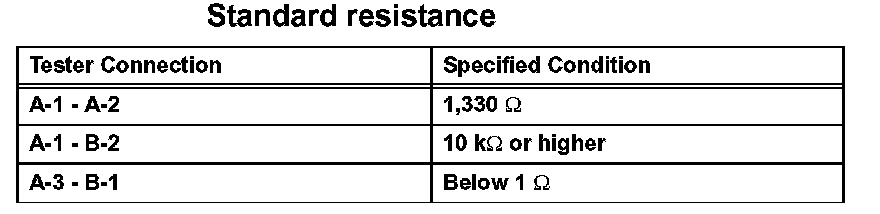

4. Measure the resistance between the terminals.
If the result is not as specified, replace the inner belt assembly.

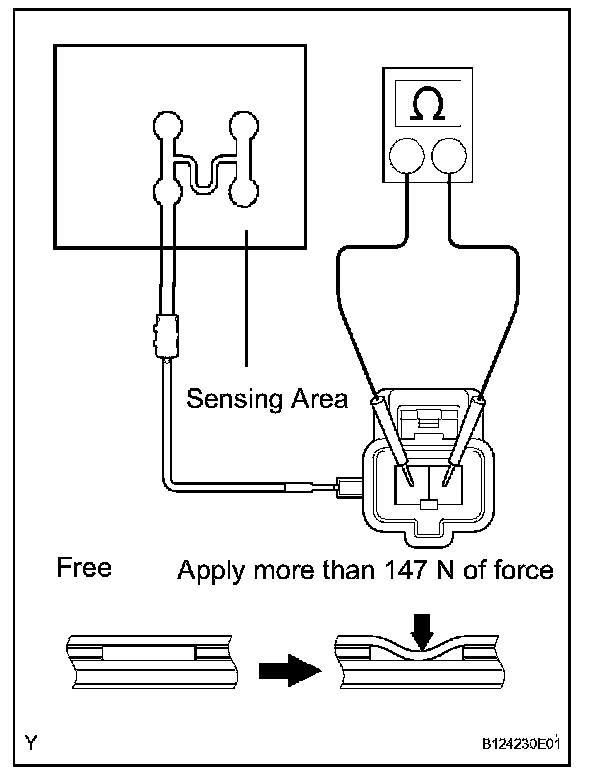

3. INSPECT OCCUPANT DETECTION SENSOR

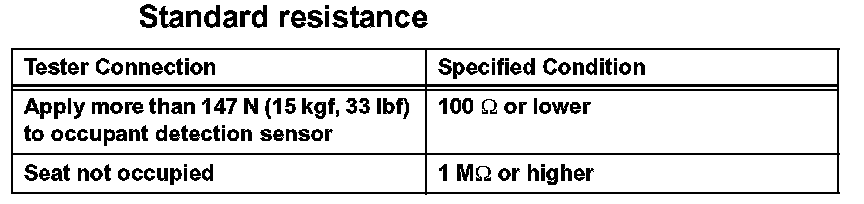

a. Measure the resistance of the sensor.
If the result is not as specified, replace the front seat cushion pad.
