Rear Seat Inner Belt
REMOVAL1. REMOVE REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY
2. REMOVE REAR SEAT INNER BELT ASSEMBLY LH
a. Remove the bolt and inner belt.
3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH
a. Remove the bolt and inner belt.
4. REMOVE REAR SEATBACK ASSEMBLY LH
5. REMOVE REAR SEATBACK ASSEMBLY RH
6. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET SUB-ASSEMBLY
a. Remove the 4 bolts and anchor bracket.
INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET SUB-ASSEMBLY
a. Install the anchor bracket with the 4 bolts.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
2. INSTALL REAR SEATBACK ASSEMBLY LH
3. INSTALL REAR SEATBACK ASSEMBLY RH
4. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

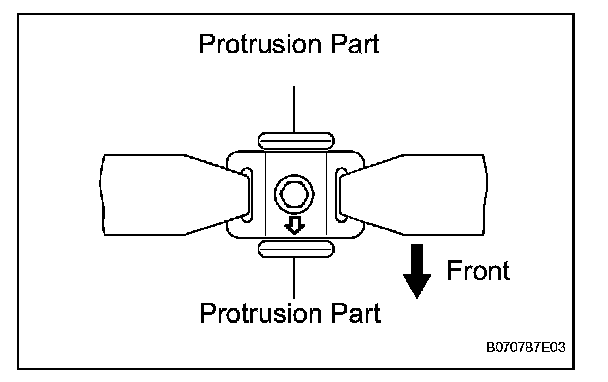

a. Install the floor anchor and belt with the bolt, as shown in the illustration.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.
5. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
a. Install the floor anchor and belt with the bolt, as shown in the illustration.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
NOTE: Make sure that the anchor part does not run onto the protruding part of the floor panel.
6. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY
