Removal and Installation
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the RH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM BOARD RH
4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
5. REMOVE REAR DOOR SCUFF PLATE RH
6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
7. REMOVE CENTER PILLAR GARNISH LOWER RH
8. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
CAUTION: Carefully read the notices for the pretensioner in the SRS airbag system section and the front seat outer belt section.
a. Remove the floor anchor cover.
b. Remove the bolt and the outer belt on the floor anchor side.
c. Remove the shoulder anchor cover.
d. Remove the bolt and outer belt on the shoulder anchor side.

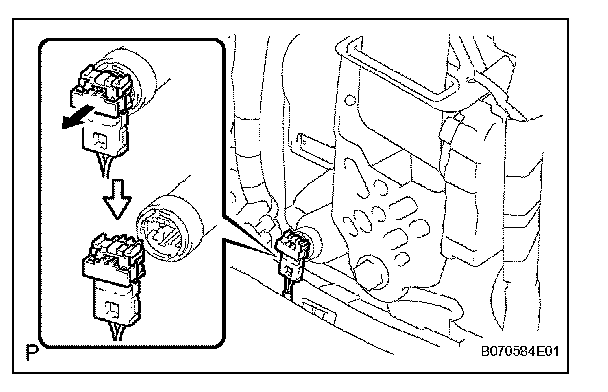

e. Disconnect the pretensioner connector as shown in the illustration.
f. Remove the 2 bolts on the retractor side and remove the outer belt completely.
9. REMOVE CENTER PILLAR GARNISH UPPER RH
10. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
a. Remove the 2 bolts and anchor adjuster.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the RH side.
- A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
a. Install the anchor adjuster with the 2 bolts.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
2. INSTALL CENTER PILLAR GARNISH UPPER RH
3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
a. Install the outer belt with the 2 bolts on the retractor side.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf) for upper bolt
42 N.m (428 kgf.cm, 31 ft.lbf) for lower bolt
b. Connect the pretensioner connector as shown in the illustration.
c. Install the outer belt with the bolt on the shoulder anchor side.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
d. Install the shoulder anchor cover.
e. Install the outer belt with the bolt on the floor anchor side.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
f. Install the floor anchor cover.
g. With the belt installed, check that the belt locks when it is pulled out quickly.
NOTE: The check should be performed with the outer belt assembly installed.
If the operation is not as specified, replace the belt.
h. Check the fastening function of the child restraint system.
NOTE: The check should be performed with the outer belt installed.
1. When the belt is pulled out fully, the belt should automatically try to retract.
2. After the belt has fully retracted, the belt should be able to be pulled out and retracted again.
If the operation is not as specified, replace the belt.
4. INSTALL CENTER PILLAR GARNISH LOWER RH
5. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
6. INSTALL REAR DOOR SCUFF PLATE RH
7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
8. INSTALL COWL SIDE TRIM BOARD RH
9. INSTALL FRONT DOOR SCUFF PLATE RH
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
